Lazer Land Rover Defender (2020-Present) – ‘A’ Pillar Mounting Kit – For Utility-25 VIFK-DEF2020-UT25
Original price was: 95,20€.82,61€Current price is: 82,61€. WITH TAX
Lazer Land Rover Defender (2020-Present) – ‘A’ Pillar Mounting Kit – For Utility-25 VIFK-DEF2020-UT25

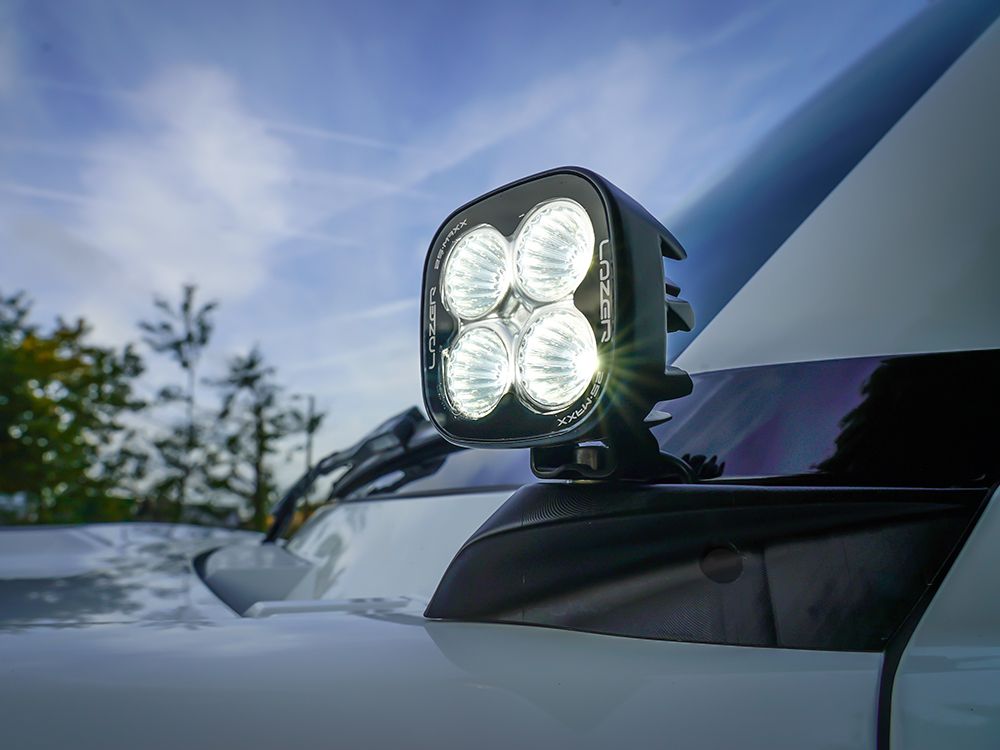

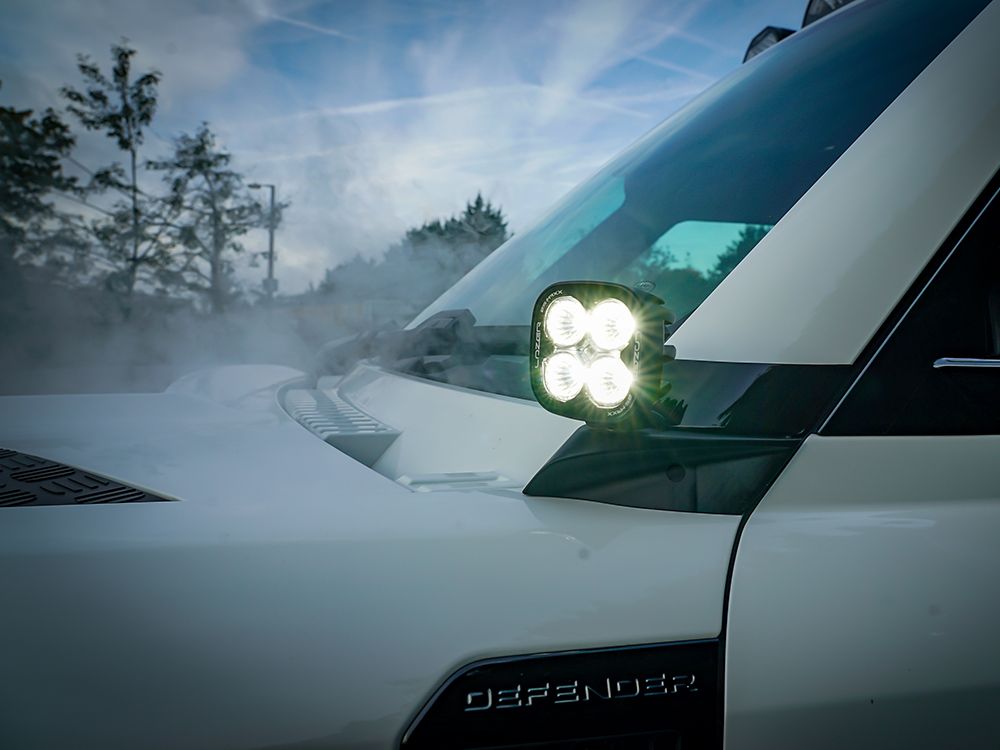

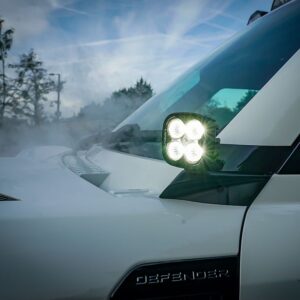

A pair of custom-made mounting brackets, designed around the A-pillar of the Land Rover Defender (2020+), to facilitate the mounting of Utility-25 or Utility-25 MAXX LED work lights. The brackets themselves locate in the original fixtures on the Defender, replacing a small piece of trim material at the base of each A-pillar, and with no drilling required. Made from a high-strength composite material, with matt black finish, the end-result has a real OE look and finish.
Optimised for mounting either Utility-25 or Utility-25 MAXX work lights, the brackets include design features to facilitate the installation of the lights as well as routing of the lamp cables and wiring.
LIGHTS AND WIRING SOLD SEPARATELY.
Delivery time: from 1 to 7 days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).Lazer Land Rover Defender (2020-Present) – ‘A’ Pillar Mounting Kit – For Utility-25 VIFK-DEF2020-UT25
PRODUCT FEATURES
A-pillar mounting brackets comprising left-hand and right-hand parts
Custom fit for Land Rover Defender (MY 2020+)
Compatible with: Utility-25 / Utility-25 MAXX LED work lights
Produced from high strength, UV-stable, composite material
Easy installation with no drilling required
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
| 1x Utility-25 | 1x Utility-25 MAXX | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 360 gr | 360 gr |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 3016 Lm | 4560 Lm |
| Colour Temperature | 5000K | 5000K |
| Power Consumption | 25 Watts | 45 Watts |
| Current Draw (at 14.4V) | 1.6 Amps | 3.1 Amps |
| Connector | 2-Pin Deutsch DT (+28cm Cable) | 2-Pin Deutsch DT (+28cm Cable) |
| CERTIFICATION | ||
| IP Rating # | IP68 / IP69K | IP68 / IP69K |
| EMC Standard | ECE R10 | ECE R10 |
| EMC Protection | CISPR-25 (Class 5) |
CISPR-25 (Class 4) |
| Salt Spray Test | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 |
| OPERATING CONDITIONS | ||
| Operating Temperature | -40deg C … +90degC | -40deg C … +90degC |
| Vibration (BS EN 60068-2-64) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |
| DIMENSIONS | ||
| Width | 80 mm | 80 mm |
| Depth | 56 mm | 56 mm |
| Height | 80 mm | 80 mm |

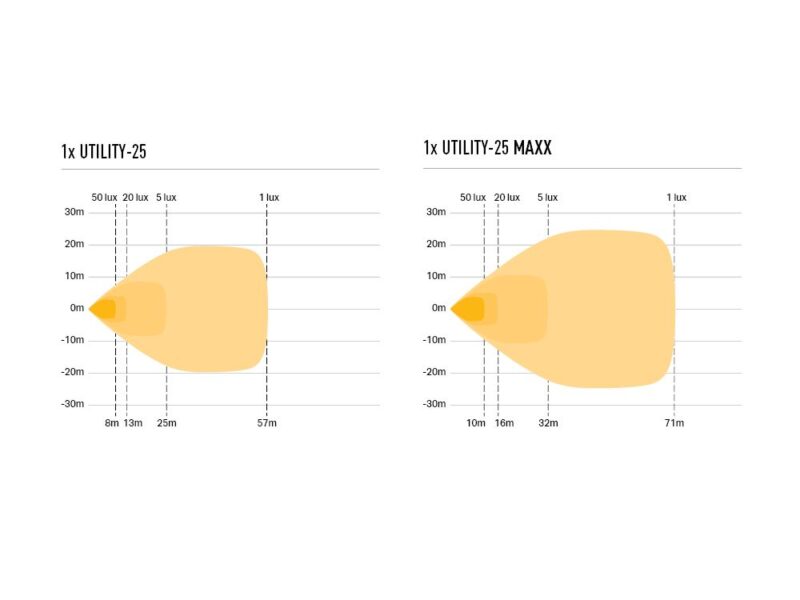

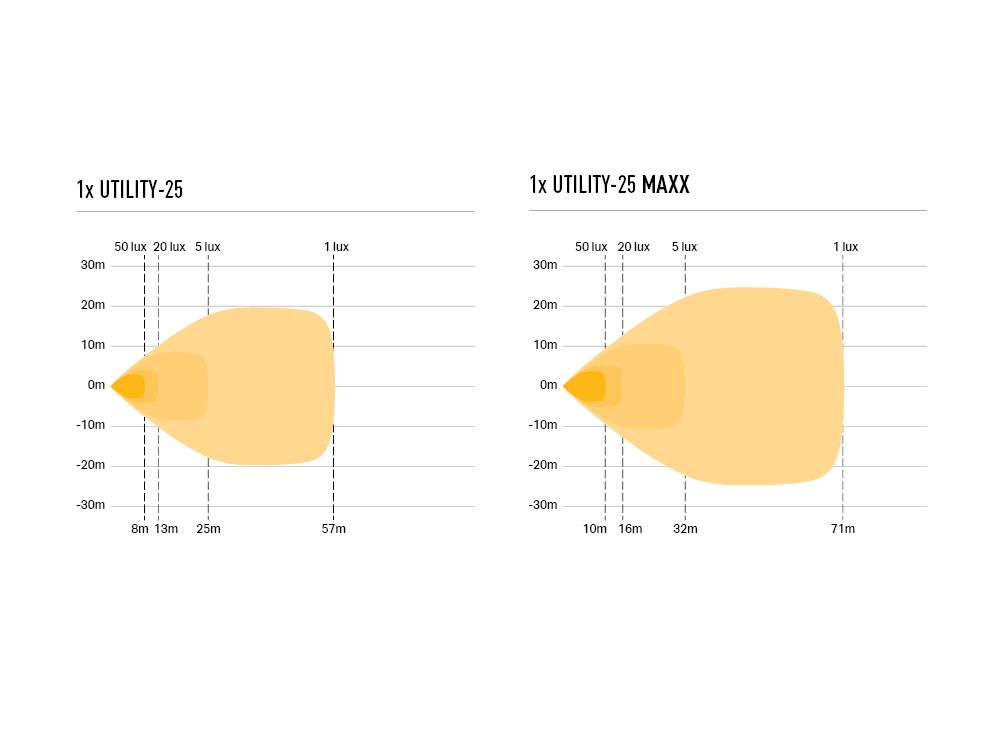

| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 78o / 78o | 78o / 78o |
| 1 Lux | 57m | 71m |
| 5 Lux | 25m | 32m |
| 20 Lux | 13m | 16m |
| 50 Lux * | 8m* | 10m* |

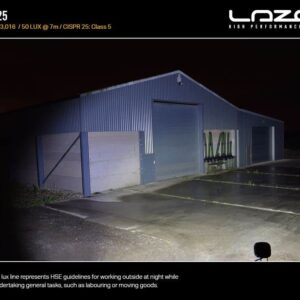

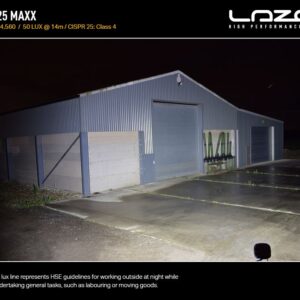

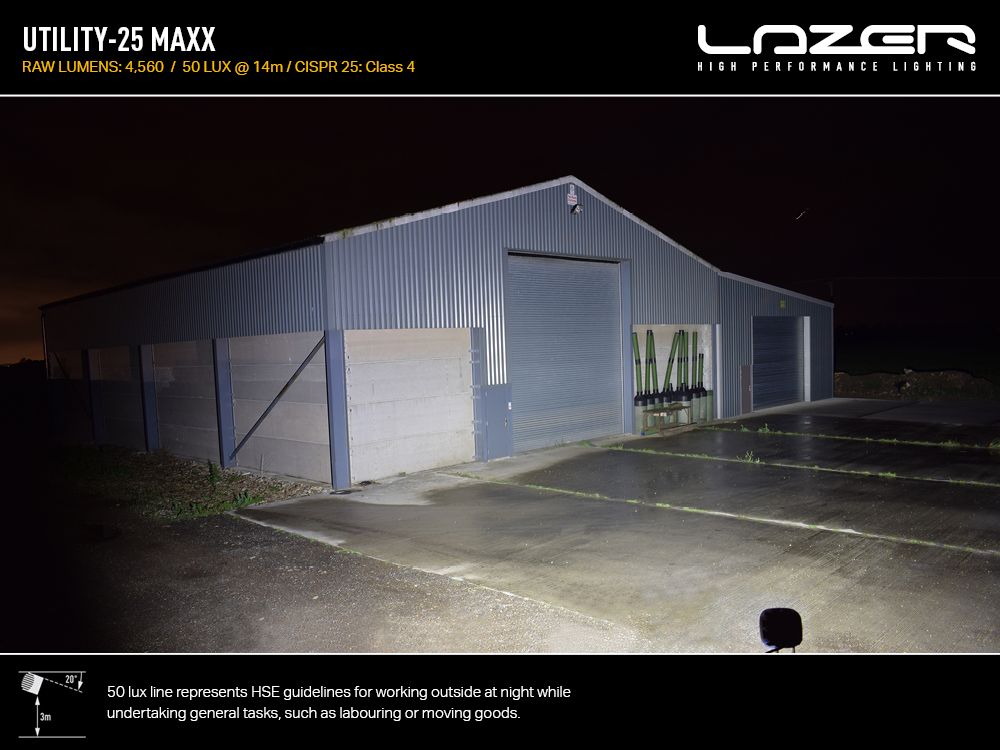

* – 50Lx represents HSE guidelines for effective illumination when working outdoors at night.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

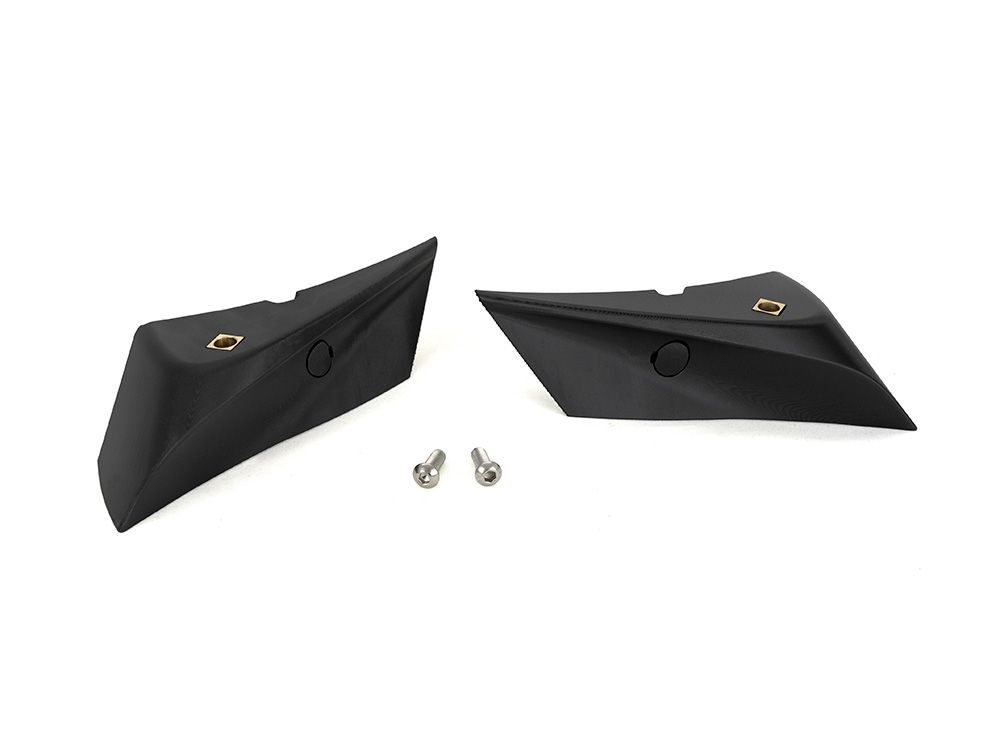

WHAT’S INCLUDED
- LH/RH Mounting Brackets
- M6 Fasteners
Fitting instructions available in the downloads section below.
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
