Lazer Lamps TOYOTA HILUX INVINCIBLE-X (2017+) GRILLE KIT
PRODUCT FEATURES
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Toyota Hilux Invincible X (or country specific equivalent spec)
For use with ST4 Evolution High Performance LED Spotlights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
Based on: x2 ST4 Evolution LED Lamps.
Voltage Range | 10-32V |
LED Life | 50,000 hours |
Weight | 2 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 8272 Lm |
Total Driver ‘FOV’ Flux † | 4980 Lm |
Number of High Output LEDs | 2 x 4 |
Power Consumption | 94 Watts |
Current Draw (at 14.4V) | 6.6 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
E-Mark Ref | 10 x2 |

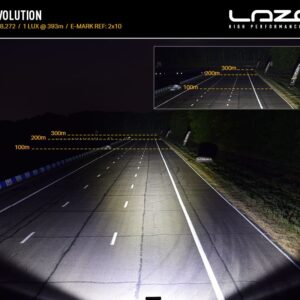

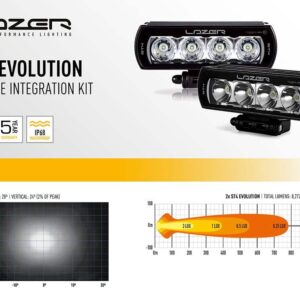

PHOTOMETRIC DATA | |
Horizontal Beam Angle | 28 Degrees |
0.25 lx Line | 786 metres |
0.5 lx Line | 555 metres |
1 lx Line | 393 metres |
3 lx Line | 227 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x ST4 Evolution LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
VIDEOS
