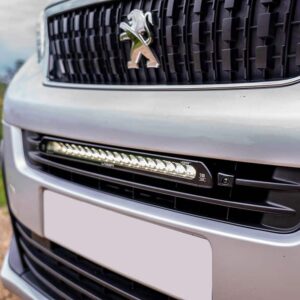

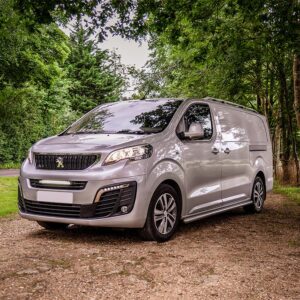

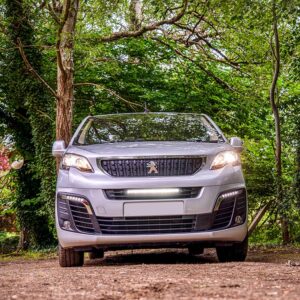

Lazer Lamps PEUGEOT EXPERT (2016+) GRILLE KIT
PRODUCT FEATURES

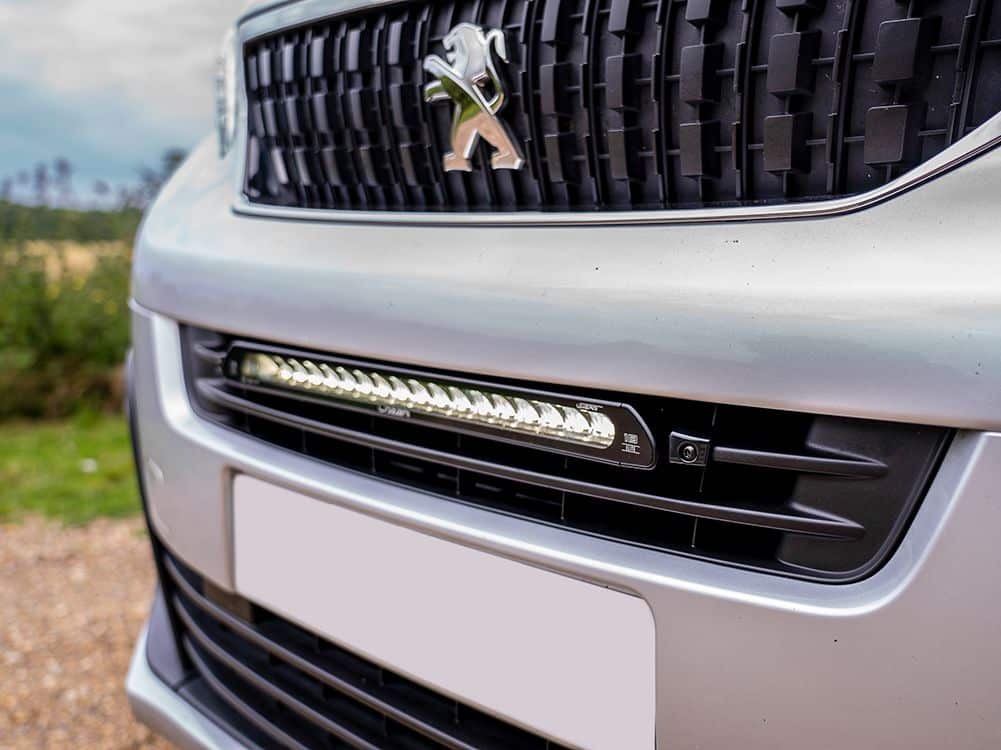

Bespoke vehicle integration kit for Lazer LED Spotlight installation

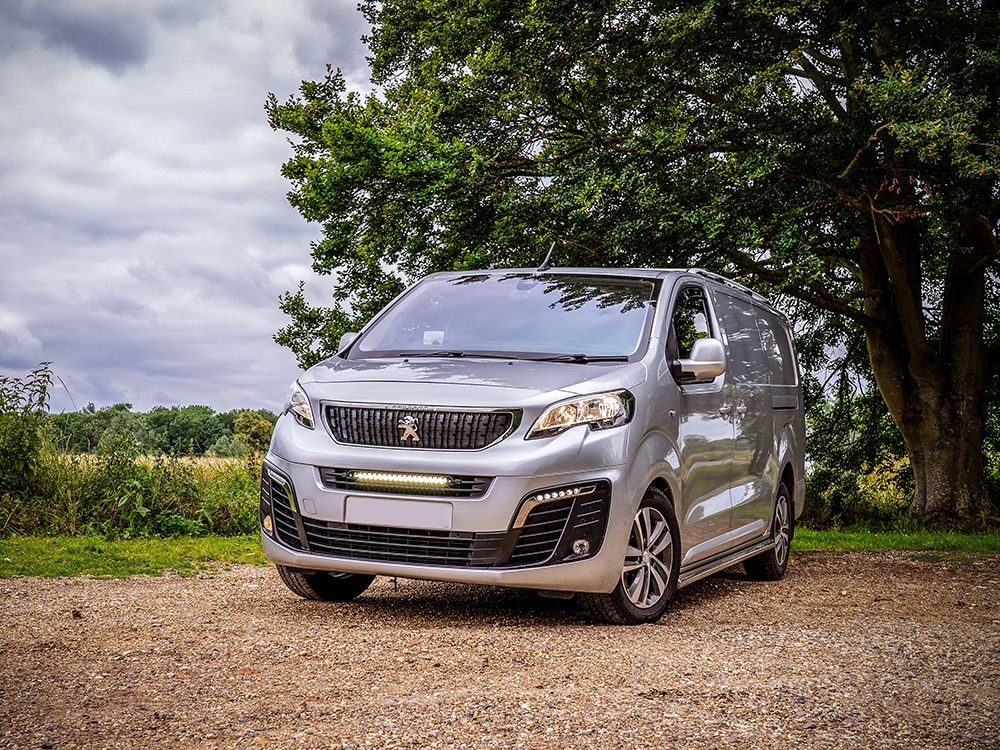

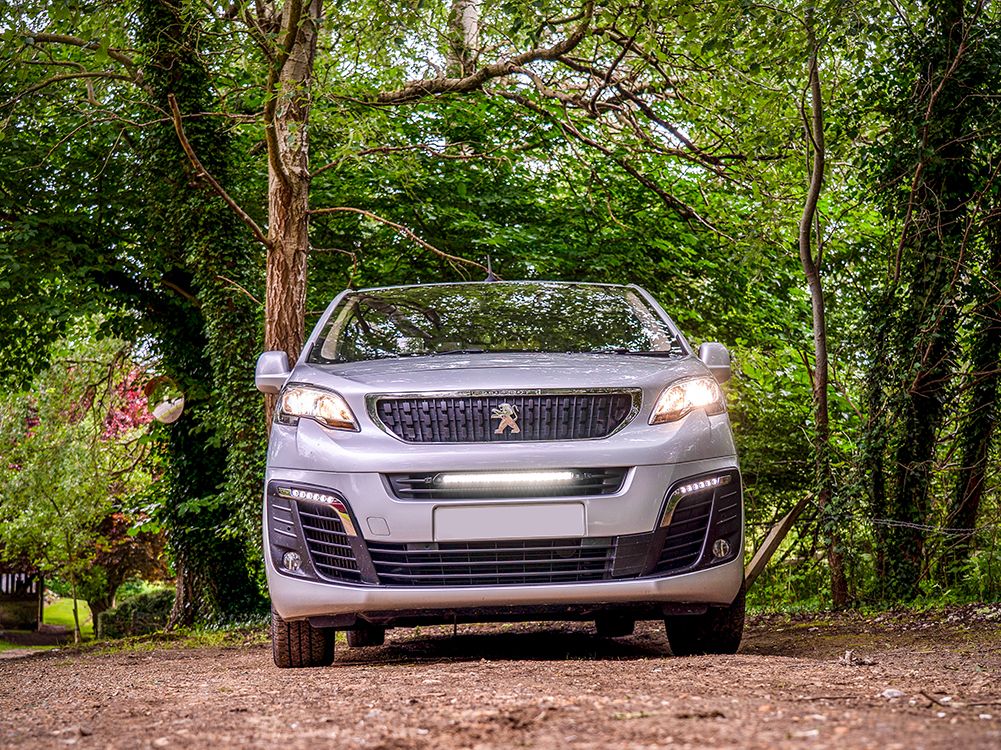

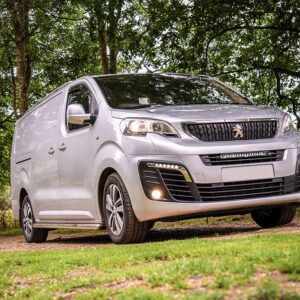

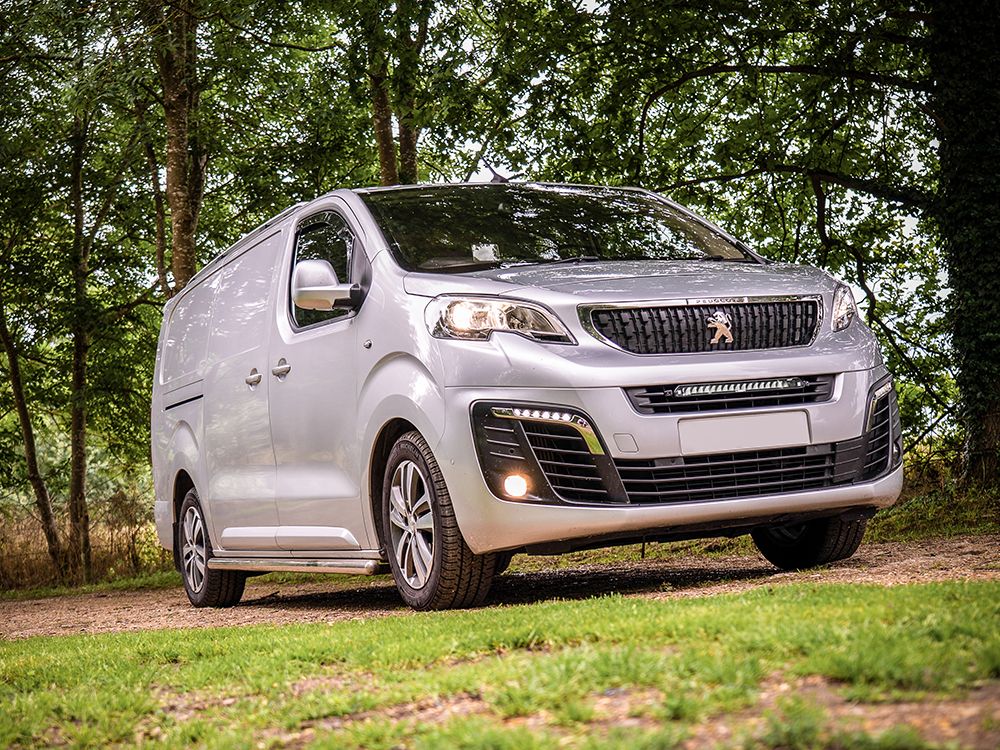

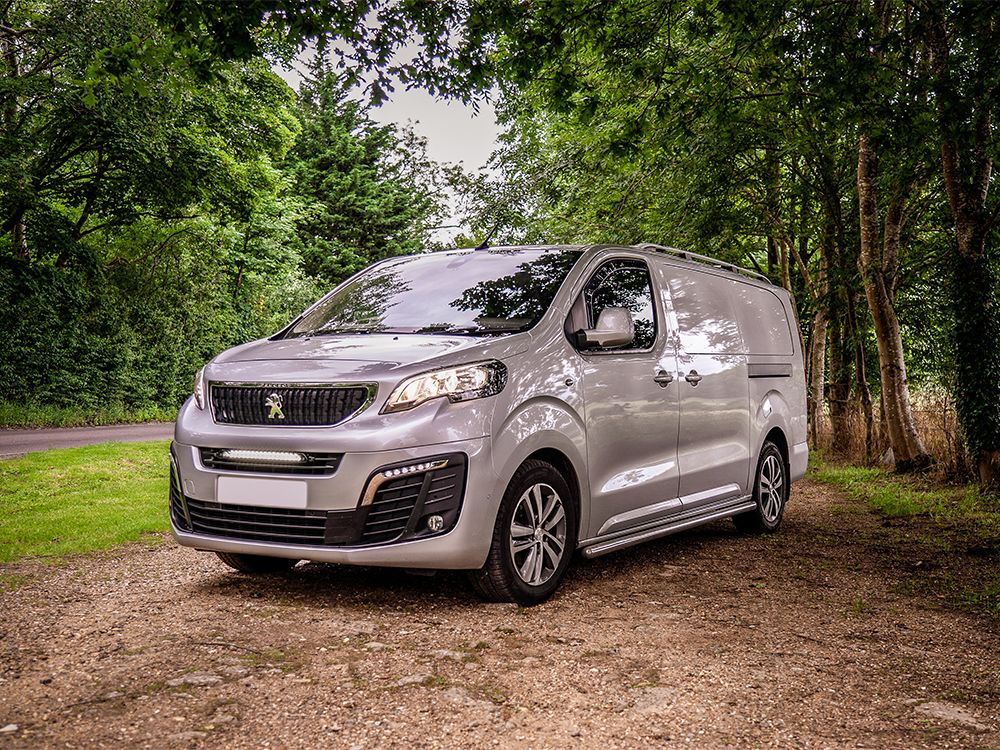

Custom fit for Peugeot Expert (2016+)

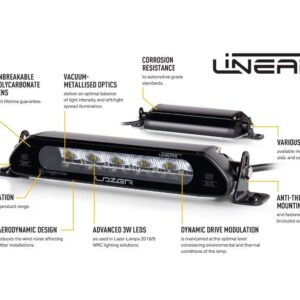

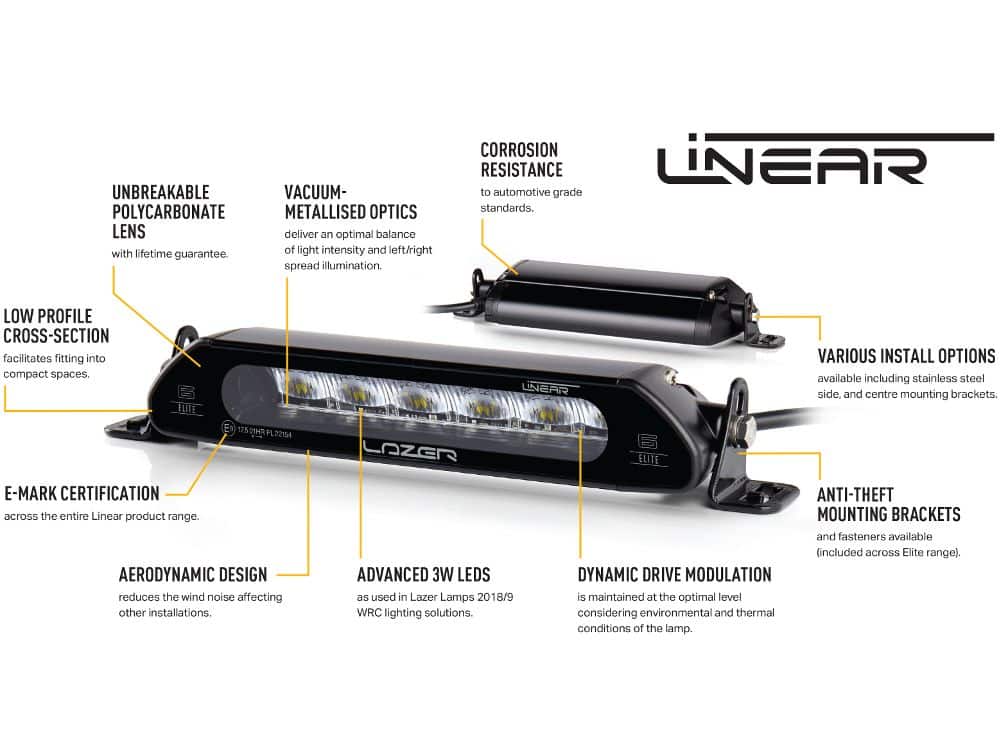

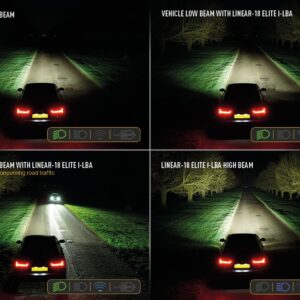

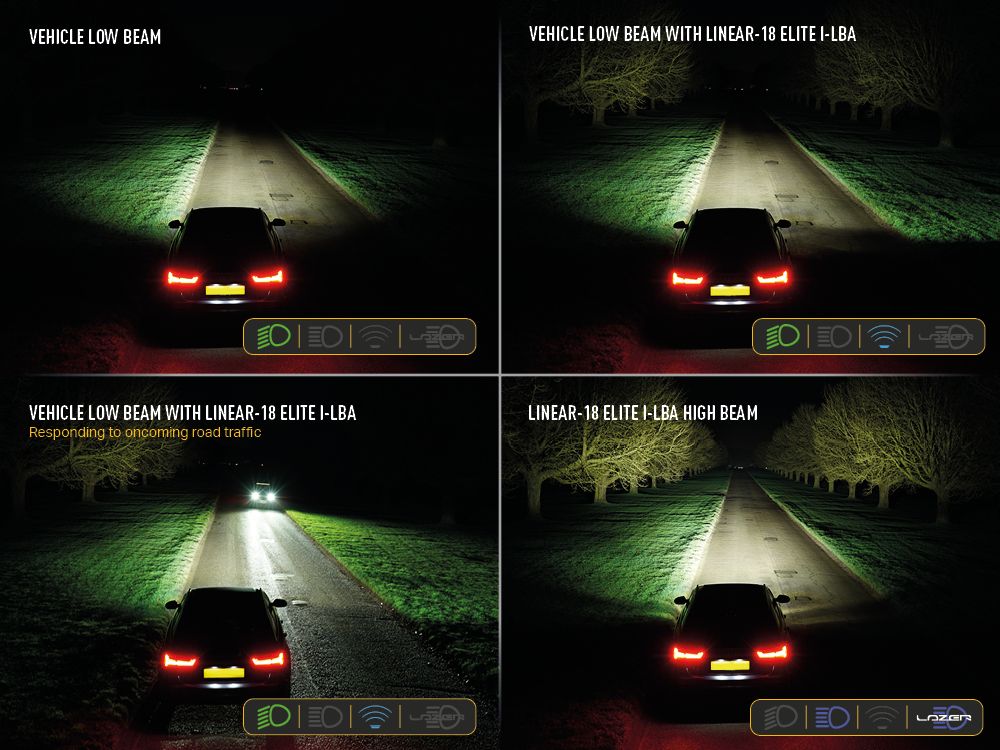

Available with: Linear-18 (Standard, Elite or Elite with i-LBA) LED Spotlight

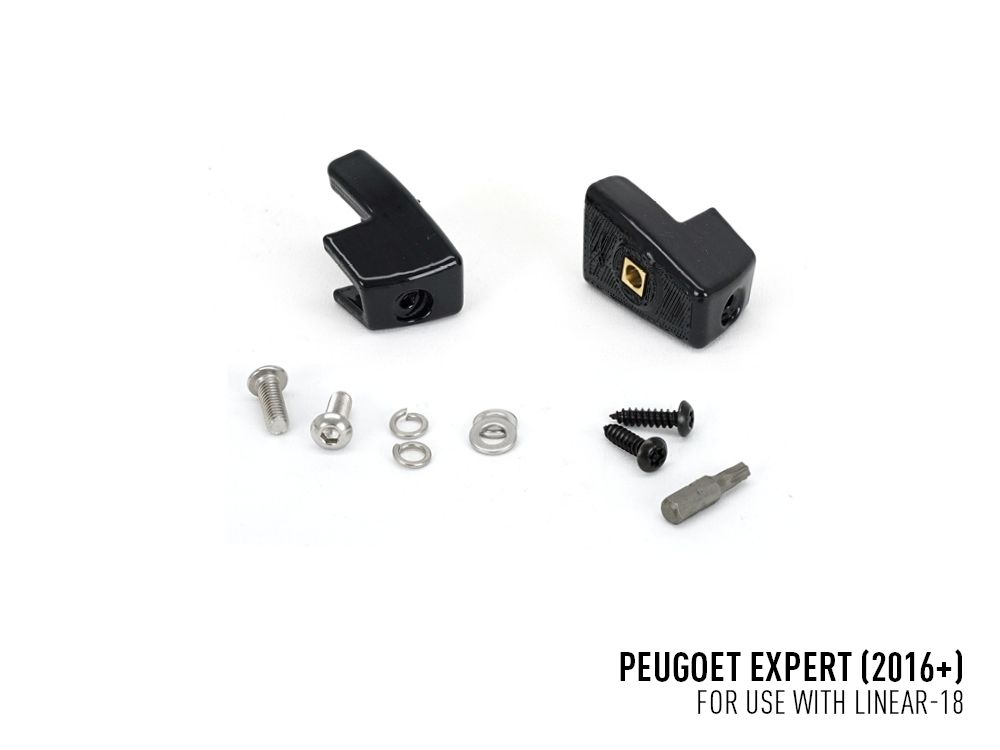

Kit also includes bespoke mounting brackets and wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
TECHNICAL SPECIFICATIONS
1x Linear-18 Elite (Double E-Mark) | 1x Linear-18 Elite with i-LBA (E-Boost Mode) |
1x Linear-18Â | |
Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
Weight | 1090 gr | 1090 gr | 1090 gr |
HIGH BEAM FUNCTION | Â | Â | Â |
Total Luminous Flux | 13,500 Lm | 18,000 Lm | 6,750 Lm |
Total Driver ‘FOV’ Flux †| 9,612 Lm | 12,816 Lm | 4,806 Lm |
Colour Temperature | 5000K | 5000K | 5000K |
Number of High Output LEDs | 36 | 48 | 18 |
Power Consumption | 130 Watts | 135 Watts | 63 Watts |
Current Draw (at 14.4V) | 9 Amps | 15 Amps | 4.4 Amps |
CERTIFICATION | Â | Â | Â |
High Beam | ECE R112 | ECE R112 | ECE R112 |
ECE Reference | 2×25 (2x 10 – With E-Mark Cap) |
N/A (17.5 – E-Mark Mode) |
30 |

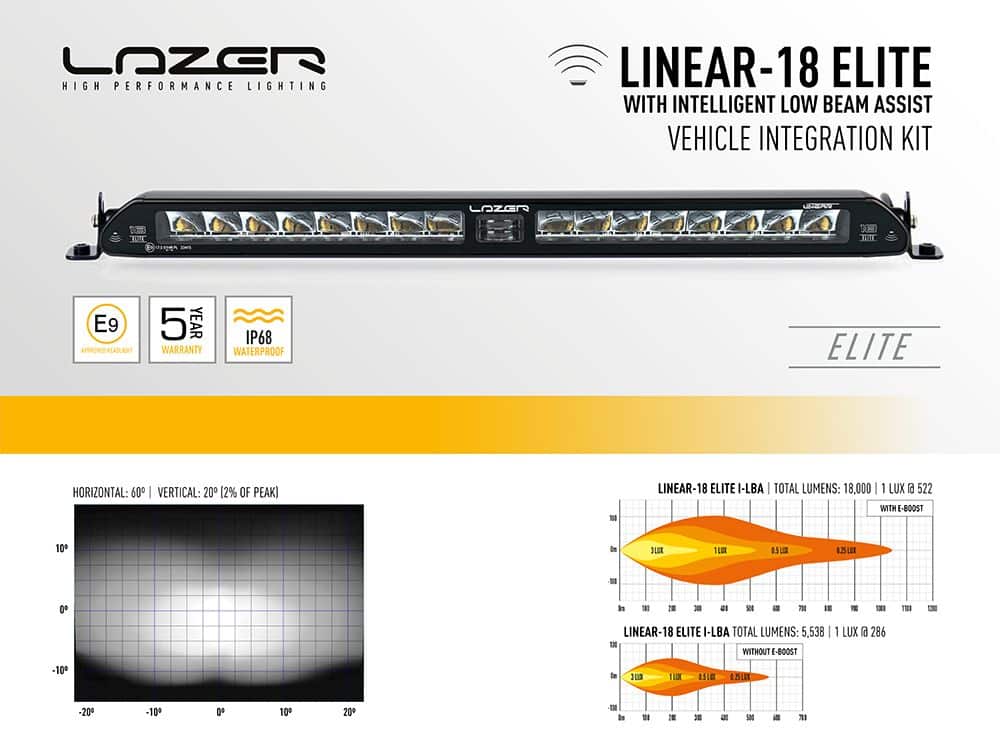

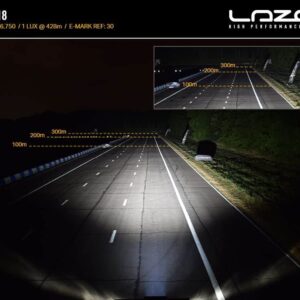

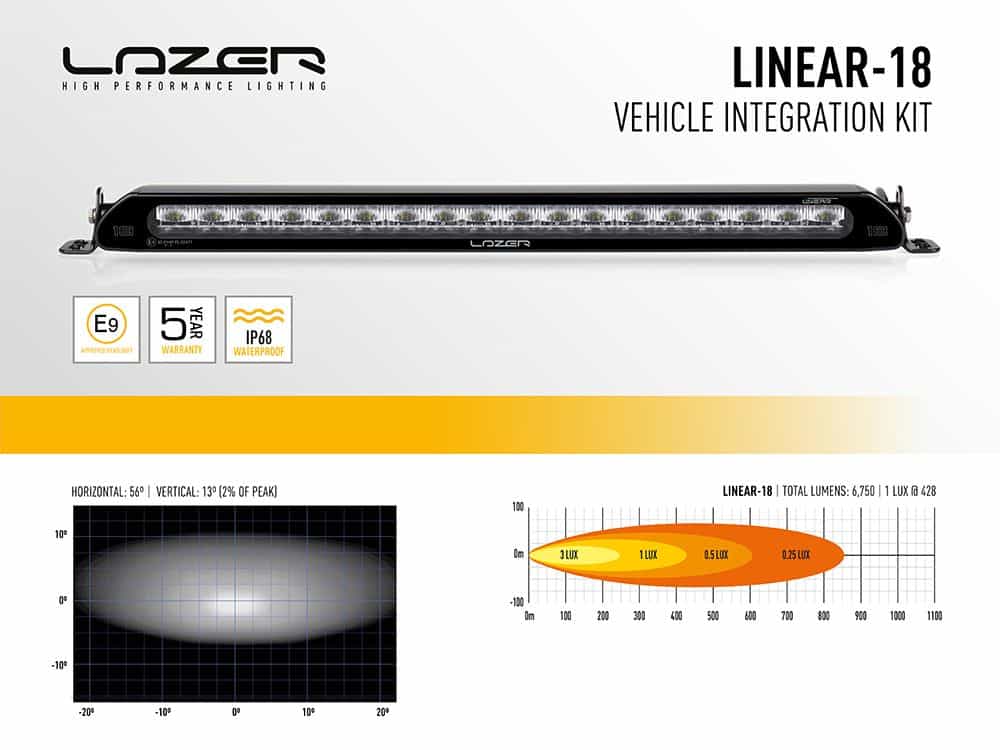

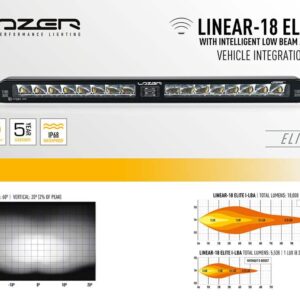

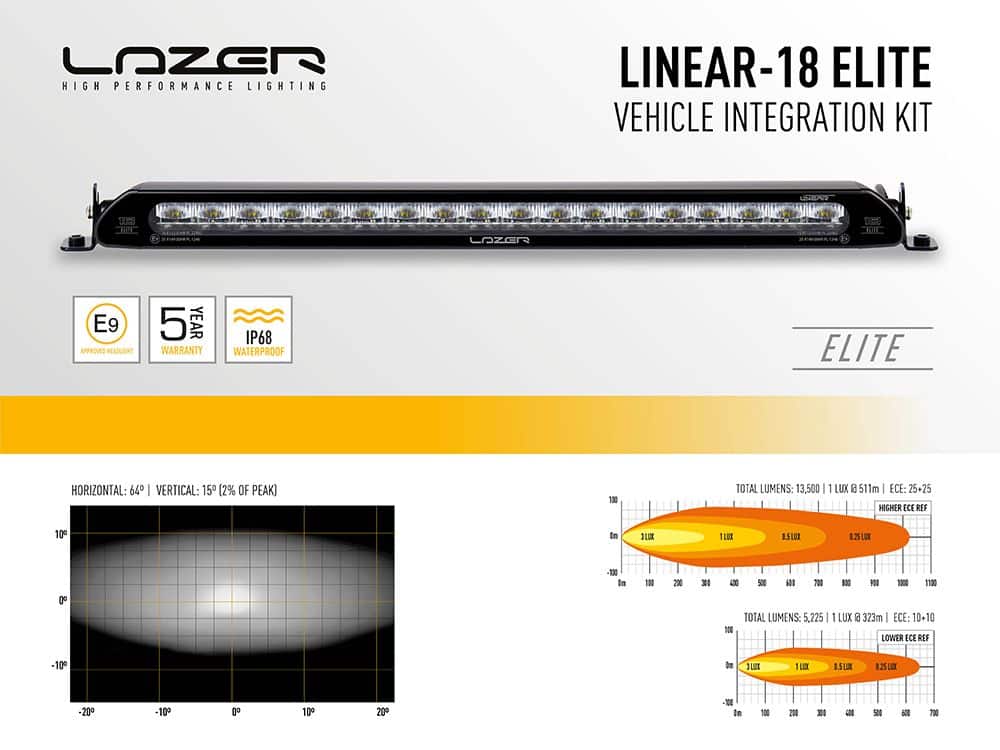

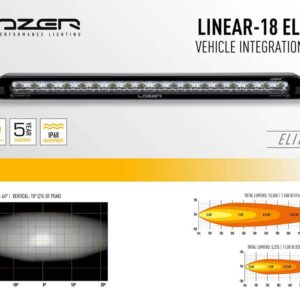

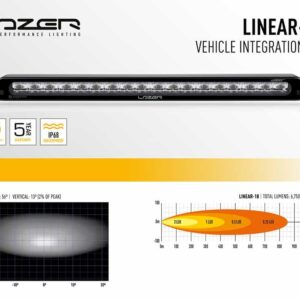

PHOTOMETRIC DATA | |||
Horizontal Beam Angle | 64° | 60° | 56° |

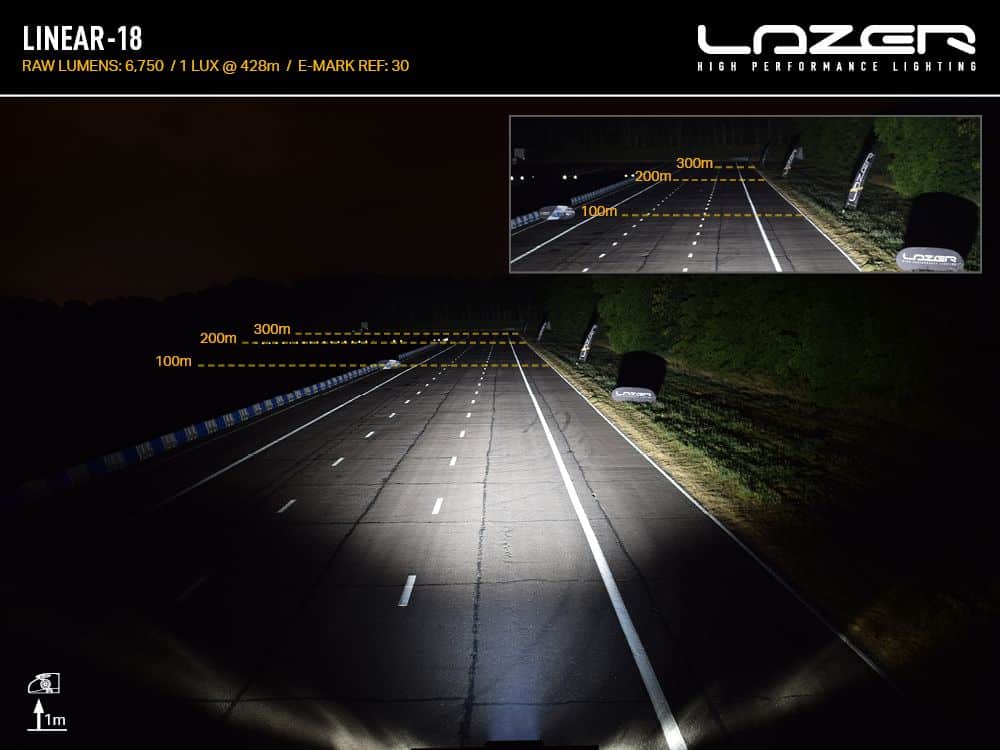

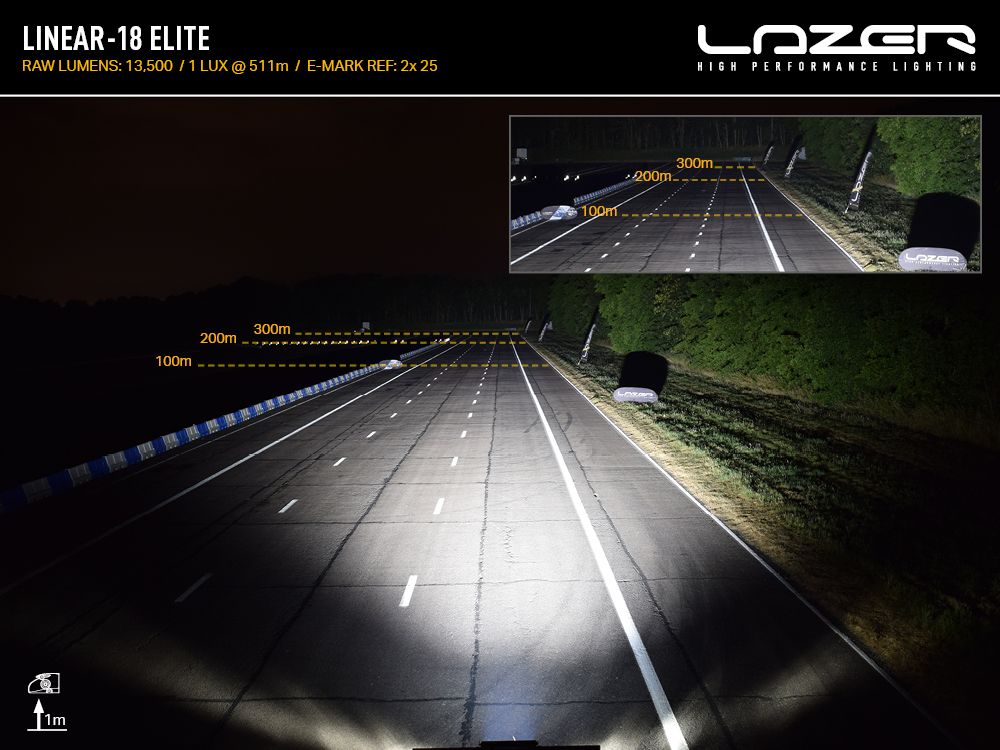

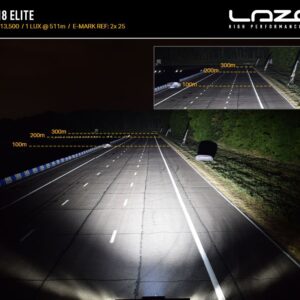

0.25 lx Line | 1023m | 1043m | 855m |
0.5 lx Line | 723m | 738m | 605m |
1 lx Line | 511m | 522m | 428m |
3 lx Line | 295m | 301m | 247m |
†Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (Includes cutting guides)
- 1x Linear-18 LED Lamp
- 1x One-Lamp Wiring Kit
- Installation Instructions
