Lazer Lamps MERCEDES X-CLASS (2017+) GRILLE KIT
577,50€ – 771,75€ WITH TAX
Lazer Lamps MERCEDES X-CLASS (2017+) GRILLE KIT

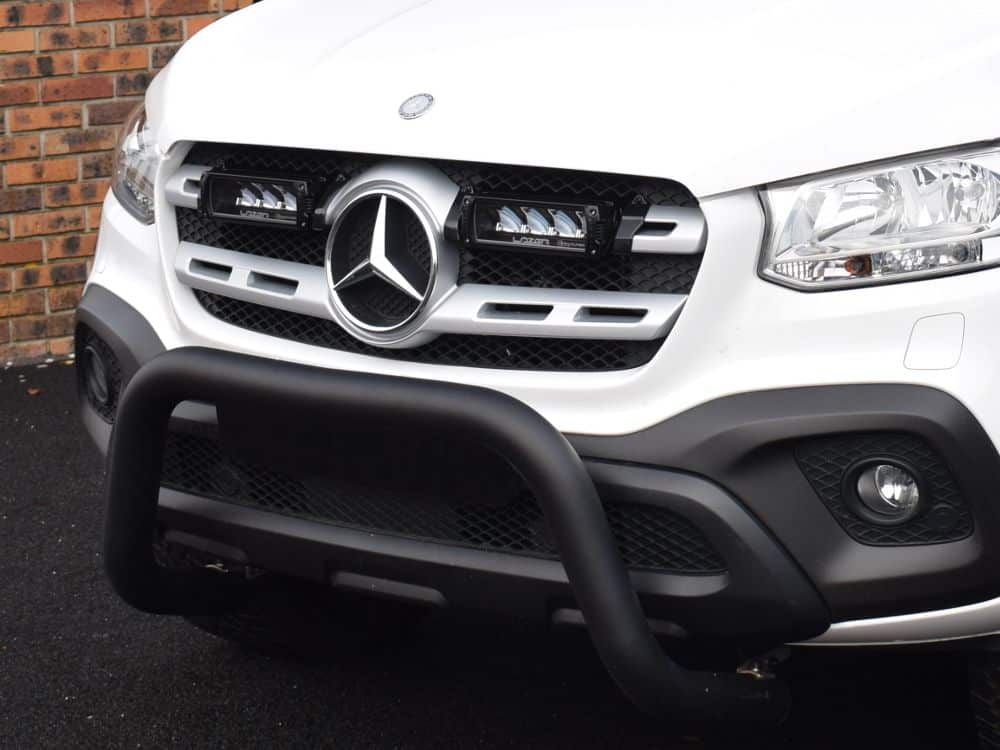

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

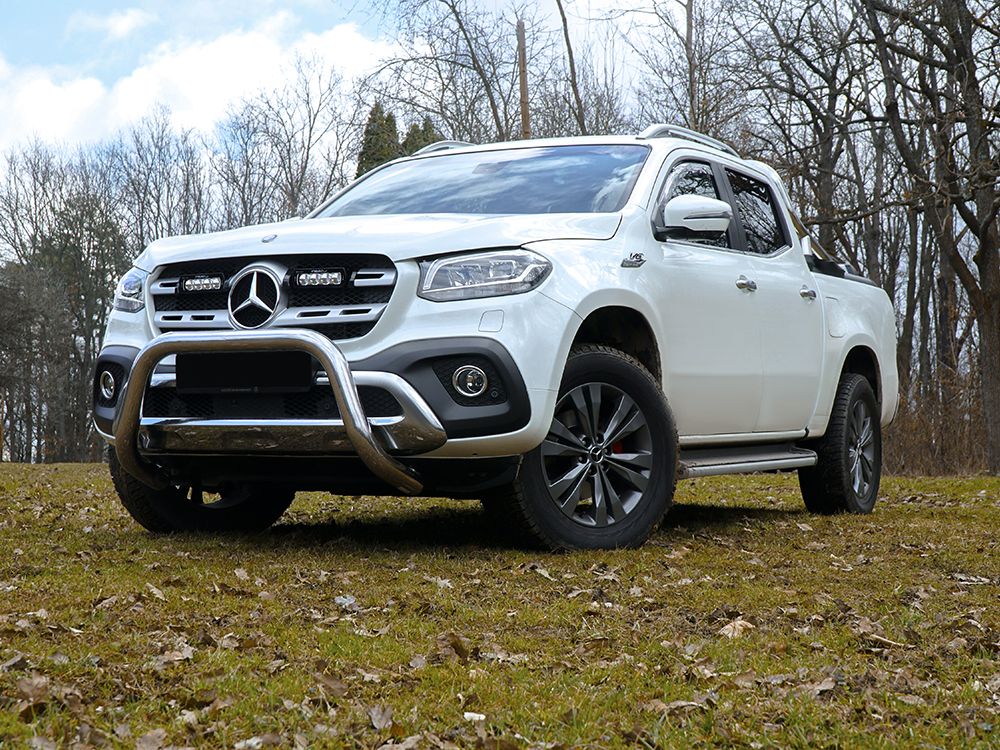

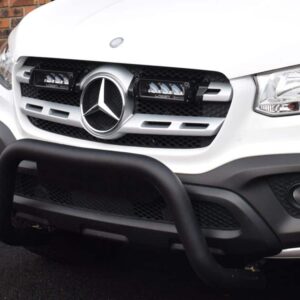

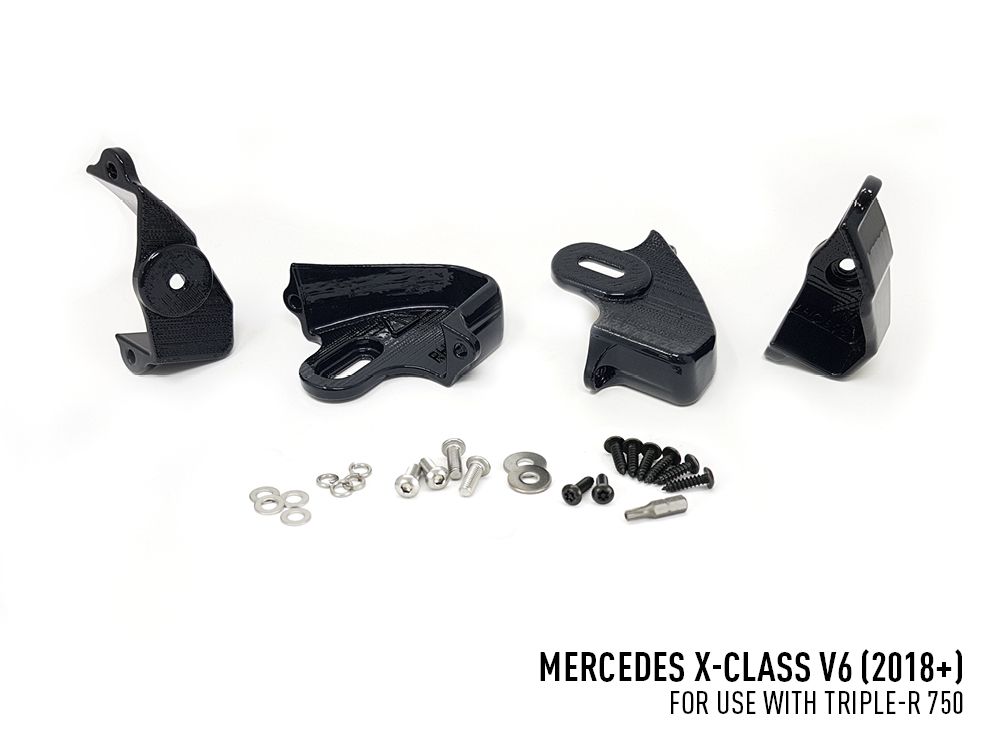

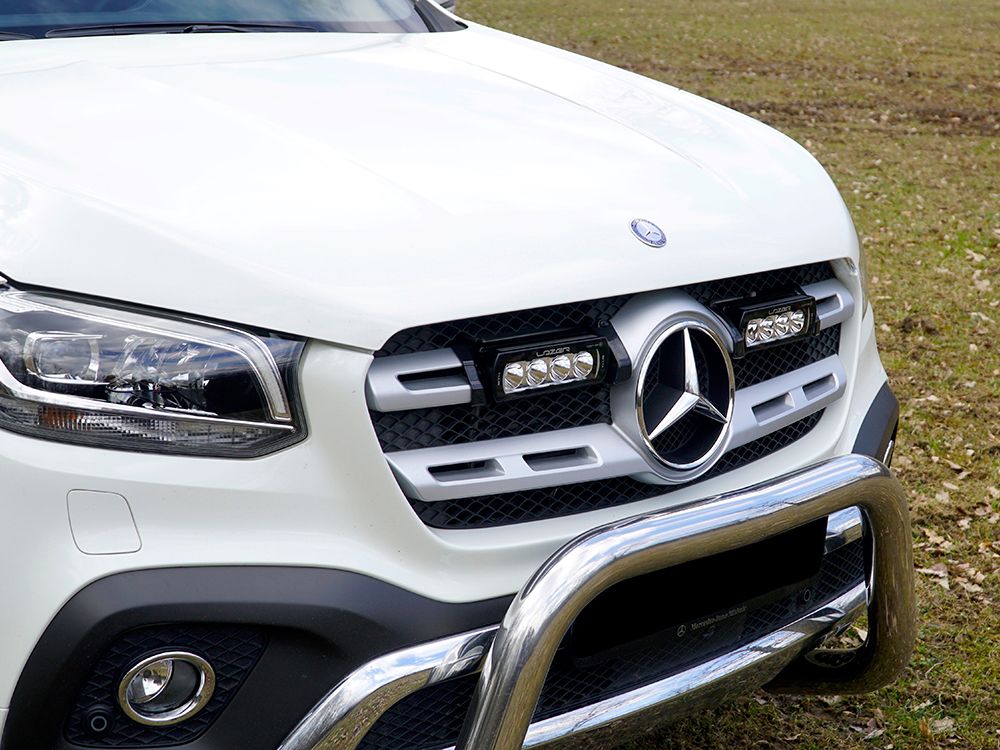

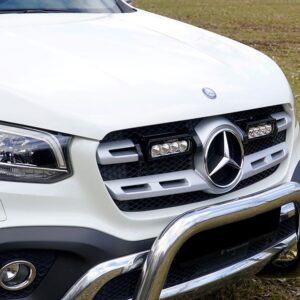

The Mercedes X-Class integration kit is available for either a pair of ST4 Evolution or Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.
The Mercedes X-Class (2017+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 or ST4 Evolution High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Please note the mounting brackets are different depending on whether the light installation is for Triple-R 750 or ST4 lights. It is recommended when fitting the grille kit to the V6 model X-Class to use ST4 lights, given the improved fit considering the larger intercooler behind the front grille.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.
Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).Lazer Lamps MERCEDES X-CLASS (2017+) GRILLE KIT
PRODUCT FEATURES
Bespoke mounting bracket kit for Lazer LED Spotlight installation

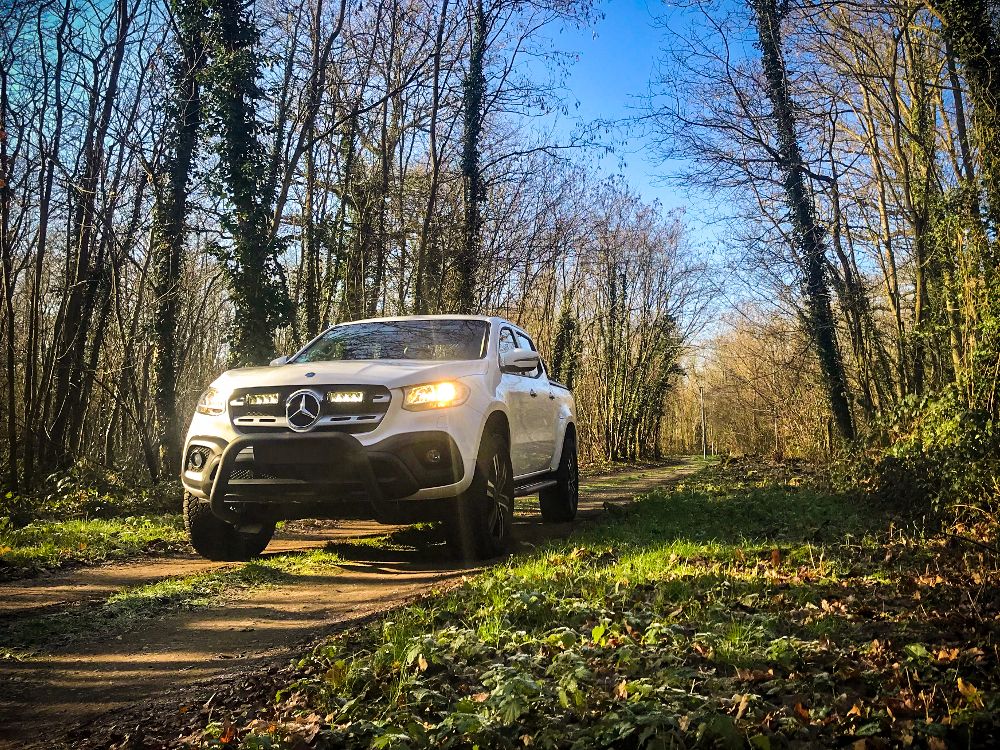

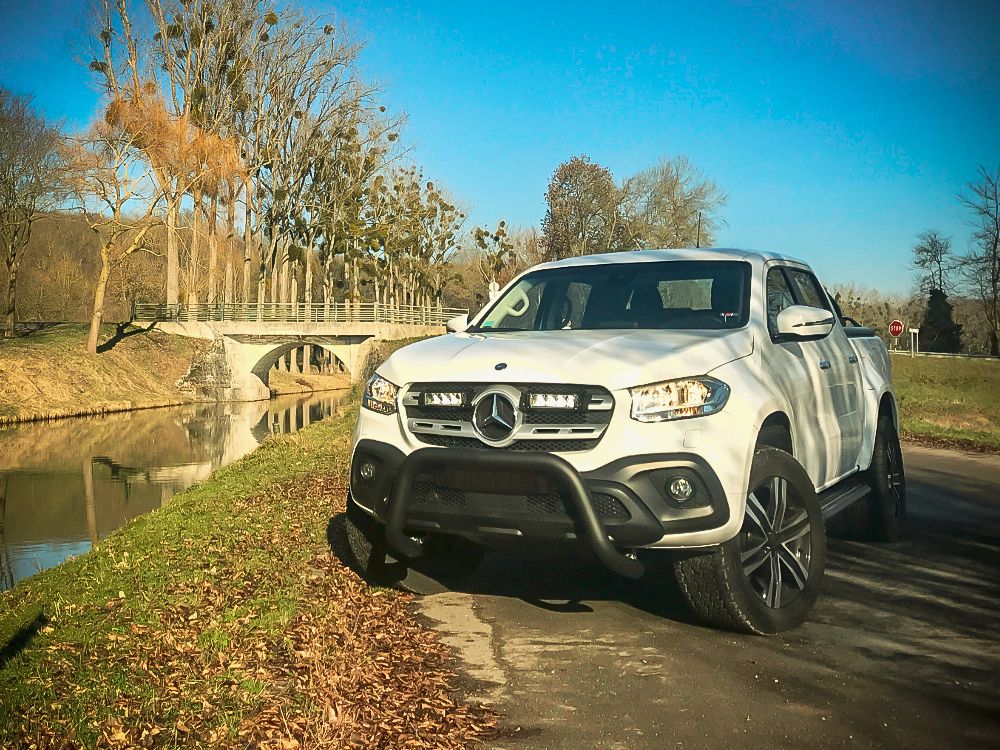

Custom fit for Mercedes X-Class
Available with: Triple-R 750 or ST4 Evolution High Performance LED Spotlights

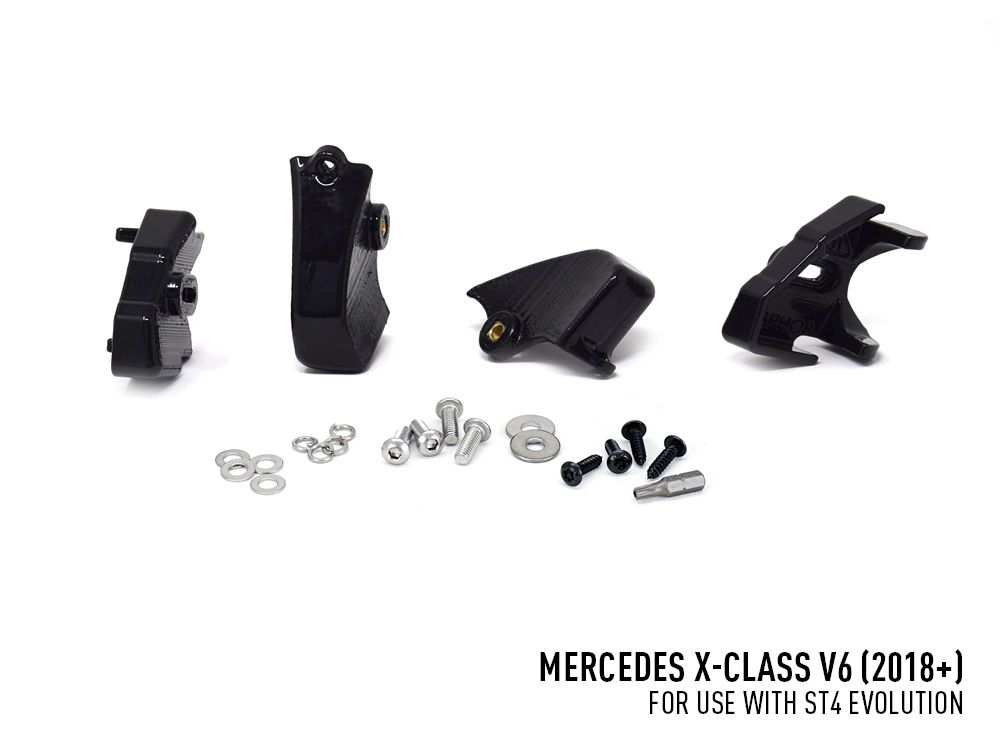

Kits include: 4x brackets, cutting guides, wiring loom, and fasteners
Made from high strength, UV-stable, ASA material
Fully UNECE approved for on-road use
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS

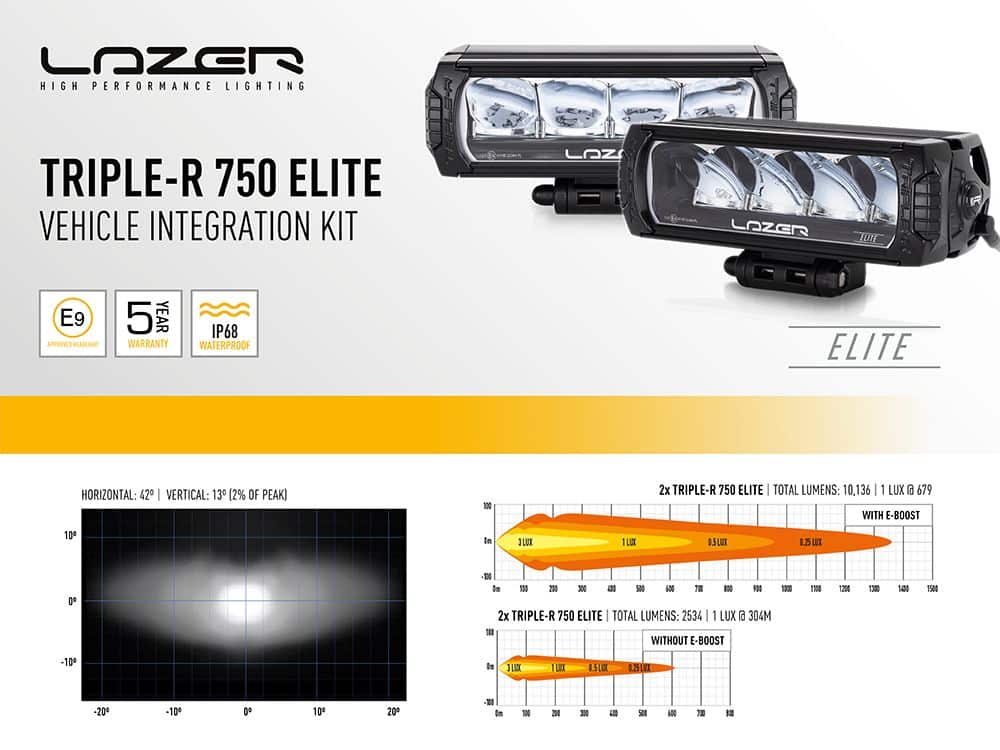

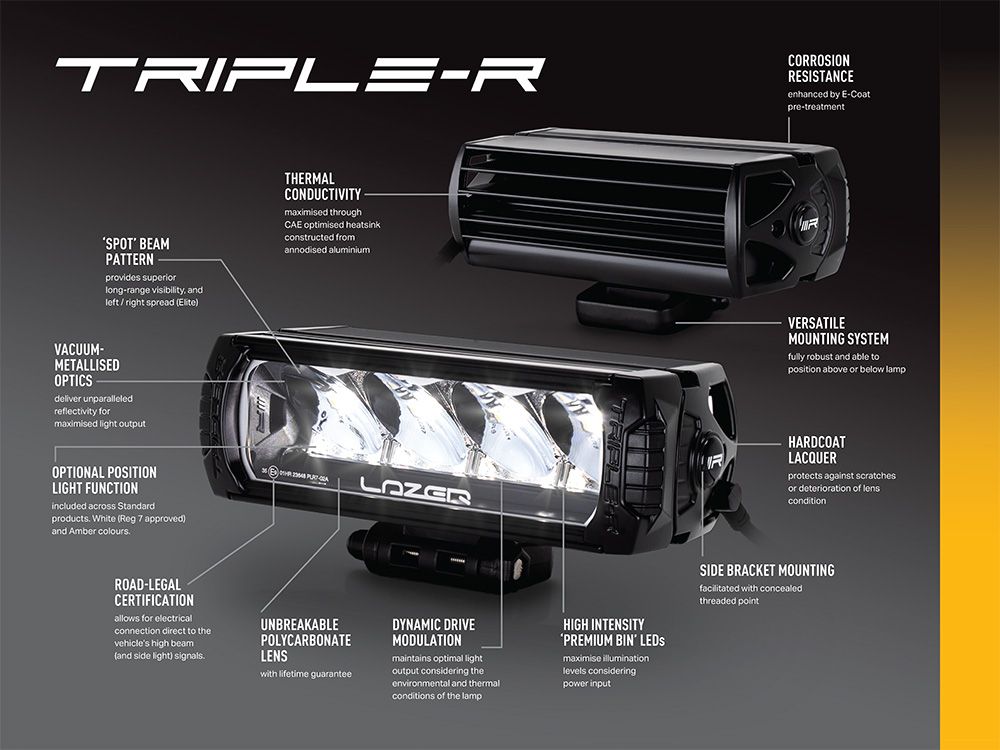

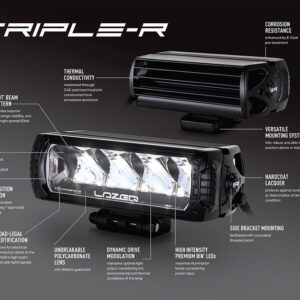

| 2x Triple-R 750 Elite (E-Boost Mode) |

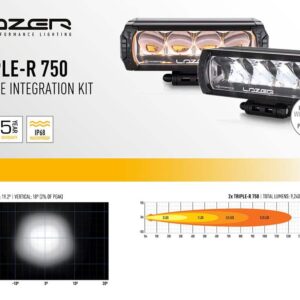

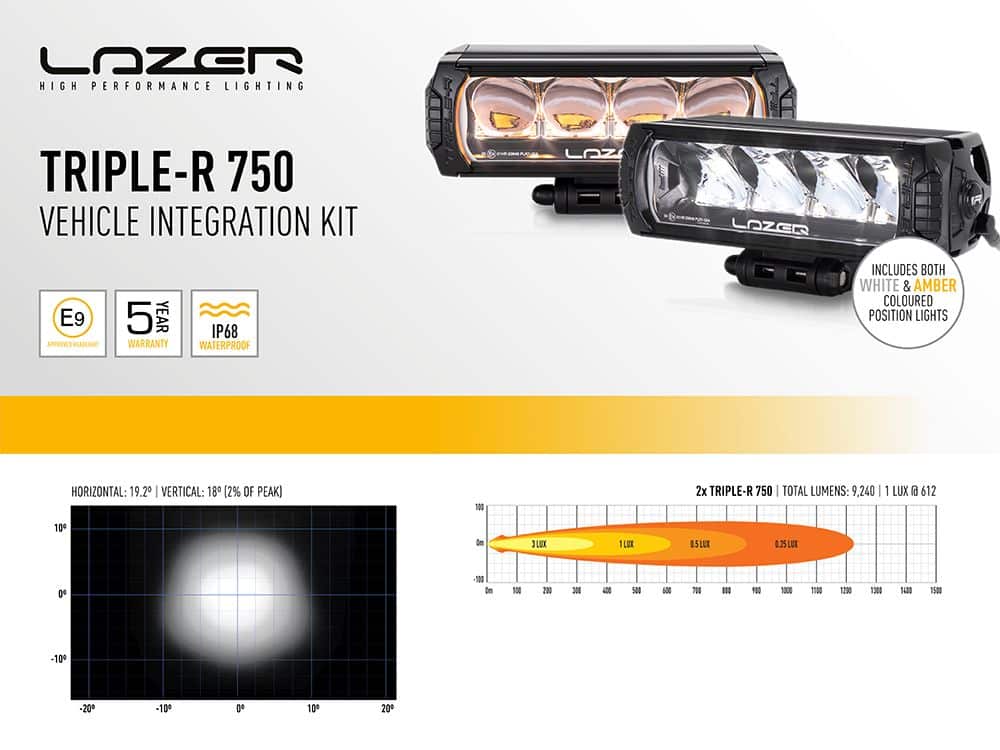

2x Triple-R 750 |

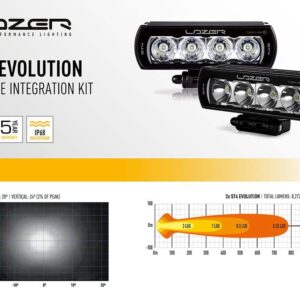

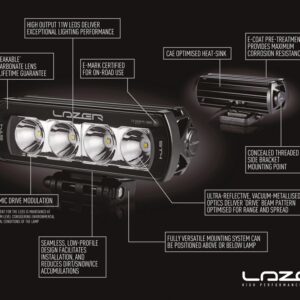

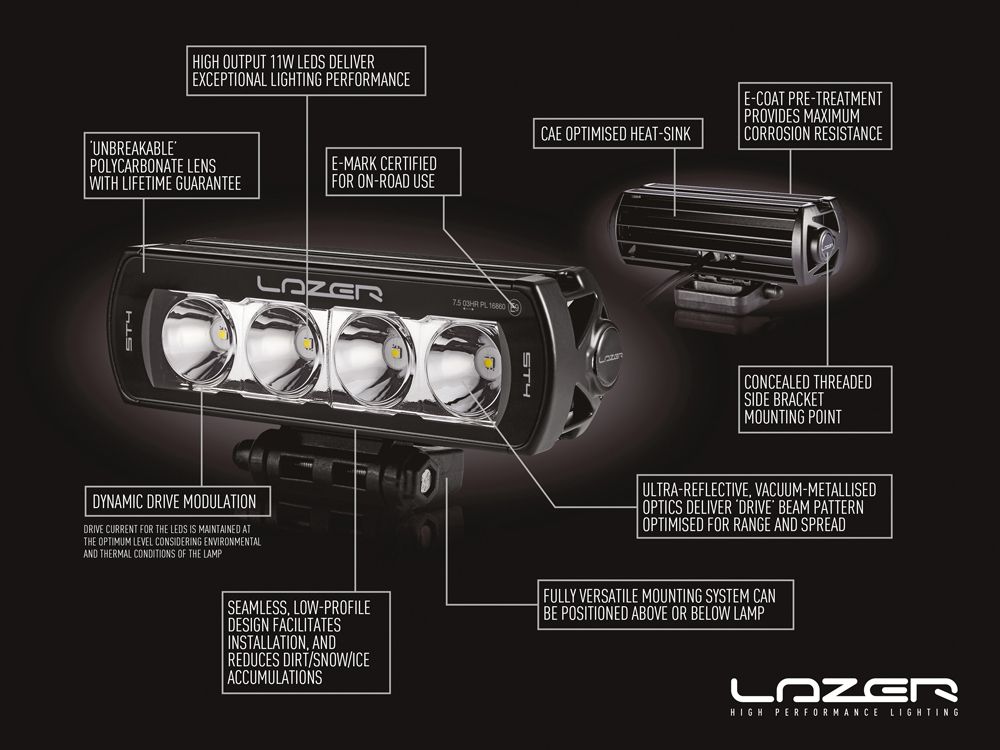

x2 ST4 Evolution |
|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs | 50,000 hours |
| Weight | 2 kg | 2 kg | 1340g |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 10136 Lm | 9240 Lm | 8272 Lm |
| Total Driver ‘FOV’ Flux †| 6680 Lm | 5572 Lm | 4980 Lm |
| Colour Temperature | 5000K | 5000K | 5000k |
| Number of High Output LEDs | 2 x 4 | 2 x 4 | 2 x 4 |
| Power Consumption | 104 Watts | 88 Watts | 94 Watts |
| Current Draw (at 14.4V) | 7.2 Amps | 6.2 Amps | 6.6 Amps |
| CERTIFICATION | |||
| High Beam | ECE R112 | ECE R112 | ECE R112 |
| ECE Reference | N/A (12.5 x2Â – E-Mark Mode) |
35 x2 | 10 x2 |
| Position Light (White only) | N/A | ECE R7 | N/A |

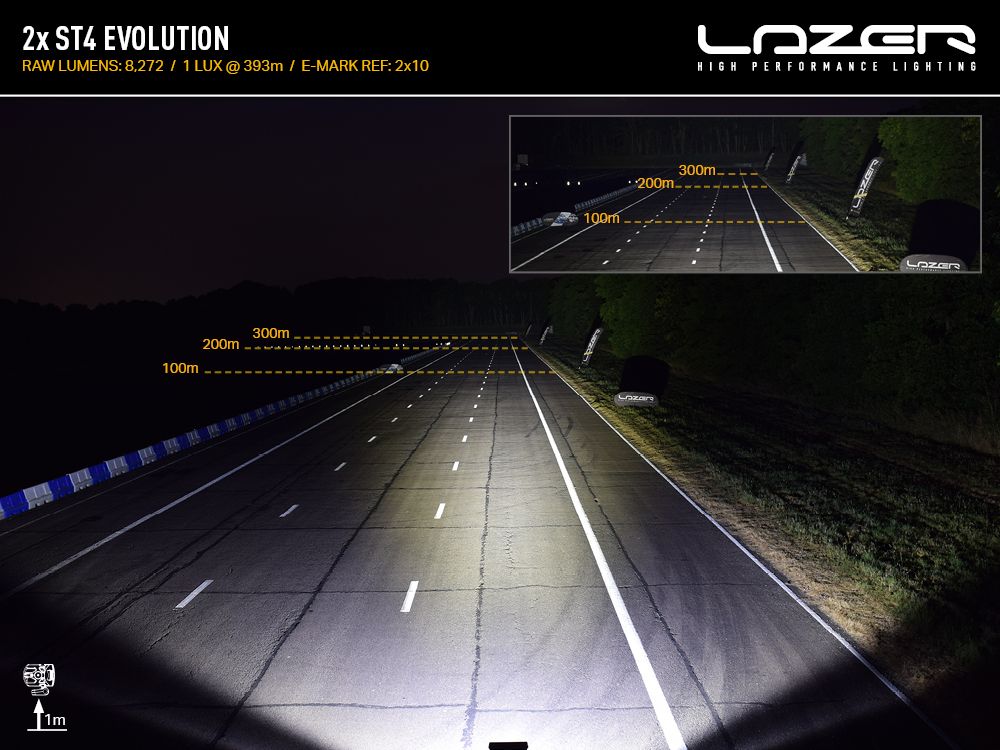

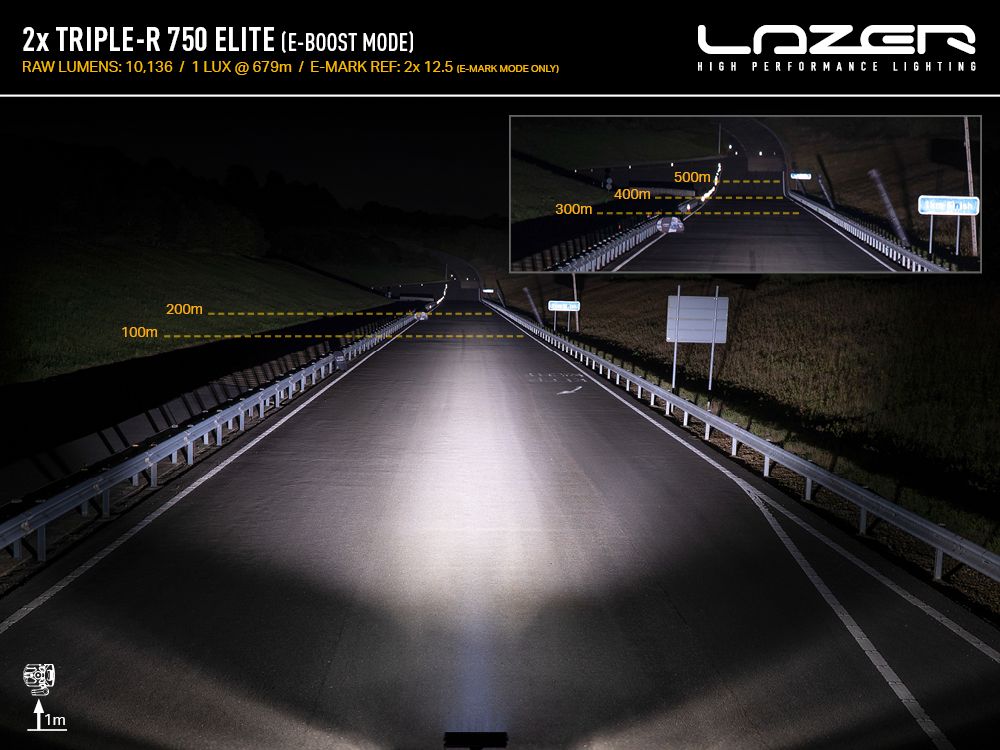

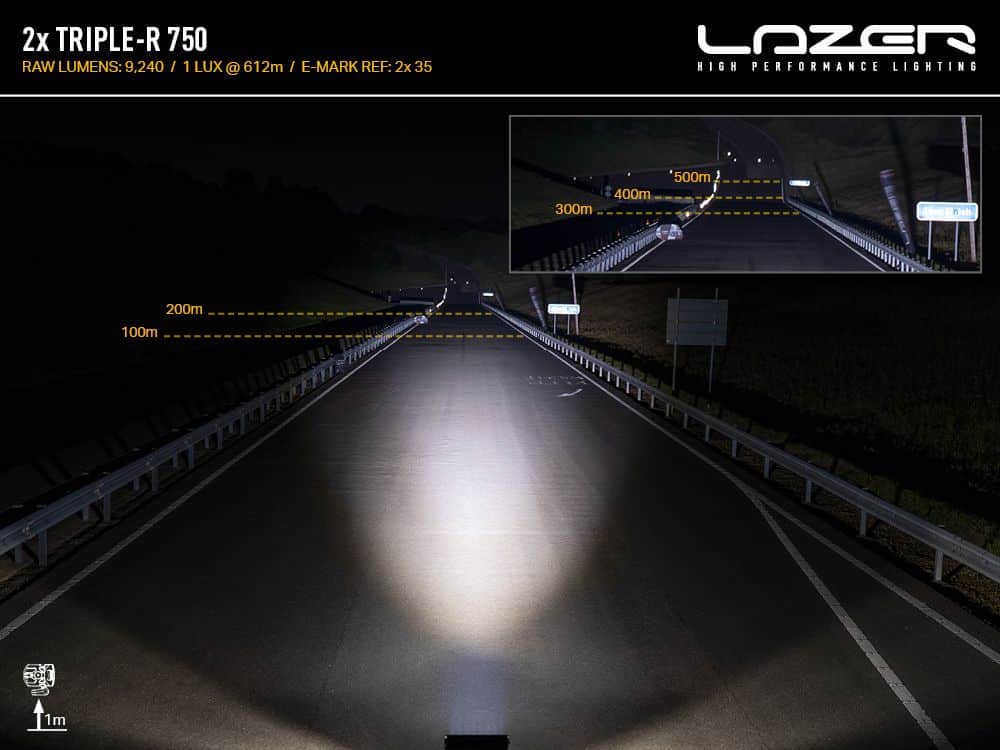

| PHOTOMETRIC DATA | |||

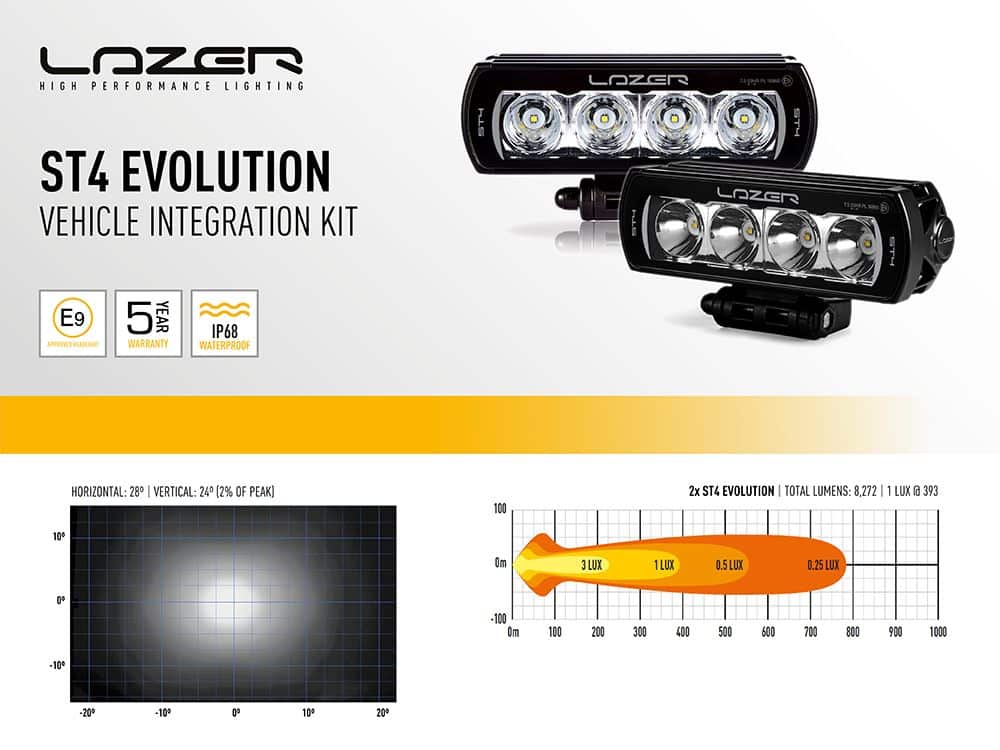

| Horizontal Beam Angle | 42° | 19° | 40° |

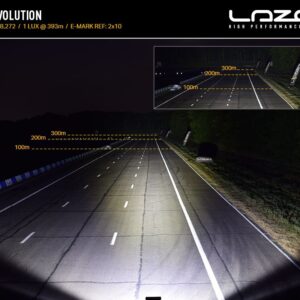

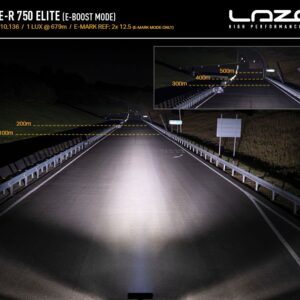

| 0.25 lx Line | 1358m | 1225m | 786m |
| 0.5 lx Line | 960m | 866m | 555m |
| 1 lx Line | 679m | 612m | 393m |
| 3 lx Line | 392m | 354m | 227m |
†Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Triple-R 750 / 2x ST4 Evolution LED Lamps

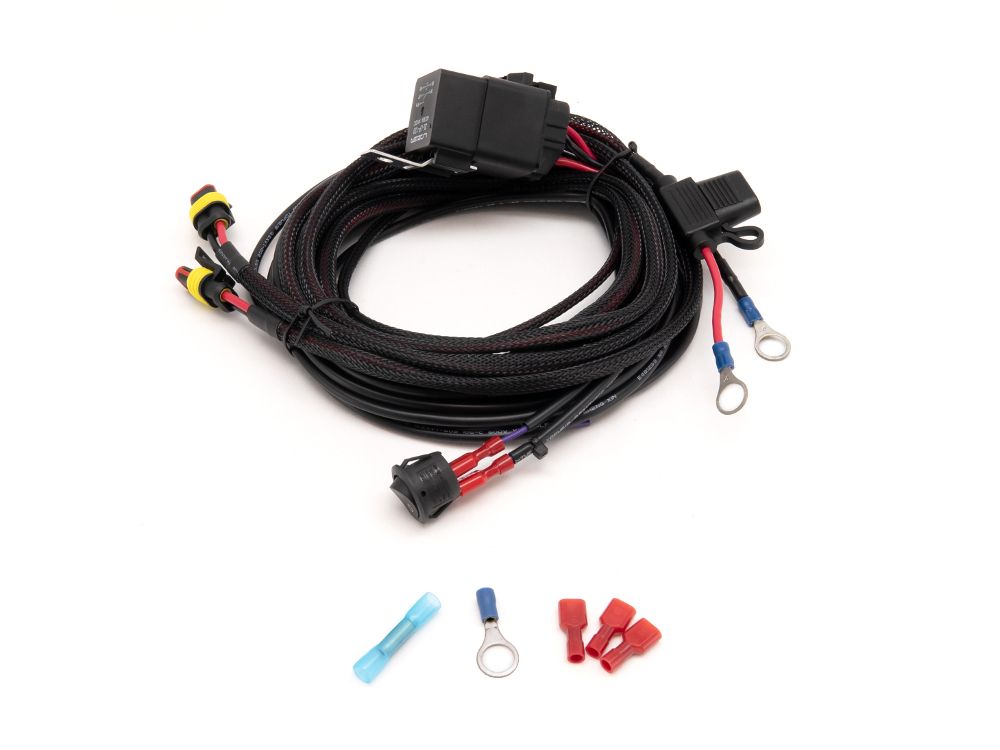

- 1x Two-Lamp Wiring Kit
- Installation Instructions
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
VIDEOS
| Car brand | MERCEDES-BENZ |
|---|---|
| Product manufacturer | LAZER LAMPS |
| Brand | INTEGRATION KITS, LIGHTS |
| LUMENS | 8272, 9240, 10136 |
| Lazer Lamps | ST4 Evolution, Triple-R 750, Triple-R 750 Elite |
