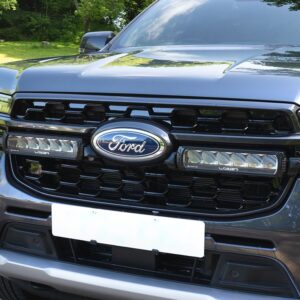

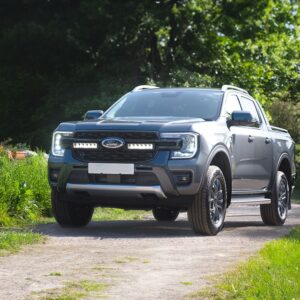

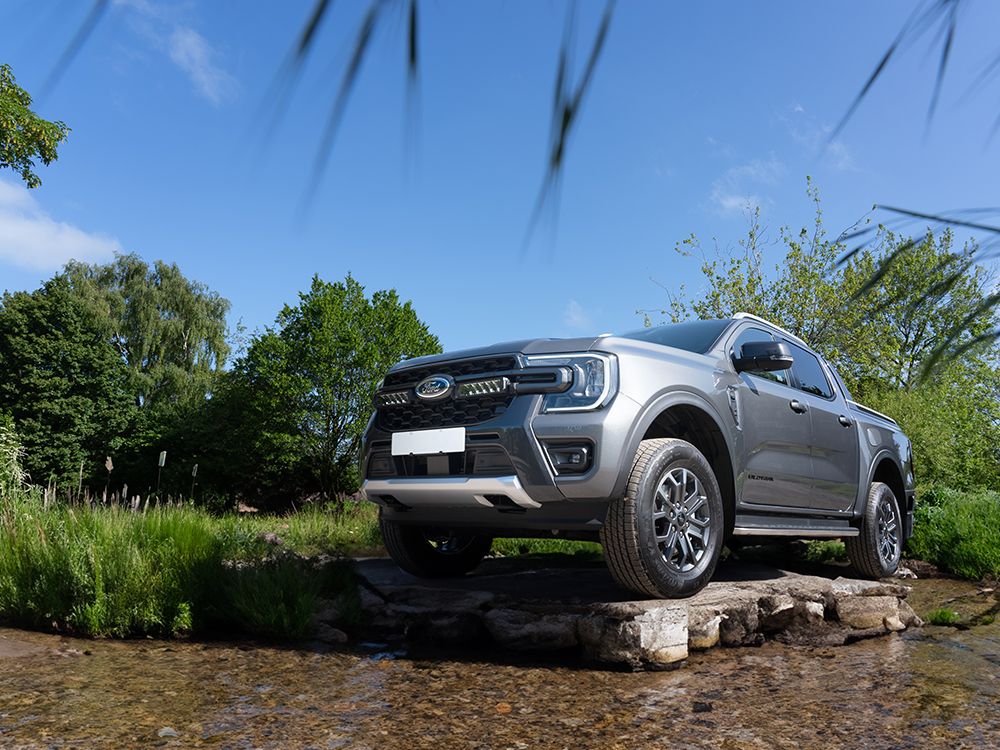

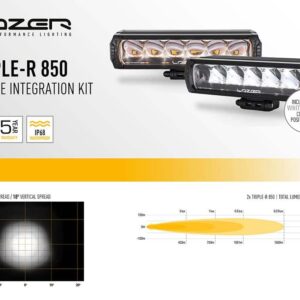

Lazer Lamps FORD RANGER WILDTRAK (2023+) GRILLE KIT – TRIPLE-R 850
745,50€ – 908,25€ WITH TAX
Lazer Lamps FORD RANGER WILDTRAK (2023+) GRILLE KIT – TRIPLE-R 850
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

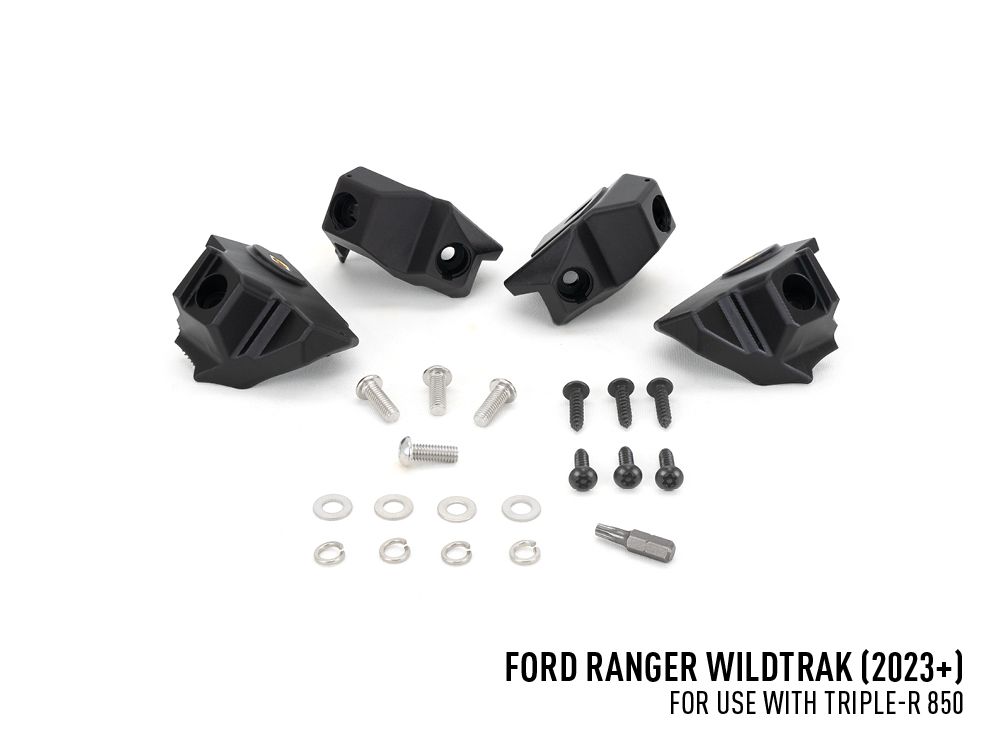

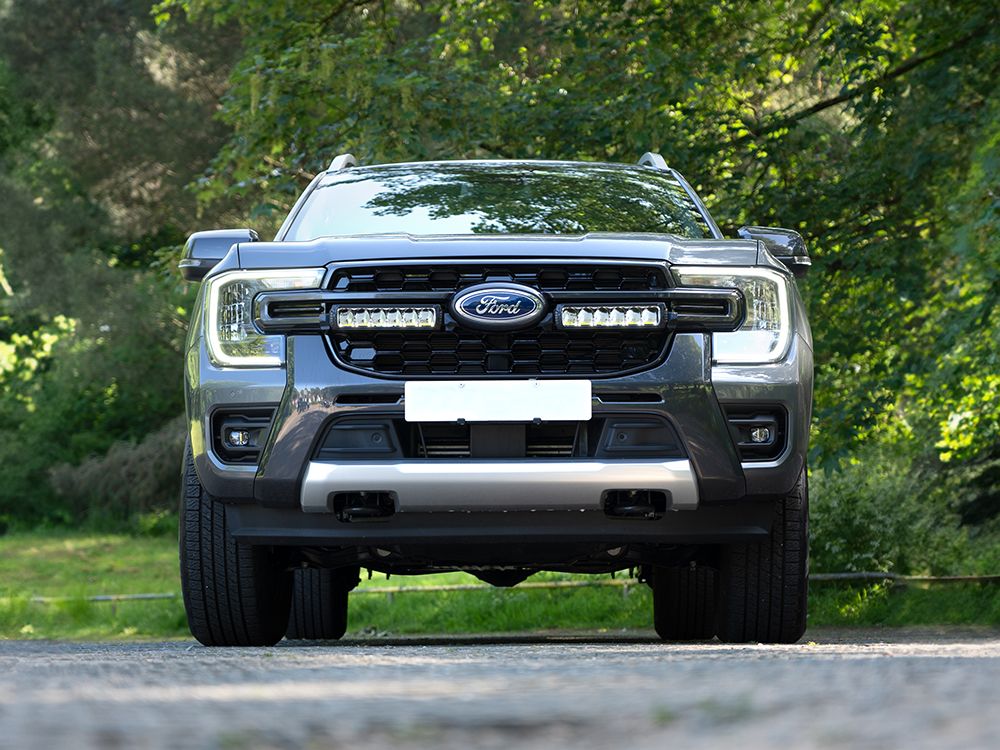

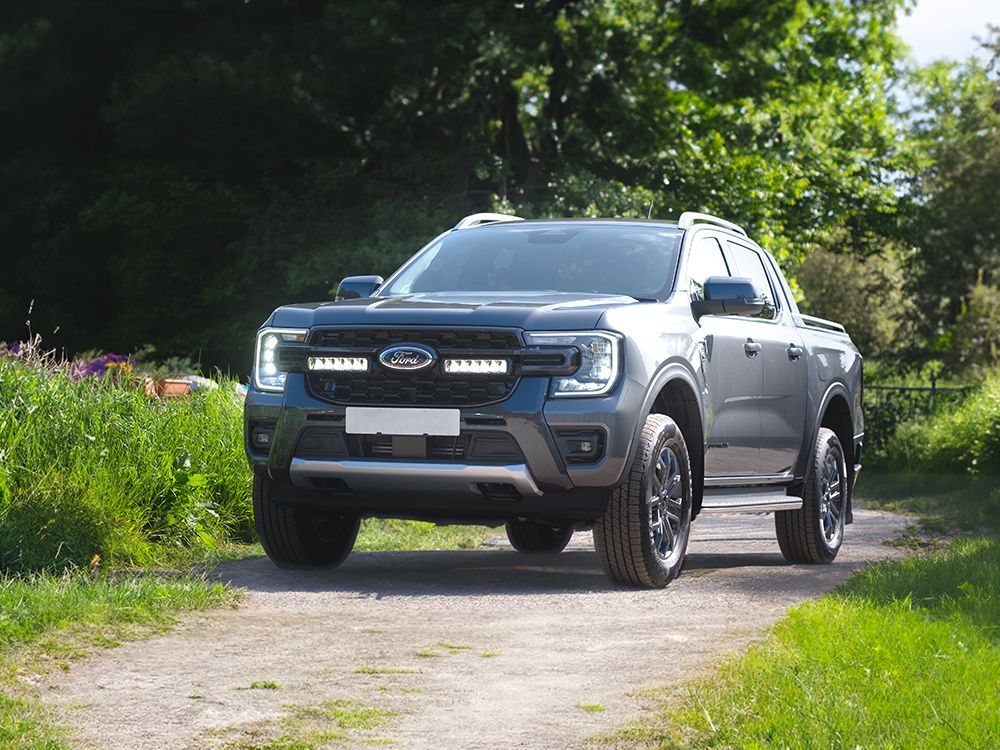

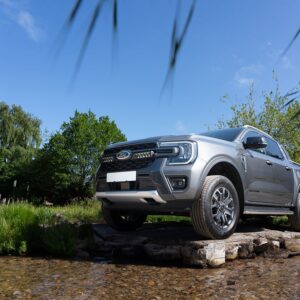

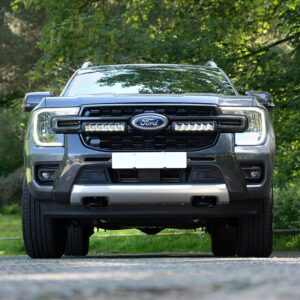

The Ford Ranger Wildtrak kit, designed for model year 2023 vehicles, includes a pair of Triple-R 850 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a high strength composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
The Ford Ranger Wildtrak (2023+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 850 High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).Lazer Lamps FORD RANGER WILDTRAK (2023+) GRILLE KIT – TRIPLE-R 850
PRODUCT FEATURES
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Ford Ranger Wildtrak (MY 2023)
Available with: Triple-R 850 High Performance LED Spotlights

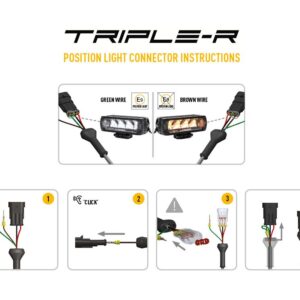

Added option for integrated white and amber backlight function (white only approved for on-road use – Standard model only)
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS

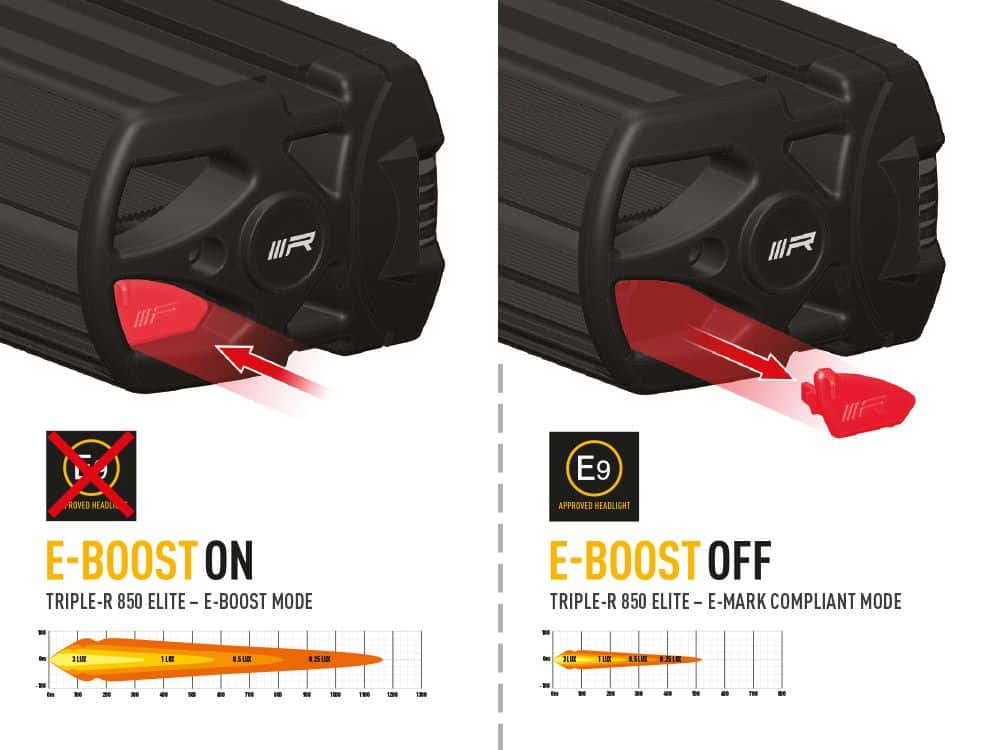

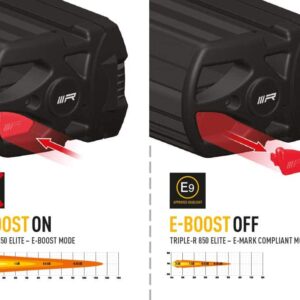

| 2x Triple-R 850 Elite (E-Boost Mode) |
2x Triple-R 850 |
|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2.6 kg | 2.6 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 16136 Lm | 13860 Lm |
| Total Driver ‘FOV’ Flux † | 10634 Lm | 8358 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 6 | 2 x 6 |
| Power Consumption | 146 Watts | 132 Watts |
| Current Draw (at 14.4V) | 10.2 Amps | 9.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | N/A (17.5 x2 – E-Mark Mode) |
45 x2 |

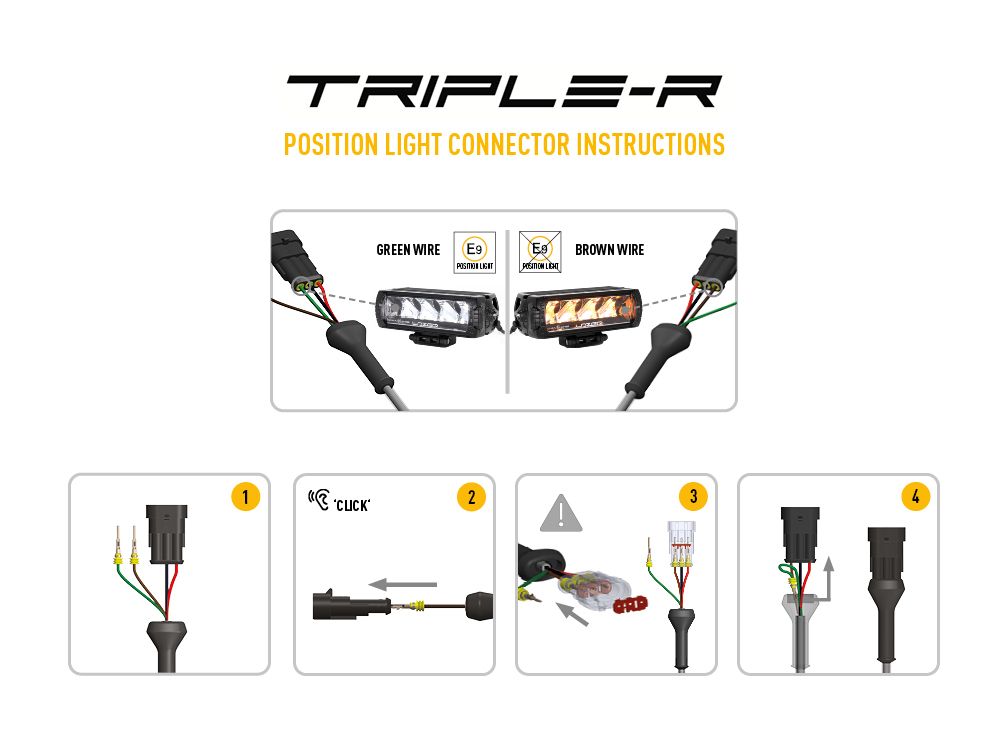

| Position Light (White only) | N/A | ECE R7 |

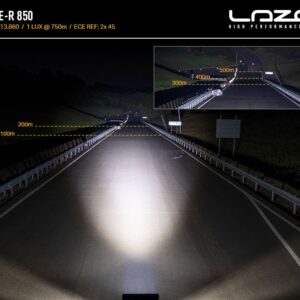

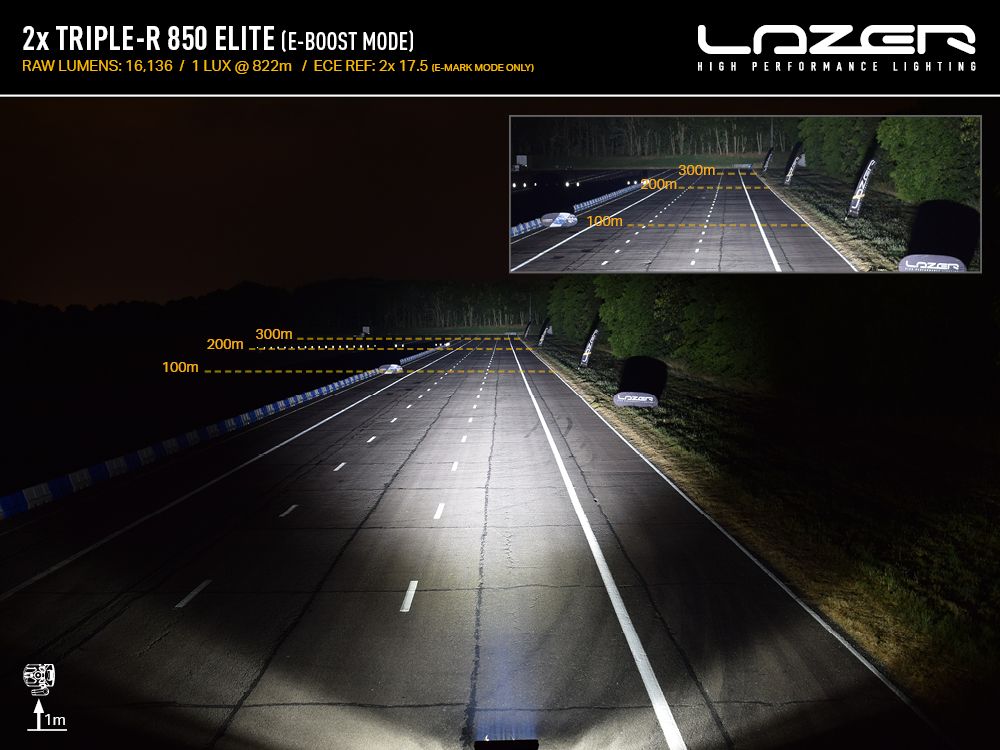

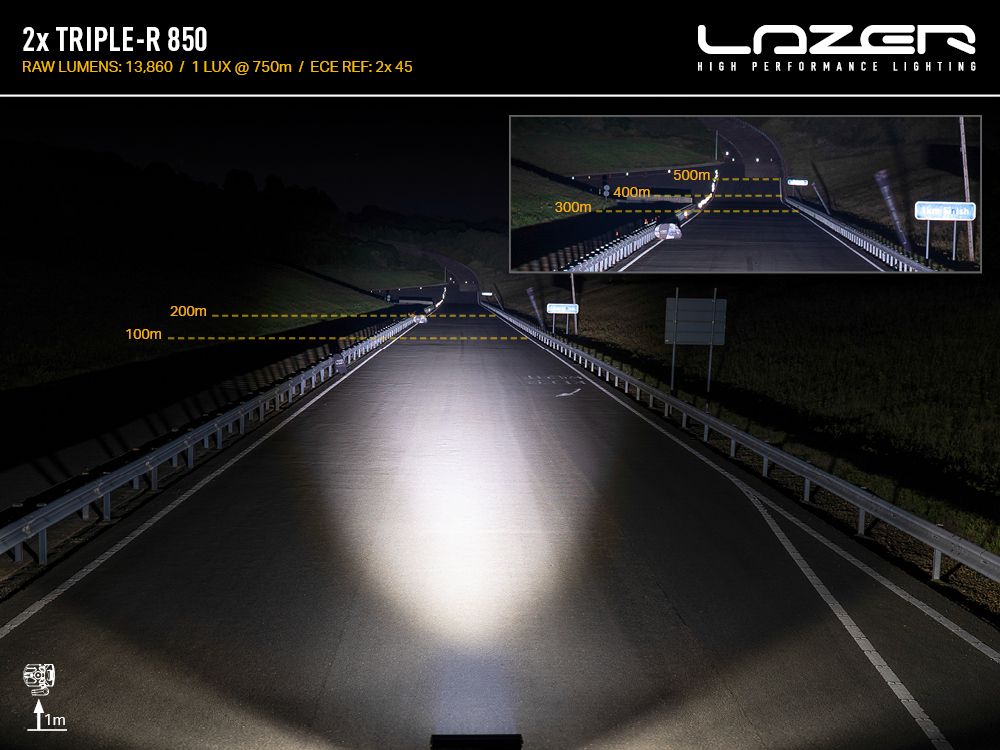

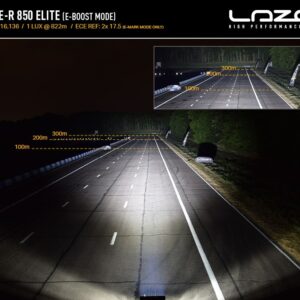

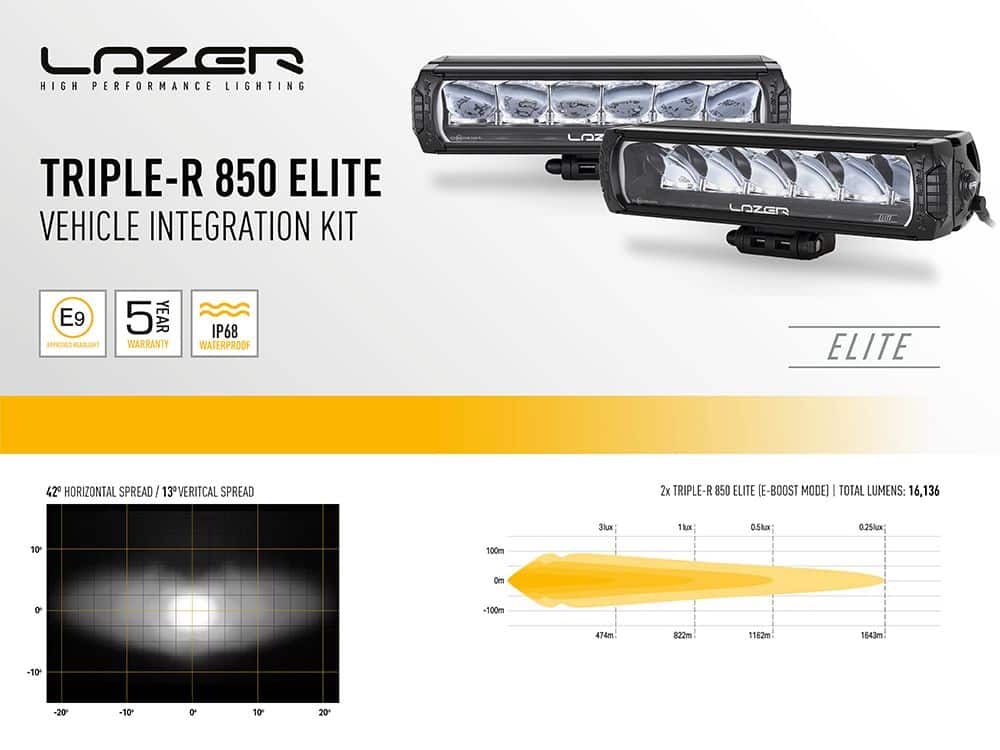

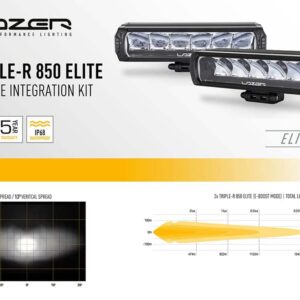

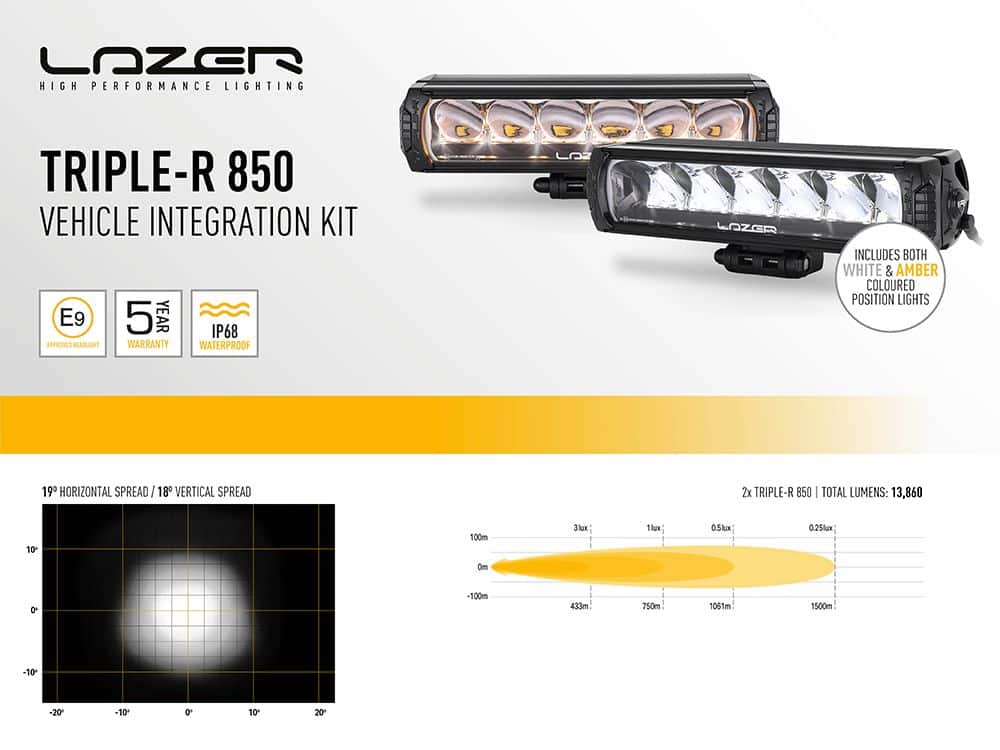

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 42° | 19° |
| 0.25 lx Line | 1643m | 1500m |
| 0.5 lx Line | 1162m | 1061m |
| 1 lx Line | 822m | 750m |
| 3 lx Line | 474m | 433m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (includes cutting guides)
- 2x Triple-R 850 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
VIDEOS
| Car brand | FORD |
|---|---|
| Product manufacturer | LAZER LAMPS |
| Brand | INTEGRATION KITS, LIGHTS |
| LUMENS | 13860, 16136 |
| Lazer Lamps | Triple-R 850, Triple-R 850 Elite |
