Lazer Lamps FORD RANGER RAPTOR (2018+) GRILLE KIT
Original price was: 865,15€.750,75€Current price is: 750,75€. WITH TAX
Lazer Lamps FORD RANGER RAPTOR (2018+) GRILLE KIT
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

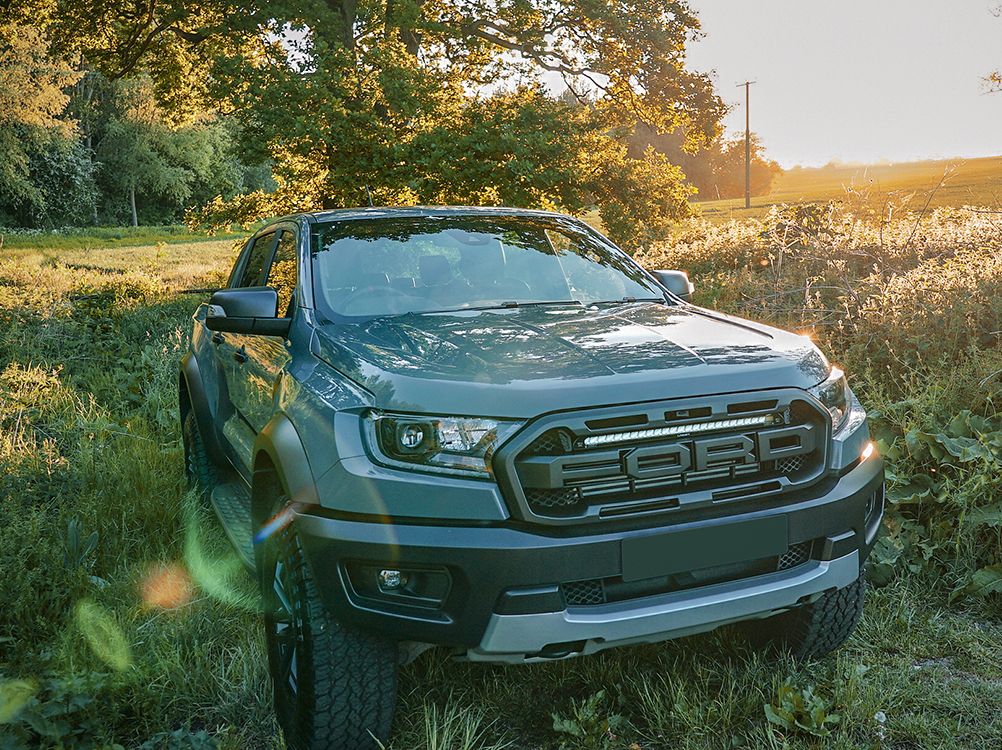

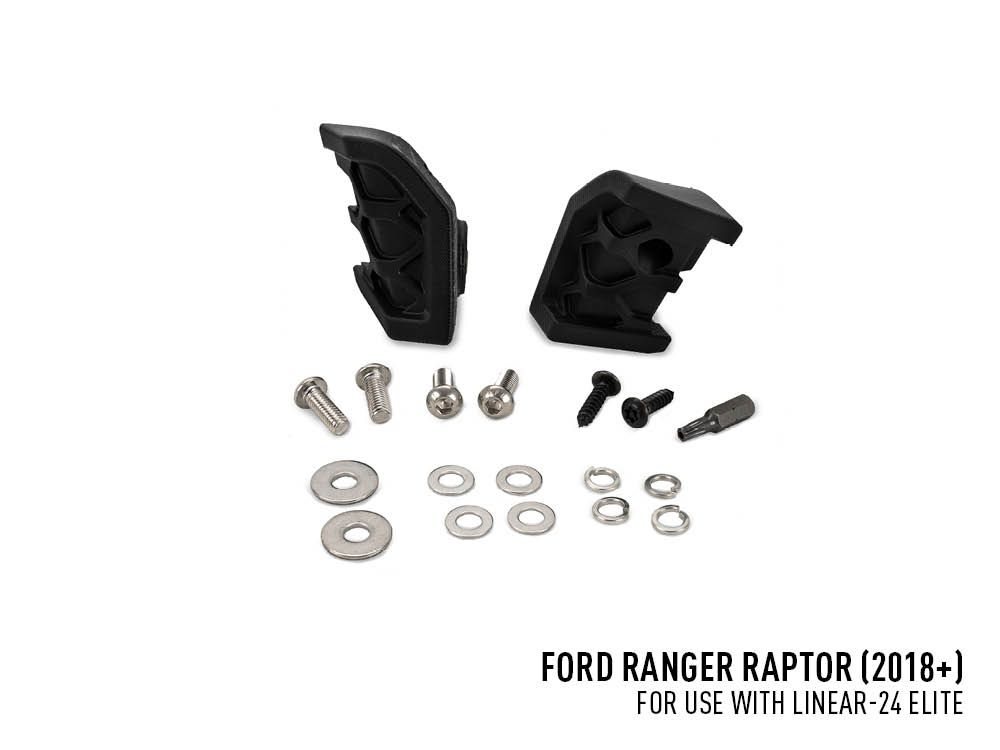

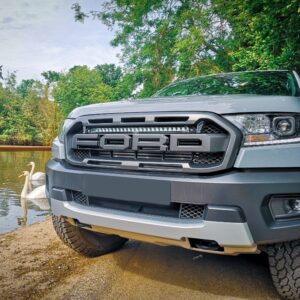

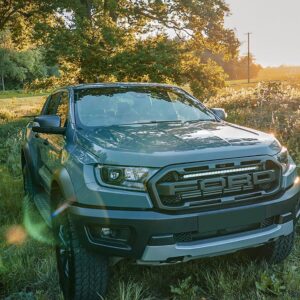

The Ford Ranger Raptor, for vehicles produced since 2018+, includes a Linear-24 Elite High Performance LED driving light, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Please note, the Ford Ranger Raptor (2018+) Grille Integration Kit is carefully engineered and optimised for use with our Linear-24 Elite High Performance LED Spotlight. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).Lazer Lamps FORD RANGER RAPTOR (2018+) GRILLE KIT
PRODUCT FEATURES
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Ford Ranger Raptor (2018+)
Compatible with Linear-24 Elite LED Spotlight
Kit also includes bespoke mounting brackets and wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
| 1x Linear-24 Elite | |
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2000 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 18000 Lm |
| Total Driver ‘FOV’ Flux †| 12815 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 24 |
| Power Consumption | 188Â Watts |
| Current Draw (at 14.4V) | 14.4 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |

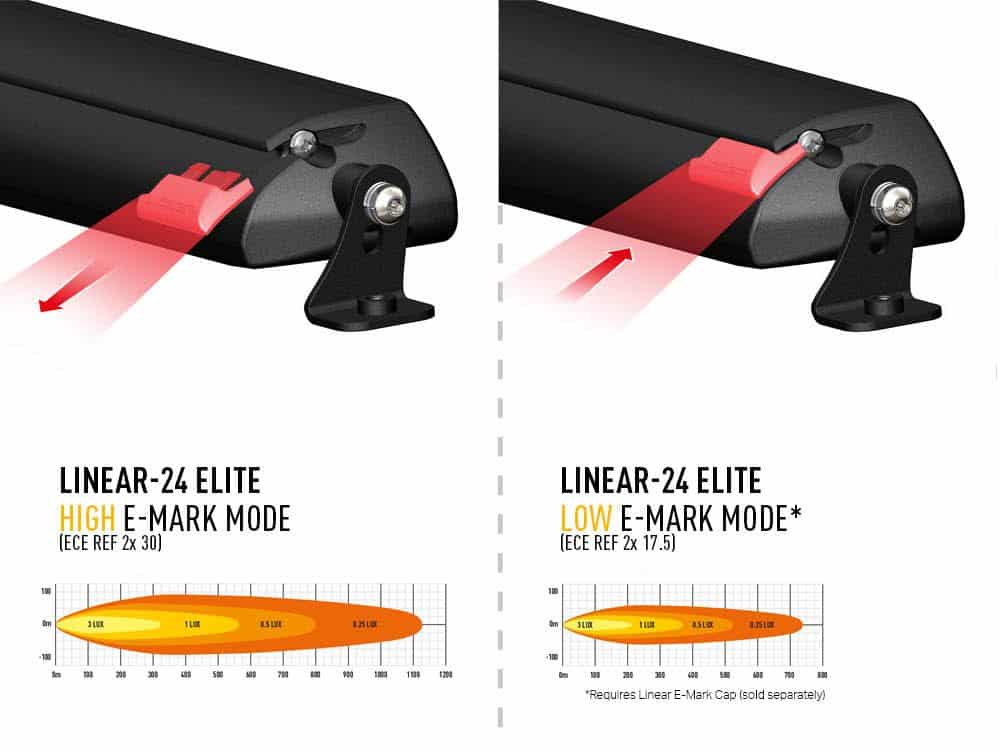

| ECE Reference | 2×30 (2x 10 – With E-Mark Cap) |
| DIMENSIONS | |
| Width | 682mm |
| Depth | 62 mm |
| Height | 40 mm |

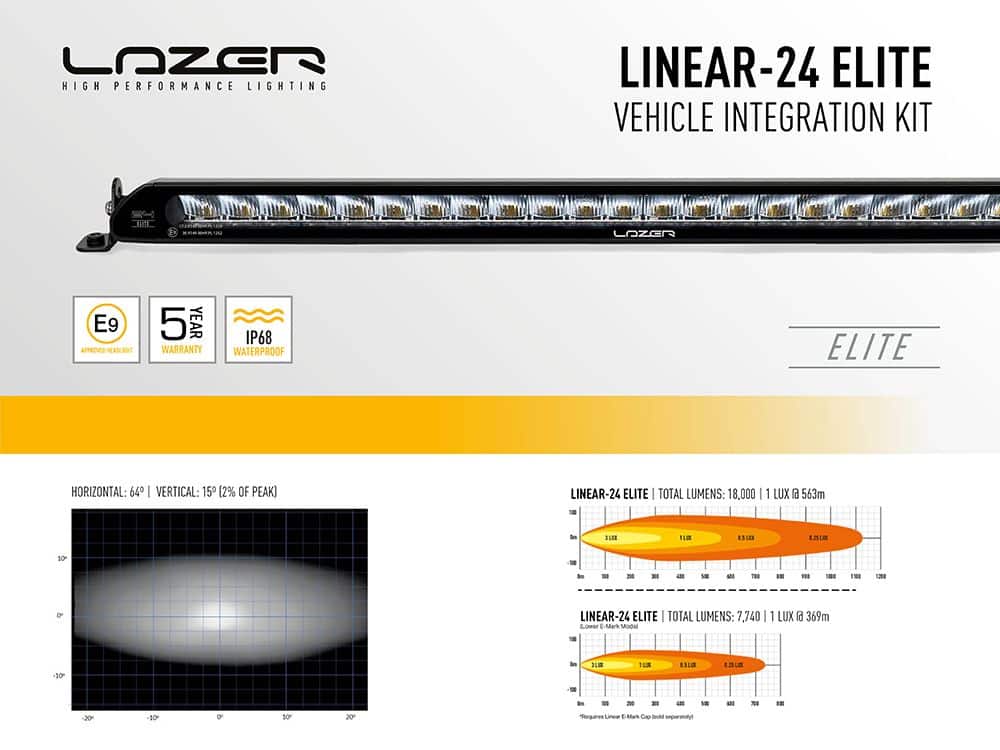

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 64 degrees |
| 0.25 lx Line | 1126Â metres |
| 0.5 lx Line | 796 metres |
| 1 lx Line | 563 metres |
| 3 lx Line | 325 metres |
†Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit
- 1x Linear-24 Elite LED Lamp
- 1x One-Lamp Wiring Kit
- Installation Instructions
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
VIDEOS
| Car brand | FORD |
|---|---|
| Product manufacturer | LAZER LAMPS |
| Brand | INTEGRATION KITS, LIGHTS |
| LUMENS | 18000 |
| Lazer Lamps | Linear-24 Elite |
