Lazer Jeep Wrangler JL (2017+) – Bonnet Mount (for Linear-24) VIFK-JWJL-01K
Original price was: 119,00€.103,27€Current price is: 103,27€. WITH TAX
Lazer Jeep Wrangler JL (2017+) – Bonnet Mount (for Linear-24) VIFK-JWJL-01K

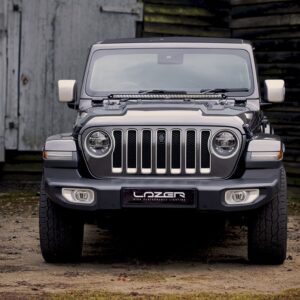

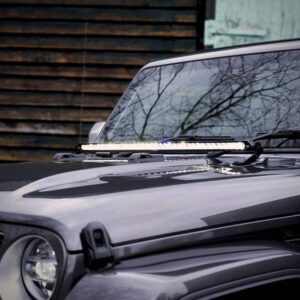

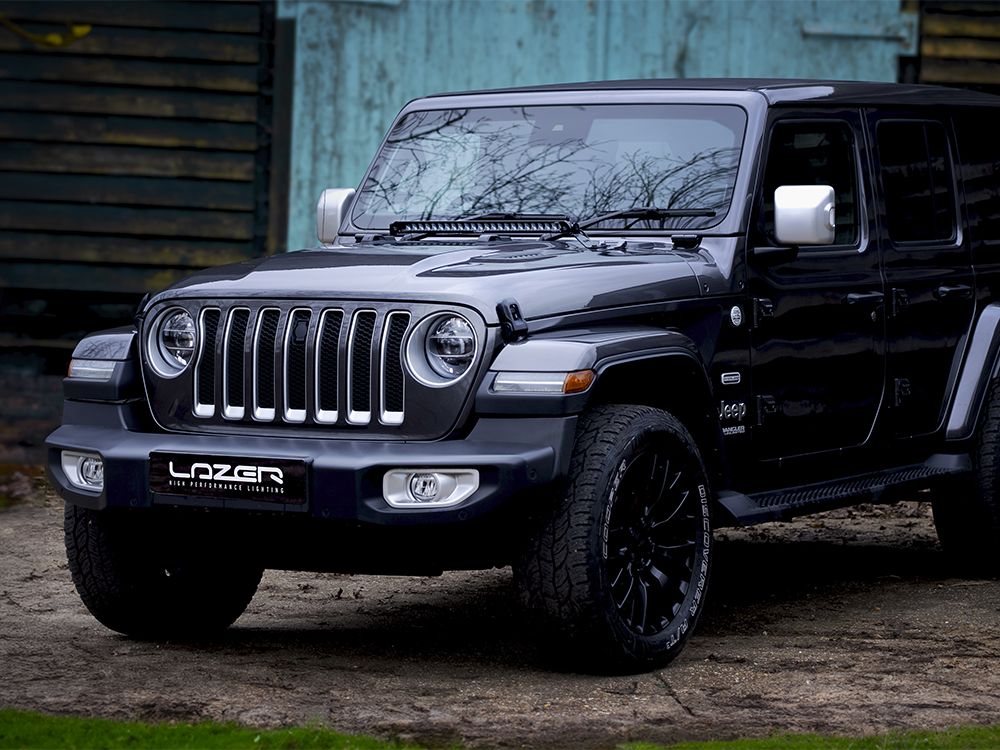

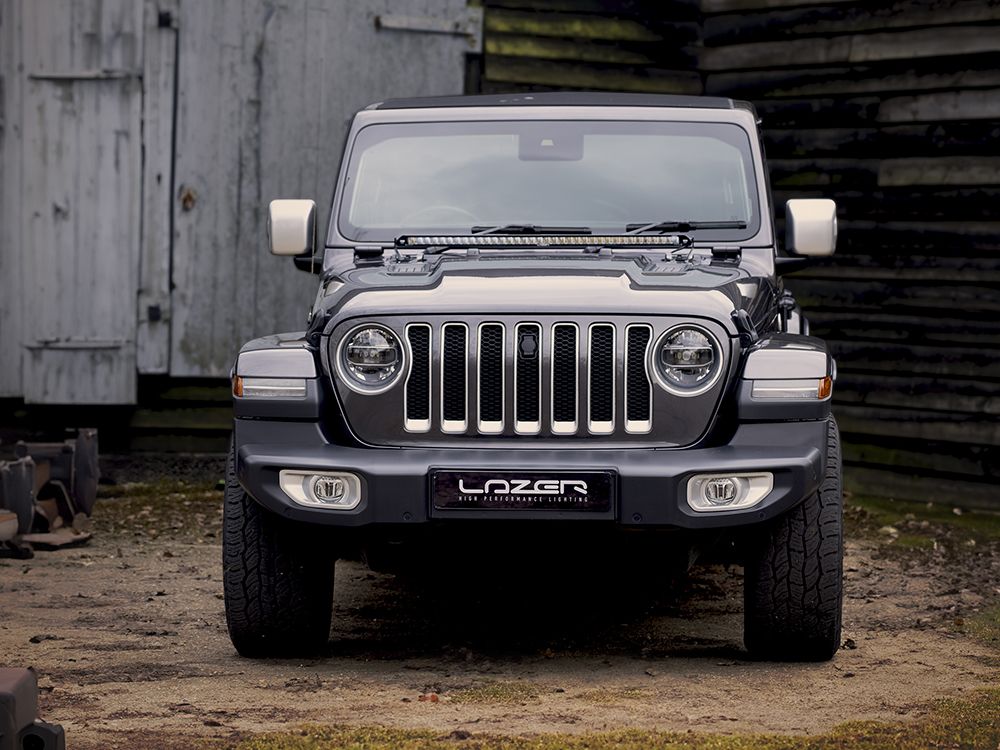

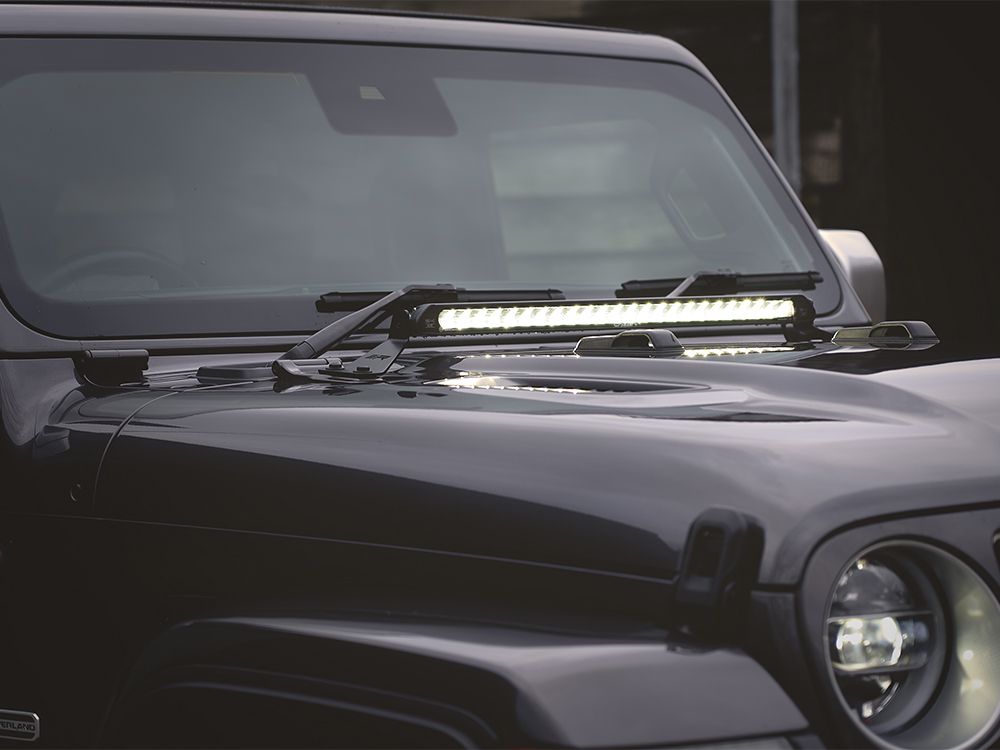

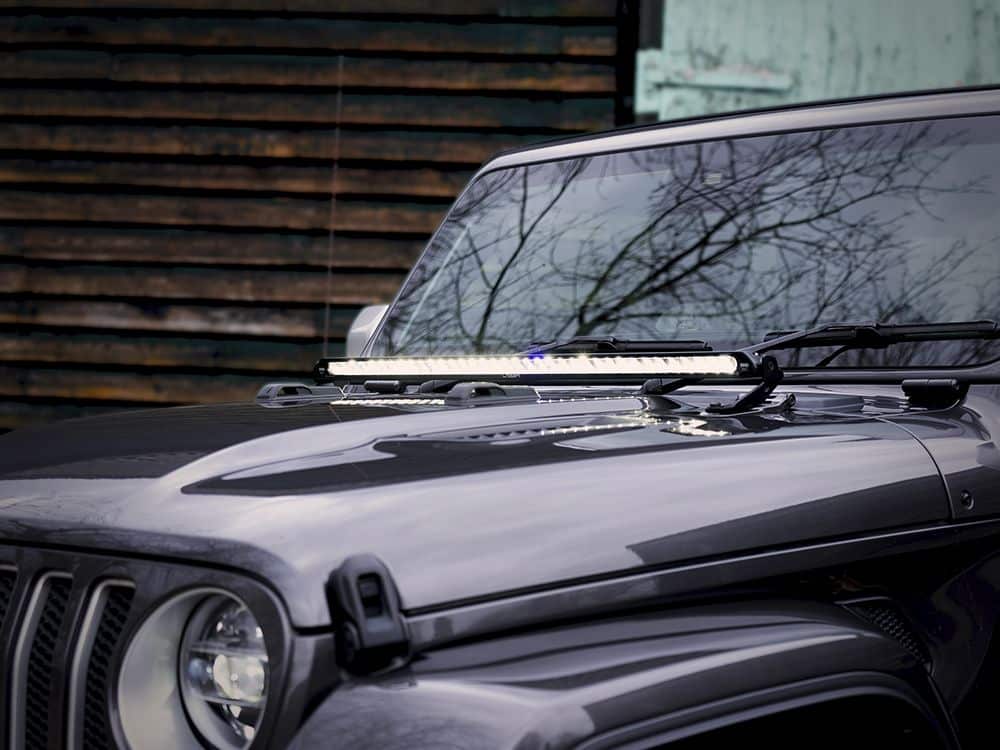

Upgrade your 2017+ Jeep Wrangler JL with our Hood Mount kit facilitating the installation of the Linear-24 or Linear-36 high performance LED light bars, for an unparalleled night drive experience.
Designed and manufactured in the UK, the mounting brackets are made from 4mm A2 stainless steel, with distinctive laser cut ‘IIIR’ branding. The parts are pre-treated prior to in-house satin black powder coat being applied, ensuring your installation looks as good as it performs, with full corrosion protection.

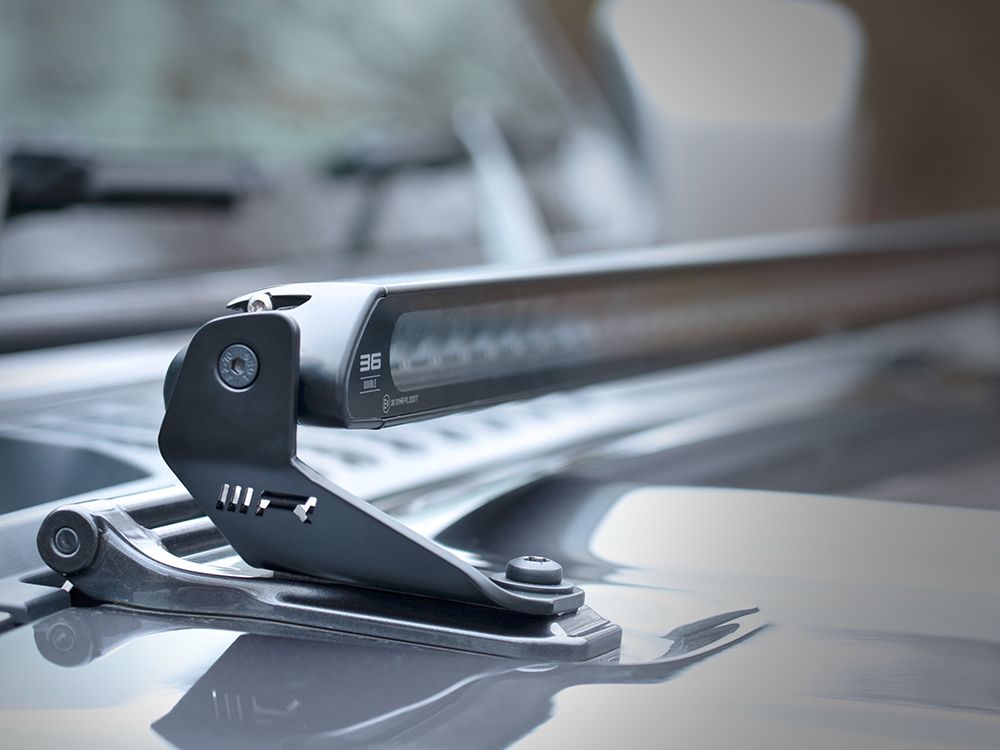

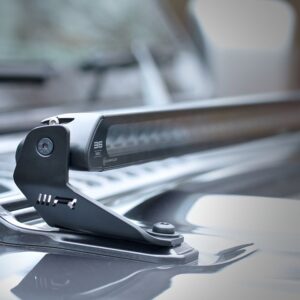

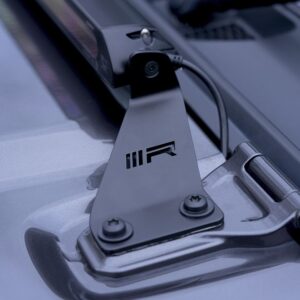

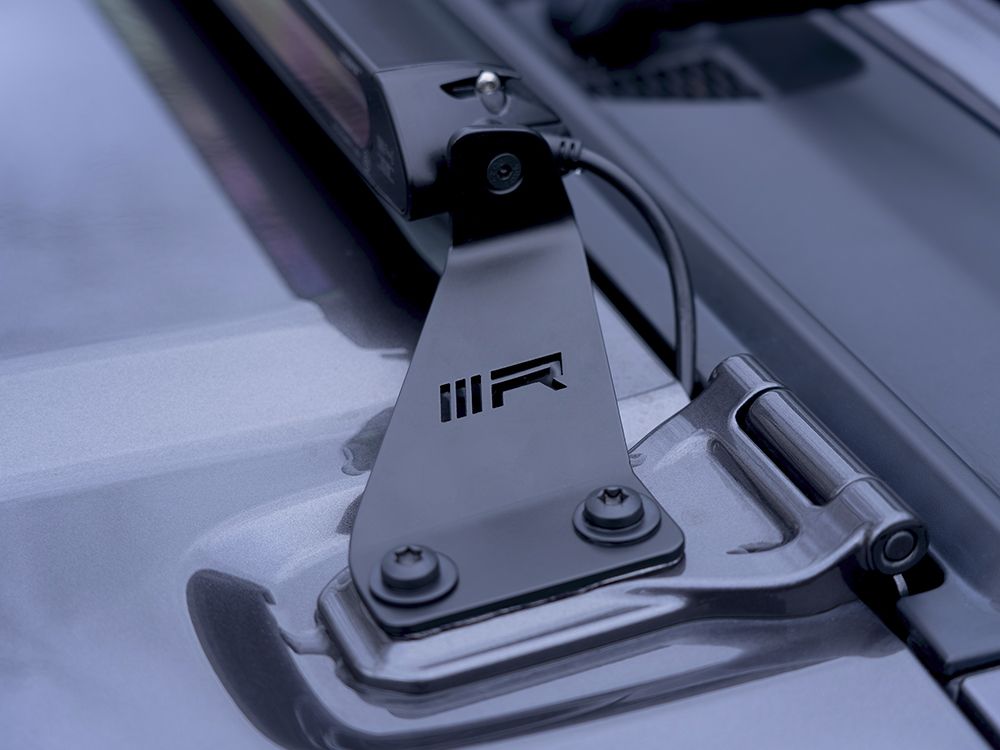

The mounting brackets locate in the original factory hinge mount location, with supplied fibre rubber gaskets and black A2 stainless fasteners providing for a stylish finish befitting the lamps. Compatible lamp options are the Linear-24 Elite, or Linear-36 / Linear-36 Elite. Each Linear product features incredible lighting performance considering the diminutive low-profile design of the lamps, resulting in a statement look for your Wrangler, but which really comes alive at night!
LIGHTS AND WIRING SOLD SEPARATELY.
(note – One-Lamp Wiring Kit included with lamps: Linear-36 Elite)
Delivery time: from 1 to 7 days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).Lazer Jeep Wrangler JL (2017+) – Bonnet Mount (for Linear-24) VIFK-JWJL-01K
PRODUCT FEATURES
Produced from 4mm A2 stainless steel with satin black powder coat finish
Distinctive ‘IIIR’ branding
Supplied with rubber gaskets and M8/M6 stainless steel mounting hardware
Locates in original hood hinge fixing points
Compatible with Jeep Wrangler JL (2017+)
Compatible with Linear-24 or Linear-36/Linear-36 Elite (note: separate bracket options for each size)
Designed & manufactured in the UK
TECHNICAL SPECIFICATIONS
| Linear-24 Elite | Linear-36 | Linear-36 Elite | |
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 2 kg | 2.7 kg | 2.7 kg |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 18000 Lm | 13500 Lm | 29700 Lm |
| Total Driver ‘FOV’ Flux † | 12815 Lm | 9612 Lm | 21325 Lm |
| Colour Temperature | 5000K | 5000k | 5000K |
| Number of High Output LEDs | 24 | 36 | 72 |
| Power Consumption | 188 Watts | 126 Watts | 308 Watts |
| Current Draw (at 14.4V) | 14.4 Amps | 8.8 Amps | 21.4 Amps |
| CERTIFICATION | |||
| High Beam | ECE R112 | ECE R112 | N/A |
| ECE Reference | 2×30 (2x 10 – With E-Mark Cap) |
50 | N/A |
| DIMENSIONS | |||
| Width | 682mm | 982 mm | 982 mm |
| Depth | 62 mm | 62 mm | 62 mm |
| Height | 40 mm | 40 mm | 40 mm |

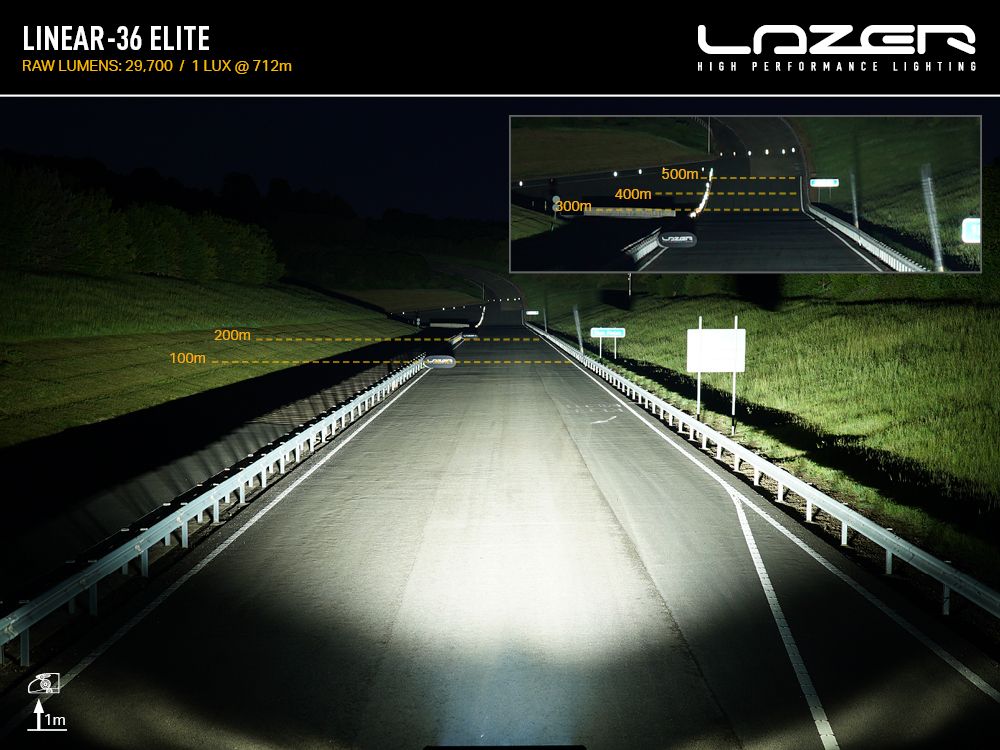

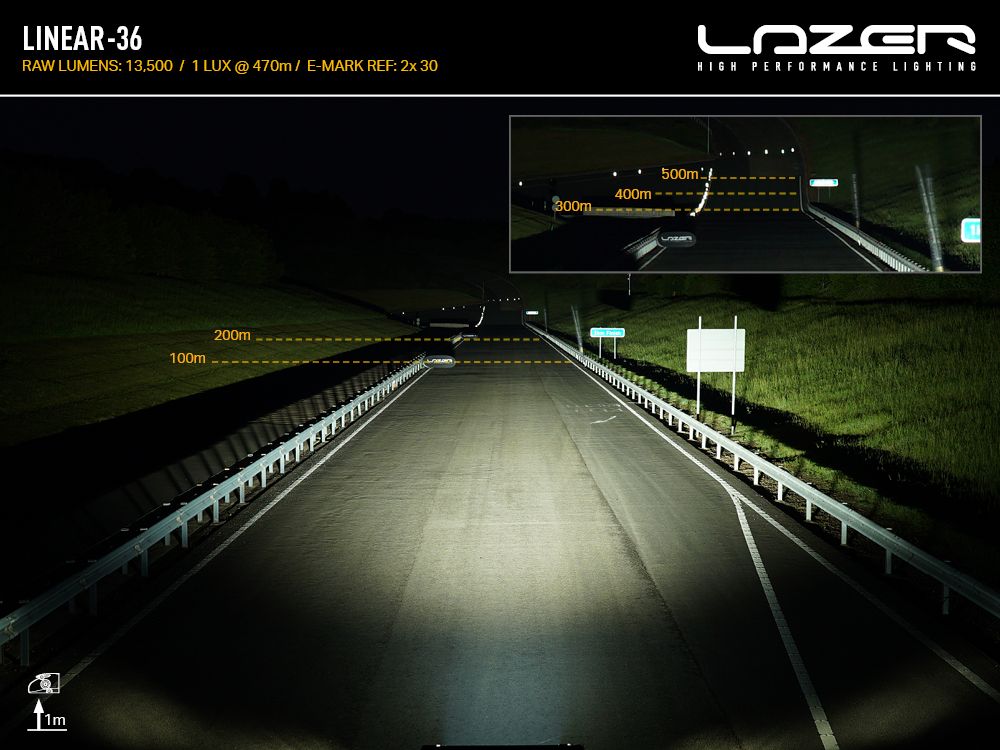

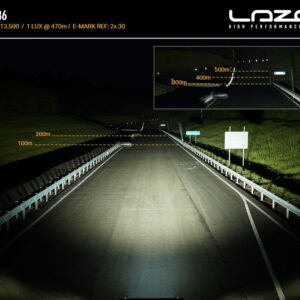

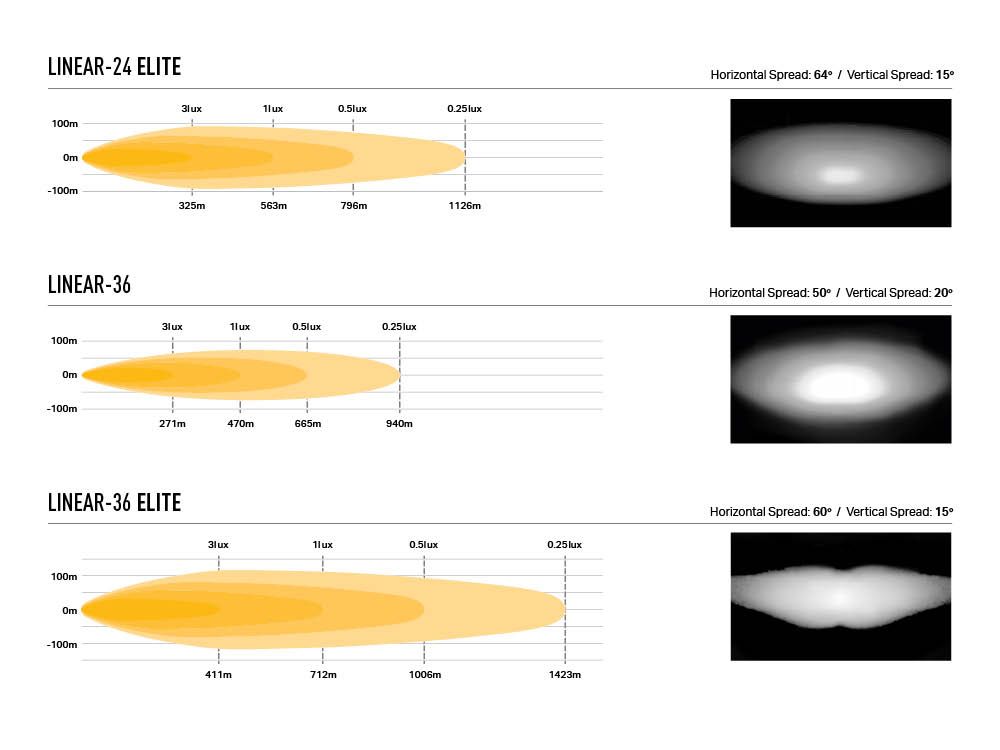

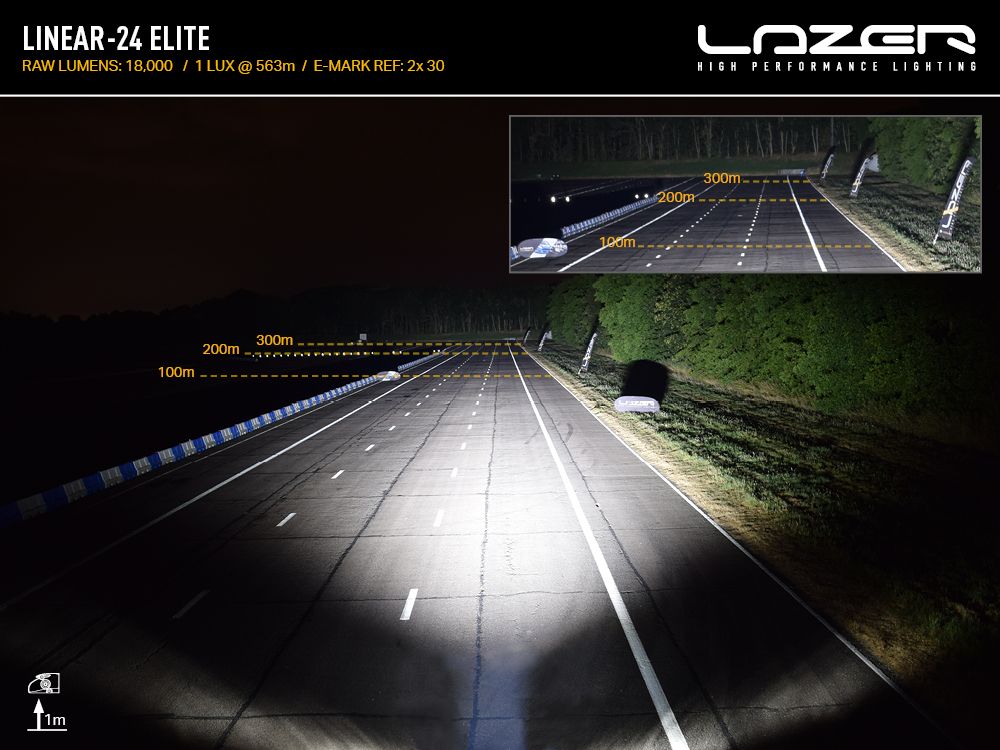

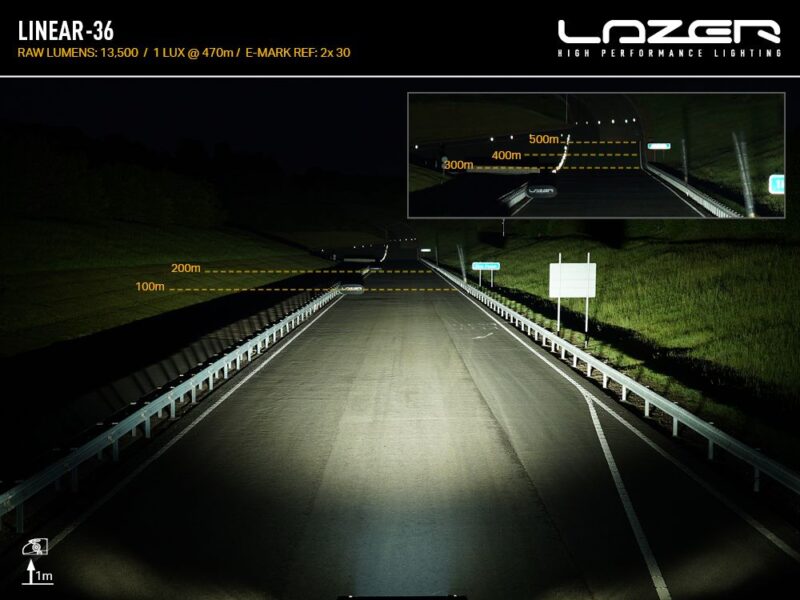

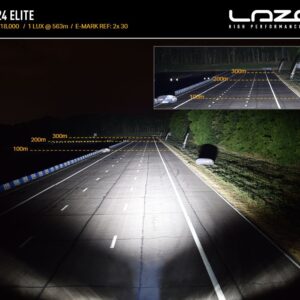

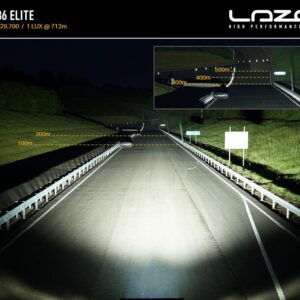

| PHOTOMETRIC DATA | |||
| Horizontal Beam Angle | 64o | 50o | 60° |
| 0.25 lx Line | 1126m | 940m | 1423m |
| 0.5 lx Line | 796m | 665m | 1006m |
| 1 lx Line | 563m | 470m | 712m |
| 3 lx Line | 325m | 271m | 411m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

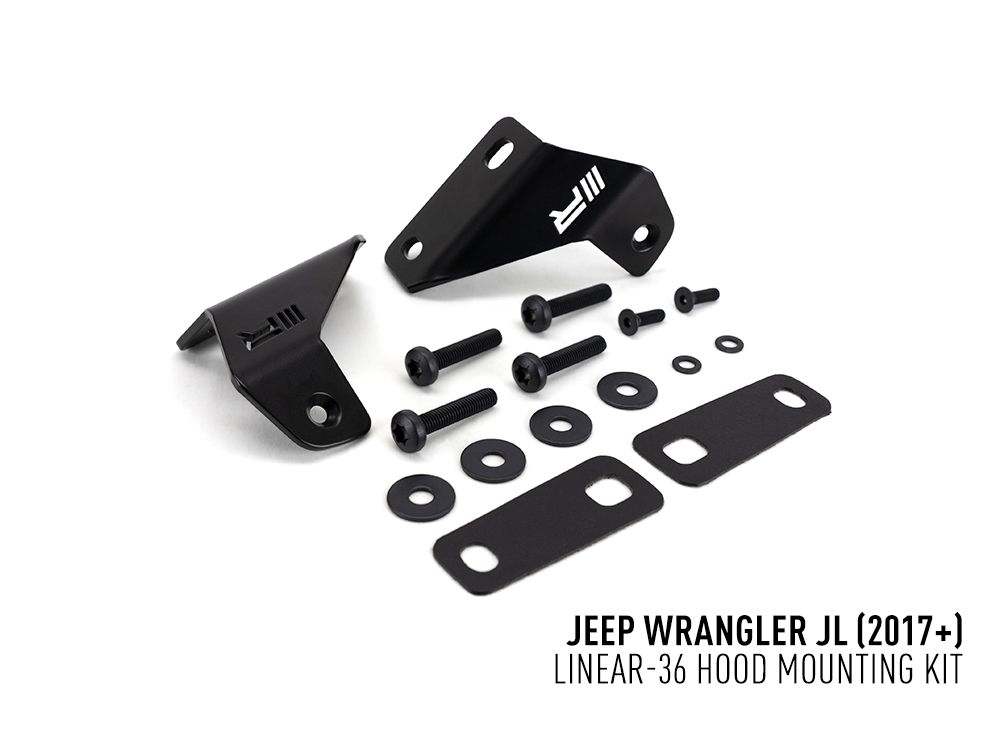

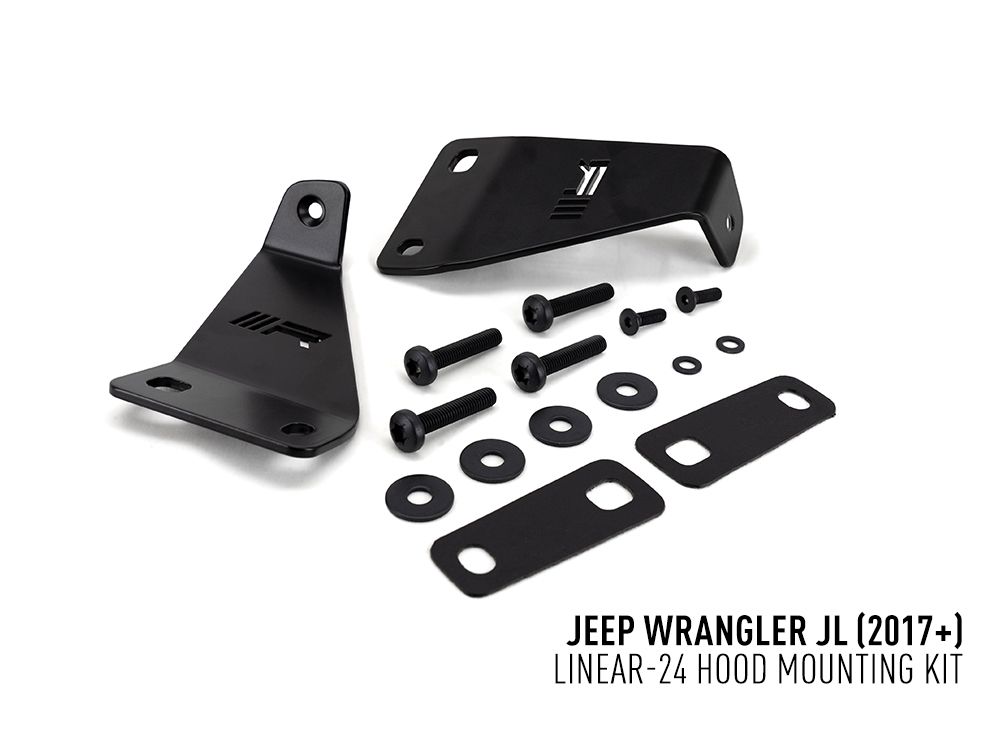

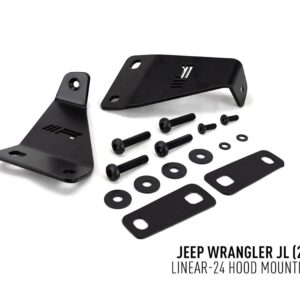

WHAT’S INCLUDED
- x2 Wrangler JL Mounting Brackets (LH/RH)
- x2 Fibre Rubber Gasket (adhesive backed)
- x1 Black Stainless Steel Fastener Pack
Fitting instructions available in the downloads section below.
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
