Lazer Isuzu D-Max (2021-2022) – Bumper Beam Fixing Kit (for 2x Linear-6) VIFK-DMAX-02K
PRODUCT FEATURES
Auxiliary high beam driving light installation for Isuzu D-Max (model year 2021-2022)

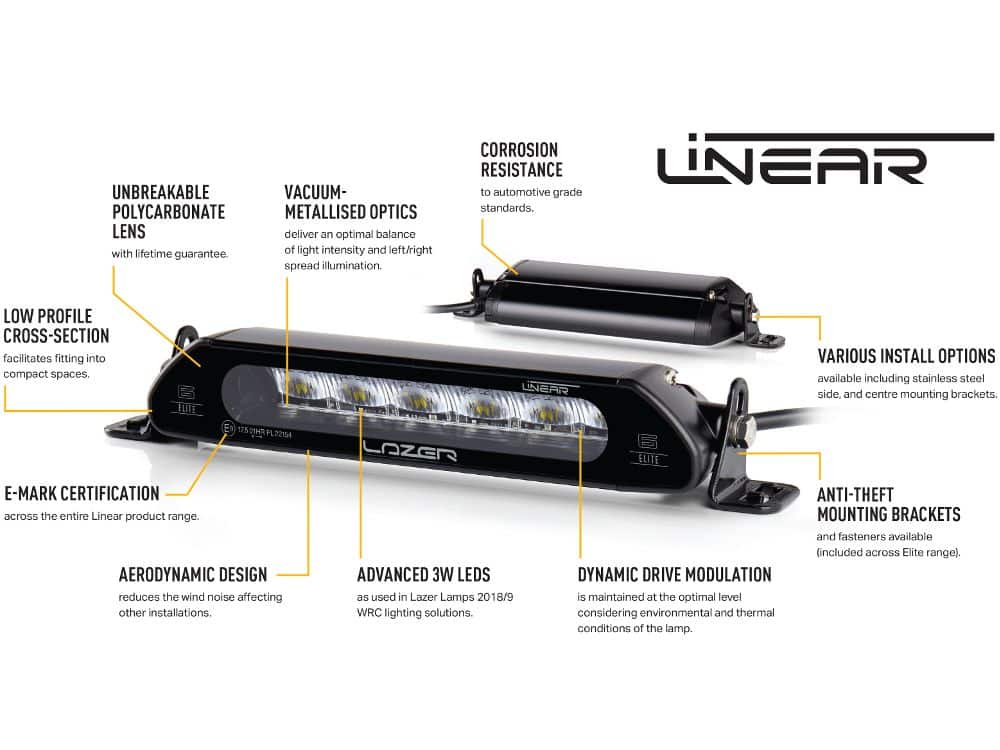

Optimised mounting with pair of Linear-6 LED driving lights
Standard or Elite lighting options available

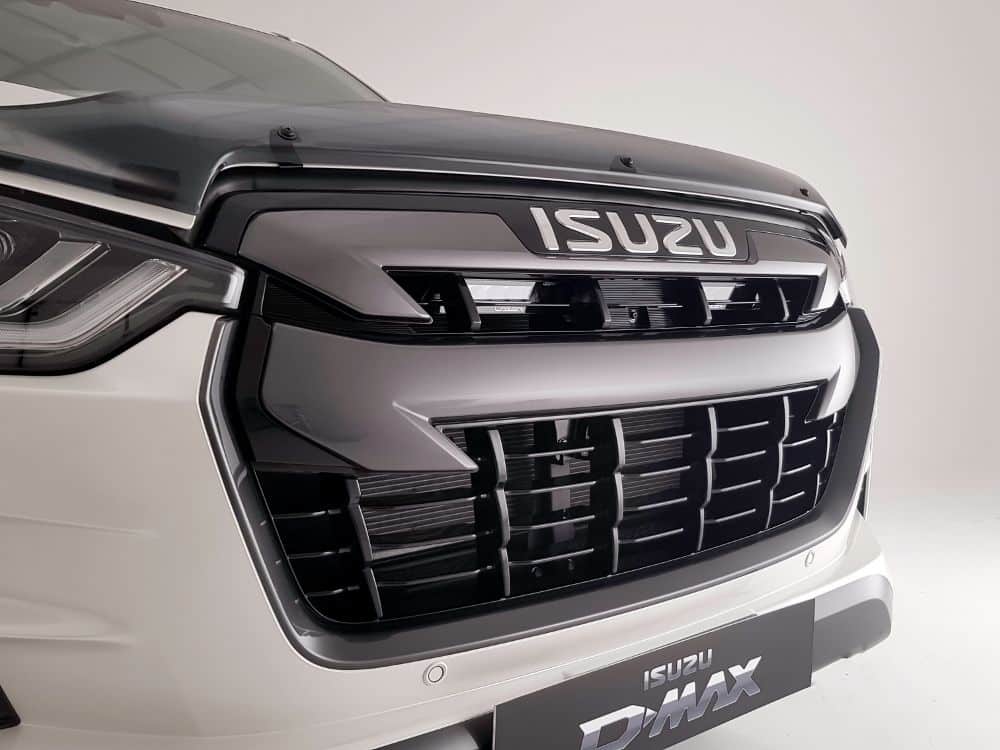

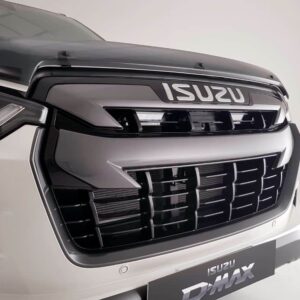

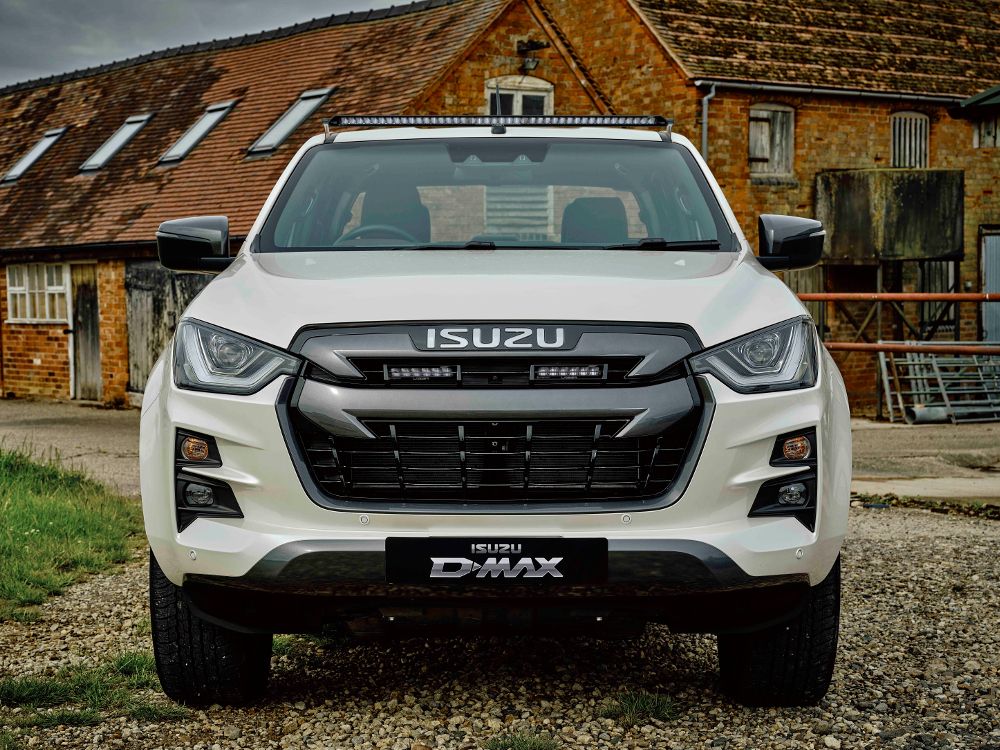

Custom-made mounting brackets secures to metal support behind front grille
Vehicle wiring kits available
Fully road-legal
5-year warranty
Made in UK
TECHNICAL SPECIFICATIONS
2x Linear-6 Elite |
2x Linear-6 Elite+ (E-Boost / E-Mark) |
2x Linear-6 | |
Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
Weight | 800 gr | 2x 800 gr | 800 gr |
HIGH BEAM FUNCTION | |||
Total Luminous Flux | 8100 Lm | 10200 / 5000 Lm |
4500 Lm |
Total Driver ‘FOV’ Flux † | 5767 Lm | 7290 / 3644 Lm |
3204 Lm |
Colour Temperature | 5000K | 5000K | |
Number of High Output LEDs | 2 x 12 | 2 x 12 | 2 x 6 |
Power Consumption | 84 Watts | 96 / 48 Watts | 42 Watts |
Current Draw (at 14.4V) | 5.8 Amps | 7.2 / 3.6 Amps | 2.92 Amps |
CERTIFICATION | |||
High Beam | ECE R112 | ECE R149 | ECE R112 |
ECE Reference | 2 x 17.5 | 2 x 12.5 | 2 x 12.5 |

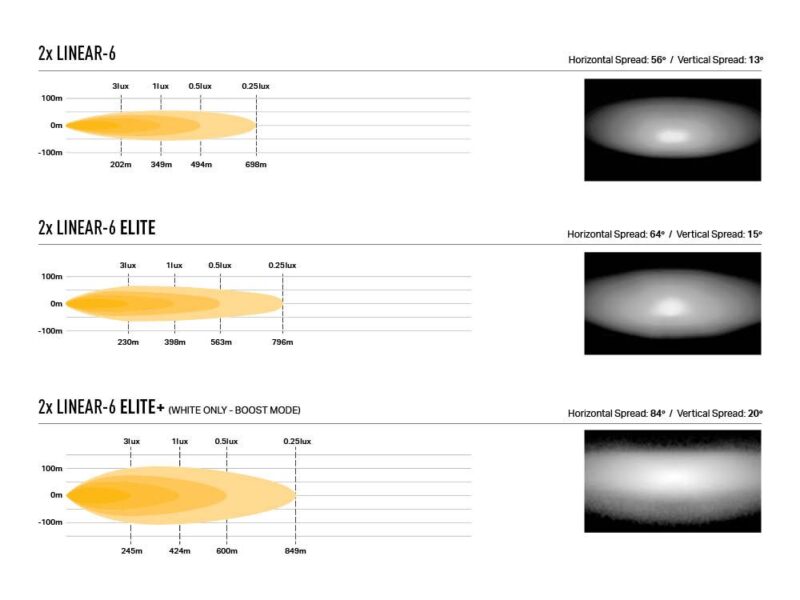

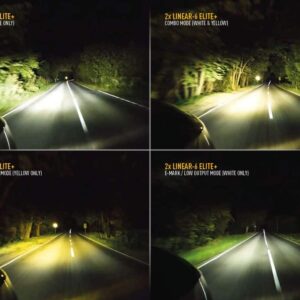

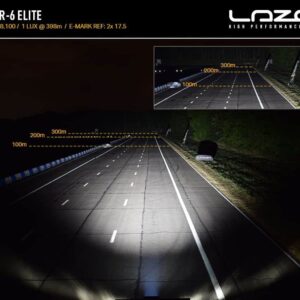

PHOTOMETRIC DATA | |||
Horizontal Beam Angle | 64° | 84o | 56° |

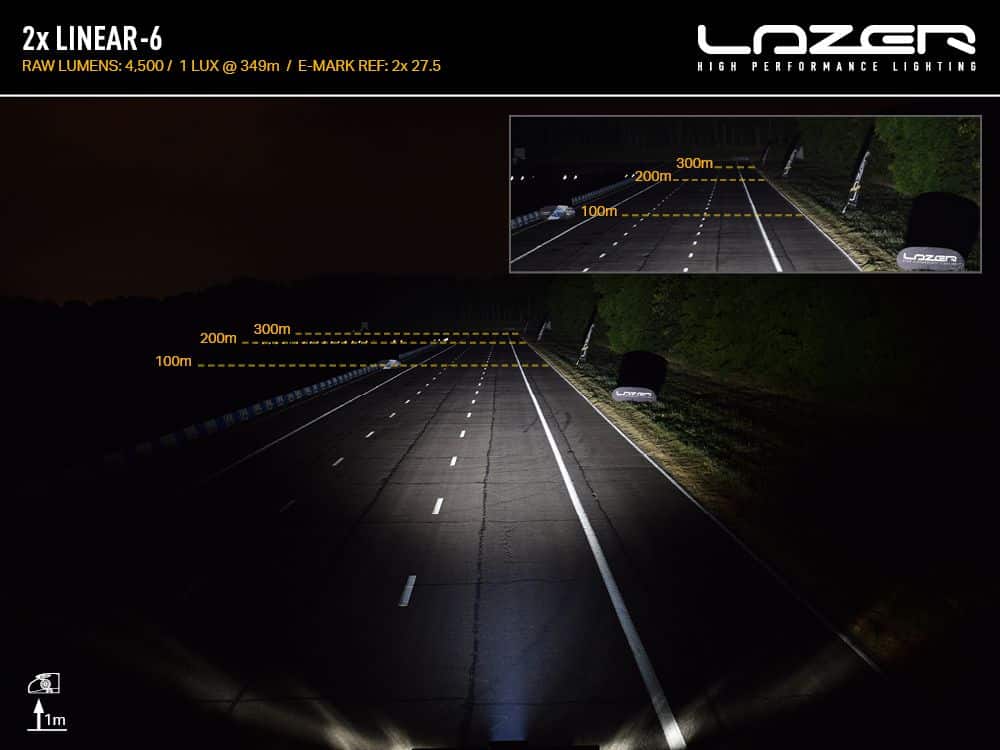

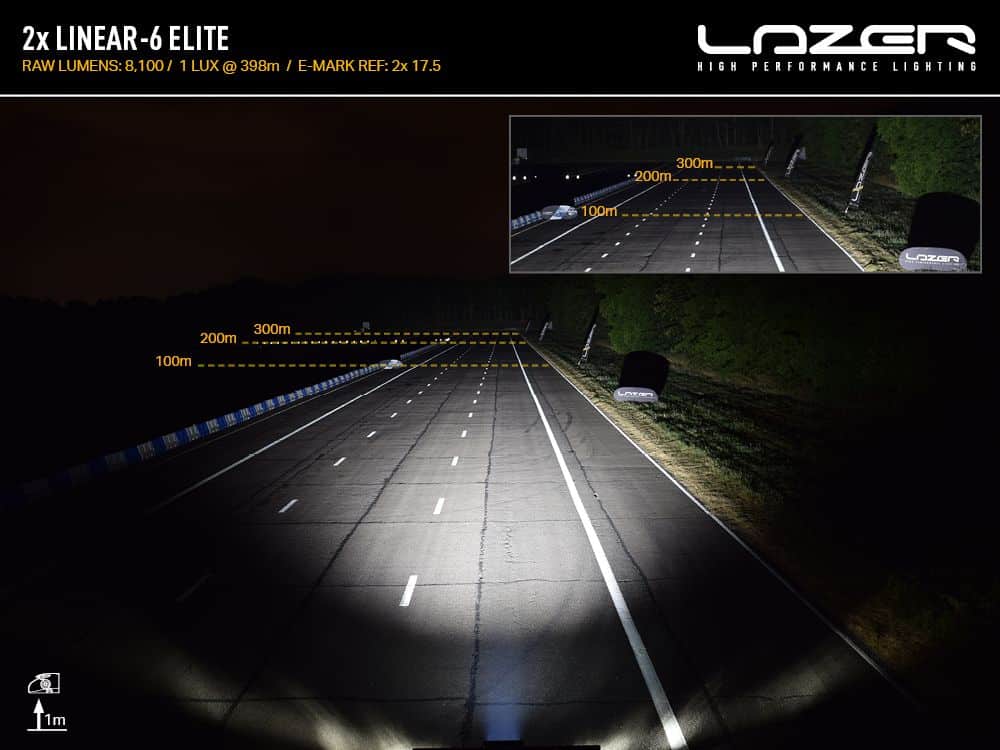

0.25 lx Line | 796m | 849 / 600m | 698m |
0.5 lx Line | 563m | 600 / 424m | 494m |
1 lx Line | 398m | 424 / 300m | 349m |
3 lx Line | 230m | 245 / 173m | 202m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

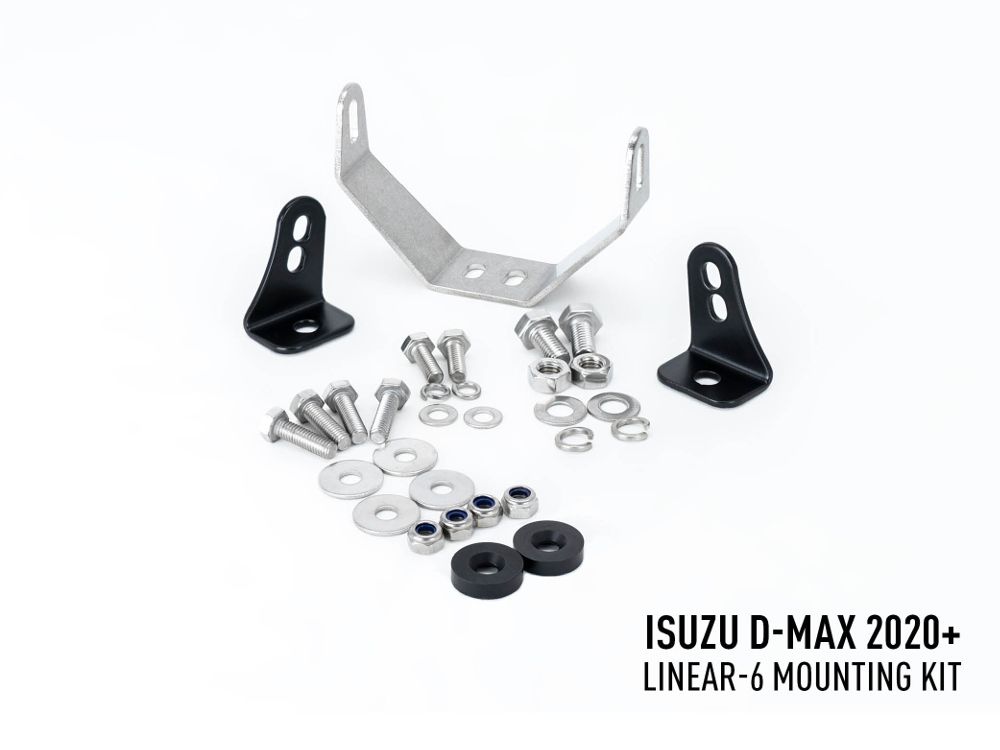

WHAT’S INCLUDED
- x2 Side Brackets
- U-Shaped Centre Mount
- Fixtures
Fitting instructions available in the downloads section below.
