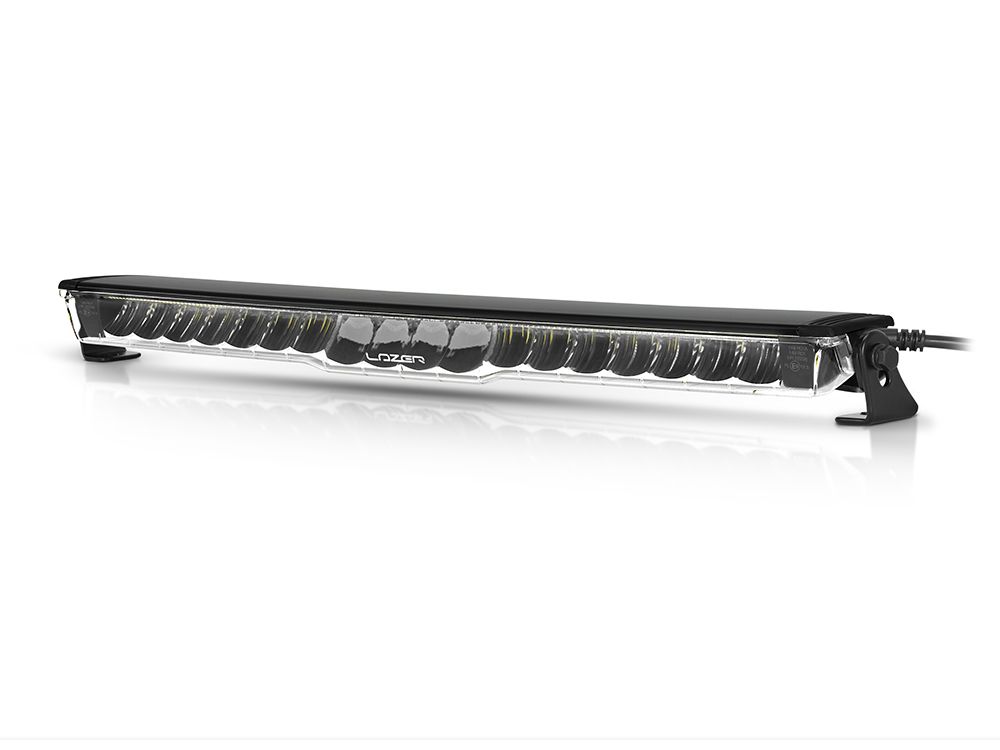

Lazer Glide (with Side Mount Kit) 0G18-SM

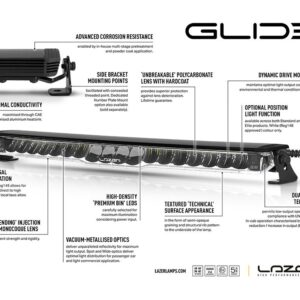

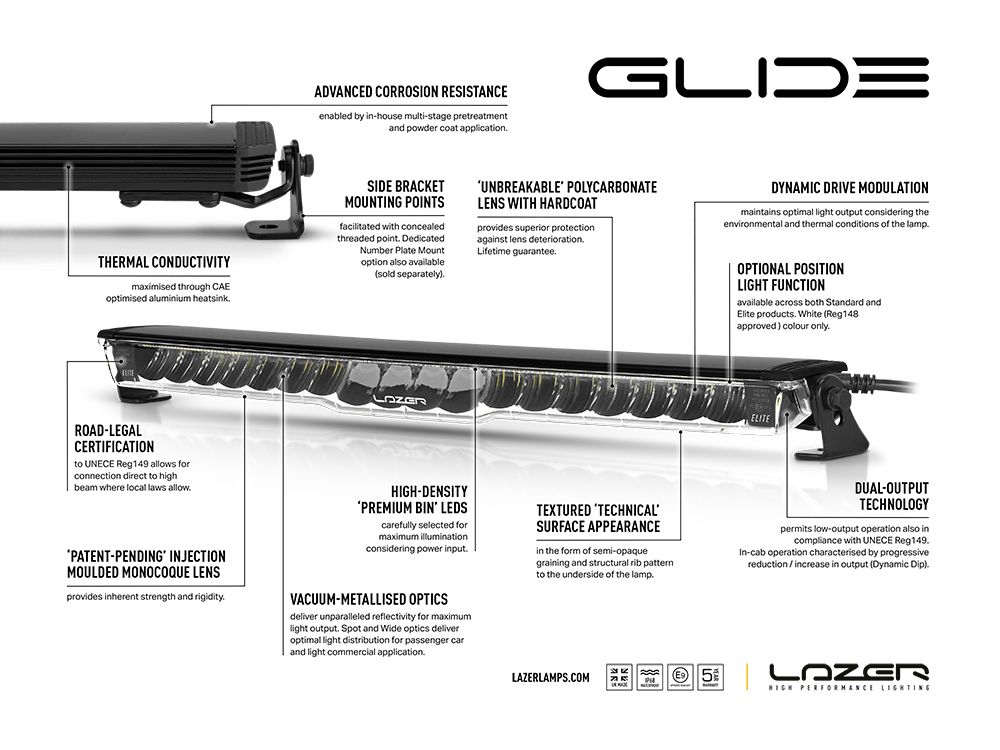

PRODUCT FEATURES
‘Formed’ light bar featuring injection-moulded monocoque lens construction
Curved and ultra low-profile lamp design facilitates OE quality vehicle installation
Patent-pending lamp design
Incorporation of the latest high-intensity ‘premium bin’ LEDs
Combined vacuum-metallised spot and wide optic systems deliver optimal light distribution
Dynamic Dip function for transitioning between high and low output modes
UNECE approved Reg 149 (Class B Driving Light) for on-road high beam function – Low Output/E-Mark mode only
Optional integrated white position light function – UNECE Reg 148 approved
Adoption of black PCB’s for a contemporary and stealth appearance
‘Unbreakable’ polycarbonate lens with hardcoat (with lifetime guarantee*)

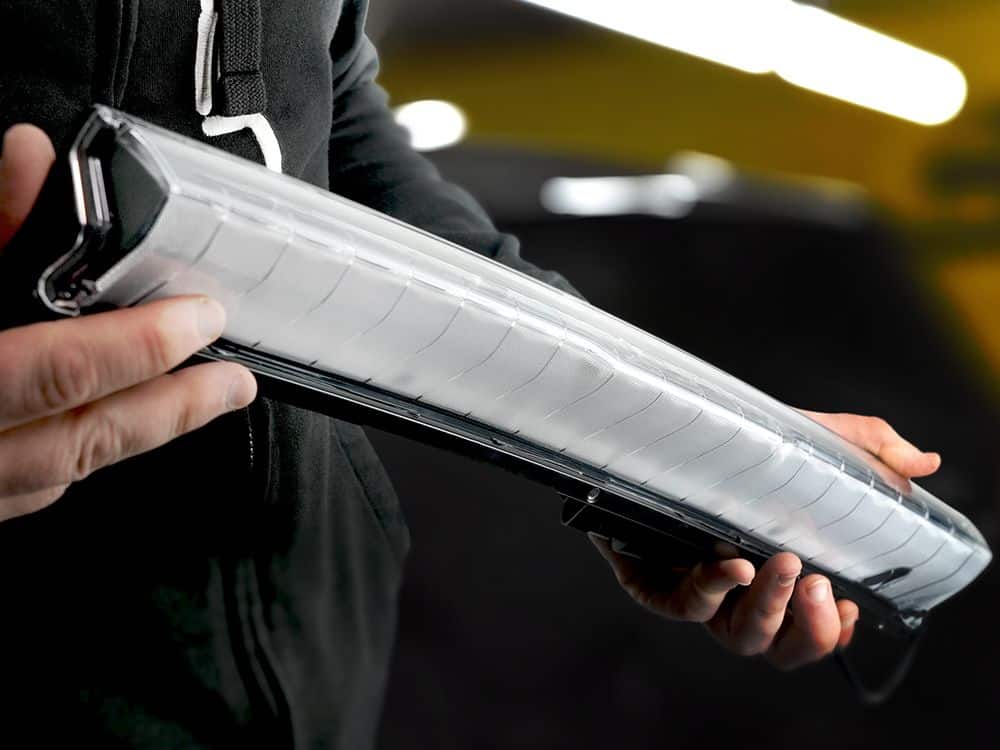

Textured effect to the underside of the polycarbonate lens for a unique aesthetic appearance
5000K LED colour temperature and 80CRI maximises sharpness and definition

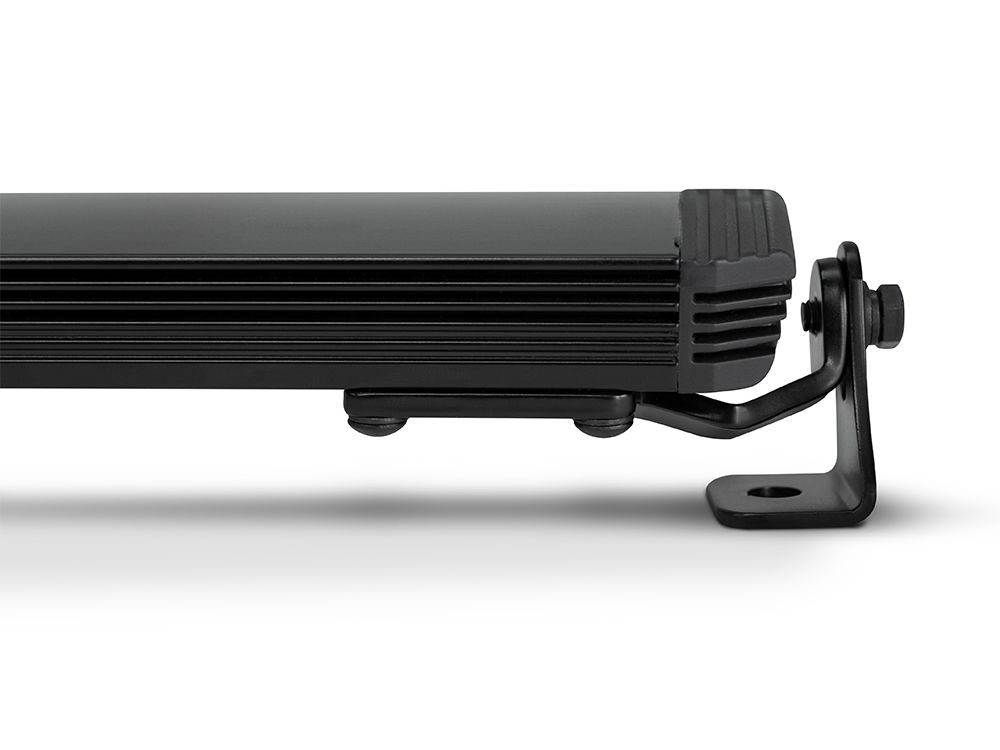

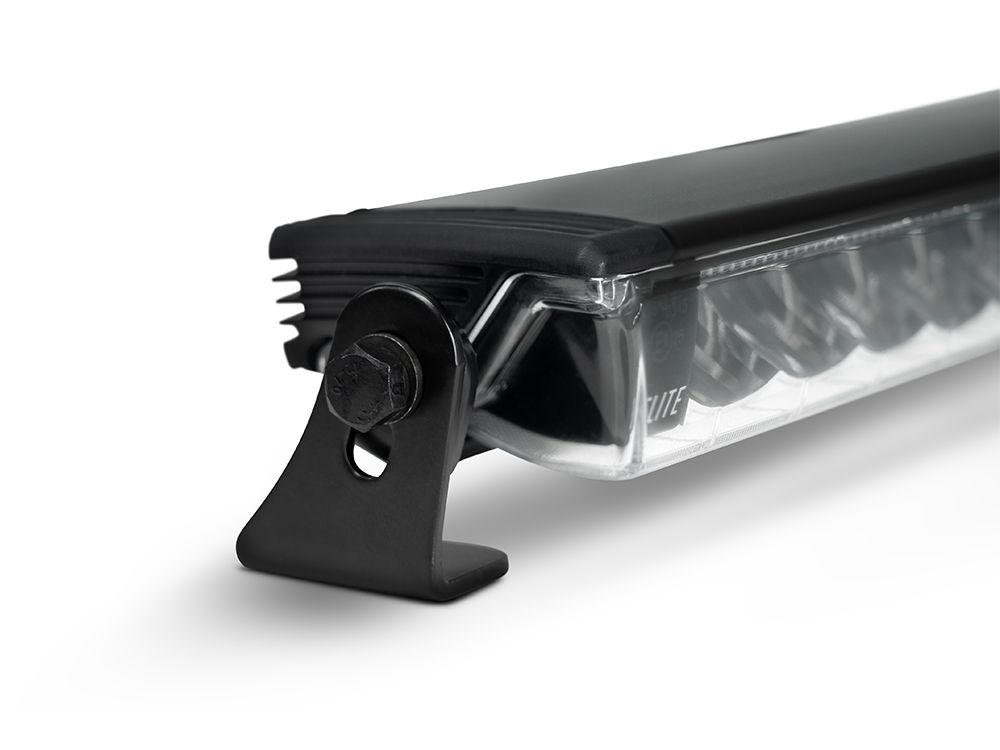

Supplied with side mounting kit – Anti-theft side mounting kit also available (sold seperately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
In-house pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
Over voltage protected
Reverse polarity protected
UNECE approved Reg 10
IP68 watertight – 1.5m submersion (30mins)
5-year warranty

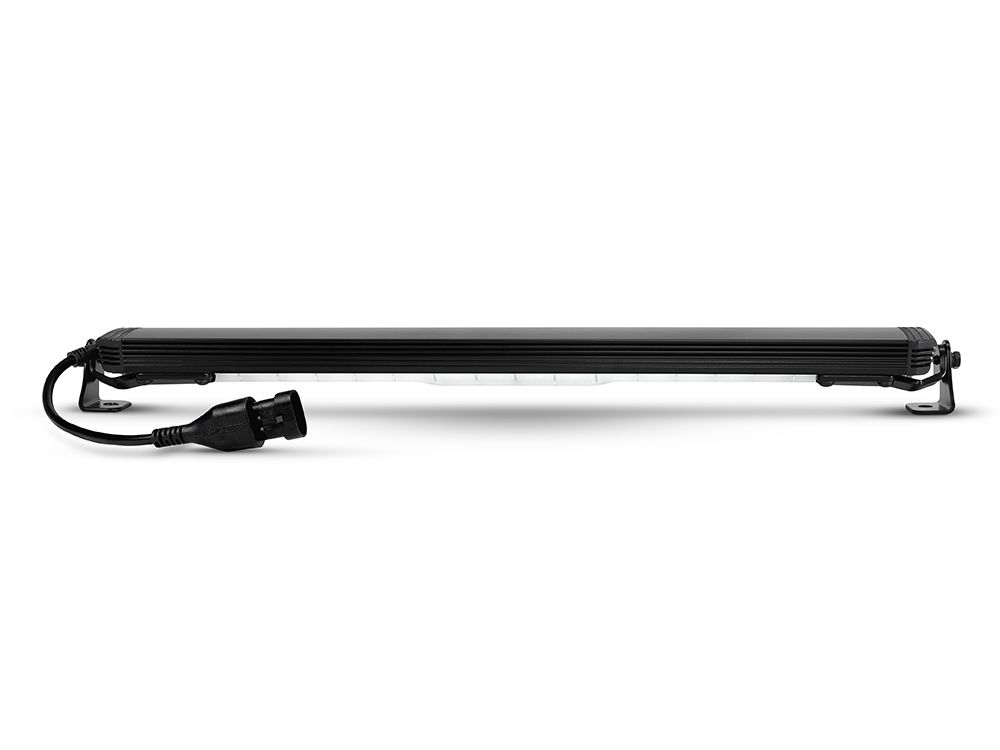

25cm lamp cable with supplied male/female 2-pin Superseal connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
BOOST MODE |
LOW OUTPUT / E-MARK MODE |
|
---|---|---|
Voltage Range (DC) | 10-32V | |
LED Life | 50,000 hours | |
Weight | 0.68 kg | |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 11,500 Lm | 4,025 Lm |
Total Driver ‘FOV’ Flux † | 6,958 Lm | 2,435 Lm |
Colour Temperature | 5000K | |
Power Consumption | 120 Watts | 42 Watts |
Peak Current Draw | 9.6 Amps | 2.6 Amps |
Current Draw (14.4V) | 8.3 Amps | 2.3 Amps |
Connector | 2-Pin/3-Pin Superseal (+25cm Cable) | |

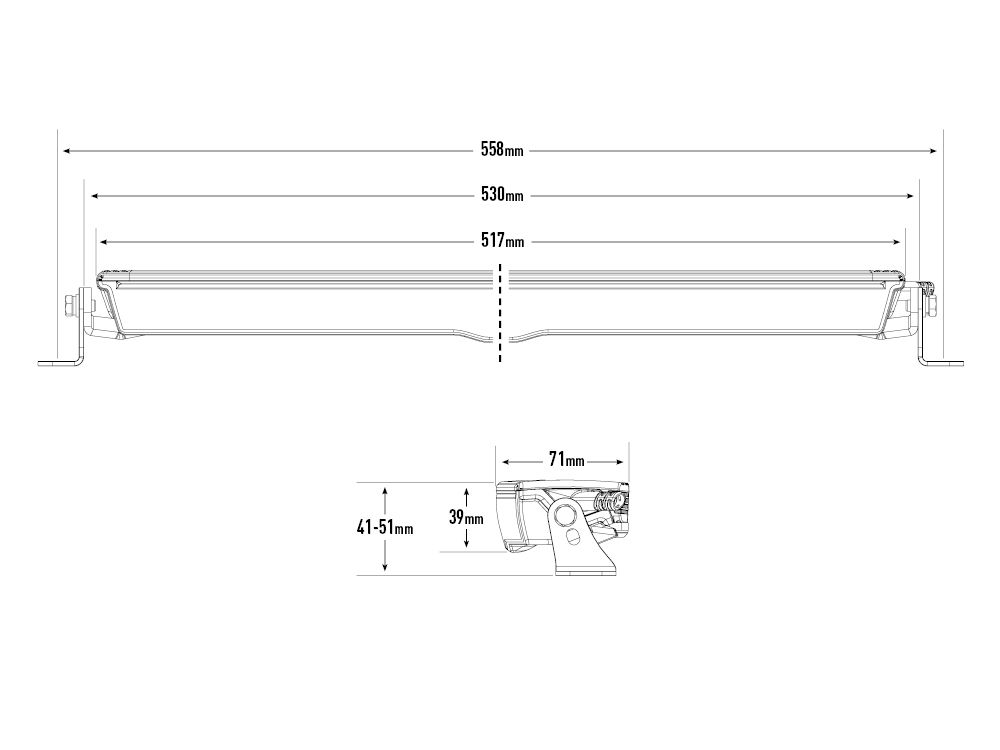

DIMENSIONS | ||
Width | 517 mm | |
Depth | 71 mm | |
Height | 39 mm | |
CERTIFICATION | ||
IP Rating # | IP68 | |
High Beam (E9 approval) | ECE R149 (Double E-Mark) – Ref: 2x 12.5 (Low Output mode only) | |
EMC Certification | ECE R10 | |
Salt Spray Test | ISO 9227 | |
Dump Load Protection | ISO 7637-2 | |

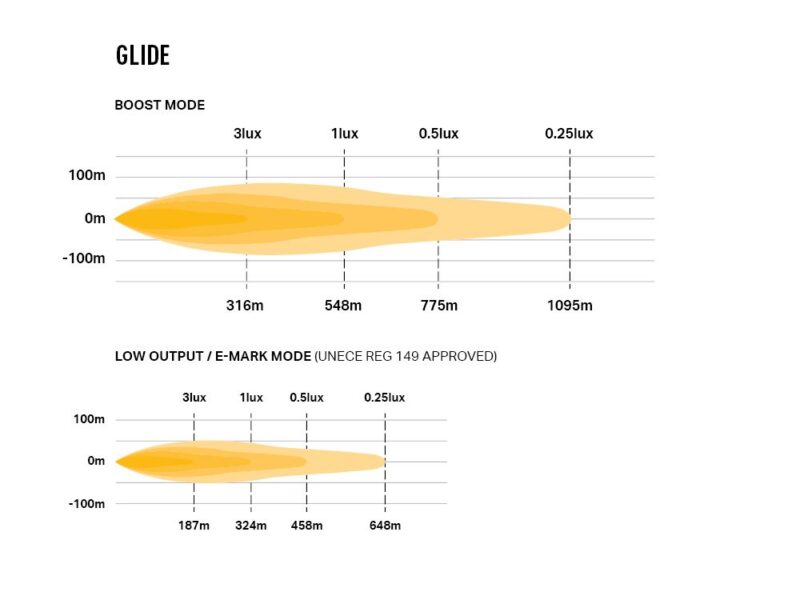

PHOTOMETRIC DATA | ||
Horizontal / Vertical Beam Angle | 60° / 13° | |
0.25 lx Line | 1095m | 648m |
0.5 lx Line | 775m | 458m |
1 lx Line | 548m | 324m |
3 lx Line | 316m | 187m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
WHAT’S INCLUDED
Glide LED Lightbar
Side Mounting Kit (1131K)
Installation Instructions
