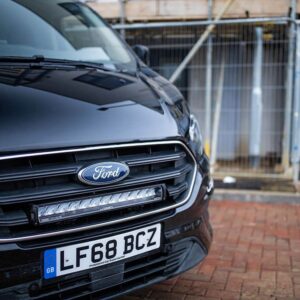

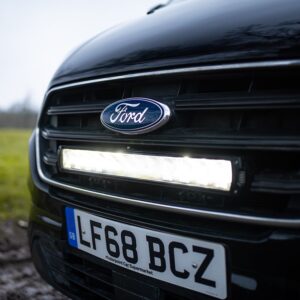

Lazer Ford Transit Custom (2018-2022) – Bumper Beam Mounting Kit (For Triple-R 1250) VIFK-FTC-01K
PRODUCT FEATURES

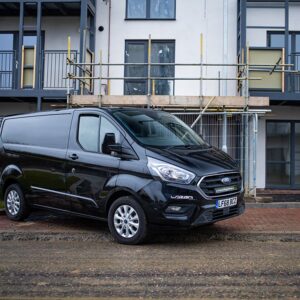

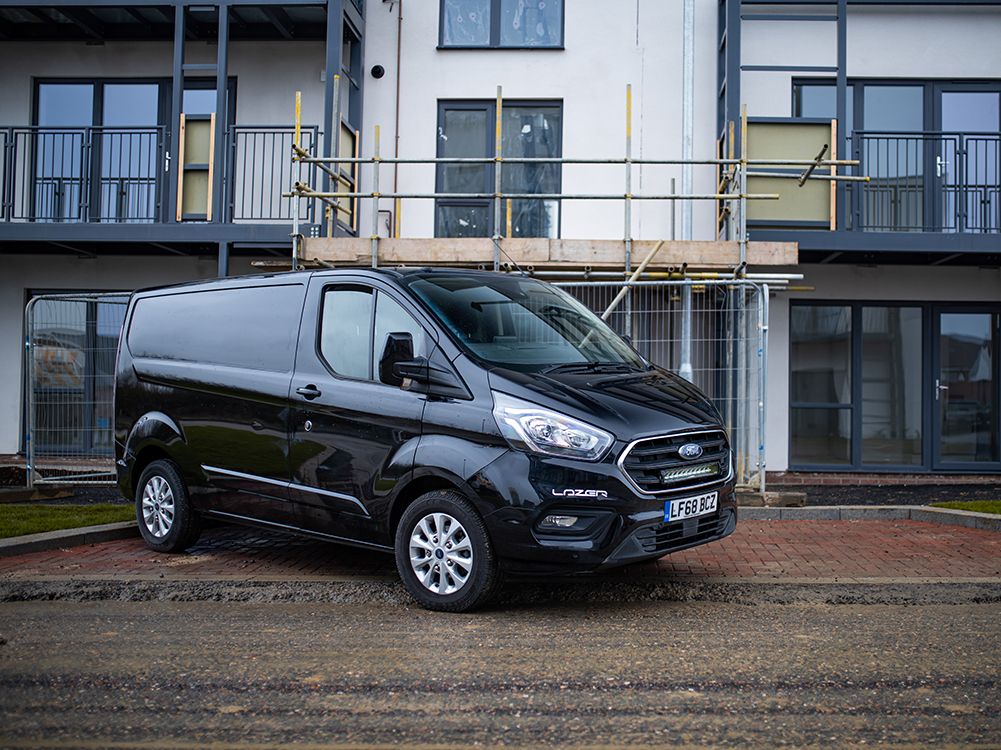

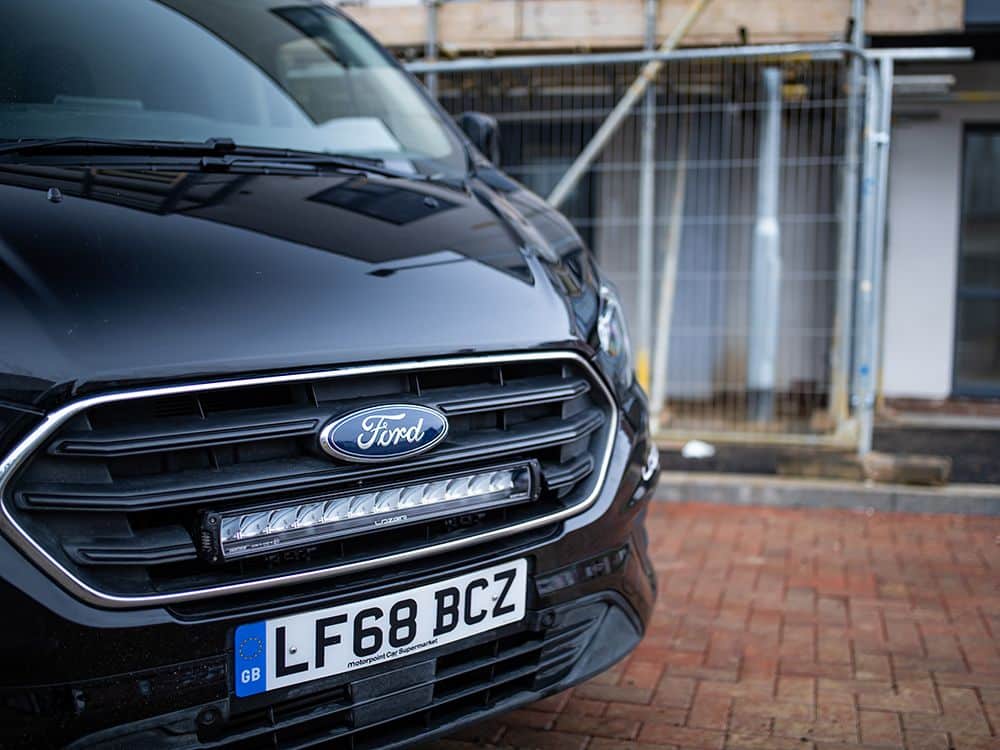

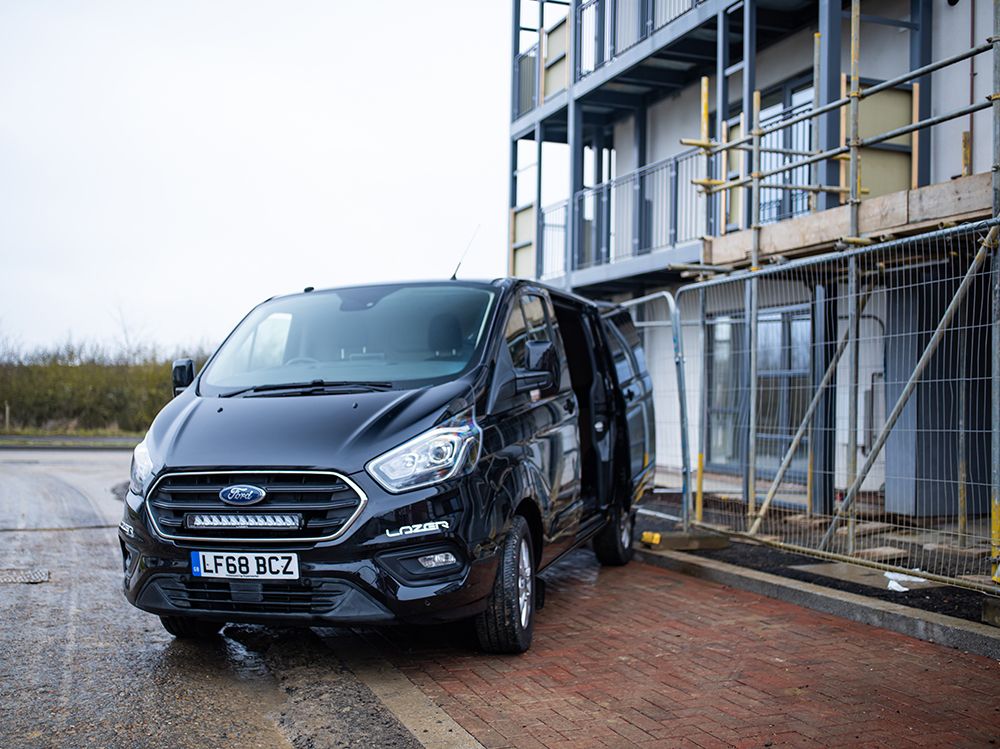

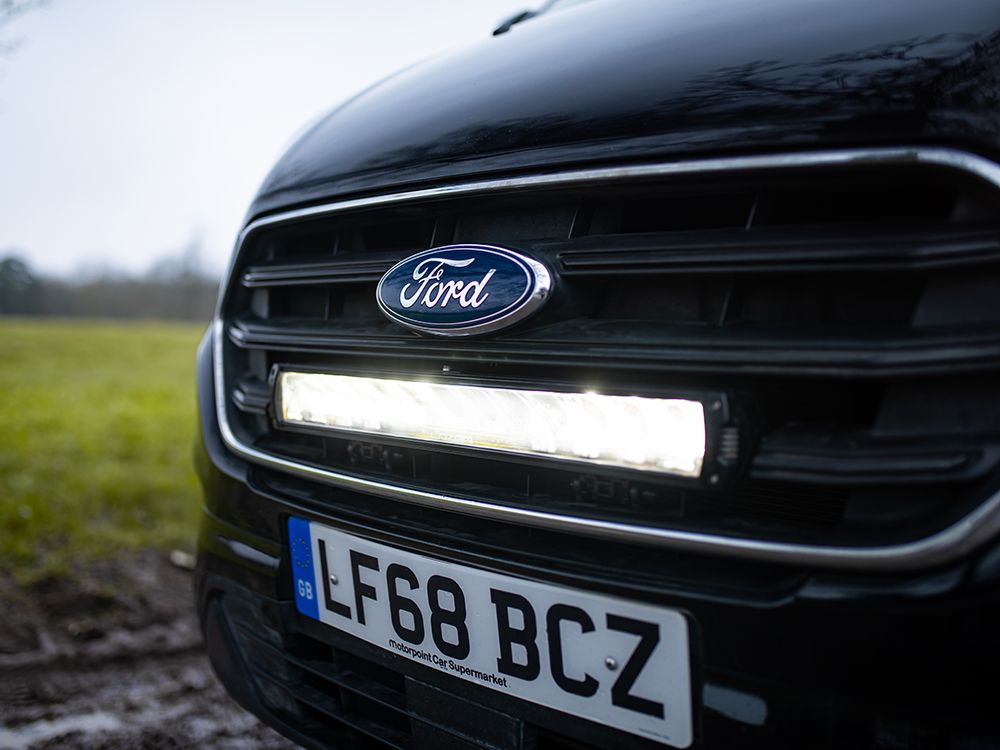

Auxiliary spotlight installation for Ford Transit Custom (2018-2022)
Compatible with Triple-R 1250 Standard, Elite+, Elite with i-LBA, or Smartview
Fully robust and secure, with extra protection against theft
Vehicle wiring kits and CANbus Interfaces available
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
Triple-R 1250 | Triple-R 1250 Elite+ (E-Boost / E-Mark) |

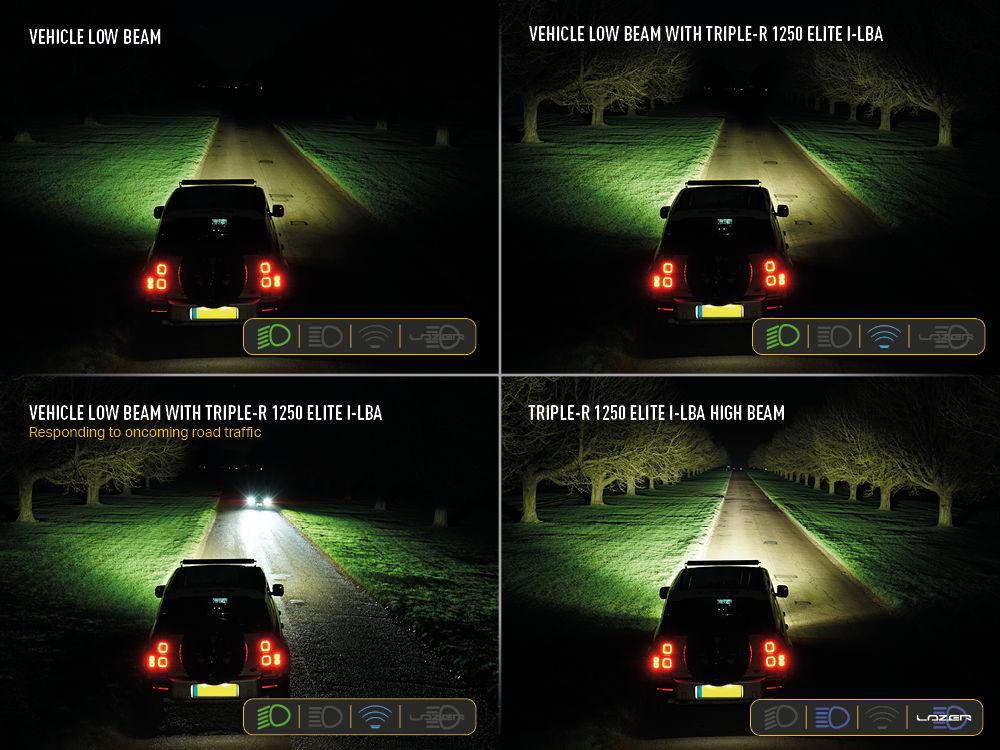

Triple-R 1250 Elite i-LBA (E-Boost) |
Triple-R 1250 Smartview | |
Voltage Range | 10-32V | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hours | 50,000 hrs | 50,000 hrs |
Weight | 2.4 kg | 2.4 kg | 2.4 kg | 2.4 kg |
HIGH BEAM FUNCTION | ||||
Total Luminous Flux | 13,860 Lm | 12028 / 2045 | 16136 Lm | 12170 Lm |
Total Driver ‘FOV’ Flux † | 8358 Lm | 7464 / 1269 | 8657 Lm | 7339 Lm |
Colour Temperature | 5000K | 5000K | 5000k | 5000K |
Number of High Output LEDs | 12 | 24 | 36 | 12 |
Power Consumption | 125 Watts | 131 W / 19.6 W | 151 Watts | 105 Watts |
Current Draw (at 14.4V) | 8.7 Amps | 9.1 A / 1.4 A | 10.5 Amps | 7.3 Amps |
CERTIFICATION | ||||
High Beam | ECE R112 | ECE R149 | ECE R112 | |
E-Mark Ref | 20 | TBC | N/A (40 – E-Mark Mode) |
45 |
Position Light (White only) | ECE R7 | ECE R148 | N/A | N/A |

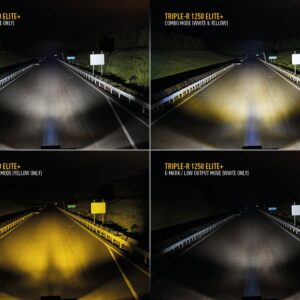

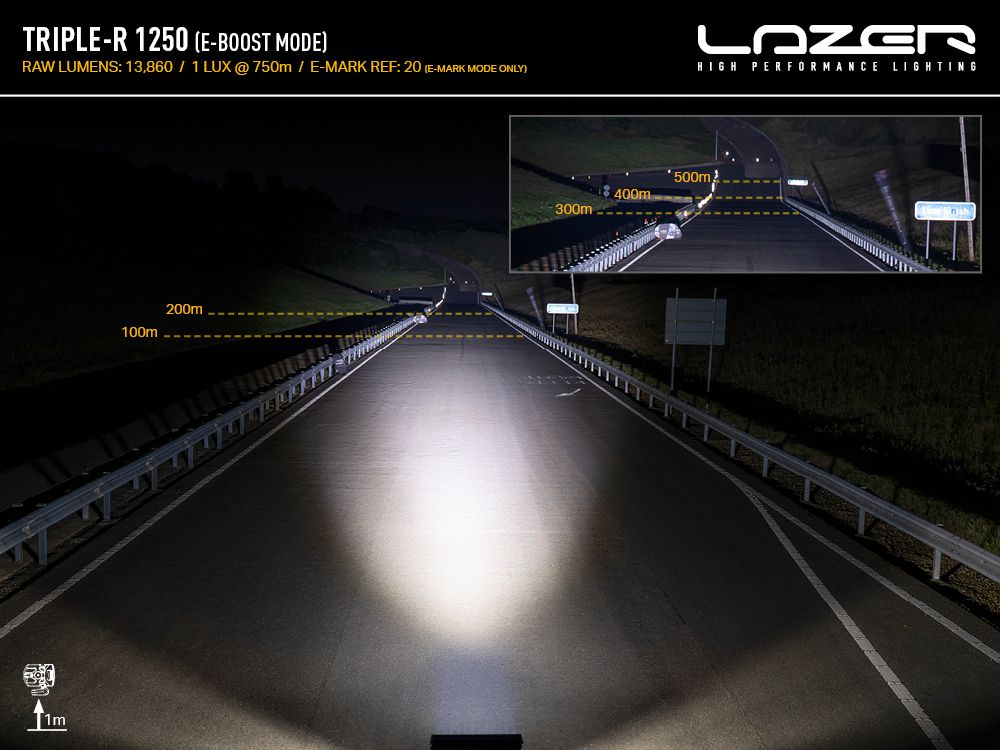

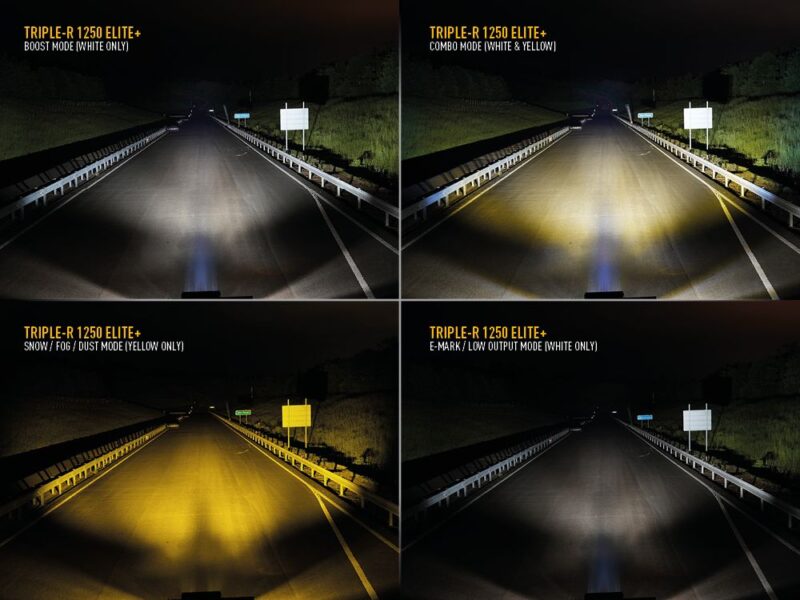

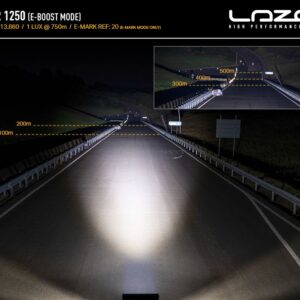

PHOTOMETRIC DATA | ||||
Horizontal Beam Angle | 19o | 54° | 56o | 30o |
0.25 lx Line | 1500m | 1470m / 616m | 1652m | 1463m |
0.5 lx Line | 1061m | 1039m / 436m | 1168m | 1035m |
1 lx Line | 750m | 735m / 308m | 826m | 732m |
3 lx Line | 433m | 424m / 178m | 477m | 422m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

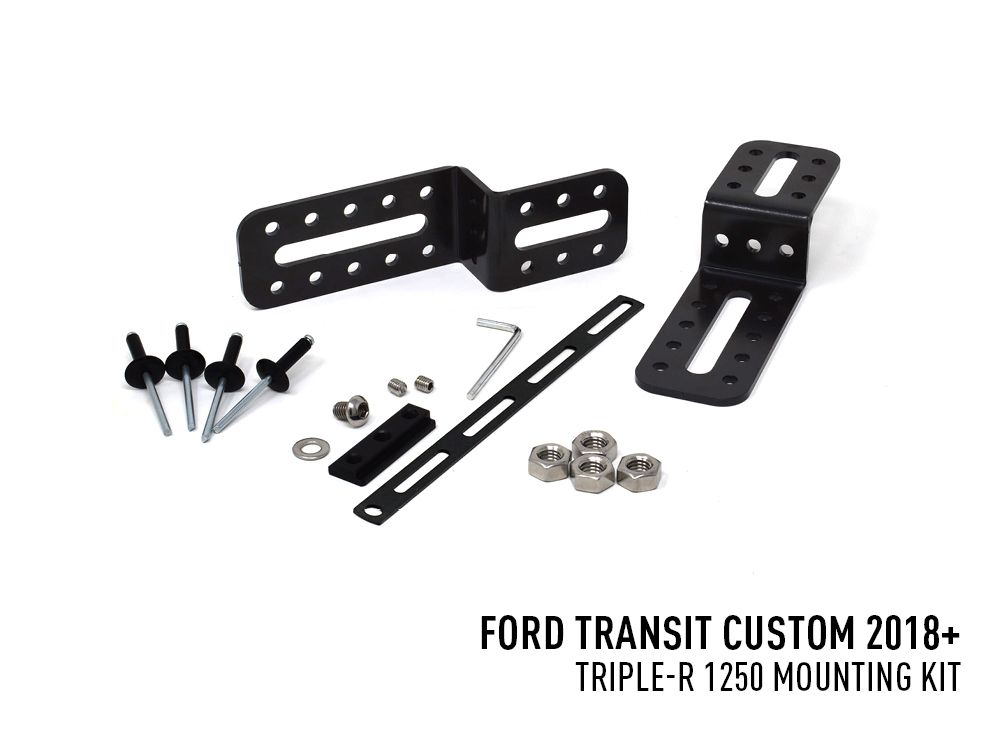

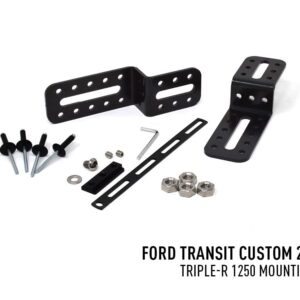

WHAT’S INCLUDED
- x2 Bumper Beam Brackets
- Fixtures
Fitting instructions available in the downloads section below.
