Lazer Ford Ranger Raptor (2019-2022) – Lower Grille Mounting Kit (For Triple-R 1250) VIFK-RAPTOR-01K
Original price was: 70,18€.60,90€Current price is: 60,90€. WITH TAX
Lazer Ford Ranger Raptor (2019-2022) – Lower Grille Mounting Kit (For Triple-R 1250) VIFK-RAPTOR-01K
or an OE quality, robust and entirely secure auxiliary spotlight installation, the Bumper Beam Mounting Kit for the Ford Ranger Raptor (2018+) is specially designed and engineered to fit seamlessly within the lower grille, secured to the bumper beam of the vehicle, ensuring the installation is completely secure, with extra protection against theft.
Compatible with either our most advanced LED high performance light, the Triple-R 1250 Smartview, Triple-R 1250 Elite+, Triple-R 1250 with i-LBA or our Triple-R 1250 Standard, which has been newly upgraded to the latest LED technology, now with integrated with amber or white position light function for added styling to ensure your vehicle shines day and night!
The mounting brackets are made from 3mm mild steel, with e-coat pre-treatment and satin black powder coat to guarantee your installation remains in excellent condition for years to come. The bumper beam mounting kit comes complete with fasteners.
With no compromises in component parts or production techniques, as with all Lazer products, the products are backed up by our comprehensive 5yr warranty.
LIGHTS AND WIRING SOLD SEPARATELY.
(note – One-Lamp Wiring Kit included with lamps: Triple-R 1250 Elite i-LBA, Triple-R 1250 Elite+ and Triple-R 1250 Smartview)
Lazer Ford Ranger Raptor (2019-2022) – Lower Grille Mounting Kit (For Triple-R 1250) VIFK-RAPTOR-01K
PRODUCT FEATURES

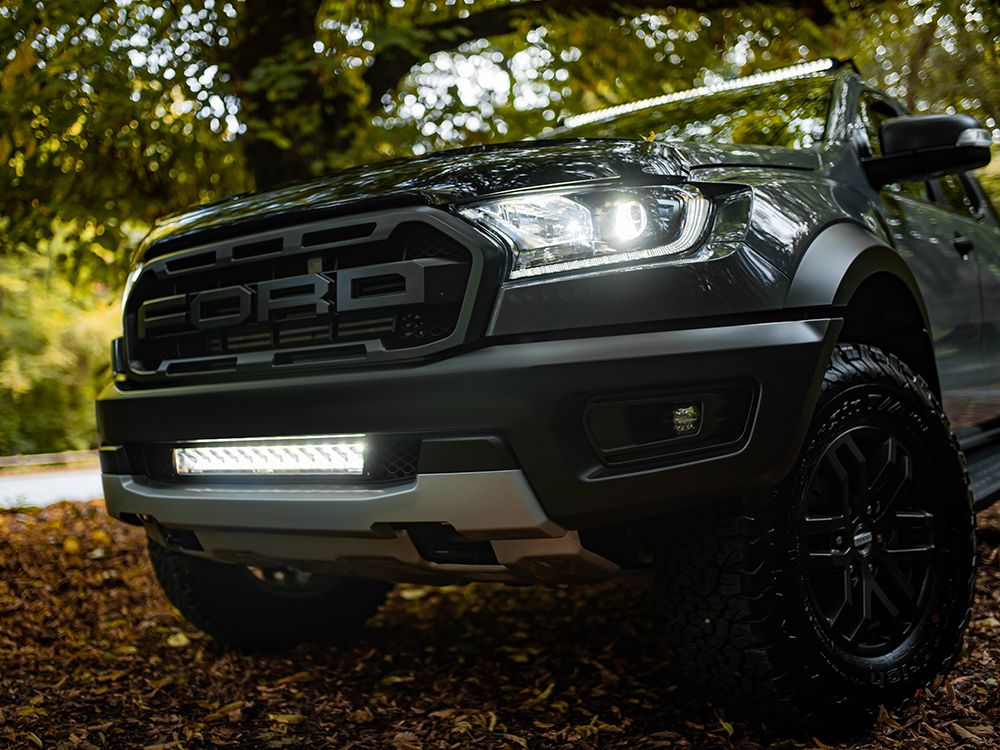

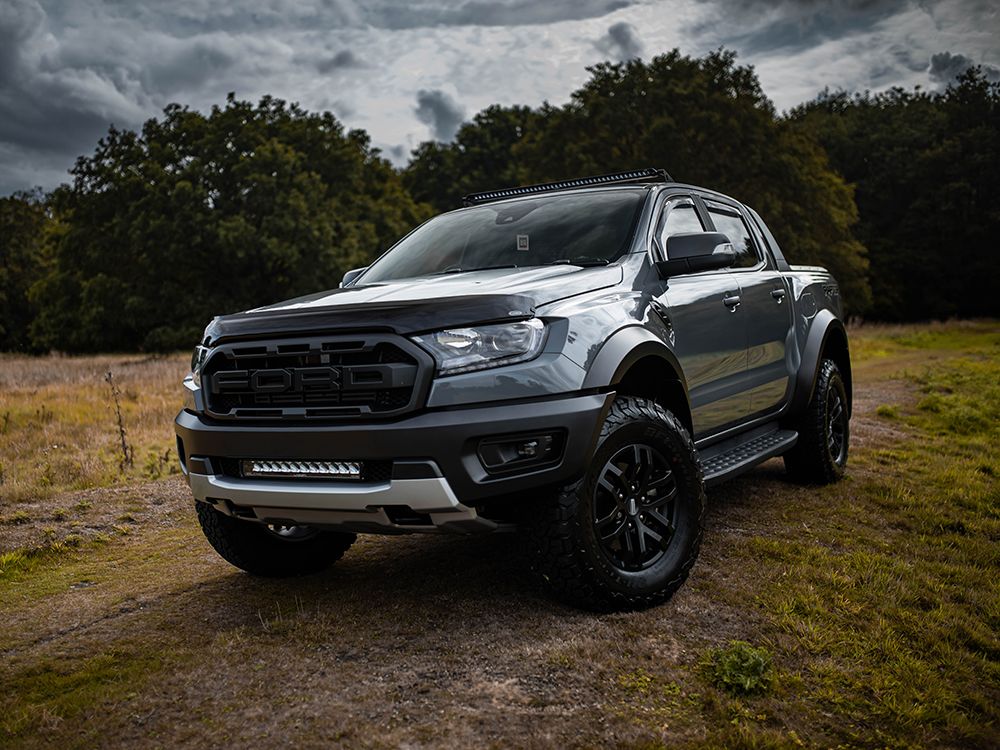

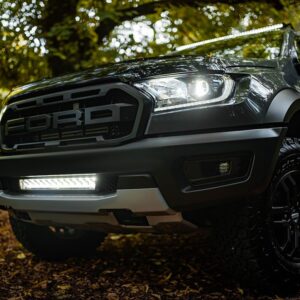

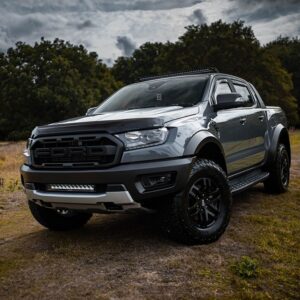

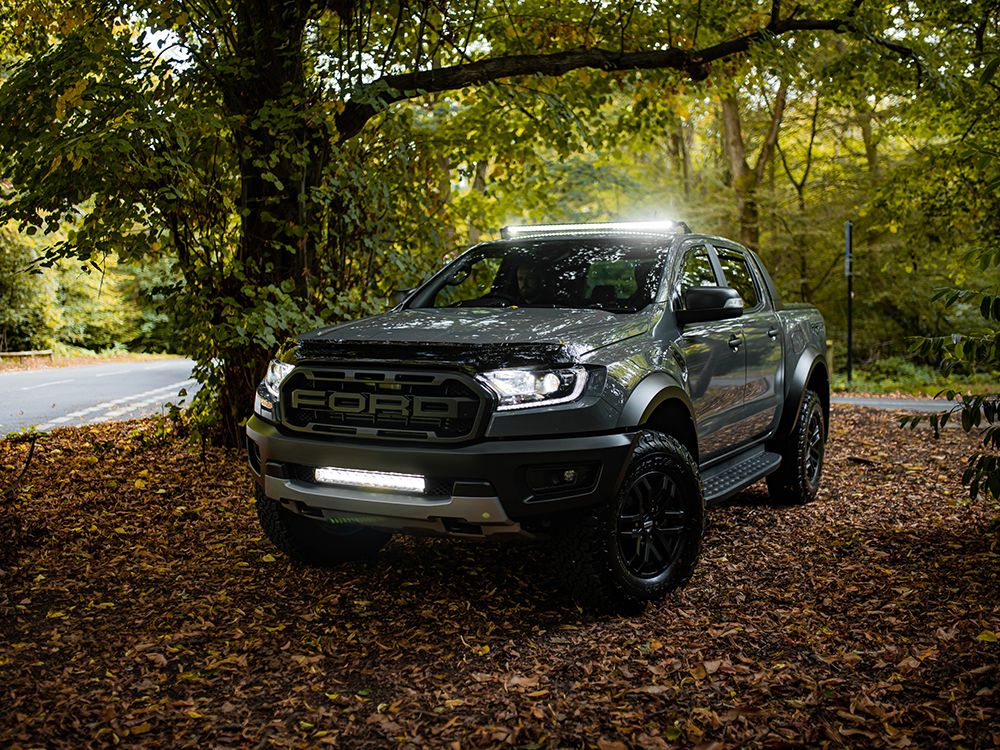

Auxiliary spotlight installation for Ford Ranger Raptor (2018-2022)
Compatible with Triple-R 1250 Standard, Elite+, Elite with i-LBA, or Smartview
Fully robust and secure, with extra protection against theft
Vehicle wiring kits and CAN bus Interfaces available
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
| Triple-R 1250 | Triple-R 1250 Elite+ (E-Boost / E-Mark) |
Triple-R 1250 Elite i-LBA (E-Boost) |
Triple-R 1250 Smartview | |
| Voltage Range | 10-32V | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hours | 50,000 hrs | 50,000 hrs |
| Weight | 2.4 kg | 2.4 kg | 2.4 kg | 2.4 kg |
| HIGH BEAM FUNCTION | ||||
| Total Luminous Flux | 13,860 Lm | 12028 / 2045 | 16136 Lm | 12170 Lm |
| Total Driver ‘FOV’ Flux † | 8358 Lm | 7464 / 1269 | 8657 Lm | 7339 Lm |
| Colour Temperature | 5000K | 5000K | 5000k | 5000K |
| Number of High Output LEDs | 12 | 24 | 36 | 12 |
| Power Consumption | 125 Watts | 131 W / 19.6 W | 151 Watts | 105 Watts |
| Current Draw (at 14.4V) | 8.7 Amps | 9.1 A / 1.4 A | 10.5 Amps | 7.3 Amps |
| CERTIFICATION | ||||
| High Beam | ECE R112 | ECE R149 | ECE R112 | |
| E-Mark Ref | 20 | TBC | N/A (40 – E-Mark Mode) |
45 |
| Position Light (White only) | ECE R7 | ECE R148 | N/A | N/A |

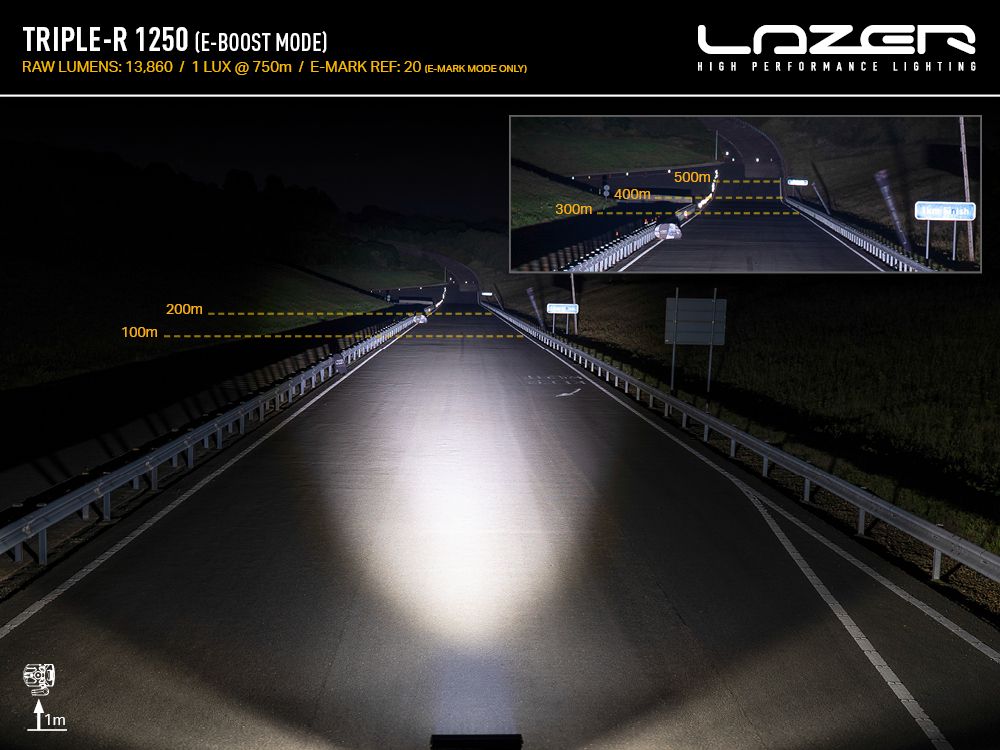

| PHOTOMETRIC DATA | ||||
| Horizontal Beam Angle | 19o | 54° | 56o | 30o |
| 0.25 lx Line | 1500m | 1470m / 616m | 1652m | 1463m |
| 0.5 lx Line | 1061m | 1039m / 436m | 1168m | 1035m |
| 1 lx Line | 750m | 735m / 308m | 826m | 732m |
| 3 lx Line | 433m | 424m / 178m | 477m | 422m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

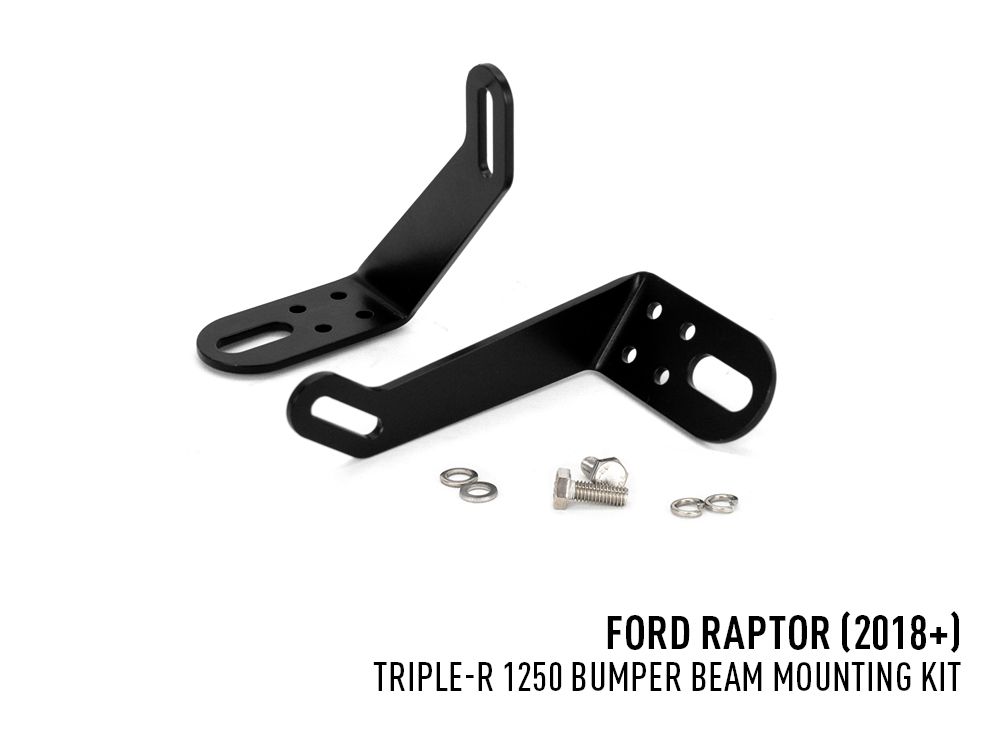

WHAT’S INCLUDED
- x2 Bumper Beam Brackets
- Fixtures
Fitting instructions available in the downloads section below.
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
