Lazer Ford Ranger (2016-2022) – Lower Grille Mounting Kit (For Triple-R 1250) VIFK-RANGER-01K
PRODUCT FEATURES

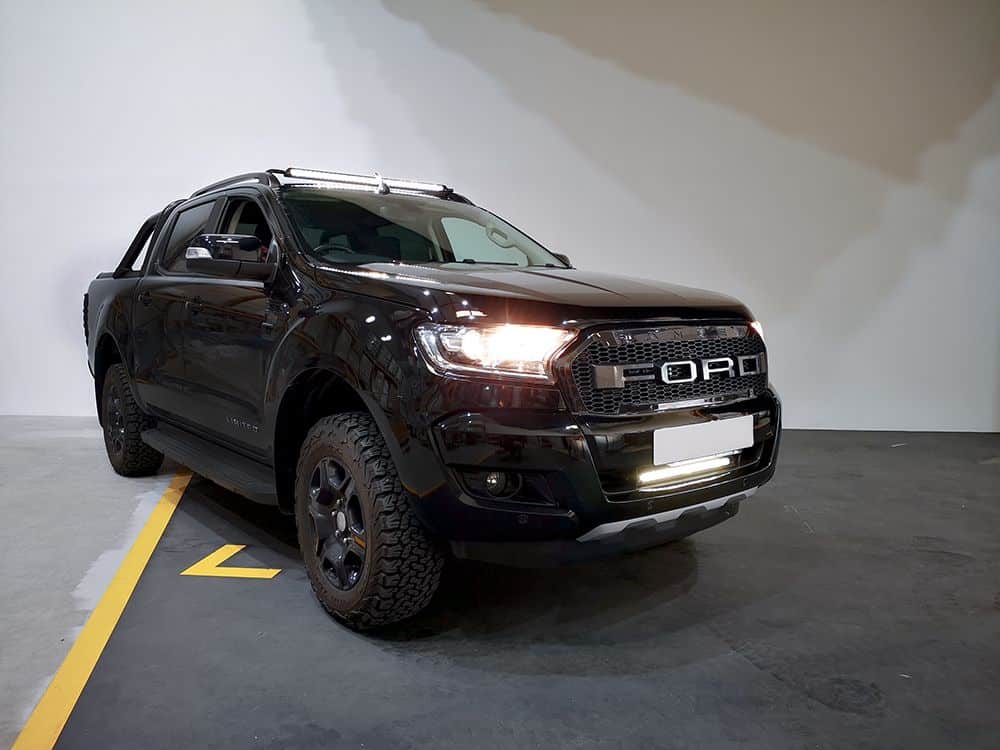

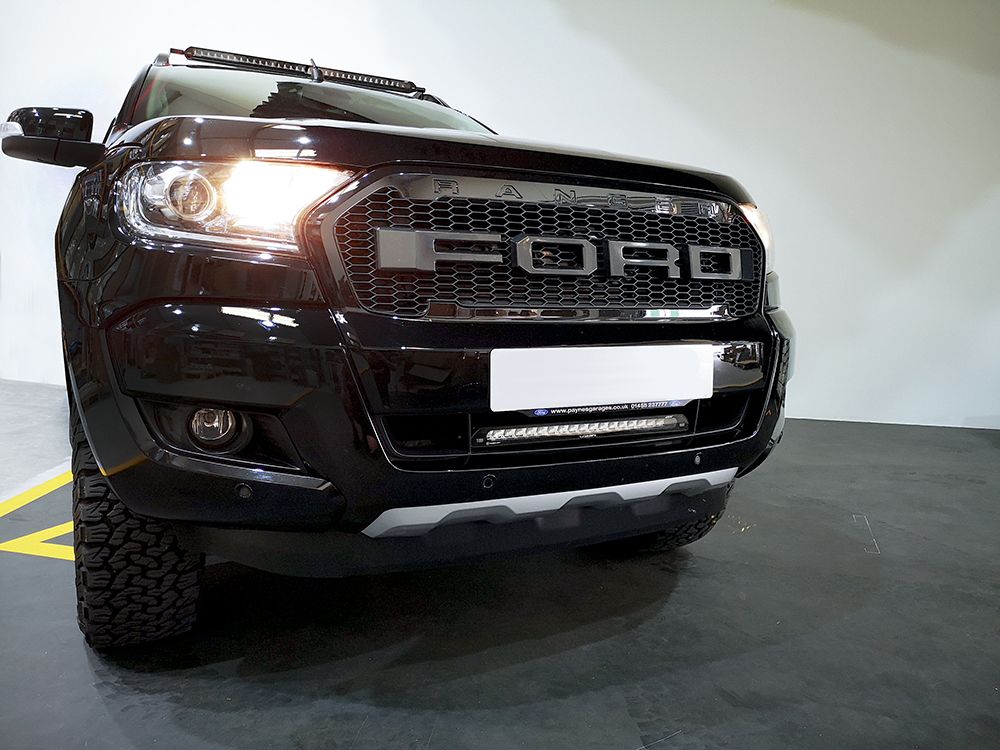

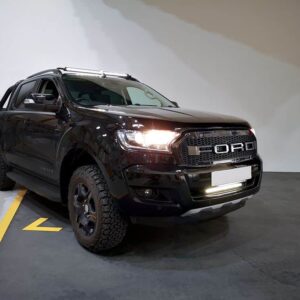

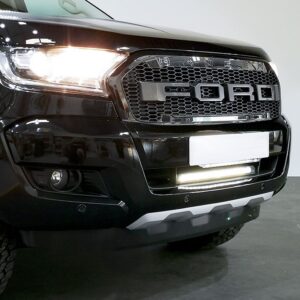

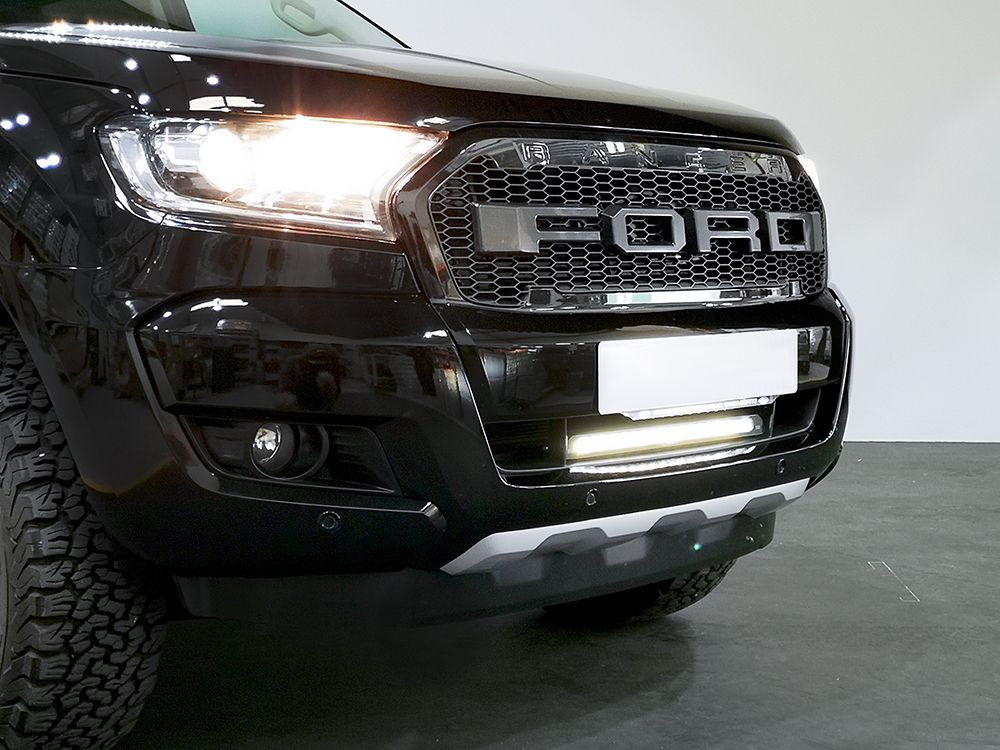

Auxiliary spotlight installation for Ford Ranger (2016-2022)
Optimised mounting for Linear-18 (Standard, Elite, Elite with i-LBA or Elite+)
Secured to vehicle’s bumper beam bar for additional security
Vehicle wiring kits and CANbus Interfaces available
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS

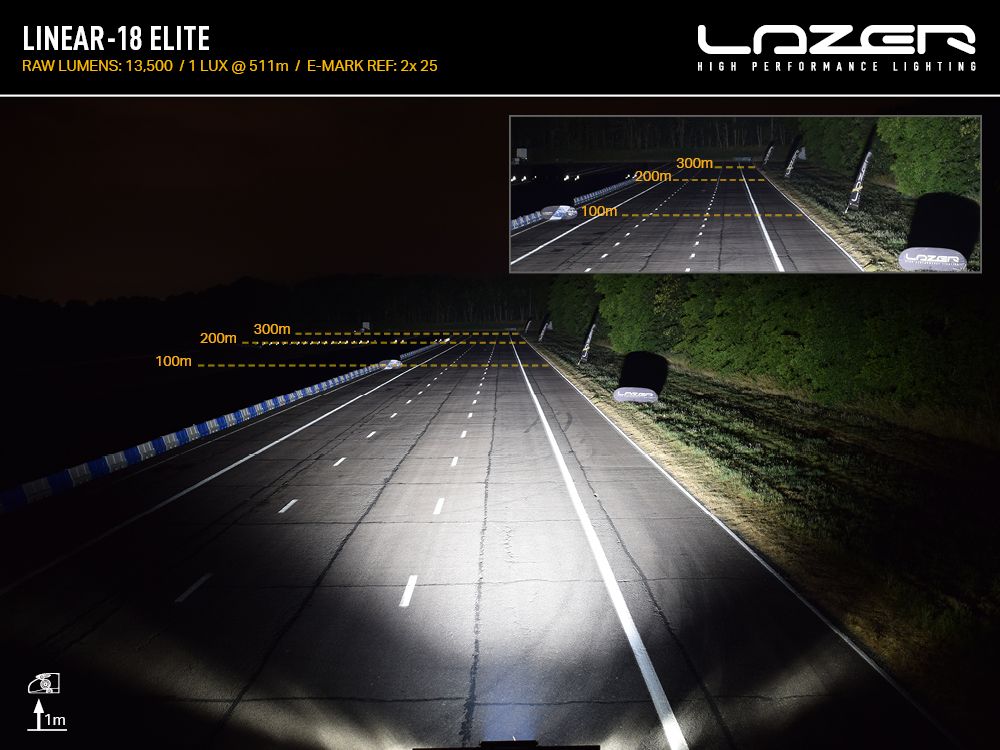

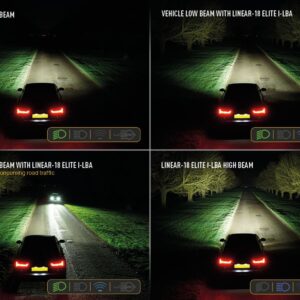

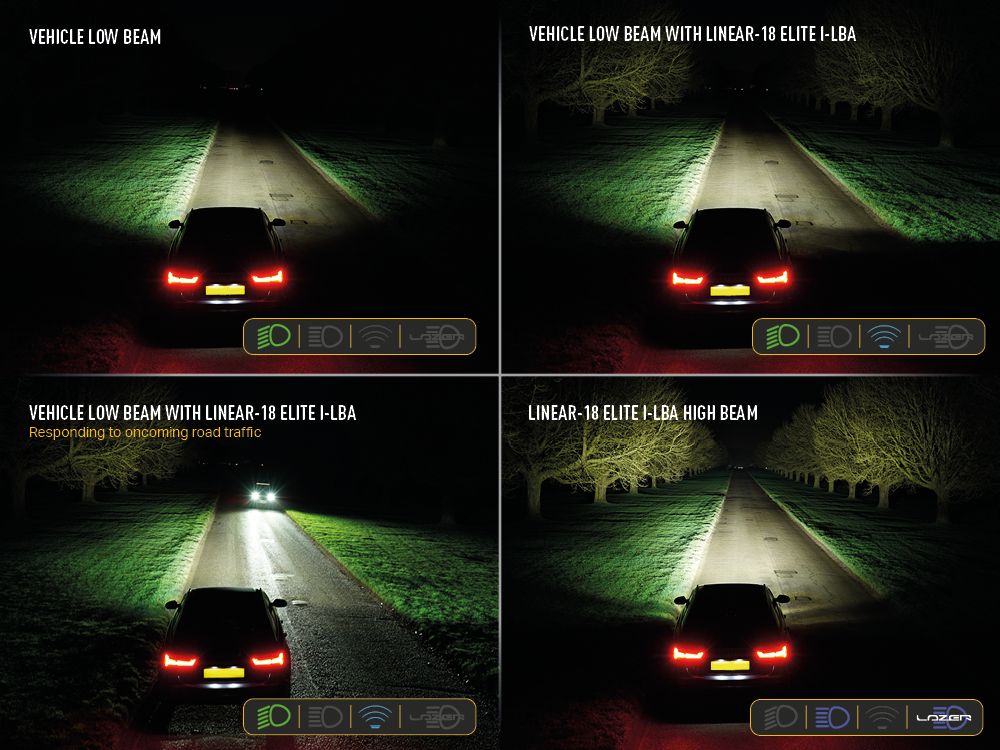

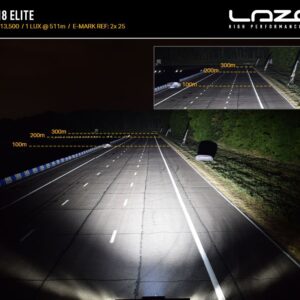

1x Linear-18 Elite (Double E-Mark) | 1x Linear-18 Elite with i-LBA (E-Boost) |

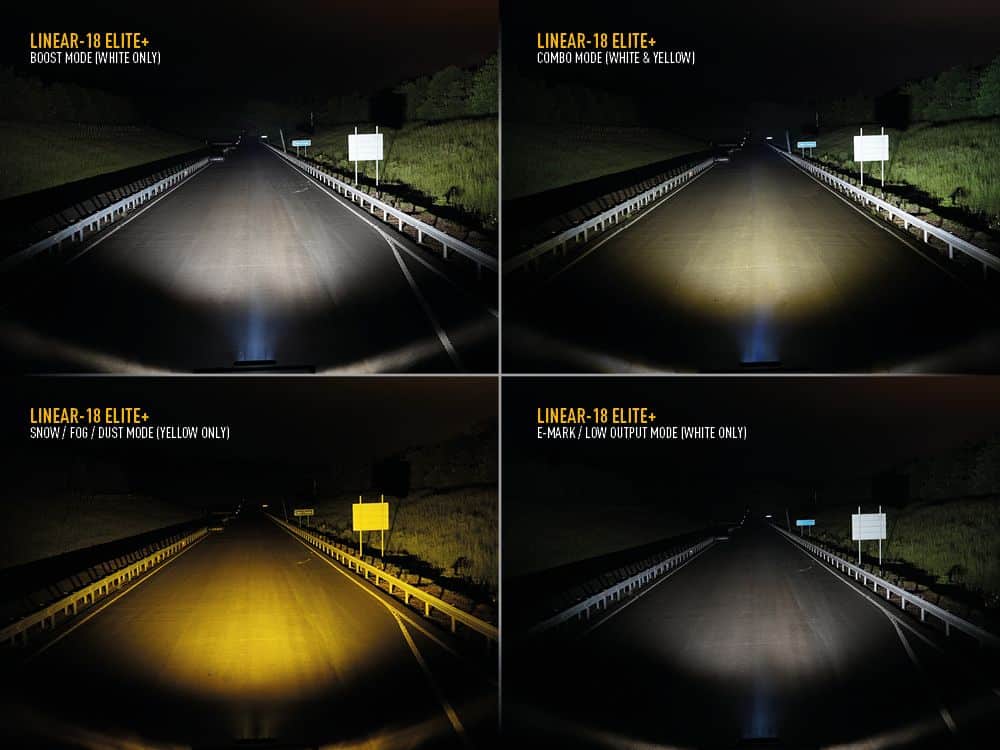

1x Linear-18 Elite+ (E-Boost/ E-Mark) |

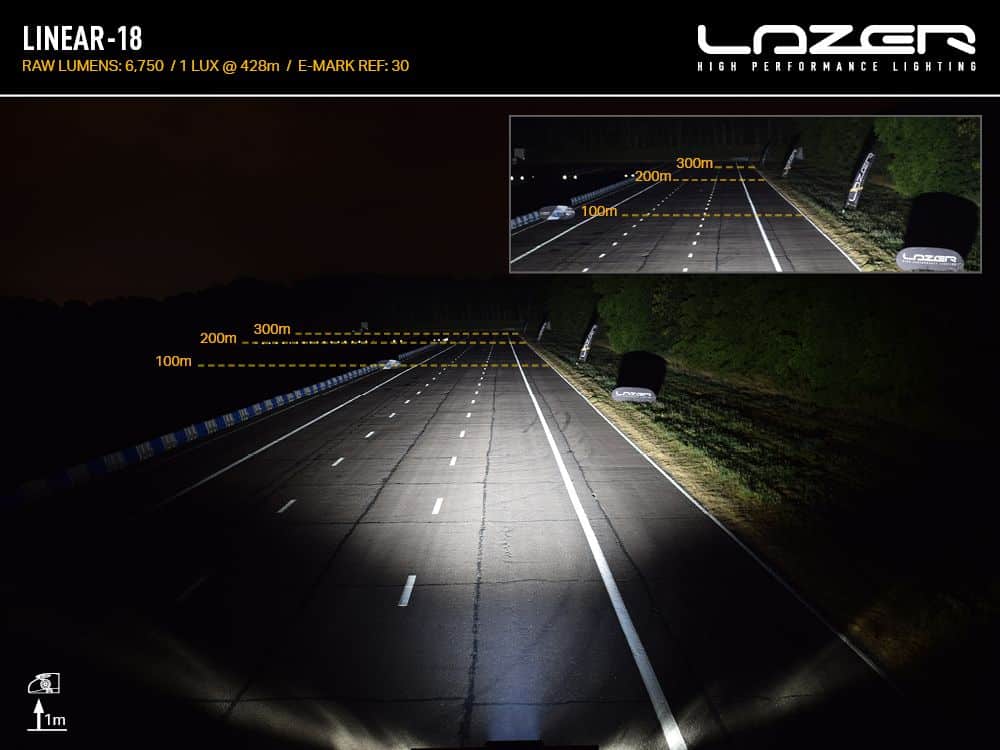

1x Linear-18 | |
Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
Weight | 1090 gr | 1090 gr | 1090 gr | 1090 gr |
HIGH BEAM FUNCTION | ||||
Total Luminous Flux | 13,500 Lm | 18,000 Lm | 14850 / 4455 Lm | 6,750 Lm |
Total Driver ‘FOV’ Flux † | 9,612 Lm | 12,816 Lm | 10573 / 3172 Lm | 4,806 Lm |
Colour Temperature | 5000K | 5000K | 5000K | 5000K |
Number of High Output LEDs | 36 | 48 | 36 | 18 |
Power Consumption | 130 Watts | 135 Watts | 134 W / 39 W | 63 Watts |
Current Draw (at 14.4V) | 9 Amps | 15 Amps | 9.9 A / 2.7 A | 4.4 Amps |
CERTIFICATION | ||||
High Beam | ECE R112 | ECE R112 | ECE R149 | ECE R112 |
ECE Reference | 2×25 (2x 10 – With E-Mark Cap) |
N/A (17.5 – E-Mark Mode) |
TBC | 30 |

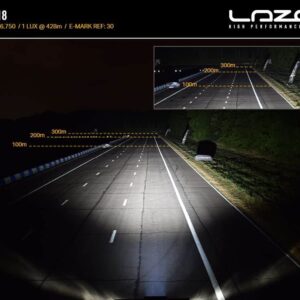

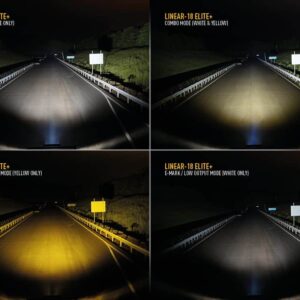

PHOTOMETRIC DATA | ||||
Horizontal Beam Angle | 64° | 60° | 84o | 56° |
0.25 lx Line | 1023m | 1043m | 1152m / 694m | 855m |
0.5 lx Line | 723m | 738m | 815m / 491m | 605m |
1 lx Line | 511m | 522m | 576m / 347m | 428m |
3 lx Line | 295m | 301m | 333m / 200m | 247m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

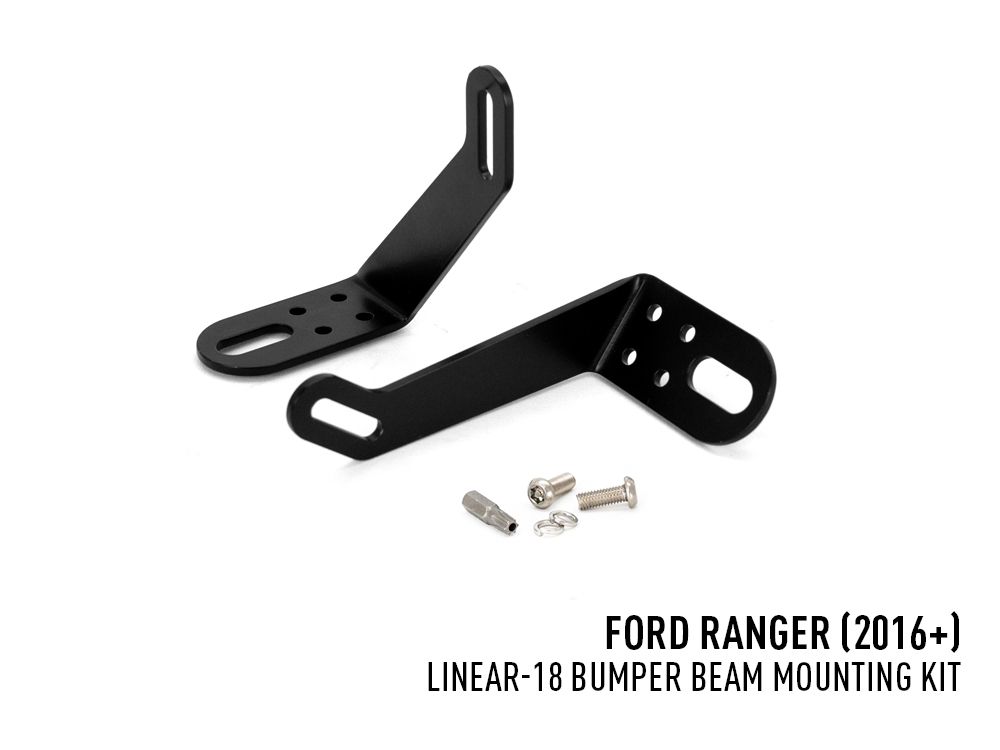

WHAT’S INCLUDED
- x2 Bumper Beam Brackets
- Fixtures
Fitting instructions available in the downloads section below.
