Lazer Can-Am Maverick X3 (2017+) – Shock Tower Light Bar Mount (for Linear-6) VIFK-MAVX3-01K
Original price was: 48,00€.41,65€Current price is: 41,65€. WITH TAX
Lazer Can-Am Maverick X3 (2017+) – Shock Tower Light Bar Mount (for Linear-6) VIFK-MAVX3-01K

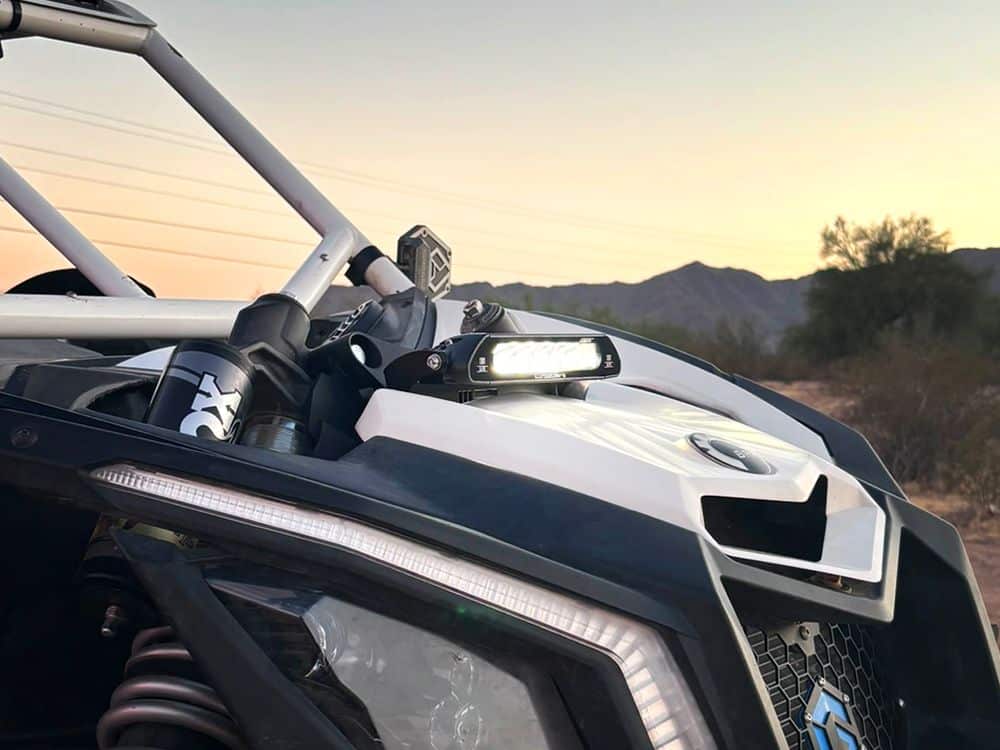

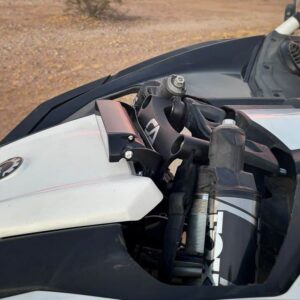

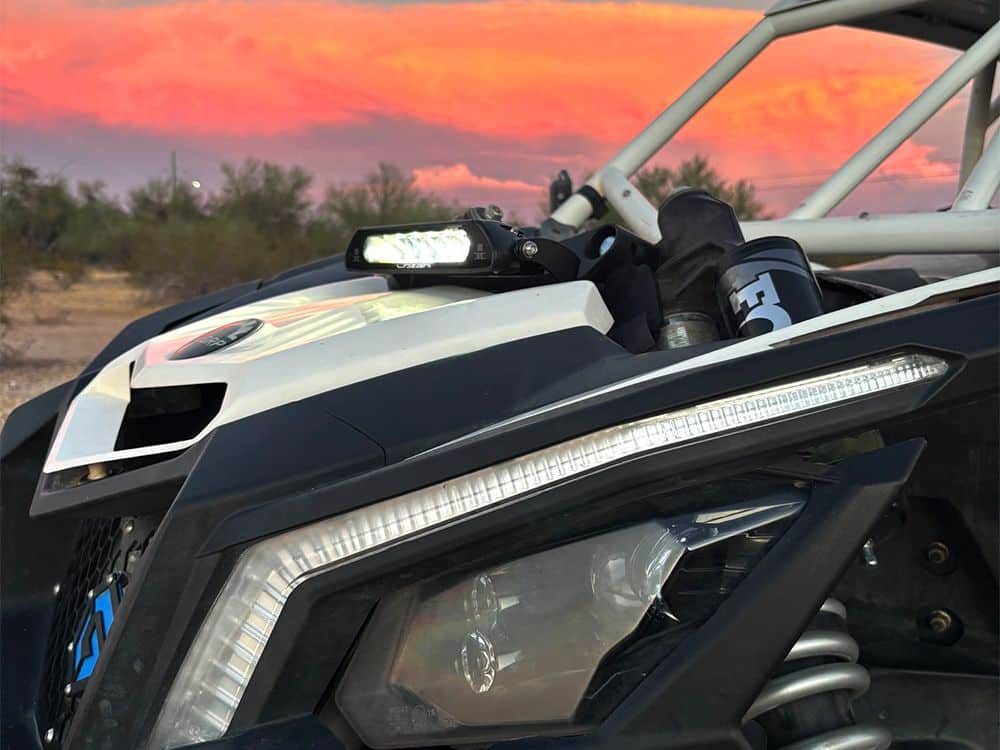

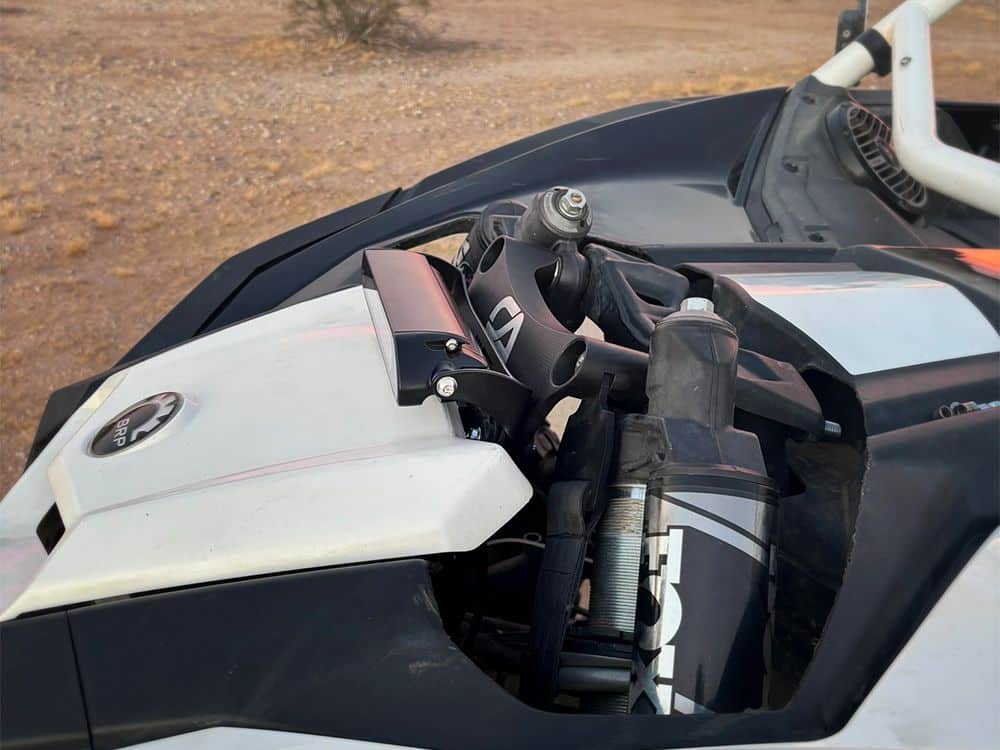

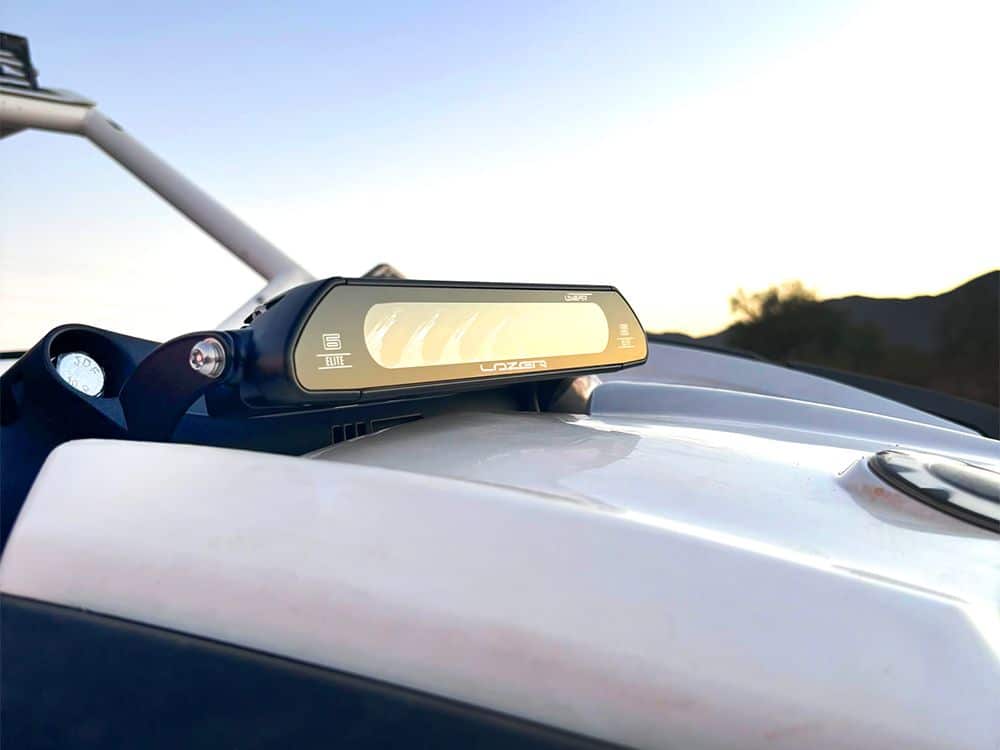

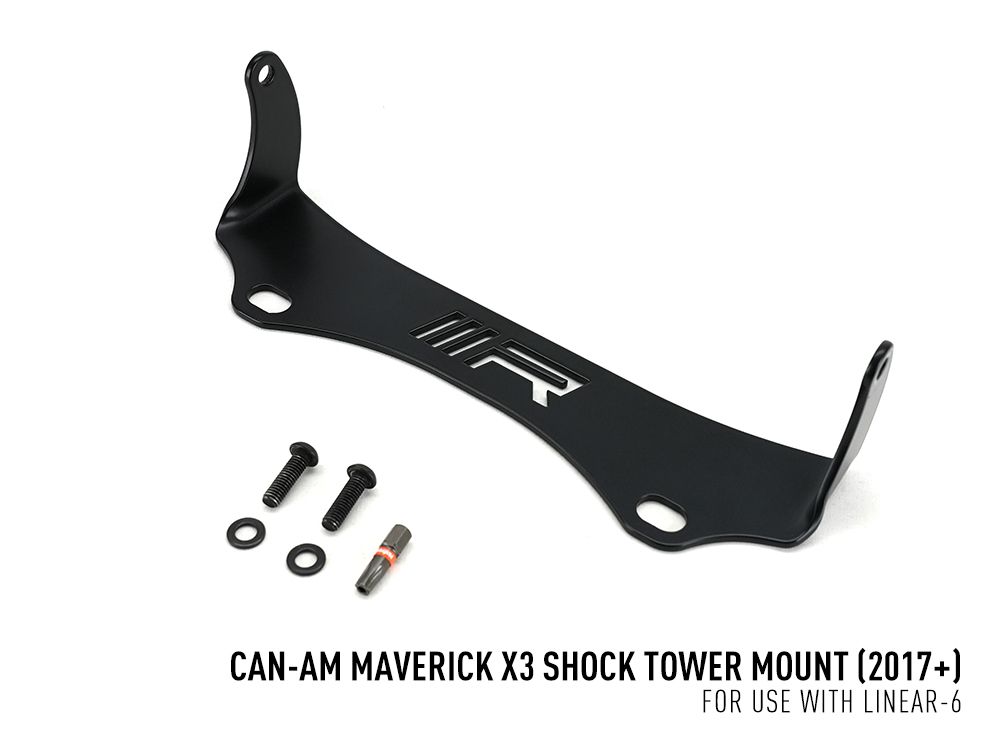

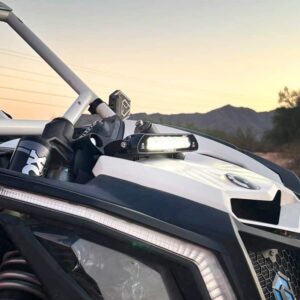

Elevate your Can-Am Maverick X3 (2017-2024) driving experience with our dedicated shock tower light bar mounting kit designed and engineered for the Linear-6 range of LED light bars. The mount bolts directly to the factory shock tower for an easy and robust install, even at high speeds.

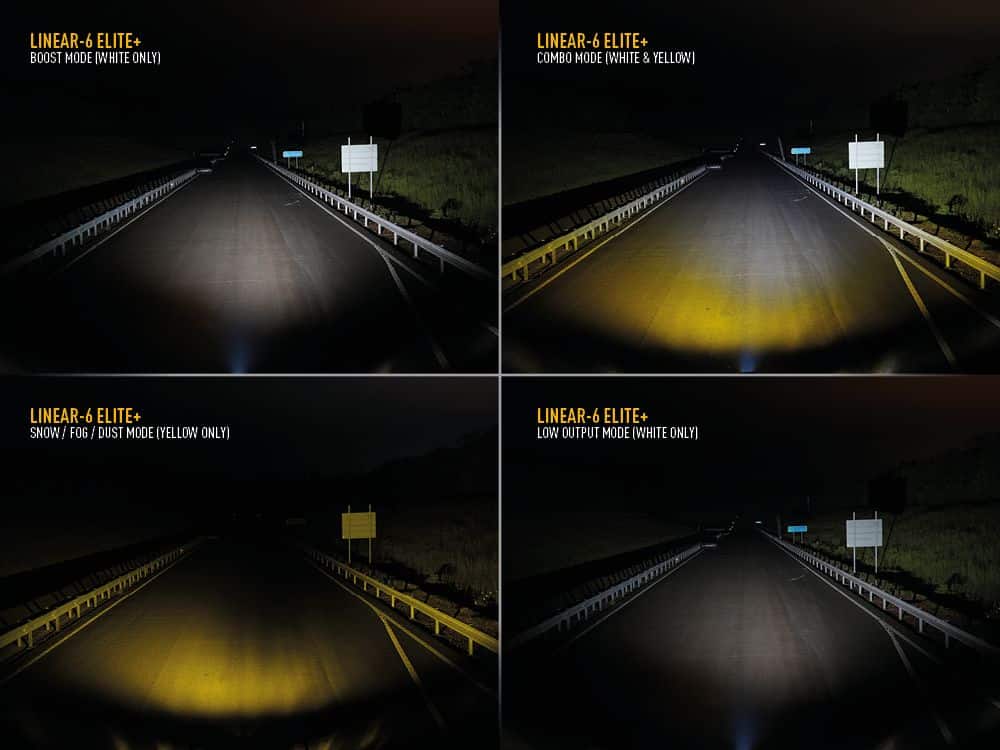

The Linear-6 is available in Standard, Elite, or Elite+ grade which boasts white and yellow LEDs to be used independently or in combination – perfect when navigating harsh and rapidly changing off-road conditions. Offering everything from a more cost-effective solution, to the very best in lighting performance considering the diminutive proportions of the Linear-6, and the flexibility and functionality of the Elite+, there’s a solution for all Maverick X3 owners wanting to continue the fun late into the night!
Lights and wiring sold seperately.
Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).Lazer Can-Am Maverick X3 (2017+) – Shock Tower Light Bar Mount (for Linear-6) VIFK-MAVX3-01K
PRODUCT FEATURES
Produced from 3mm stainless steel with satin black powder coat finish
Supplied with anti-theft lamp mount fasteners
Locates in original shock tower fixtures on the Can-Am Maverick X3 (2017-2024)
Designed for Linear-6 high performance LED lights
Designed & manufactured in the UK
TECHNICAL SPECIFICATIONS
| LINEAR-6 | LINEAR-6 ELITE |
LINEAR-6 ELITE+ (LOW OUTPUT / BOOST) |
|
|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs | 50,000 hrs |
| Weight | 495 gr | 495 gr | 495 gr |
| |
|||
| HIGH BEAM FUNCTION |
|||
| Total Luminous Flux | 2250 Lm | 4050 Lm | 5100 / 2500 Lm |
| Total Driver ‘FOV’ Flux † | 1602 Lm | 2884 Lm | 3645 / 1822 Lm |
| Colour Temperature | 5000K | 5000K | 5000K |
| Power Consumption | 21 Watts | 42 Watts | 48 W / 24 W |
| Current Draw (14.4V) | 1.5 Amps | 2.9 Amps | 3.6 A / 1.8 A |
| |
|||
| CERTIFICATION |
|||
| IP Rating # | IP68 | IP68 | IP68 |
| High Beam (E9 approval) | ECE R112 – Ref: 12.5 | ECE R112 – Ref: 17.5 | ECE R149 – Ref 12.5 (Low Output Mode only) |
| EMC Certification | ECE R10 | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |

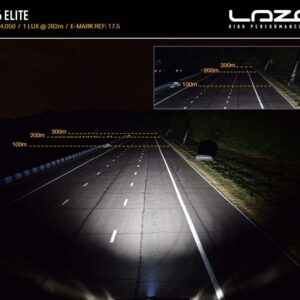

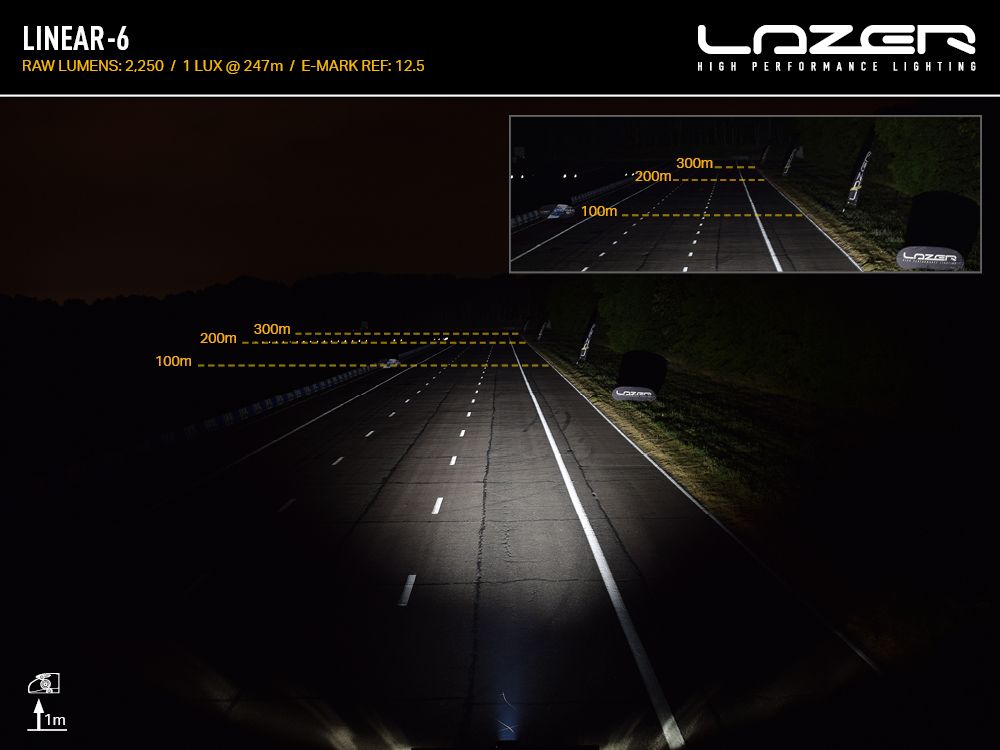

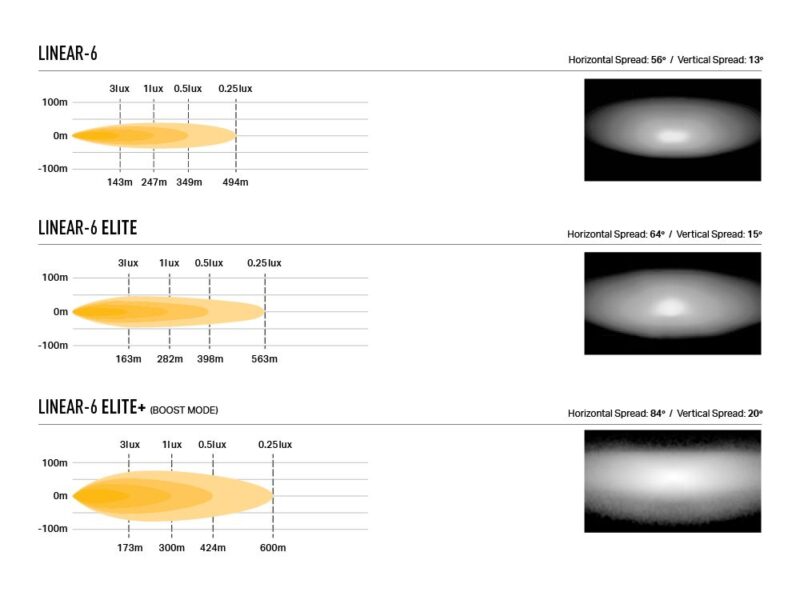

| PHOTOMETRIC DATA |
|||
| Horizontal / Vertical Beam Angle | 56° / 13° | 64° / 15° | 84° / 18° |

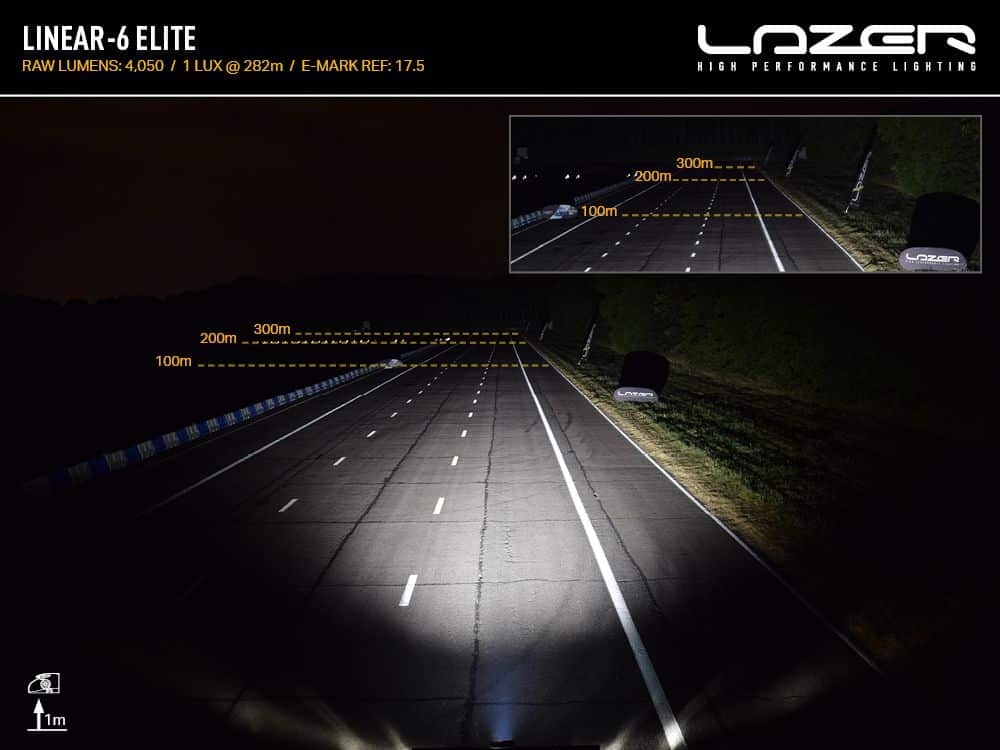

| 0.25 lx Line | 494 m | 563 m | 600m / 424m |
| 0.5 lx Line | 349 m | 398 m | 424m /300m |
| 1 lx Line | 247 m | 282 m | 300m / 212m |
| 3 lx Line | 143 m | 163 m | 173m / 122m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
WHAT’S INCLUDED
- x1 Shock Tower Mount (for Linear-6)
- Anti-Theft Fastener Set
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
