Lazer Can-Am Maverick X3 (2017+) – Shock Tower Light Bar Mount (for Carbon-6) VIFK-MAVX3-02K
Original price was: 48,00€.41,65€Current price is: 41,65€. WITH TAX
Lazer Can-Am Maverick X3 (2017+) – Shock Tower Light Bar Mount (for Carbon-6) VIFK-MAVX3-02K

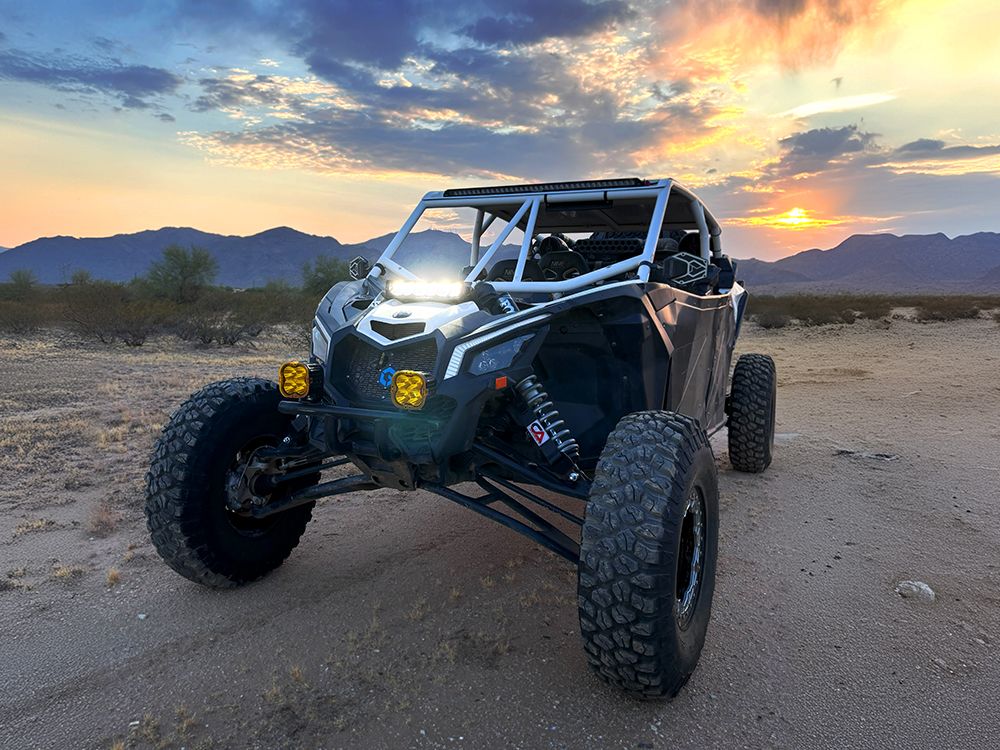

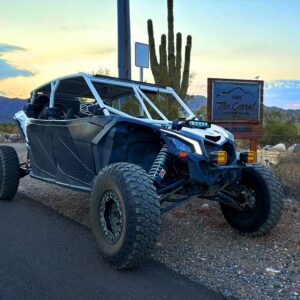

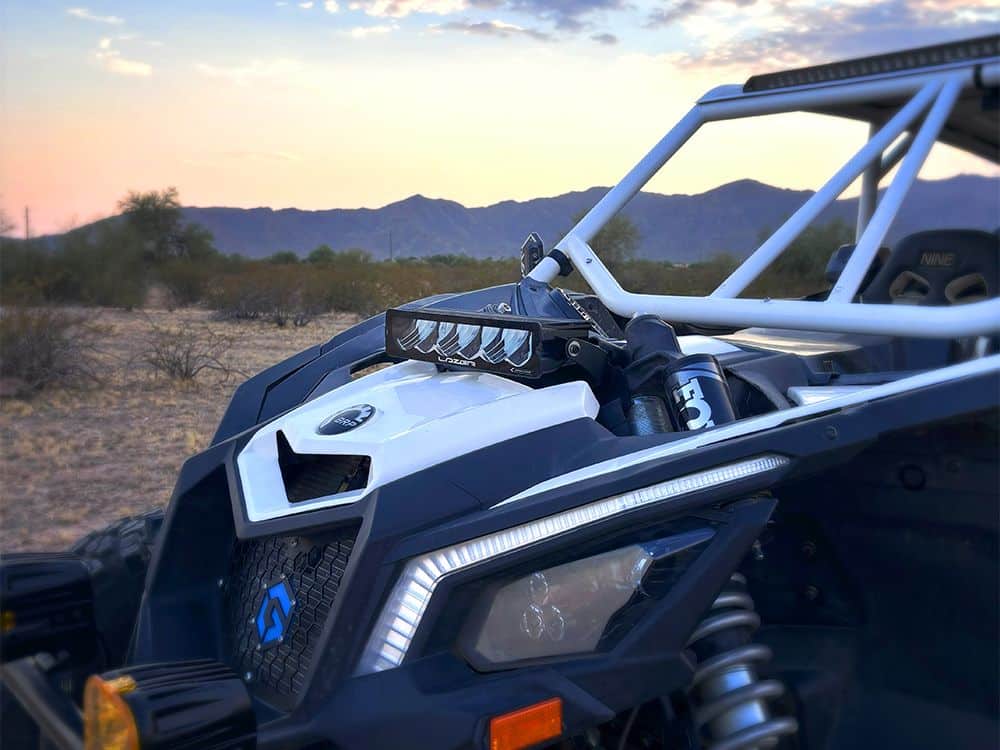

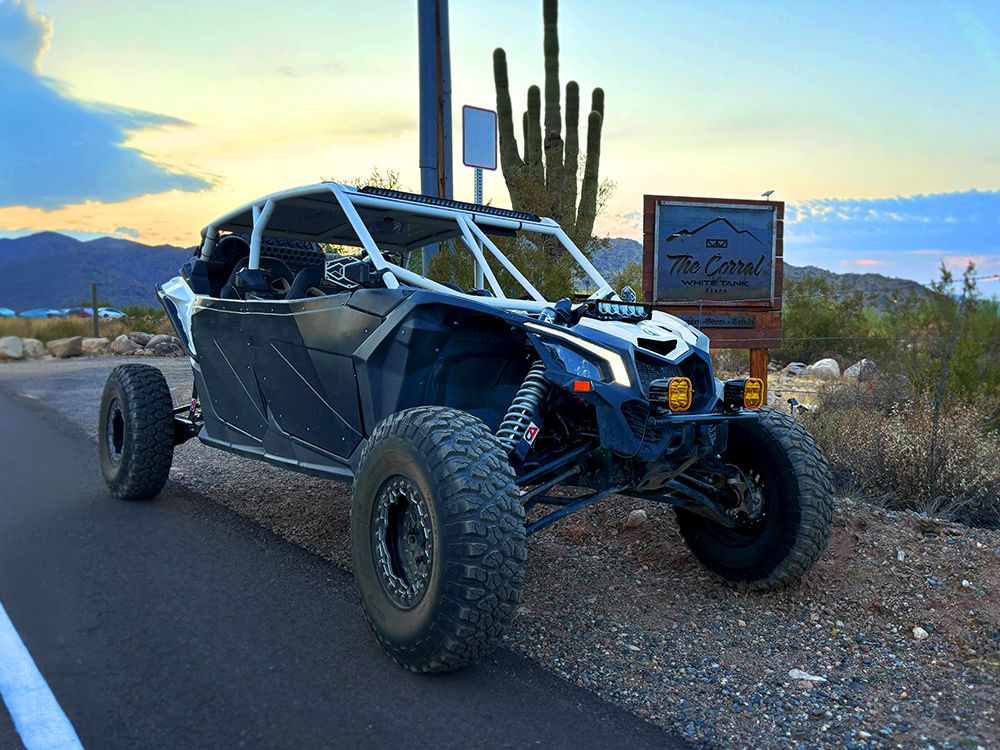

Elevate your Can-Am Maverick X3 (2017-2024) driving experience with our dedicated shock tower light bar mounting kit designed and engineered for the Carbon-6 ultra-lightweight, high power LED light bar. The mount bolts directly to the factory shock tower for an easy and robust install, even at high speeds.

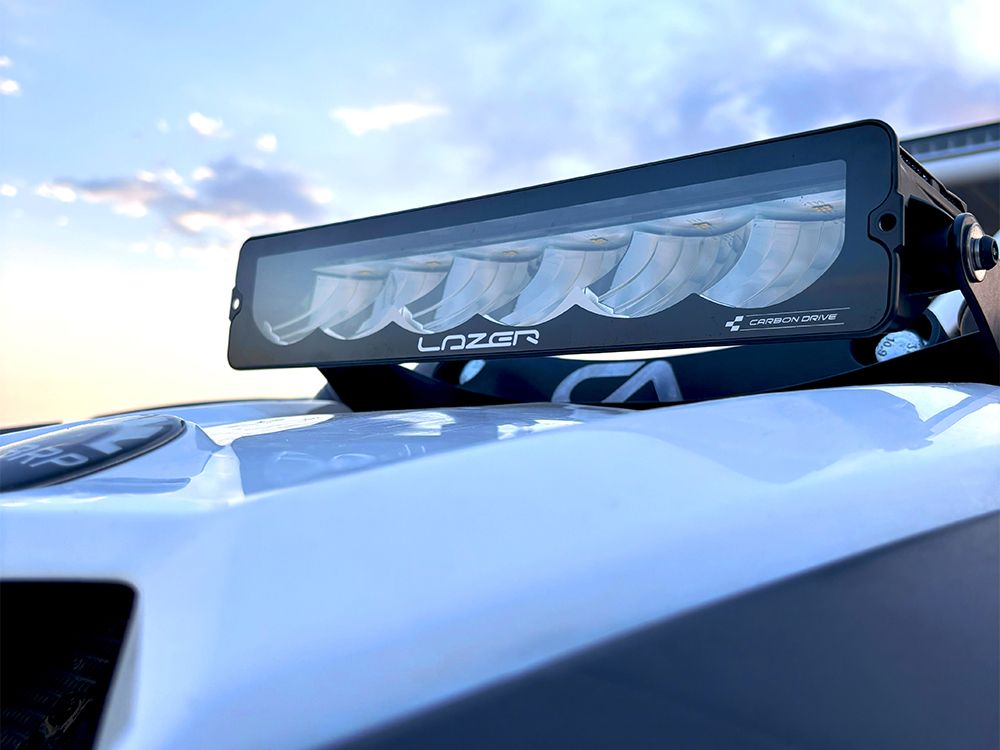

Adopted at the highest levels of professional motorsports, the Carbon-6 LED light, available with either Spot or Drive beam pattern, represents the very best and latest in lighting technology. Exceptional performance, ultra-lightweight construction, and multiple lighting modes (including a dipped beam and low-output mode), make this the ultimate solution for off-road enthusiasts. Further customisation comes from compatible yellow lens cover.
Lights and wiring sold separately.
Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).Lazer Can-Am Maverick X3 (2017+) – Shock Tower Light Bar Mount (for Carbon-6) VIFK-MAVX3-02K
PRODUCT FEATURES
Produced from 3mm stainless steel with satin black powder coat finish
Supplied with anti-theft lamp mount fasteners
Locates in original shock tower fixtures on the Can-Am Maverick X3 (2017-2024)
Designed for Carbon-6 high performance LED lights
Designed & manufactured in the UK
TECHNICAL SPECIFICATIONS
| 2x CARBON-6 SPOT (BOOST MODE) |
2x CARBON-6 DRIVE (BOOST MODE) |
|
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 450 gr | 450 gr |
| |
||
| HIGH BEAM FUNCTION |
||
| Total Luminous Flux | 9360 Lm | 9360 Lm |
| Total Driver ‘FOV’ Flux † | 5520 Lm | 5520 Lm |
| Colour Temperature | 5000K | 5000K |
| Power Consumption | 85W | 85W |
| Current Draw (14.4V) | 5.9A | 5.9A |
| CERTIFICATION | ||
| IP Rating # | IP68 | IP68 |
| High Beam (E9 approval) |
ECE R112 – Ref: 2x 45 | ECE R112 – Ref: 2x 17.5 (Low Output Mode) |
| EMC Certification | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 |

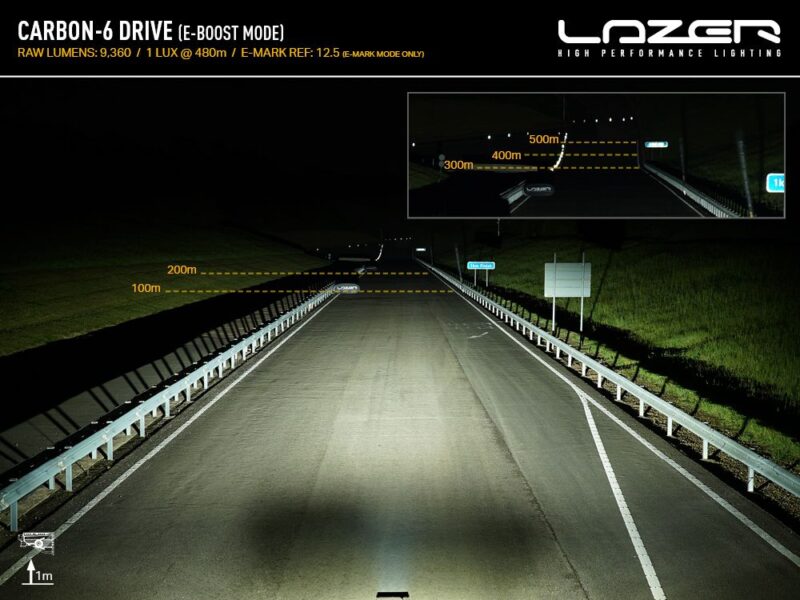

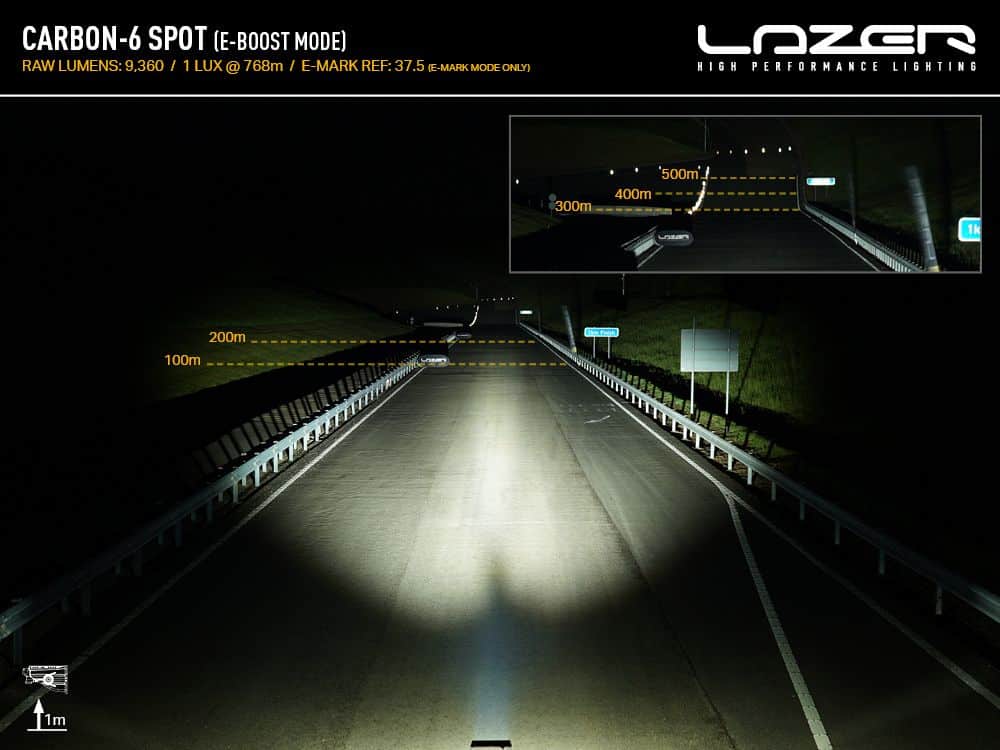

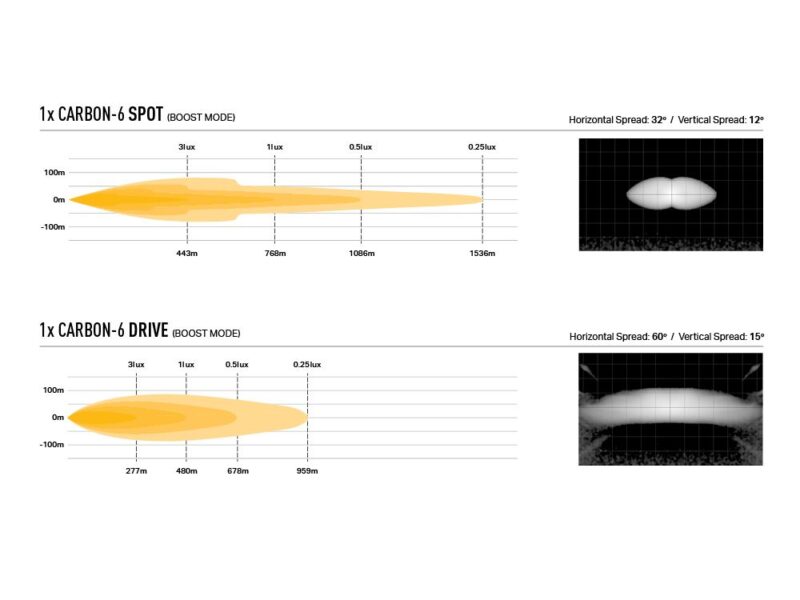

| PHOTOMETRIC DATA | ||

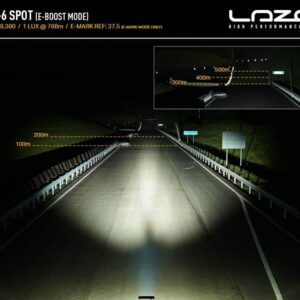

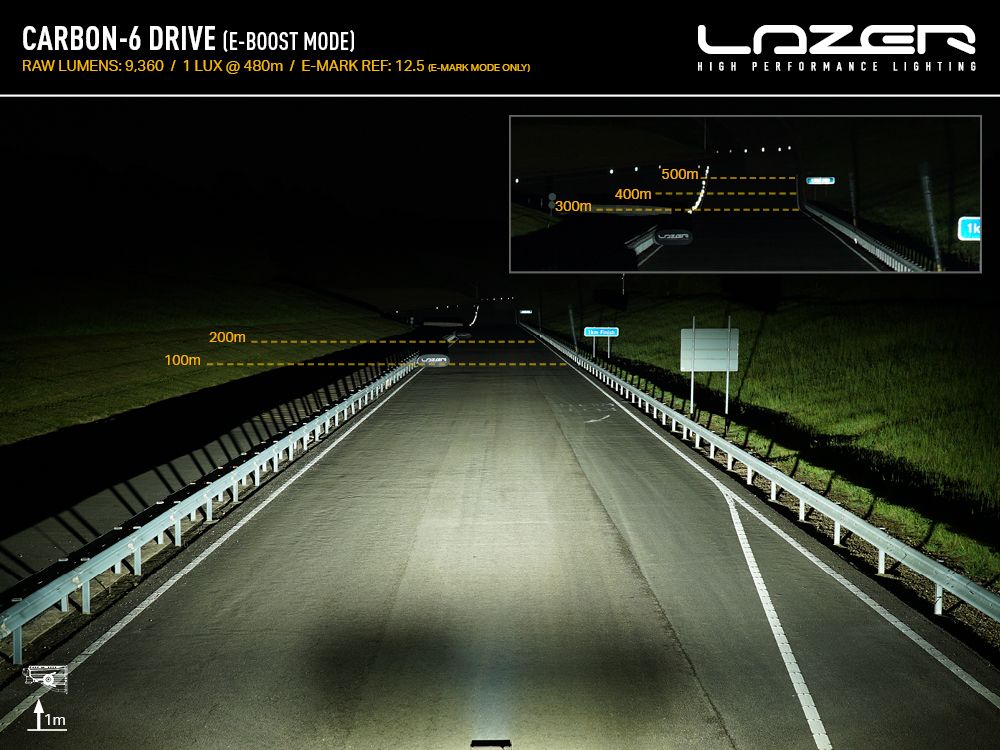

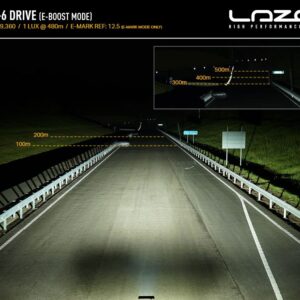

| Horizontal / Vertical Beam Angle | 32° / 12° | 60° / 15° |
| 0.25 lx Line | 1500m | 1643m |
| 0.5 lx Line | 1061m | 1162m |
| 1 lx Line | 750m | 822m |
| 3 lx Line | 433m | 474m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
WHAT’S INCLUDED

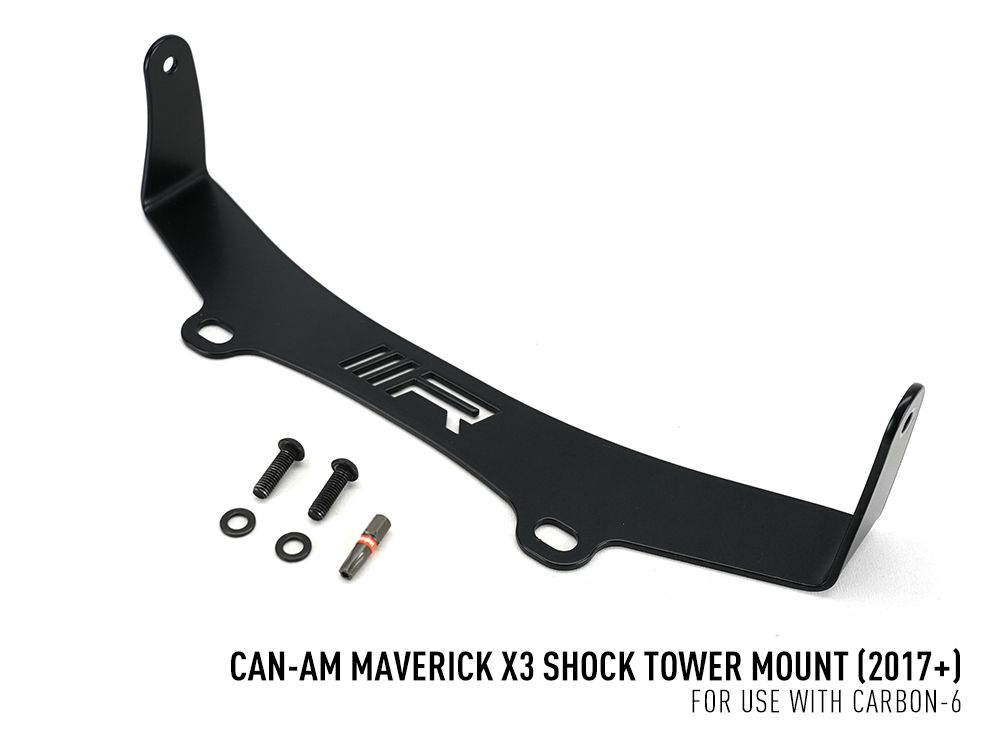

- x1 Shock Tower Mount (for Carbon-6)
- Anti-Theft Fastener Set
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
