Lazer Can-Am Maverick R – Hood Mount (for Linear-6) VIFK-MAVR-01K
Original price was: 70,18€.60,90€Current price is: 60,90€. WITH TAX
Lazer Can-Am Maverick R – Hood Mount (for Linear-6) VIFK-MAVR-01K

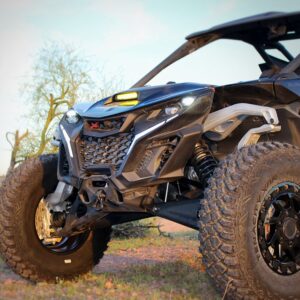

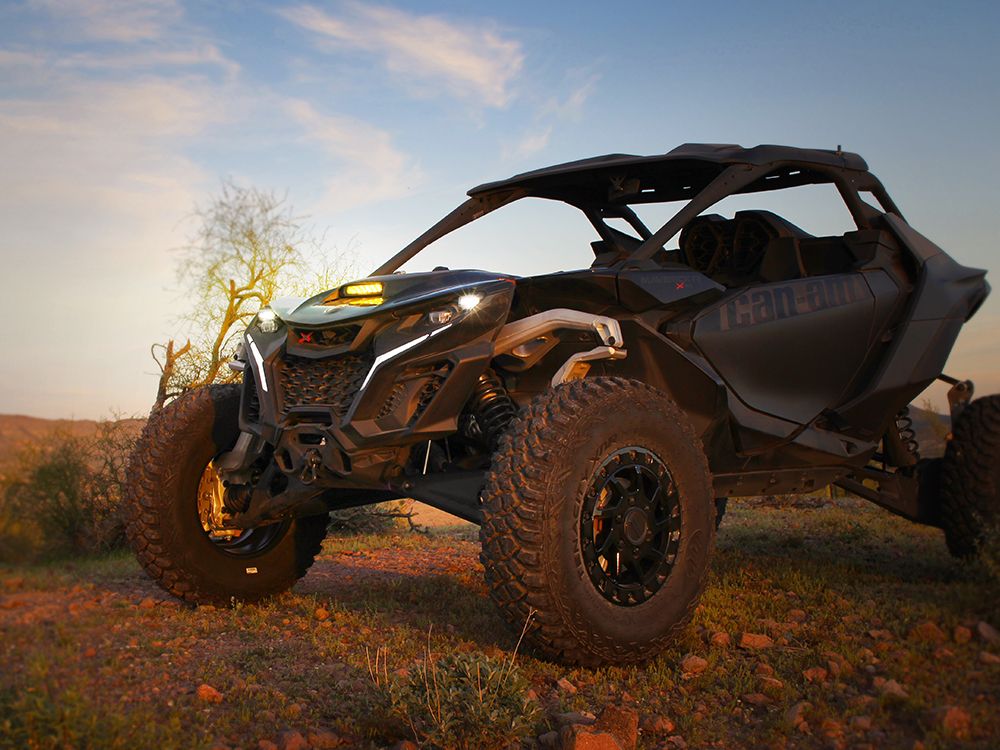

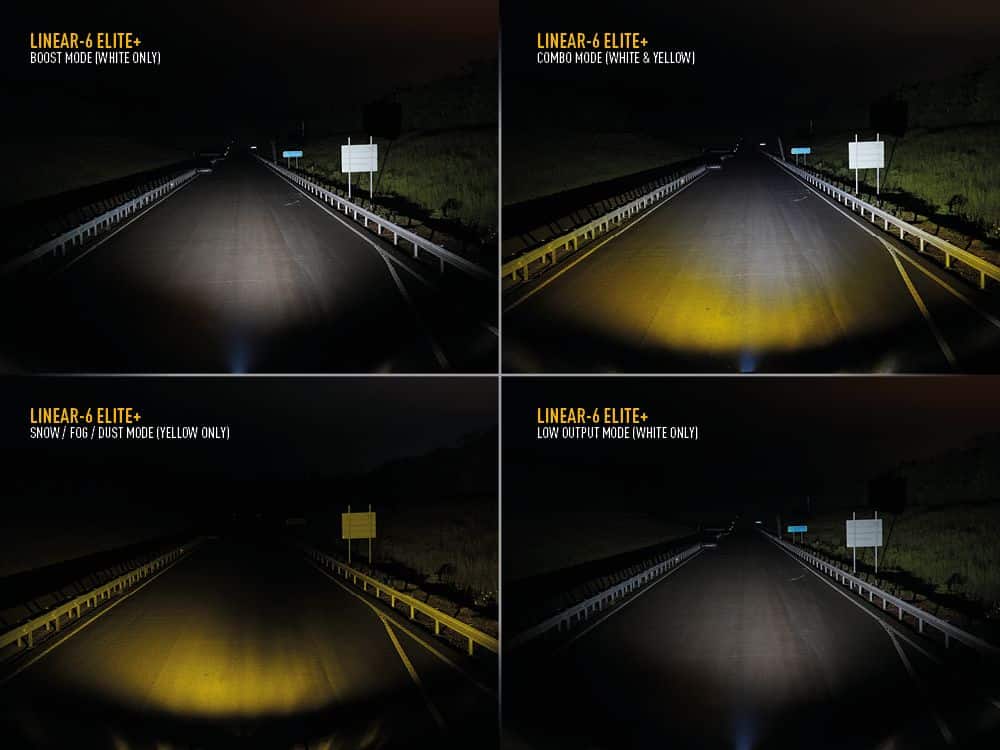

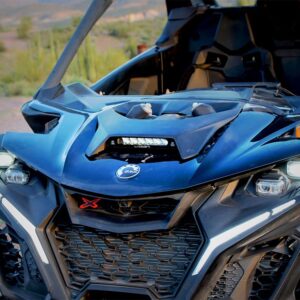

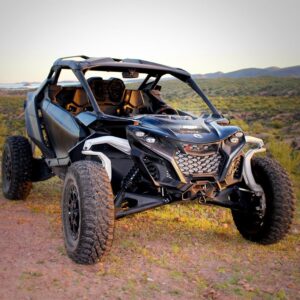

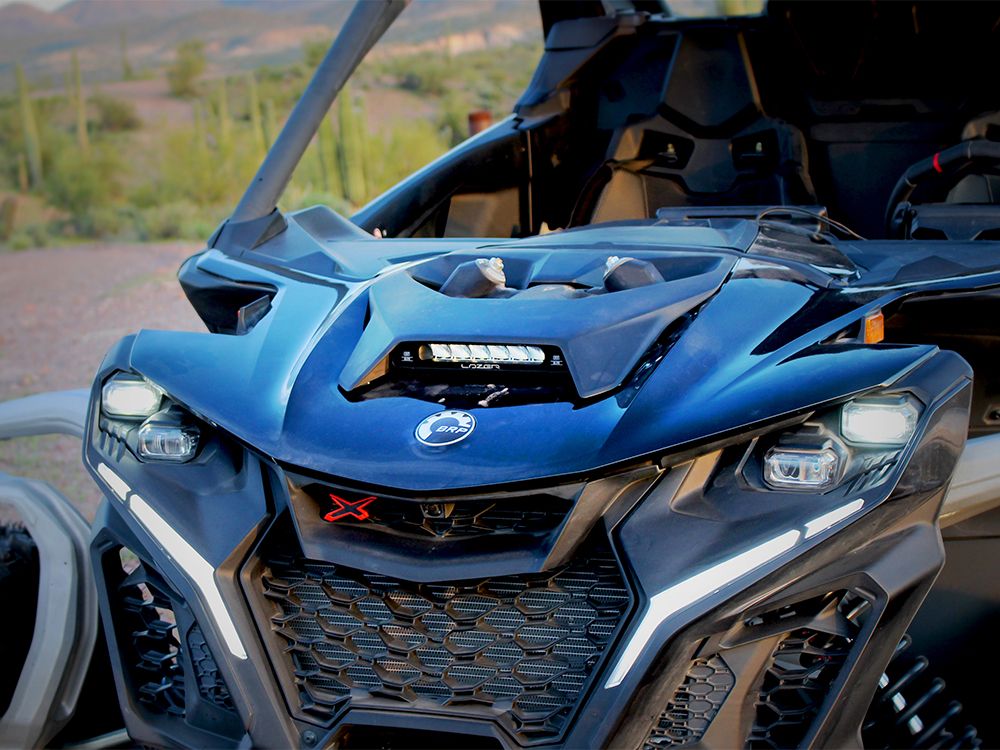

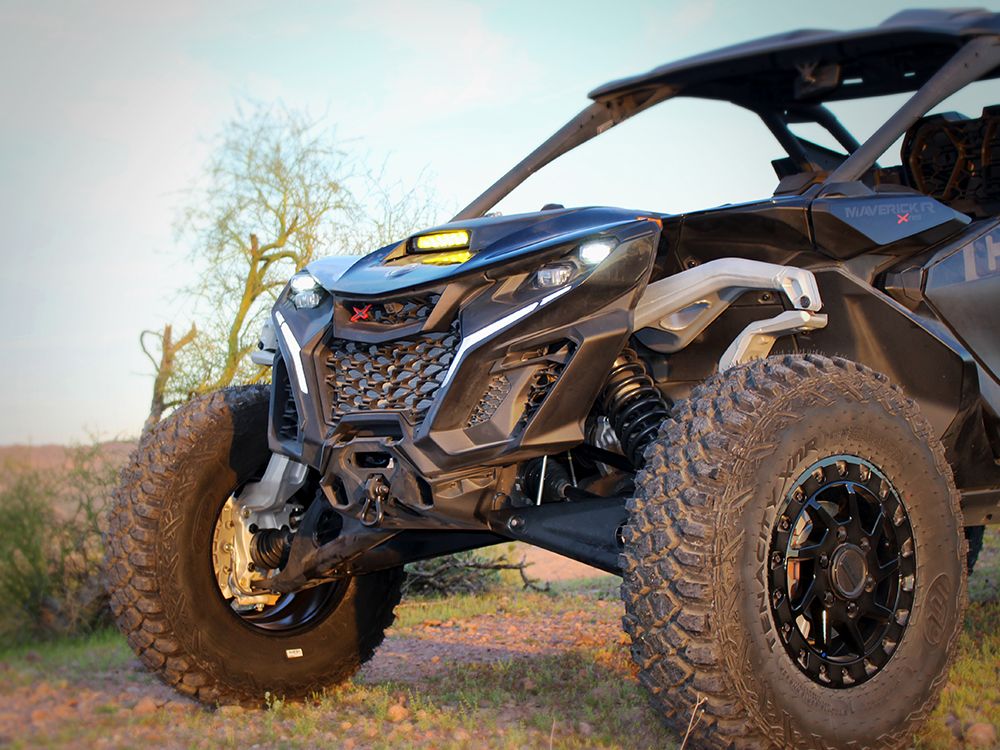

Designed and manufactured by one the leading suppliers of metal works parts for the side-by-side market based in the US, Lazer Lamps is delighted to offer the Can-Am Maverick R Hood Mount Kit. Compatible with our Linear-6 high performance LED lights, the kit facilitates the installation of the Linear-6 in the hood scoop for a stealth install that comes alive at night! The Linear-6 is available in Standard, Elite, or Elite+ grade which boasts white and yellow LEDs to be used independently or in combination – perfect when navigating tricky off-road conditions.

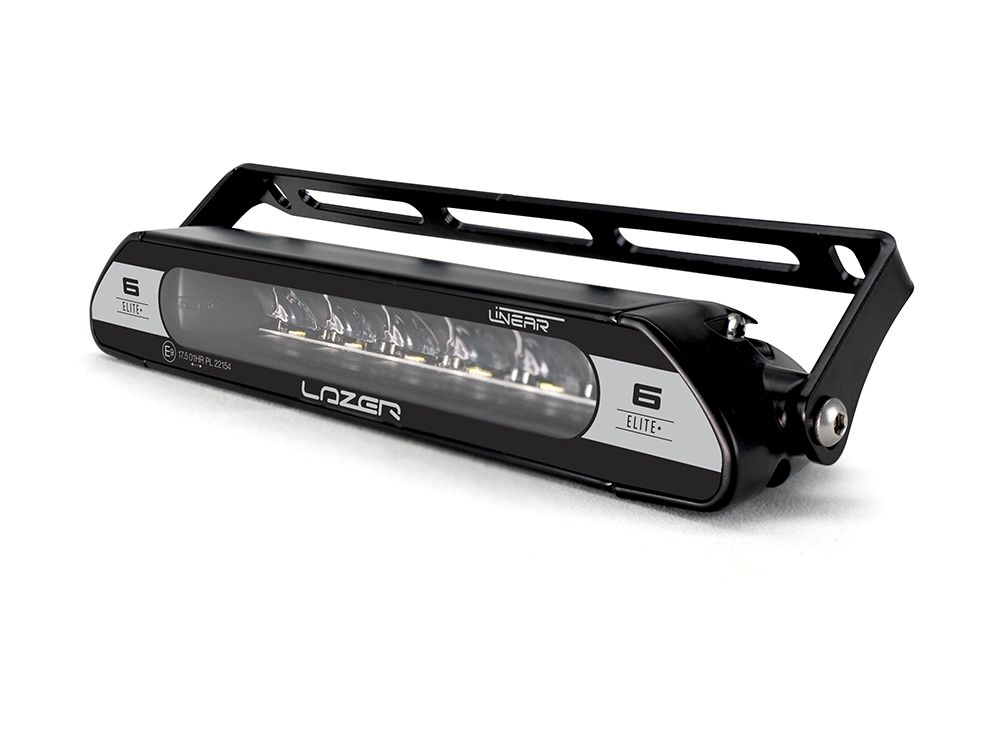

The mounting bracket itself is made from 3mm mild steel, with satin black powder coat, and supplied complete with fixtures. The mounts locate into original fixing locations on the Maverick R’s hood, resulting in a clean, robust install guaranteed to last and impress.
LIGHTS AND WIRING SOLD SEPERATELY.
Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).
Lazer Can-Am Maverick R – Hood Mount (for Linear-6) VIFK-MAVR-01K
PRODUCT FEATURES
Produced from 3mm mild steel with satin black powder coat finish
Supplied with stainless steel fasteners
Locates in original fixing locations on the Can-Am Maverick R
Designed for Linear-6 high performance LED lights
Designed & manufactured in the USA
TECHNICAL SPECIFICATIONS
| LINEAR-6 | LINEAR-6 ELITE |
LINEAR-6 ELITE+ (LOW OUTPUT / BOOST) |
|
|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs | 50,000 hrs |
| Weight | 495 gr | 495 gr | 495 gr |
| |
|||
| HIGH BEAM FUNCTION |
|||
| Total Luminous Flux | 2250 Lm | 4050 Lm | 5100 / 2500 Lm |
| Total Driver ‘FOV’ Flux † | 1602 Lm | 2884 Lm | 3645 / 1822 Lm |
| Colour Temperature | 5000K | 5000K | 5000K |
| Power Consumption | 21 Watts | 42 Watts | 48 W / 24 W |
| Current Draw (14.4V) | 1.5 Amps | 2.9 Amps | 3.6 A / 1.8 A |
| |
|||
| CERTIFICATION |
|||
| IP Rating # | IP68 | IP68 | IP68 |
| High Beam (E9 approval) | ECE R112 – Ref: 12.5 | ECE R112 – Ref: 17.5 | ECE R149 – Ref 12.5 (Low Output Mode only) |
| EMC Certification | ECE R10 | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |

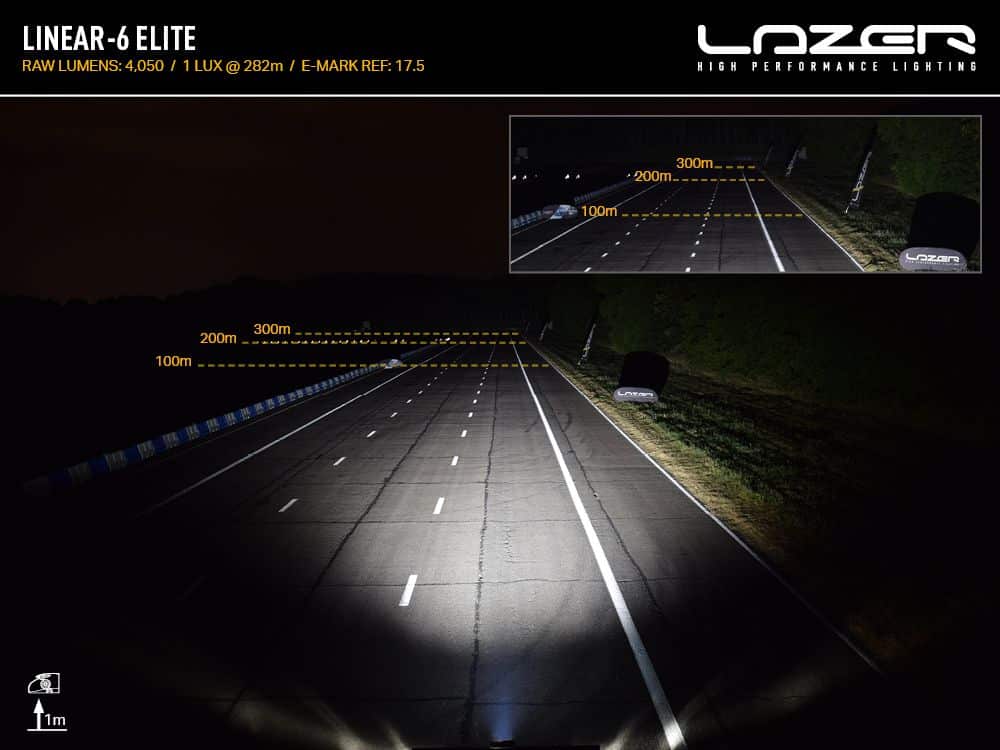

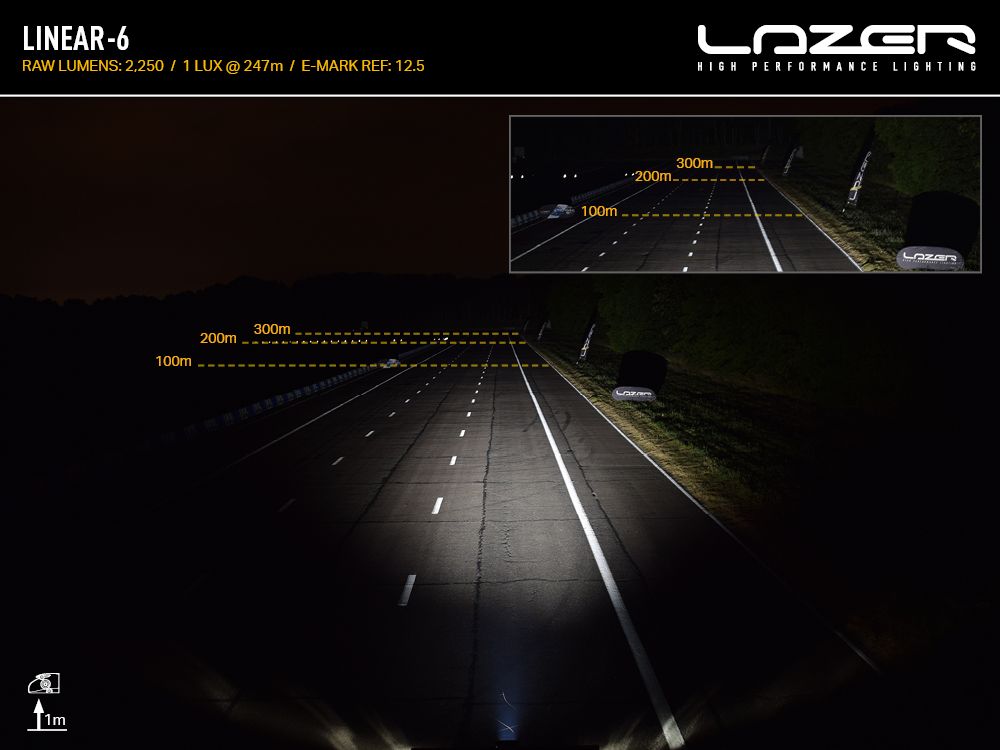

| PHOTOMETRIC DATA |
|||
| Horizontal / Vertical Beam Angle | 56° / 13° | 64° / 15° | 84° / 18° |
| 0.25 lx Line | 494 m | 563 m | 600m / 424m |
| 0.5 lx Line | 349 m | 398 m | 424m /300m |
| 1 lx Line | 247 m | 282 m | 300m / 212m |
| 3 lx Line | 143 m | 163 m | 173m / 122m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
WHAT’S INCLUDED

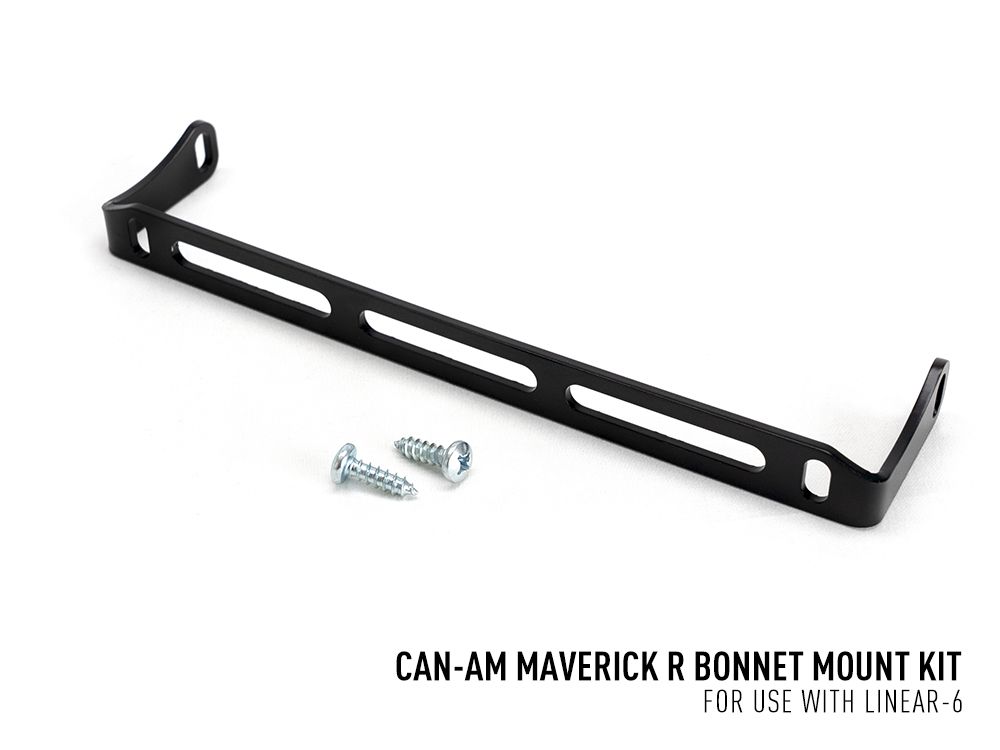

- x1 Hood Mount U-Bracket
- x2 Fasteners
Fitting instructions available in the downloads section below.
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
