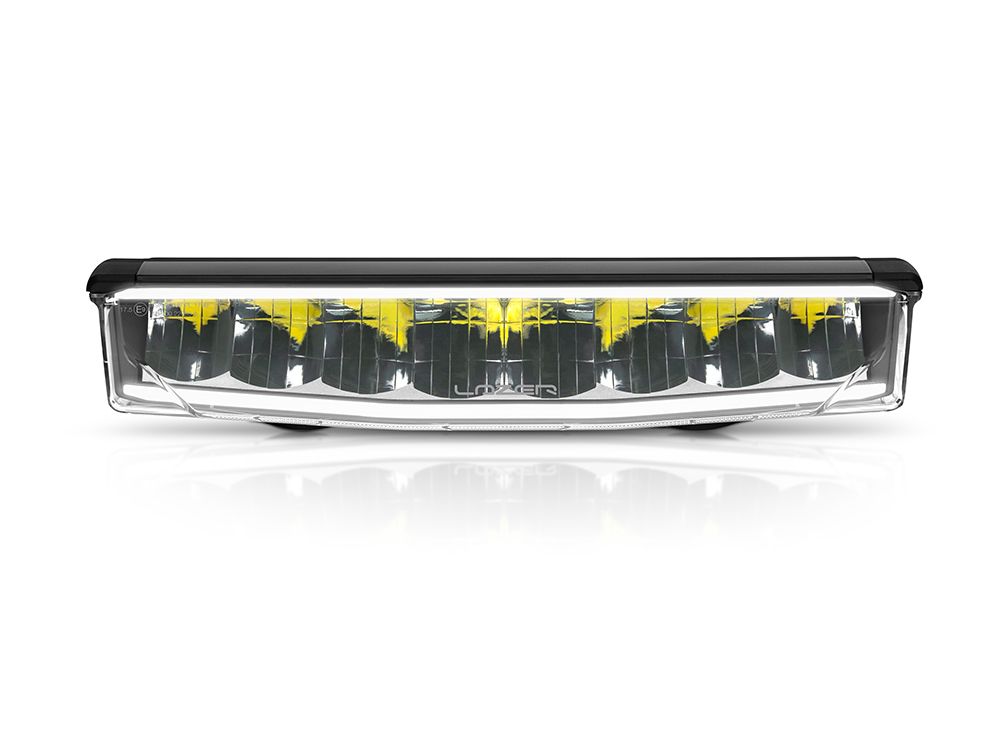

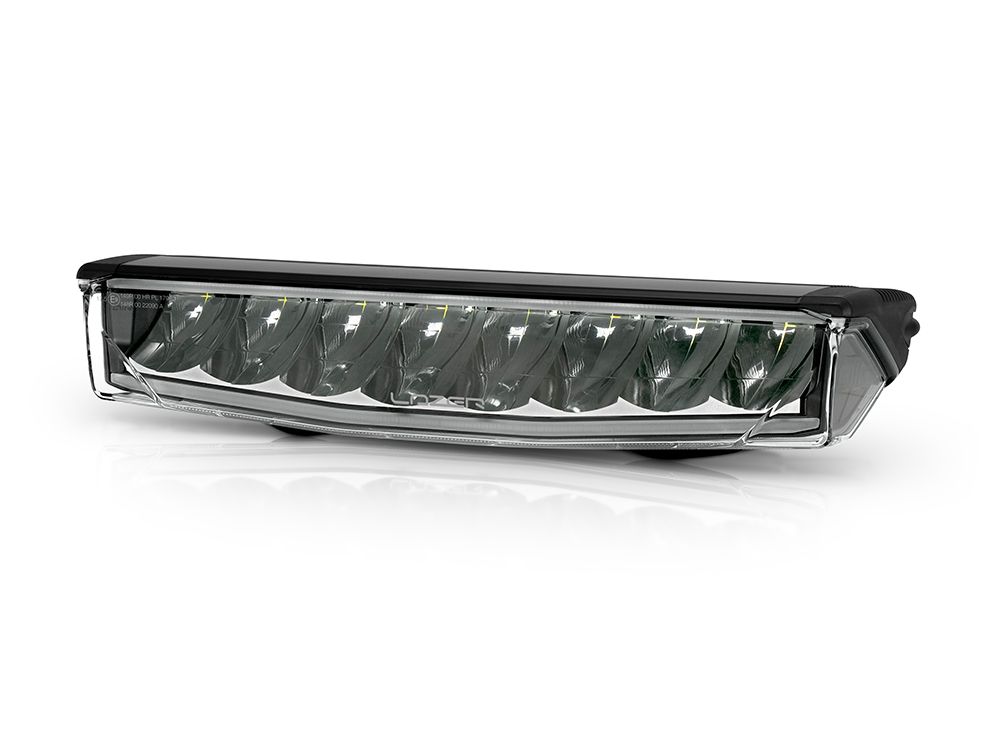

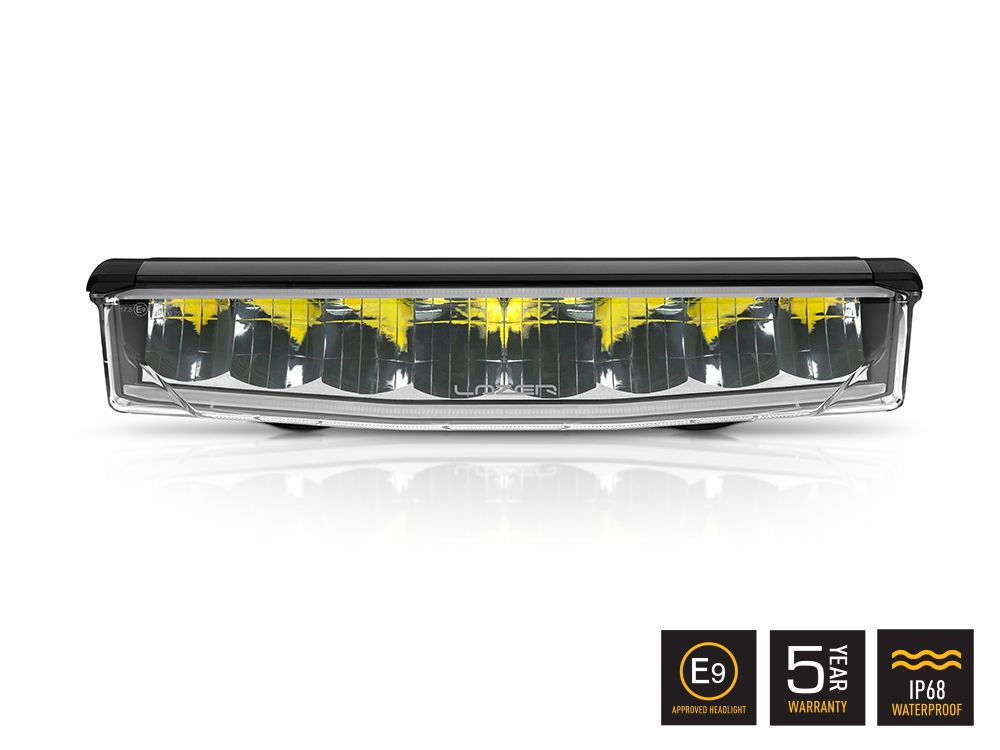

Lazer AIR-130 Elite 0A130-EL-B

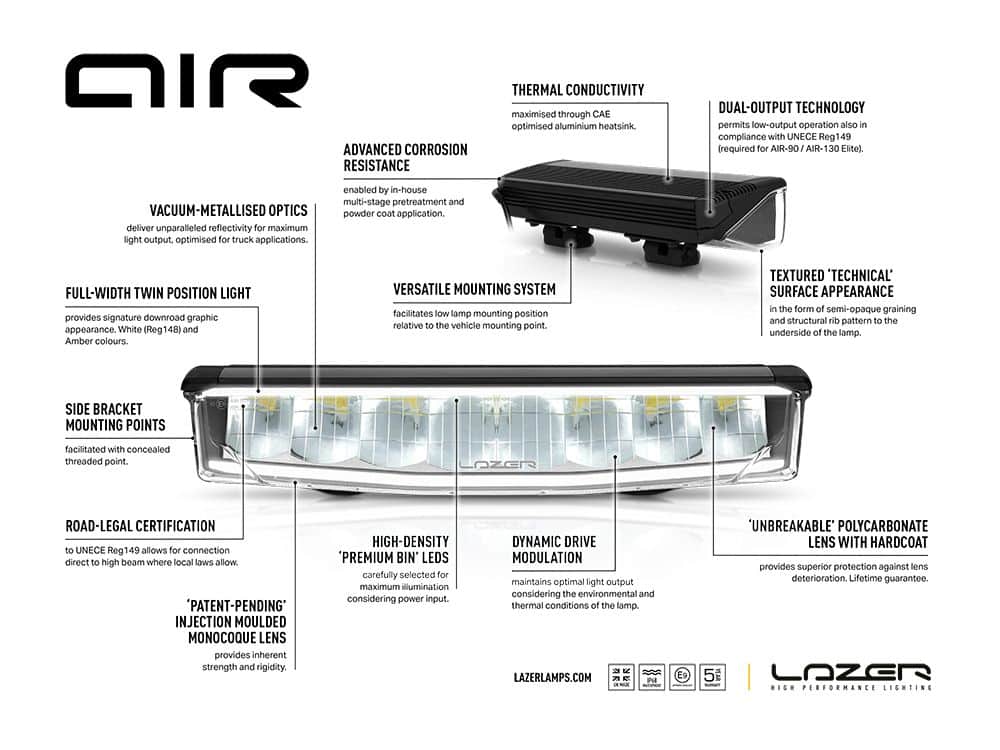

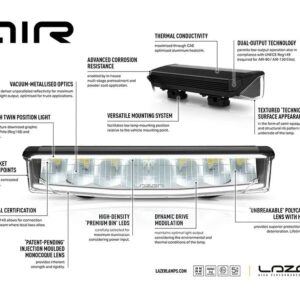

PRODUCT FEATURES
Patent-pending injection moulded monocoque lens with texture effect to the underside
Black PCBs present a unique stealth appearance

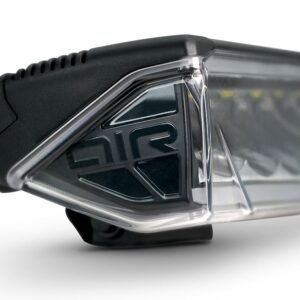

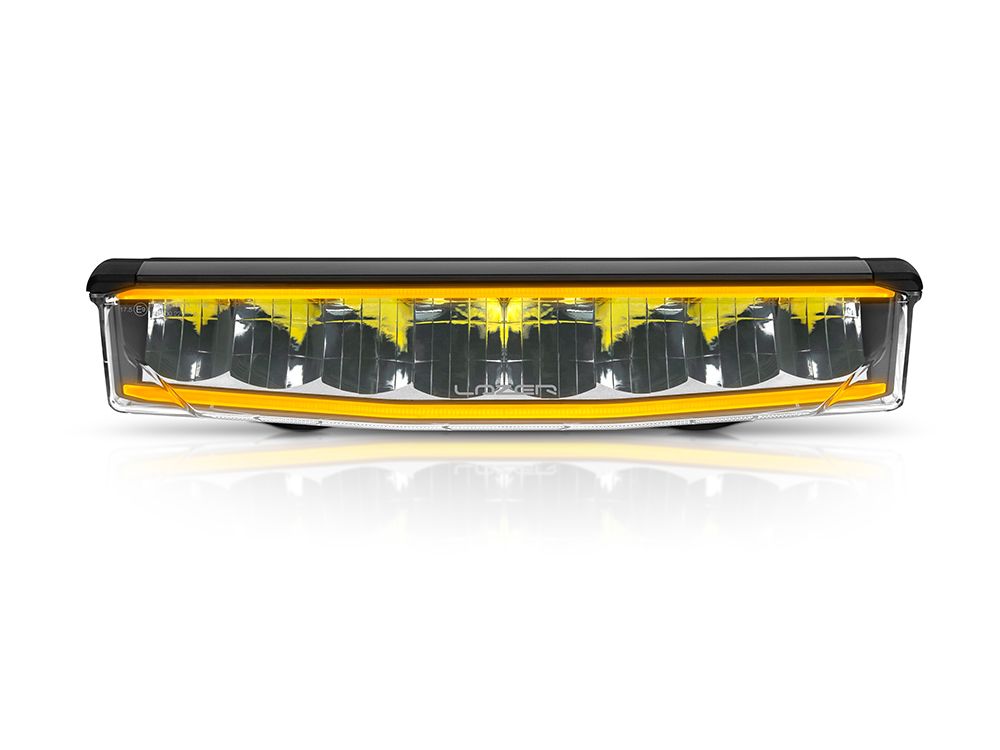

Integrated white or amber position light guides
Adoption of the latest high-efficiency premium-bin LEDs
Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road
Patent-pending lamp design
ECE approved for on-road high beam (E-Boost technology) and position/side light function (white only)

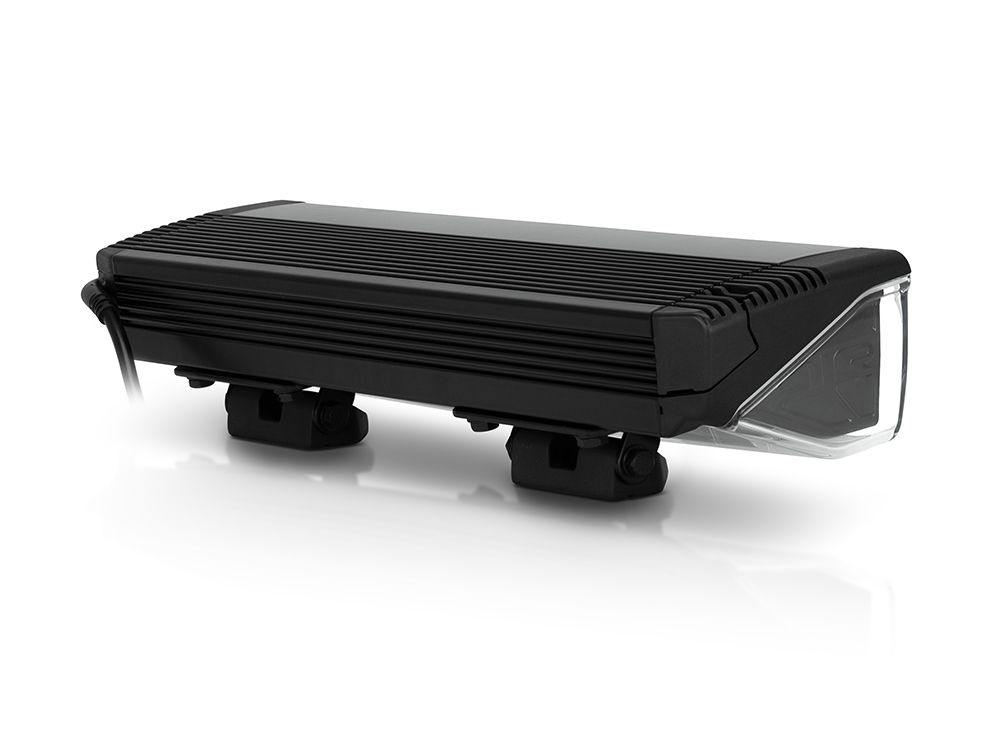

Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point
Threaded mounting locations to enable side mounting (brackets sold separately)
CAE optimised heatsink offers improved thermal dynamics
Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
Electronic thermal management
‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee
20cm lamp cable complete with male/female 3-pin Superseal connectors
IP68 watertight
5-year warranty
Vehicle wiring kits available
Designed & manufactured in Britain
TECHNICAL SPECIFICATIONS
BOOST MODE |
LOW OUTPUT/ E-MARK MODE |
|
---|---|---|
Voltage Range (DC) | 10-32V | |
LED Life | 50,000 hours | |
Weight | 1.65 kg | |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 12,500 Lm | 3,125 Lm |
Total Driver ‘FOV’ Flux † | 7,875 Lm | 1,968 Lm |
Colour Temperature | 5000K | |
Power Consumption | 130 Watts | 21 Watts |
Peak Current Draw | 11.6 Amps | 2.3 Amps |
Current Draw (14.4V) | 10.2 Amps | 1.5 Amps |
Connector | 3-Pin Superseal (+25cm Cable) | |

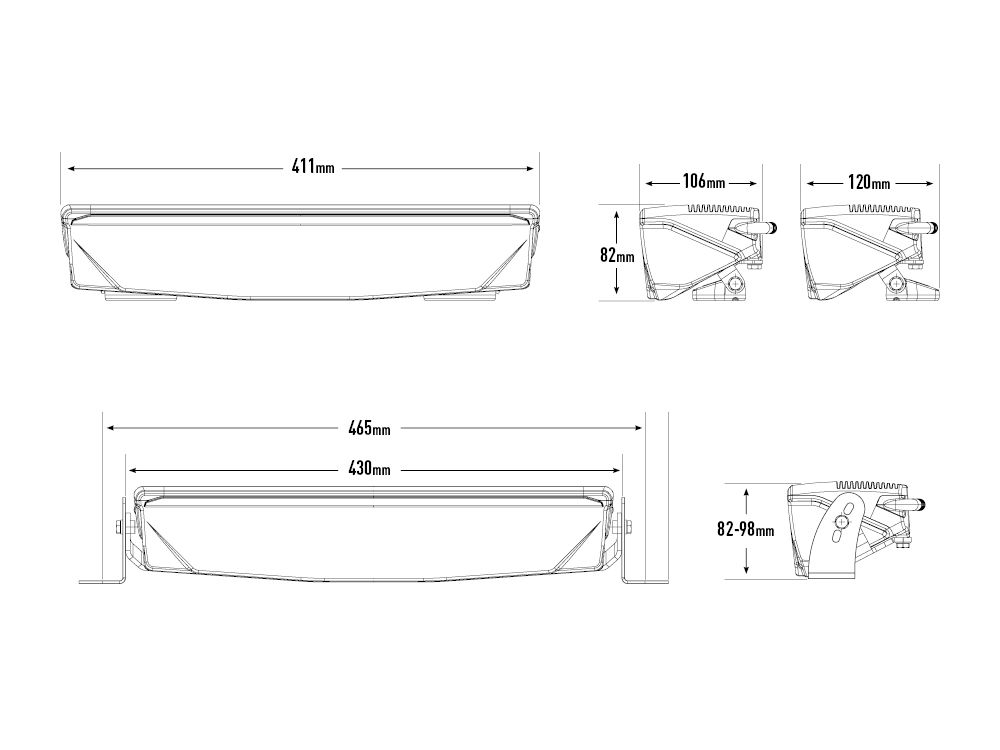

DIMENSIONS | ||
Width | 411 mm | |
Depth | 106 mm | |
Height | 82 mm | |
CERTIFICATION | ||
IP Rating # | IP68 | |
High Beam (E9 approval) | ECE R149 – Ref: 17.5 (in Low Output Mode only) | |
EMC Certification | ECE R10 | |
Salt Spray Test | ISO 9227 | |
Dump Load Protection | ISO 7637-2 | |

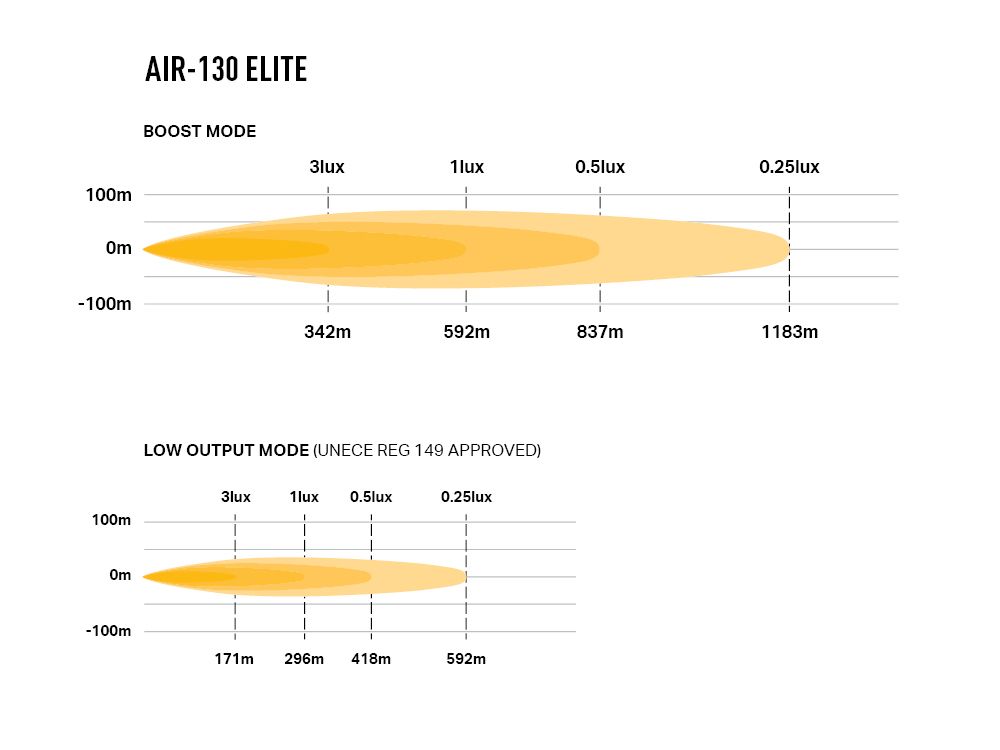

PHOTOMETRIC DATA | ||

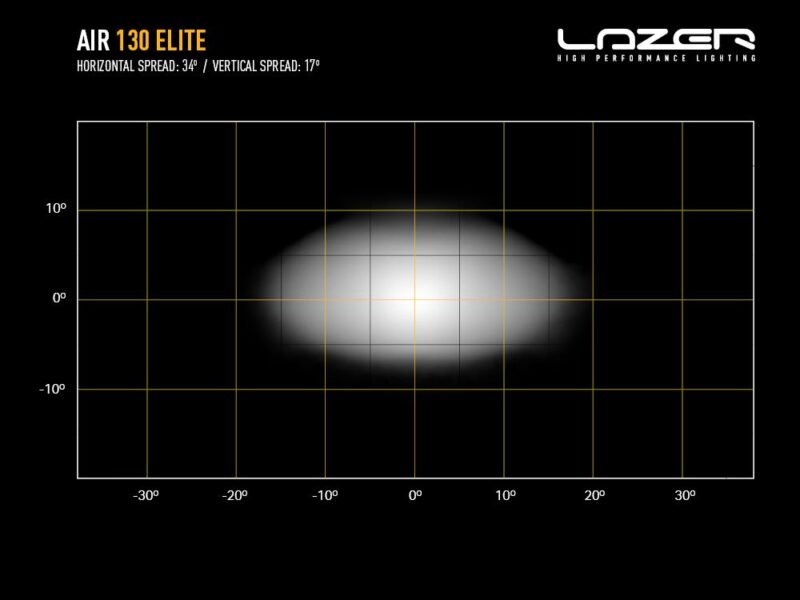

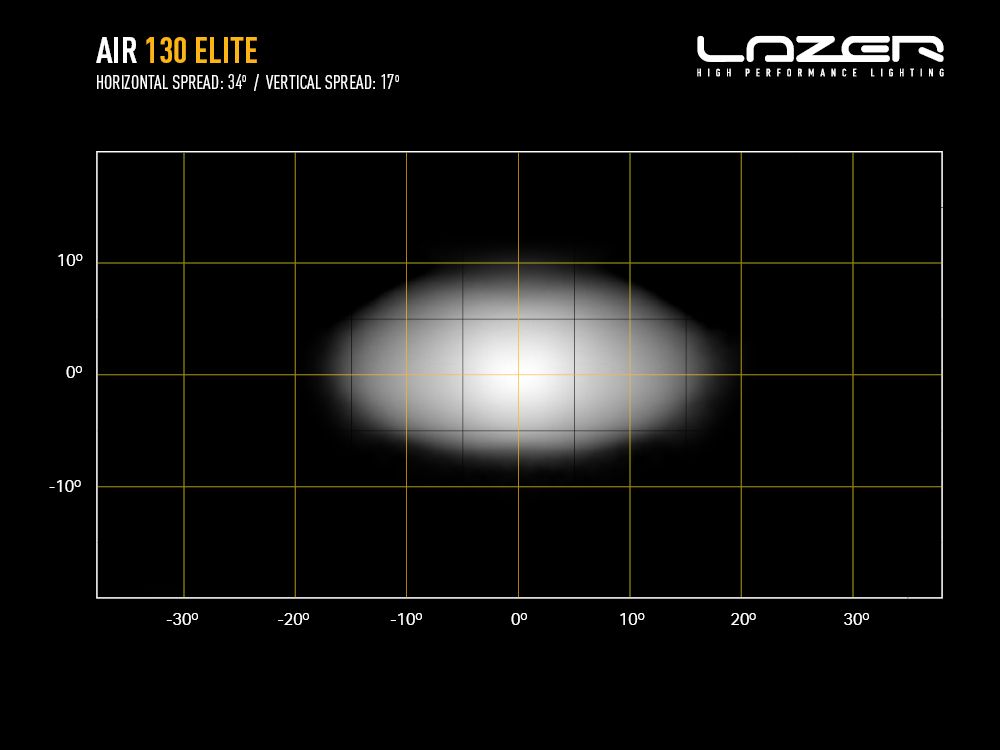

Horizontal / Vertical Beam Angle | 34° / 17° | |

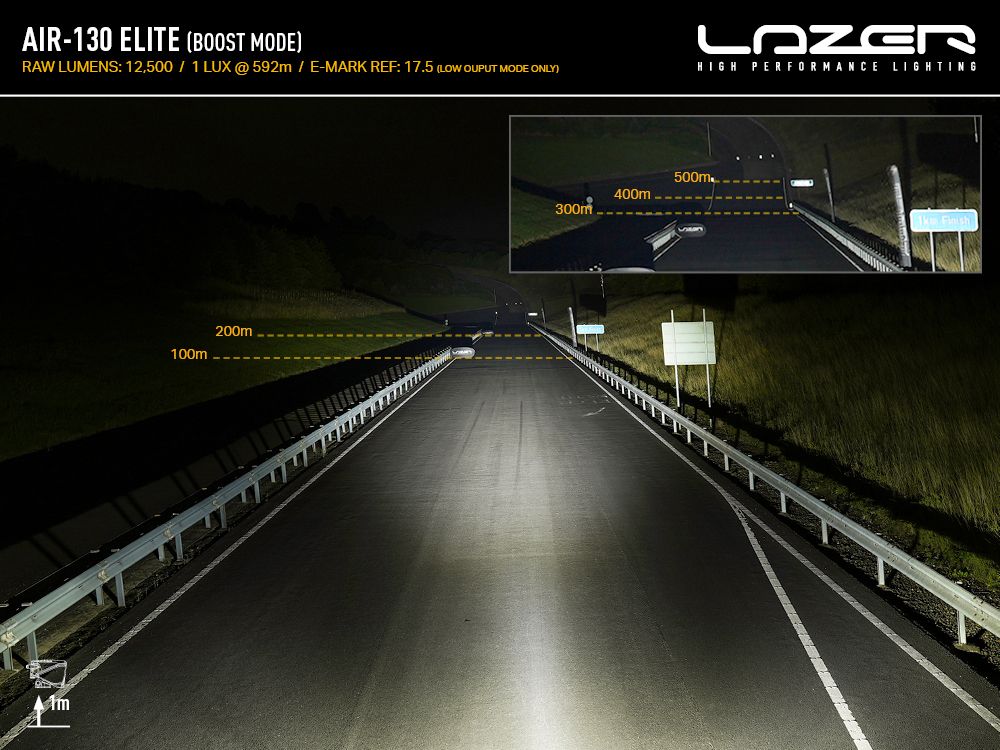

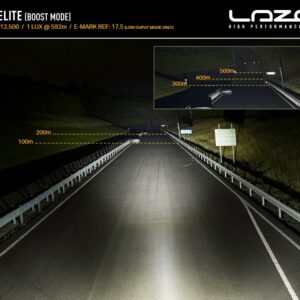

0.25 lx Line | 1183m | 592m |
0.5 lx Line | 837m | 418m |
1 lx Line | 592m | 296m |
3 lx Line | 342m | 171m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
WHAT’S INCLUDED
- x1 AIR-130 Elite LED Lamp
- x2 Centre Mounting Kit (1151K)
- Installation Instructions
