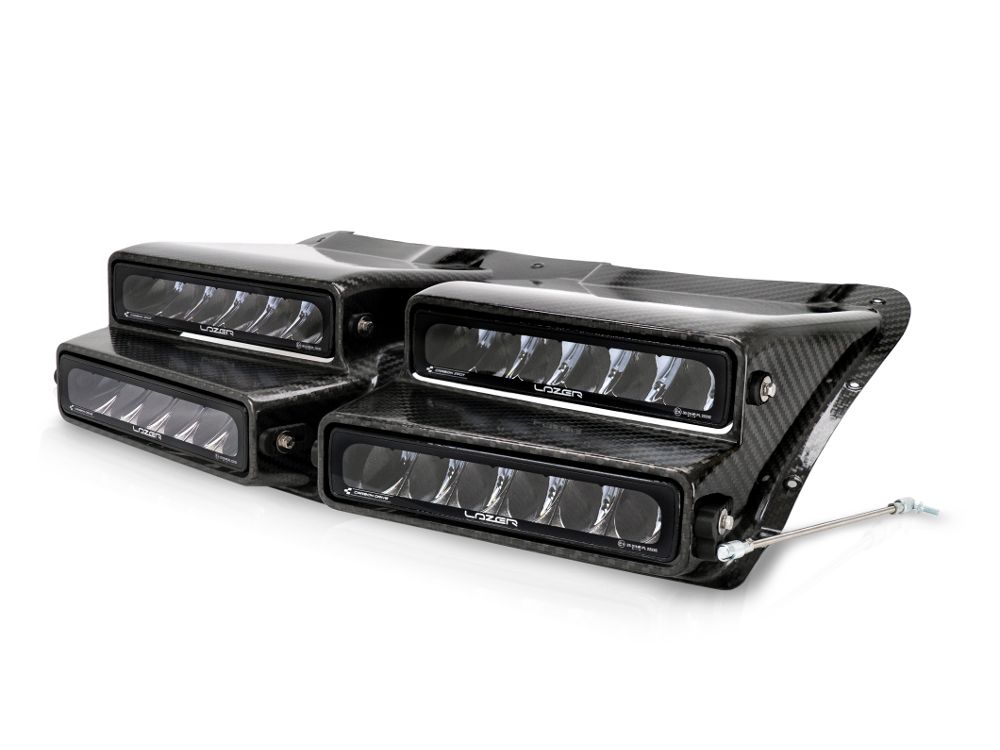

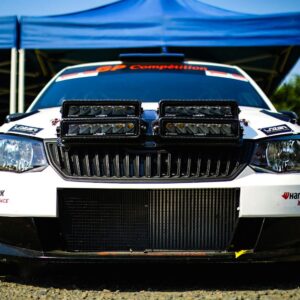

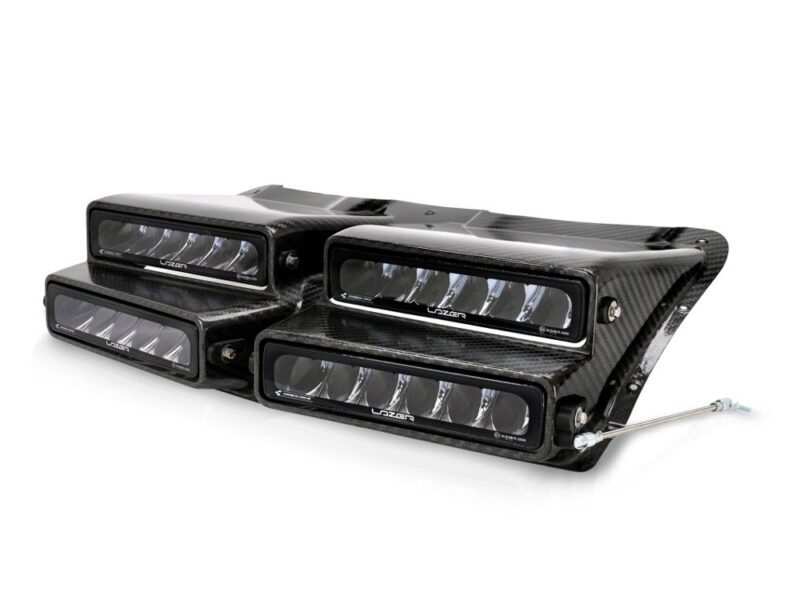

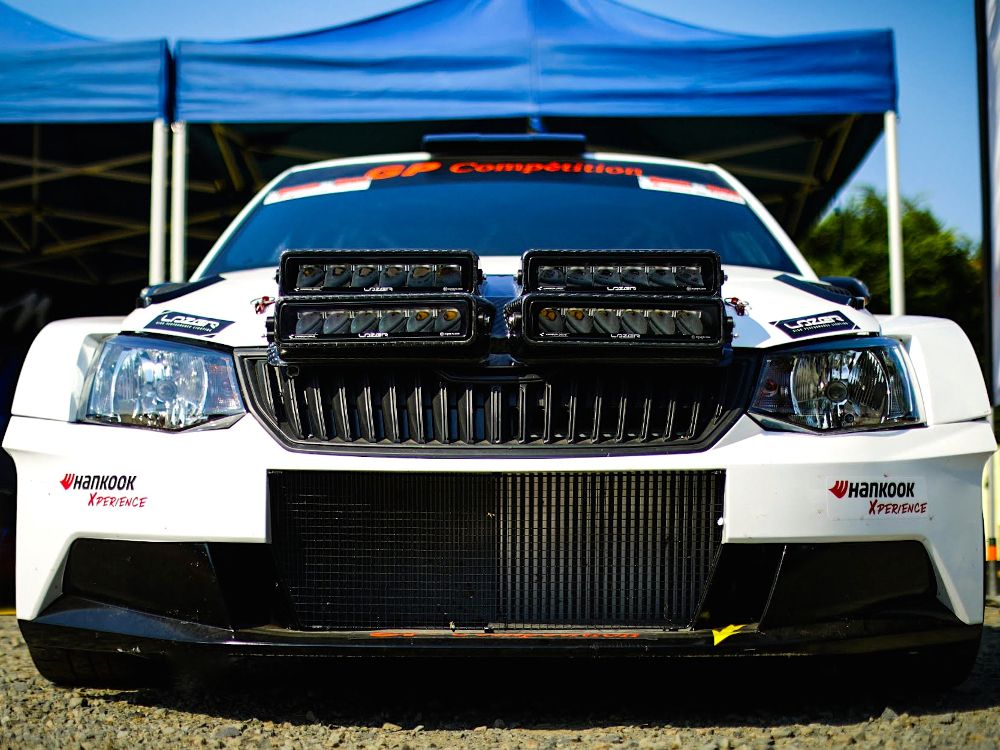

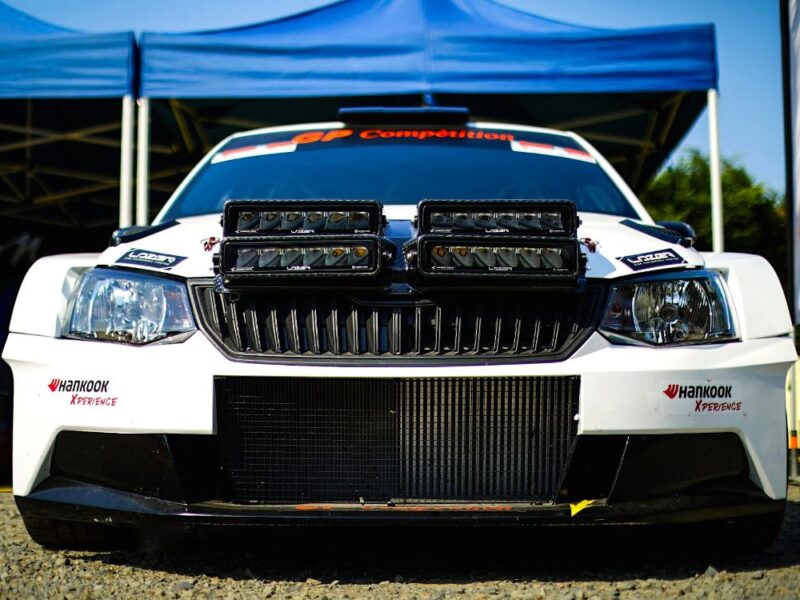

Lazer 4-Way Rally Lamp Pod (excl Lights) – for Skoda R5 0064-SKODA-POD
PRODUCT FEATURES

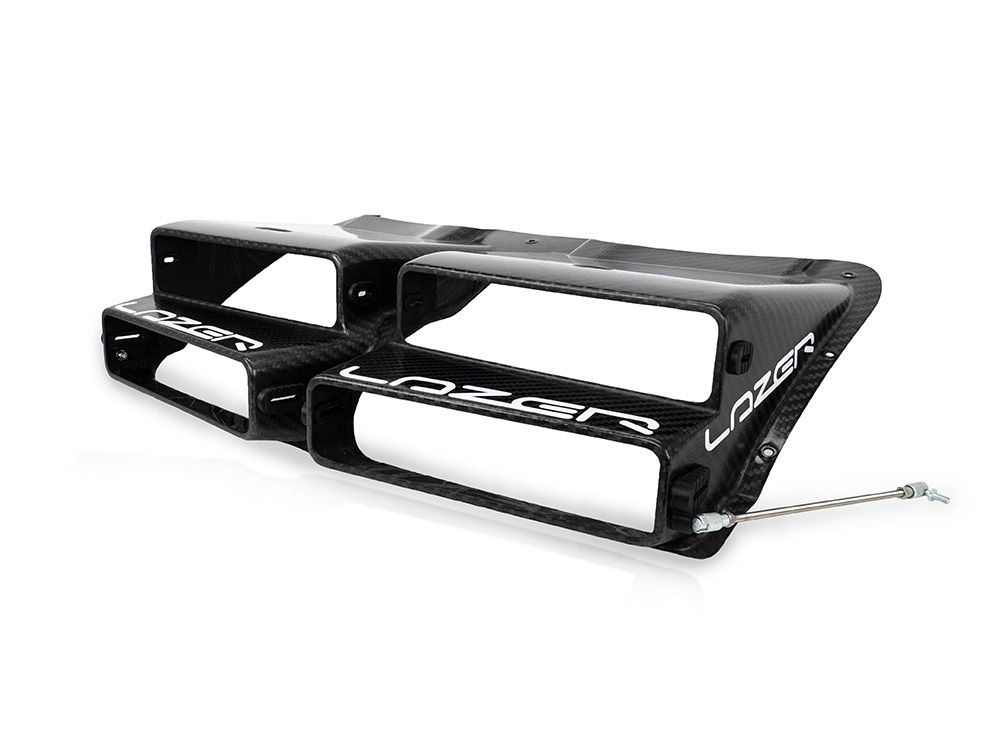

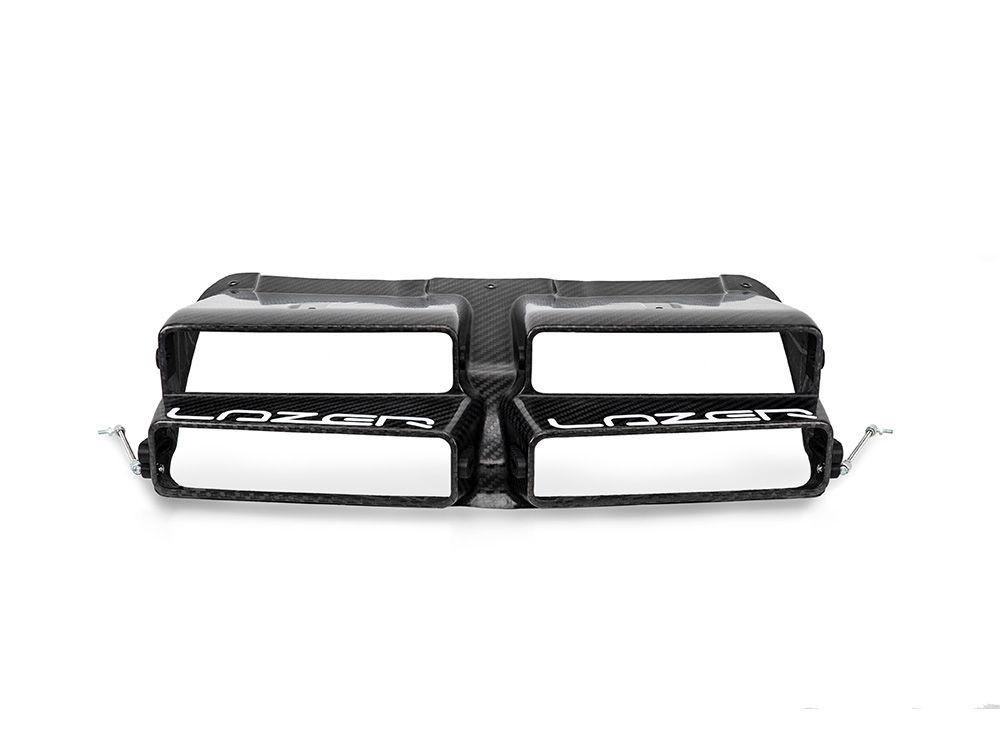

Ultra-lightweight carbon-fibre with glass laminate bonnet pod
Compatible with Carbon-6 LED driving lights
3 versions available, optimised for: Ford Fiesta, Skoda R5, Citroen C3
Road-legal in accordance with FIA regulations (for some rally series)
Low profile design for improved aerodynamic performance
Bonnet fixtures not included

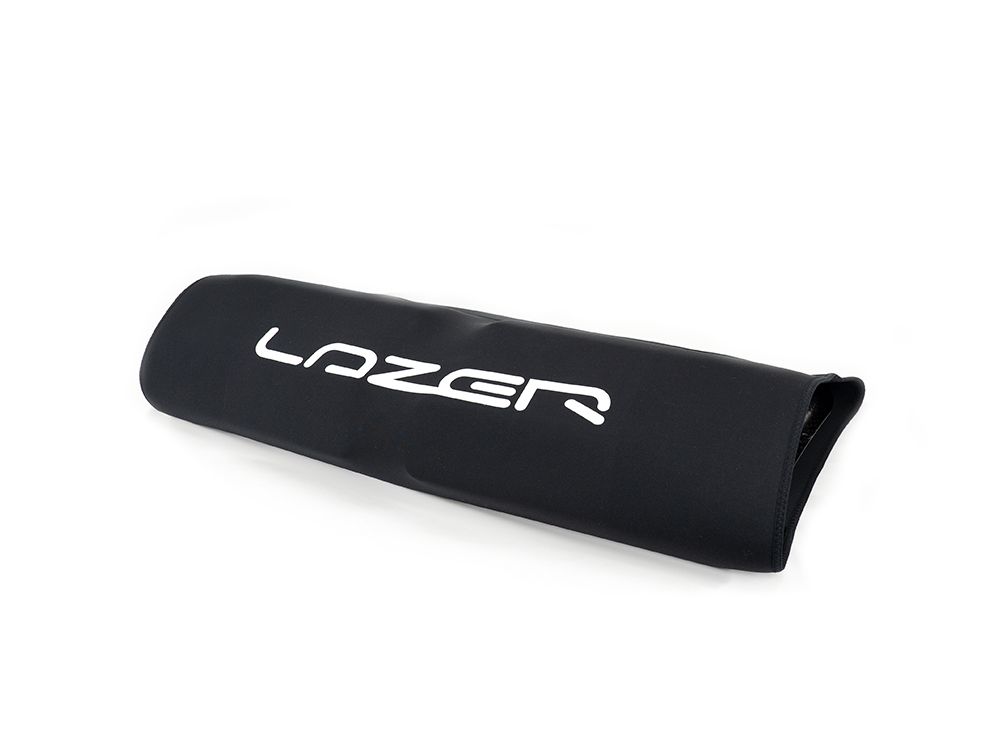

Supplied with neoprene impact cover
Designed & manufactured in Britain
TECHNICAL SPECIFICATIONS
Based on: x2 Carbon-6 Spot & x2 Carbon-6 Drive.
Voltage Range | 10-32V |
LED Life | 50,000 hours |
Weight | 2.5 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 37440 Lm |
Total Driver ‘FOV’ Flux † | 26100 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 4 x 36 LED’s |
Power Consumption | 345W |
Current Draw (at 14.4V) | 24A |
CERTIFICATION | |
High Beam | ECE R112 |
E-Mark Ref * | 4 x 12.5 |
PHOTOMETRIC DATA | |
0.25 lx Line | 2134 metres |
0.5 lx Line | 1509 metres |
1 lx Line | 1068 metres |
3 lx Line | 616 metres |
* E-Mark Compliant Mode activated by alternate PWM signal (see datasheet for more information).
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 2x Carbon-6 SPOT (supplied separately from Pod)
- 2x Carbon-6 DRIVE (supplied separately from Pod)

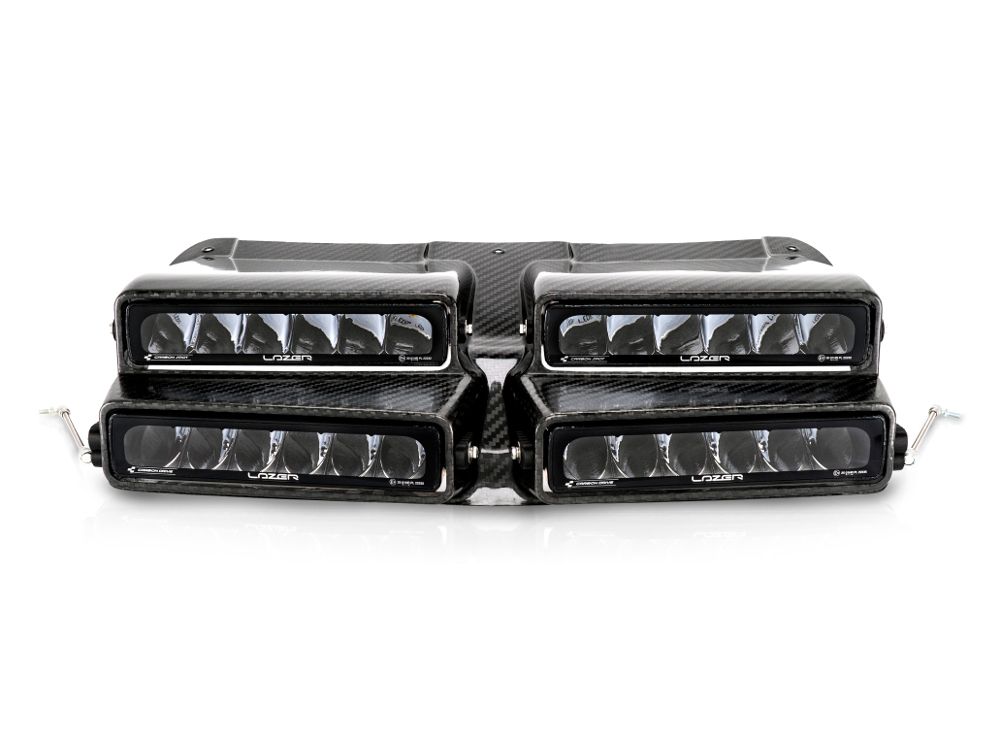

- 1x Skoda R5 4-Lamp Rally Pod
- 1x Neoprene Cover
- Installation Instructions
Assembly instructions available in the downloads section below.
