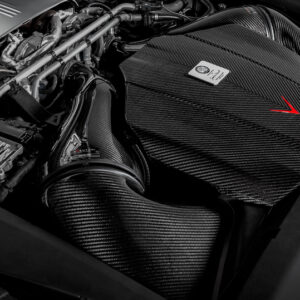

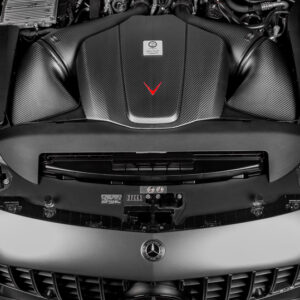

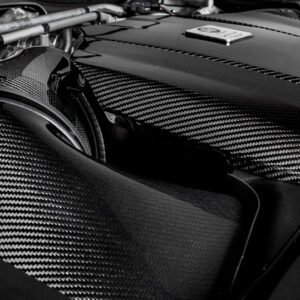

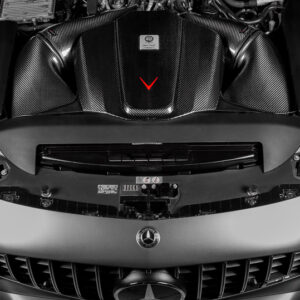

Eventuri Mercedes C190/R190 AMG GTR, GTS, GT MATTE Finish EVE-AMGGT-CFM-INT
PERFORMANCE
Dyno Testing
Dyno testing was carried out by RENNtech in the USA who tested a GTR in stock form and also with their own ECU tune back to back comparing the OEM airboxes with our intake system. As can be seen below the intake provides a gain in performance throughout the RPM range. The peak power and torque figures are summarised below for each configuration. Mid-range gains are higher in some places than the peak stated figures as can be seen in the graphs. The resulting gains are noticeable on the road with better throttle response and improved acceleration times.
Dyno Results Summary:
- Stock (Runs 1 and 2) : 01 – 548.77hp / 494.34tq ; 02 – 551.67hp / 497.54tq
- Stock with Eventuri (Runs 13 and 14) : 13 – 558.34hp / 521.77tq ; 14 – 559.34hp / 508.46tq
- Tune only (Runs 5 and 6) : 05 – 589.37hp / 576.67tq ; 06 – 567.63hp / 568.65tq
- Tune with Eventuri (Runs 9 and 10) : 09 – 596.94hp / 576.09tq ; 10 – 590.07hp / 572.57tq
PRODUCT DETAILS
- EVE-AMGGT-CF-INT : Mercedes C190/R190 AMG GTR, GTS, GT GLOSS Finish
- EVE-AMGGT-CFM-INT : Mercedes C190/R190 AMG GTR, GTS, GT MATTE Finish
The Eventuri AMG GT intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

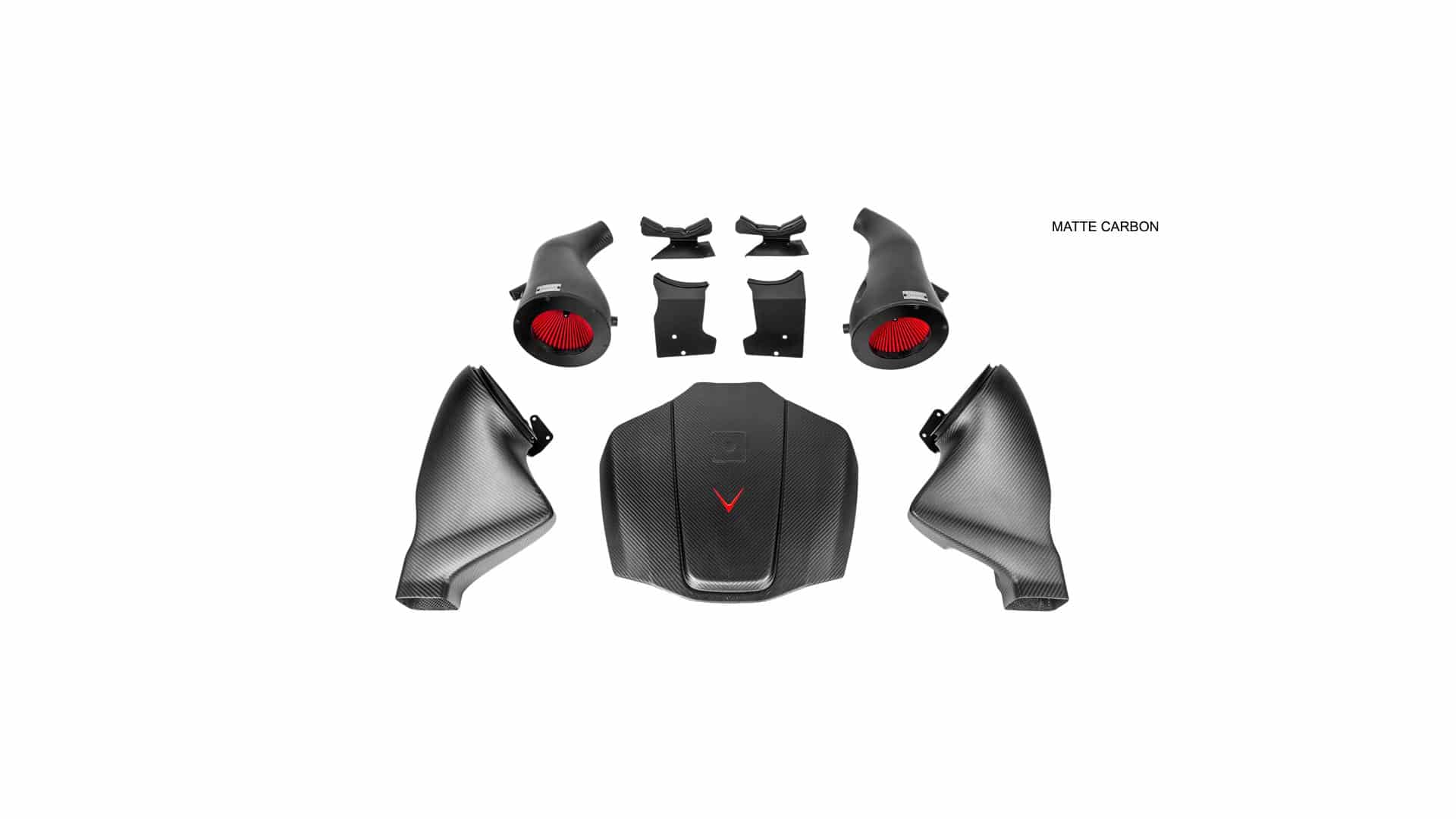

Each intake system consists of:
- 2 x Carbon Fiber Patented Venturi Filter Housings
- 2 x Bespoke High Flow Dry Cone Filters
- 2 x Carbon Fiber Inlet Ducts
- 1 x Carbon Fiber Center Cover
- 2 x CNC Machined Stainless Steel Outlet Flanges
- 2 x CNC Machined MAP bosses
- Heat Shields
- Laser Cut Stainless Steel Brackets
Patented Venturi Filter Housing Assembly
The AMG GT filter housings comprise of a bespoke high flow filters, aluminium cowls, laser cut brackets and the carbon pods themselves. The carbon pod shrouds the reverse mounted filter and smoothly shapes the airflow down to the turbo. This smooth reduction in cross sectional area invokes the Venturi effect where internal pressure reduces whilst maintaining laminar conditions. It can be thought of as a large velocity stack – below is a diagram to show the comparison between our patented design and a regular intake system. Further details can be read in the Technology page. The housings replace the OEM airboxes and flexible inlet tubes and provide a more direct flow path through a one-piece construction.

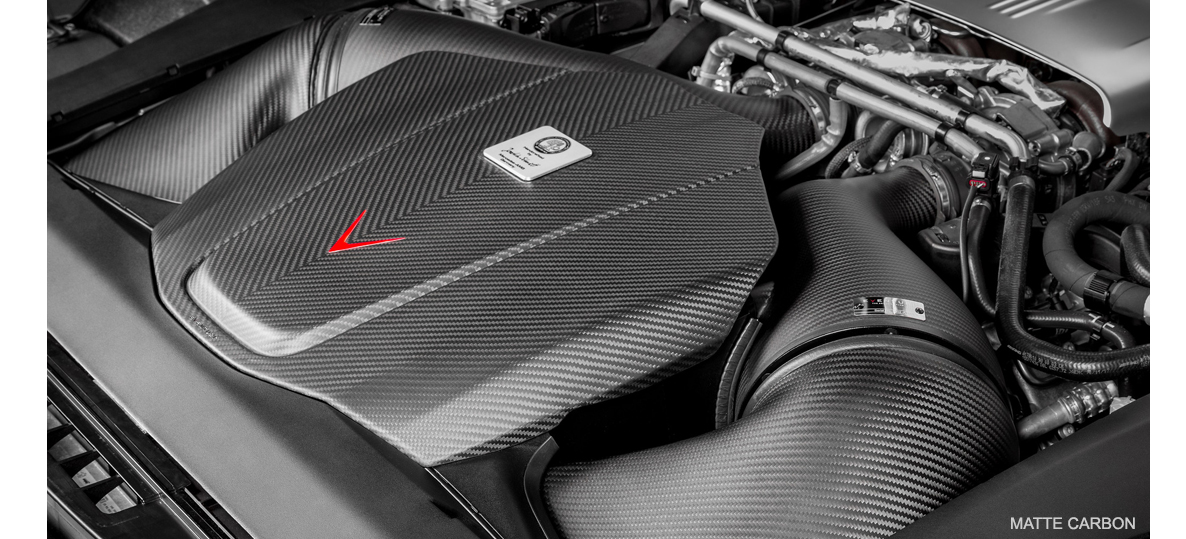

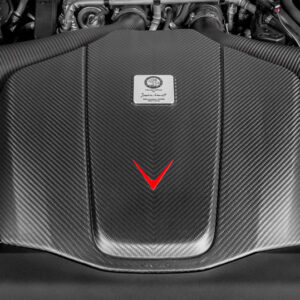

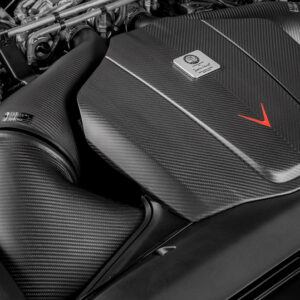

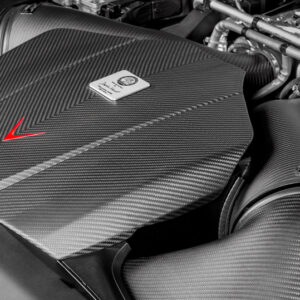

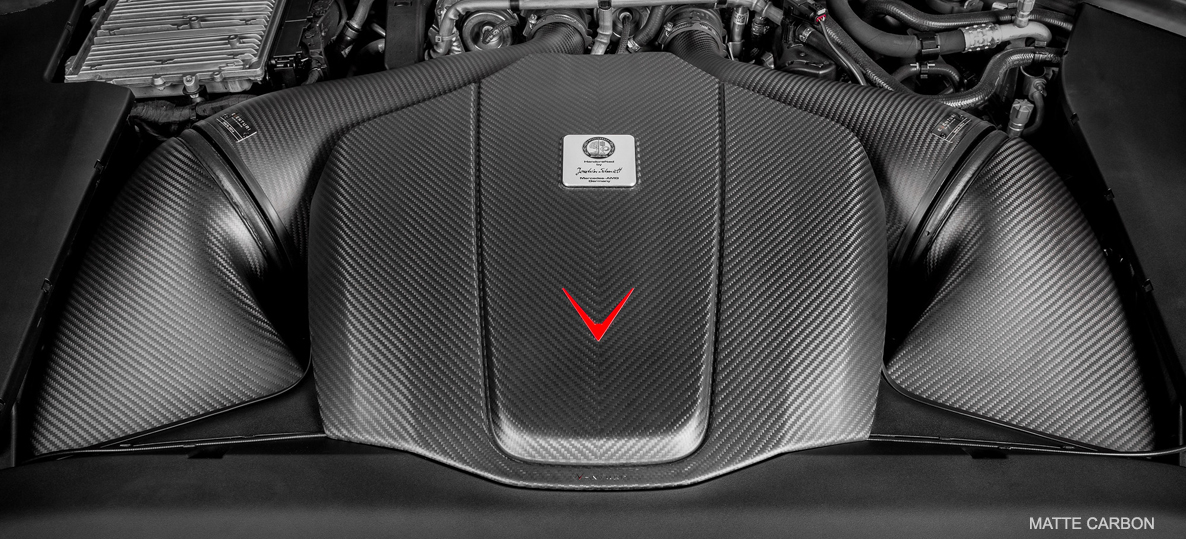

Carbon Center Cover The internal volume of the filter housings have been maximised in order to de-restrict the flow path to the turbos. In doing so, the OEM center cover also needed to be modified to prevent it from fouling with the housings. We therefore designed a new cover which allows fitment of the larger filter housings and also provide a finished look to the engine bay. The new cover is made in carbon and features a V shape carbon weave pattern to provide symmetry to the intake as a whole. We have also included a recess in the cover to allow fitment of the engine build plaque from the OEM cover.
Carbon Fiber Intake Ducts
The ducts channel ambient air from the front grill to the filter housings. They connect to the OEM ducting system and smoothly transition to the circular filter housing shape. In order to ensure a good seal against engine bay heat – they also have a flexible rubber edging around the openings which press against the filter housings creating the desired seal yet allowing the housings to move with the engine. The duct volume has been maximised to take full advantage of the space available. The underside of the ducts show the lengths we have gone to ensure perfect fitment while allowing for clearance with objects in the engine bay area.

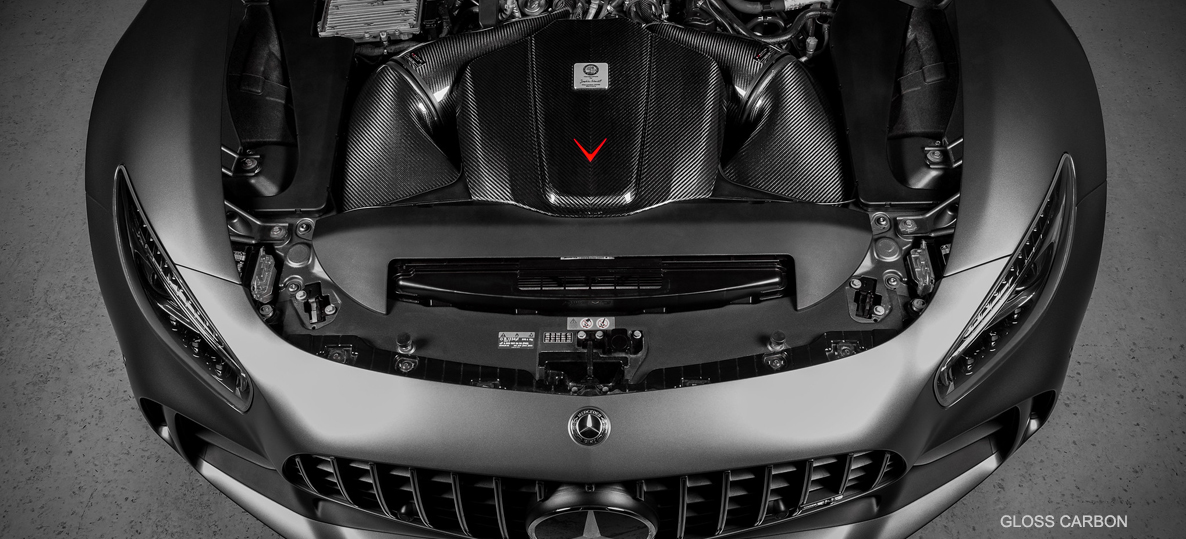

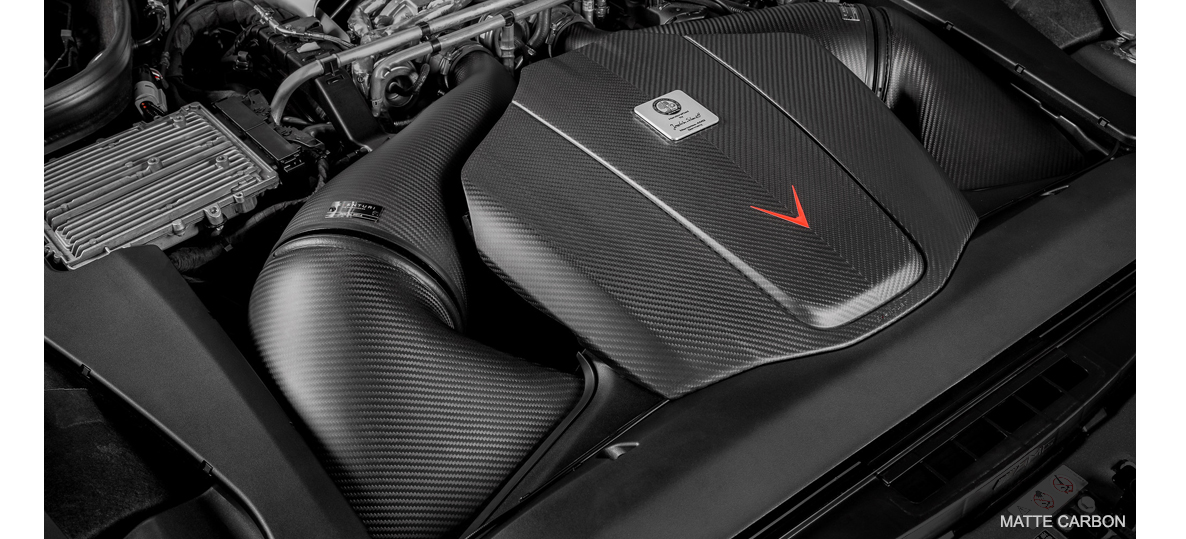

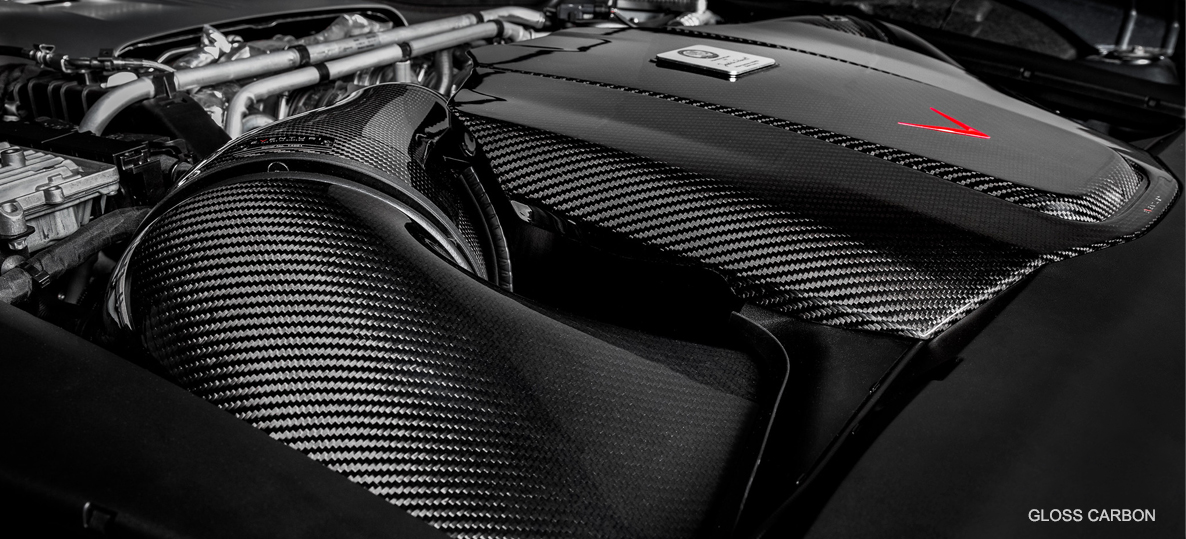

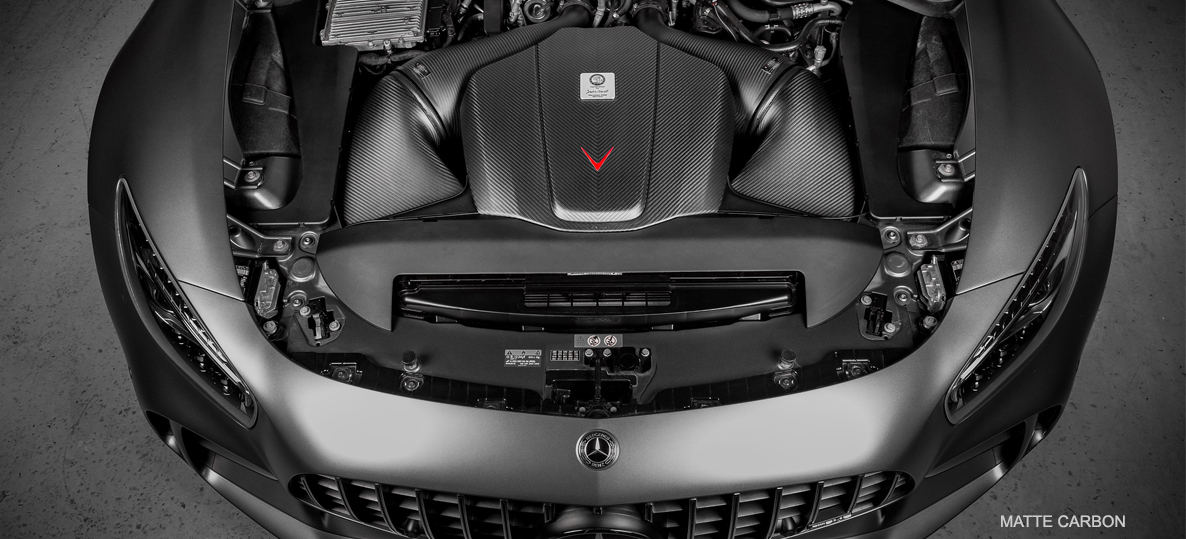

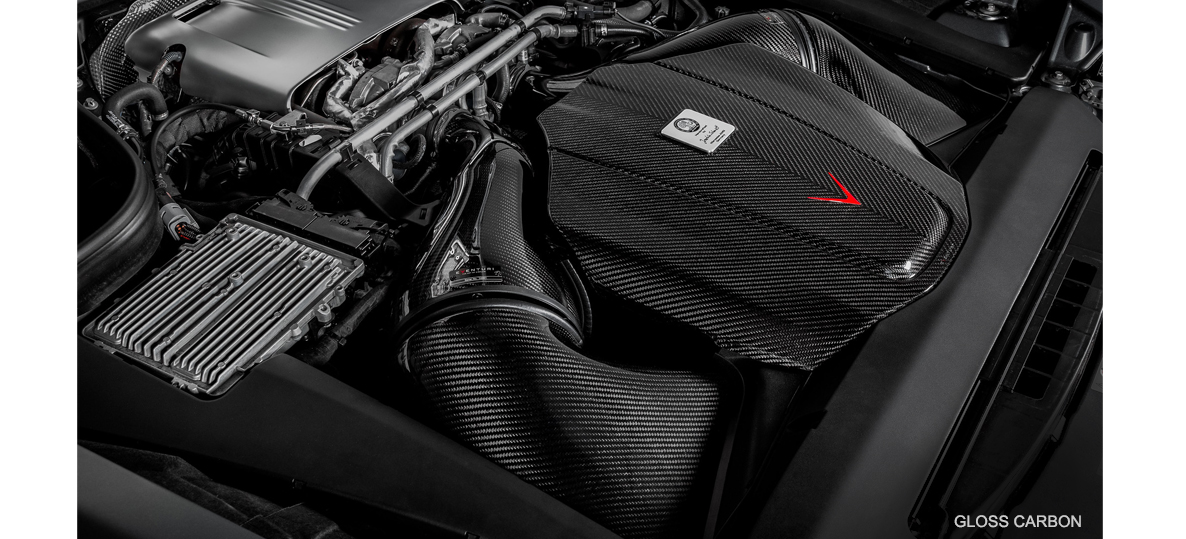

The components come together and provide an enhancement to the AMG GT engine in performance, sound and aesthetics. Available in both Gloss and Matte Carbon finishes:
VIDEO
INSTALLATION GUIDE
Please download the installation guide here.
