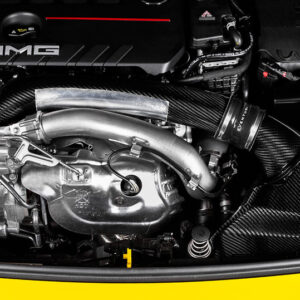

Eventuri Mercedes A35 AMG, GLA35, GLB35, A250 Carbon Intake EVE-A35-CF-INT

Part Numbers:

• EVE-A35-CF-INT : Mercedes A35 AMG, A250 Carbon Intake

The Eventuri A35 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

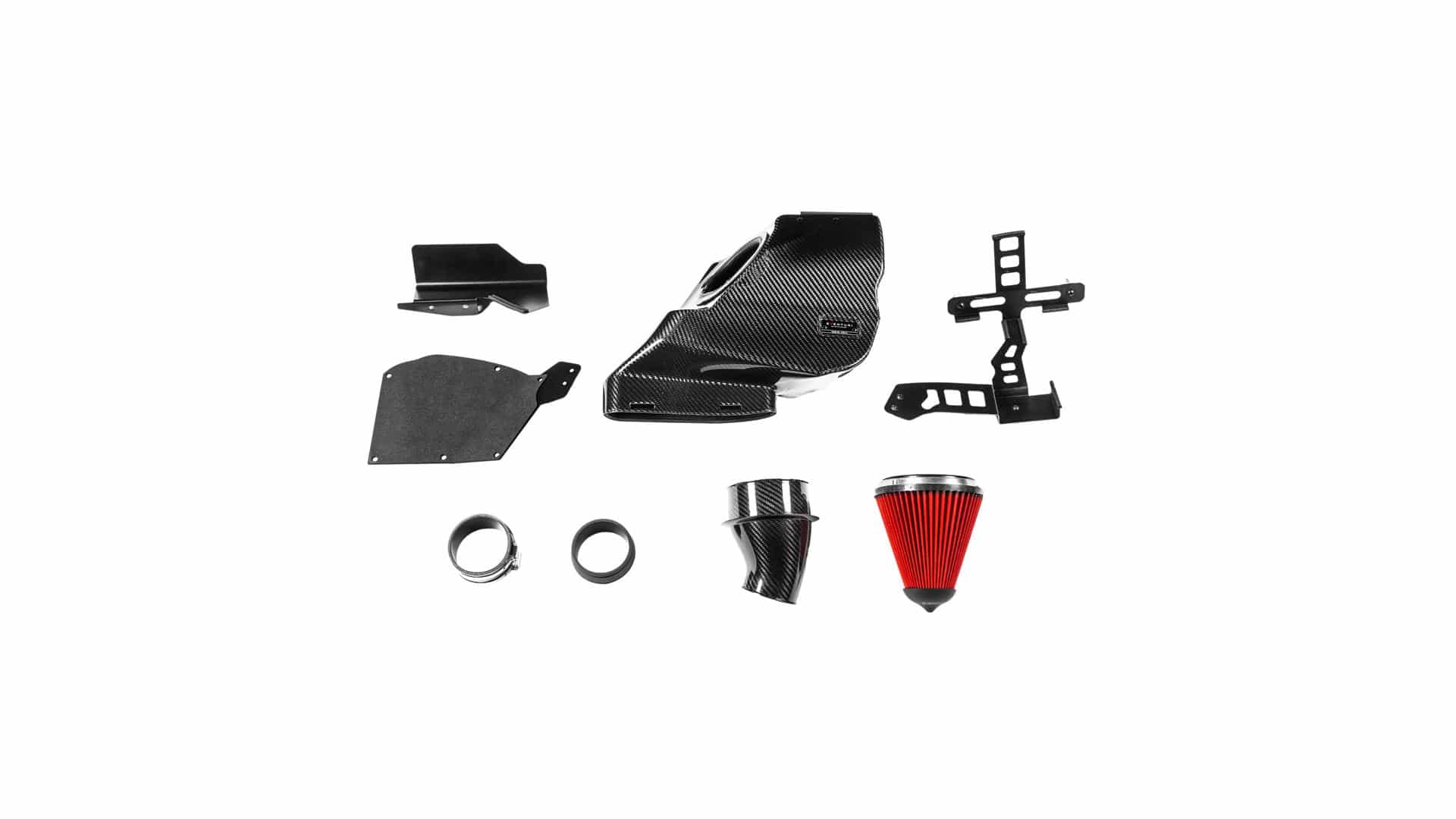

Each intake system consists of:

• Carbon Fiber Airbox
• Bespoke High Flow Dry Cone Filter
• Carbon Fiber Inlet Tube
• CNC Machined Inlet Flange

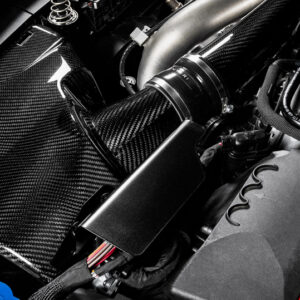

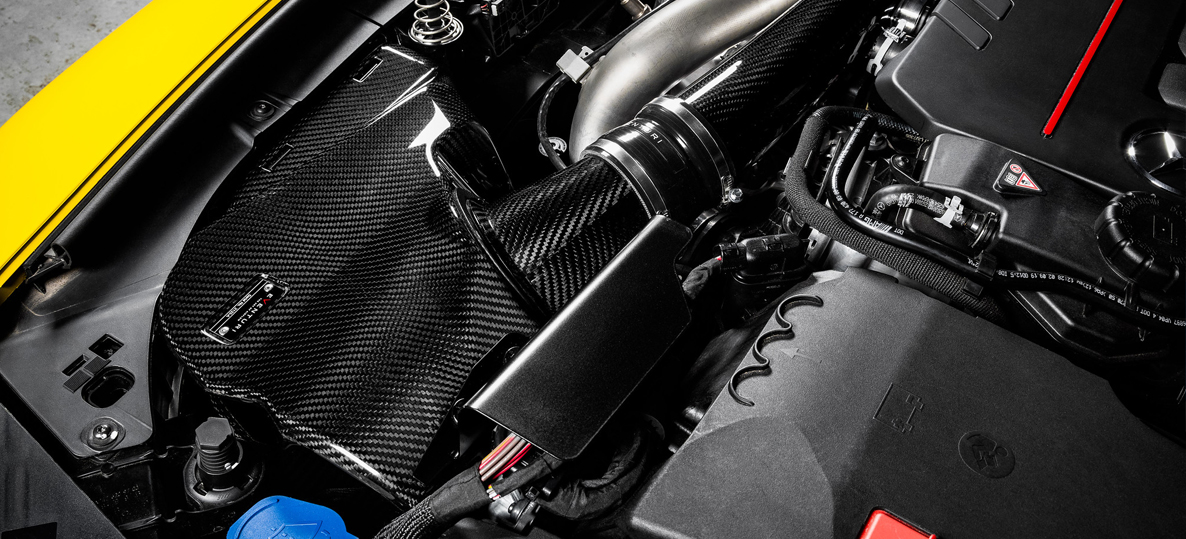

• Laser Cut Stainless Steel Brackets and ECU Cover
• Silicon Coupler with OEM Specification Clamps

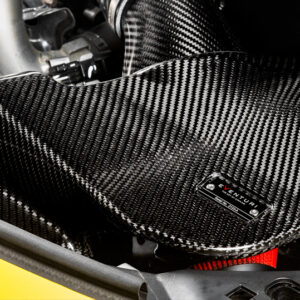

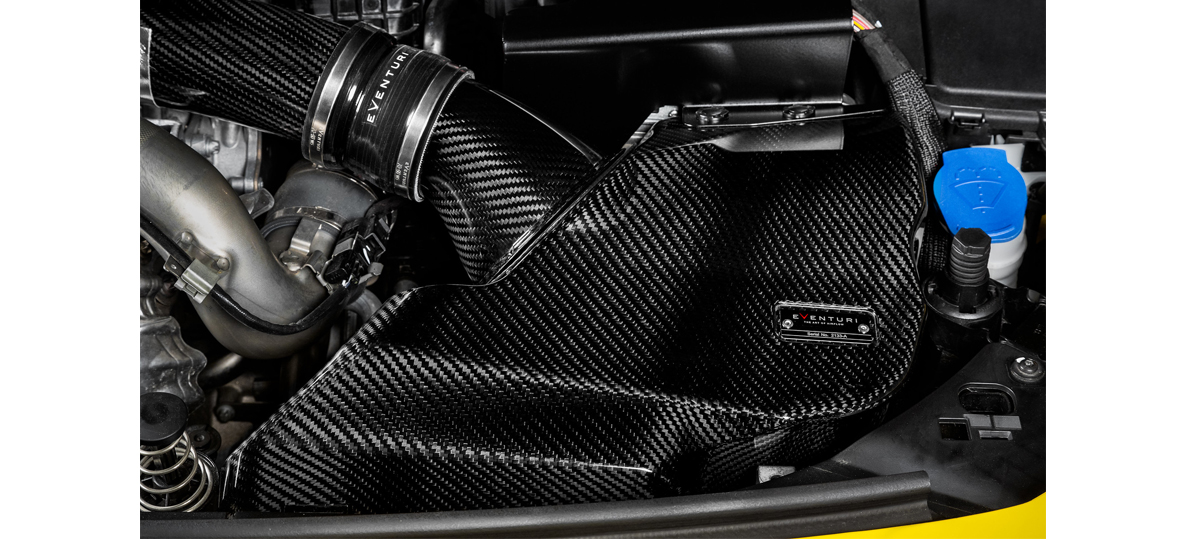

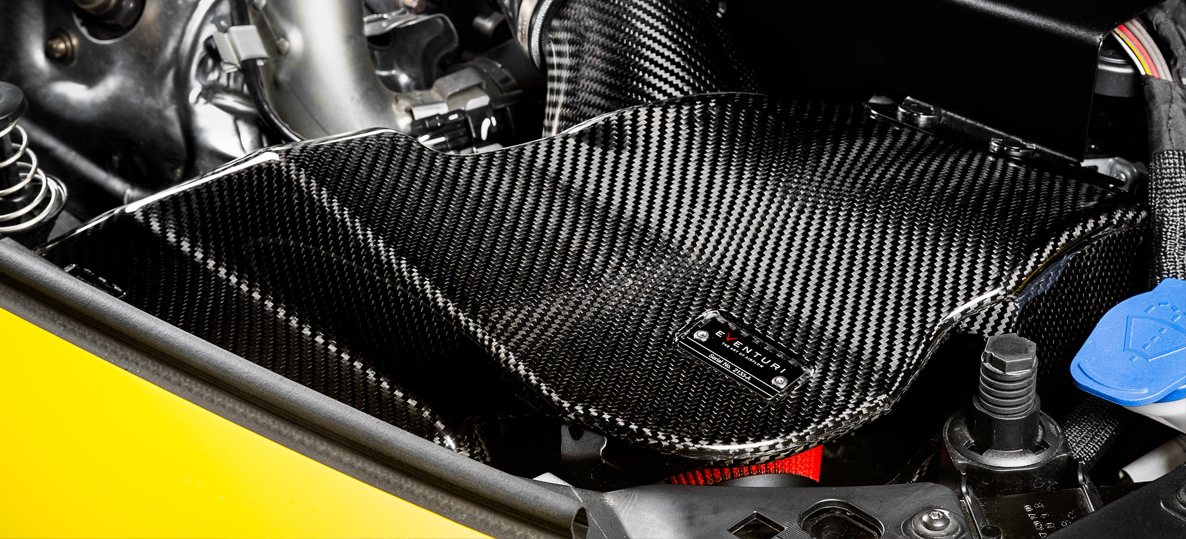

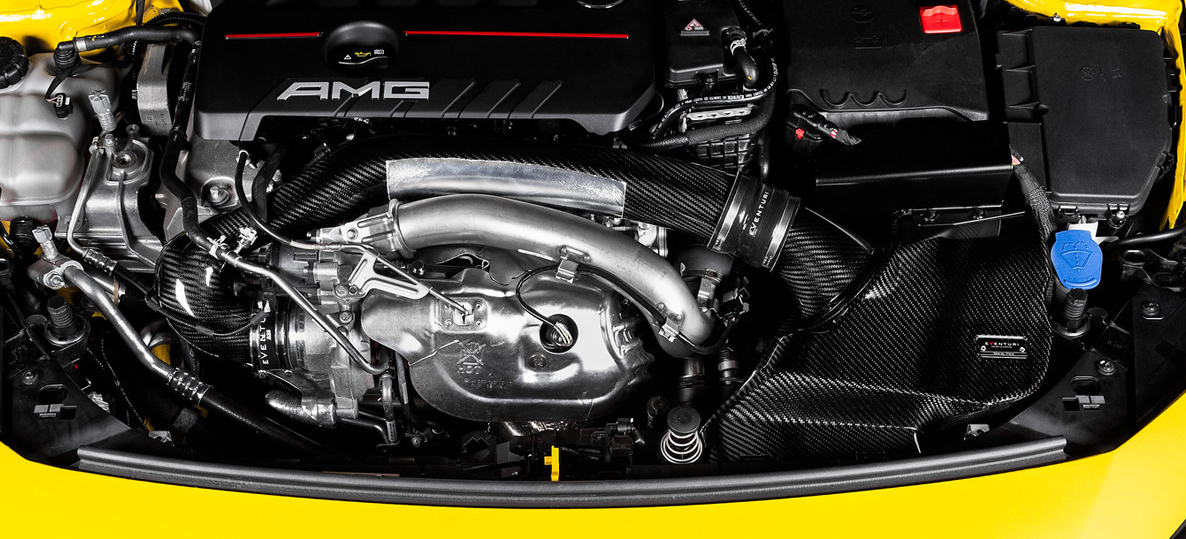

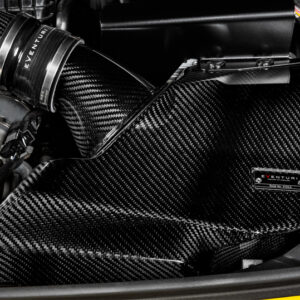

Carbon Fiber Airbox

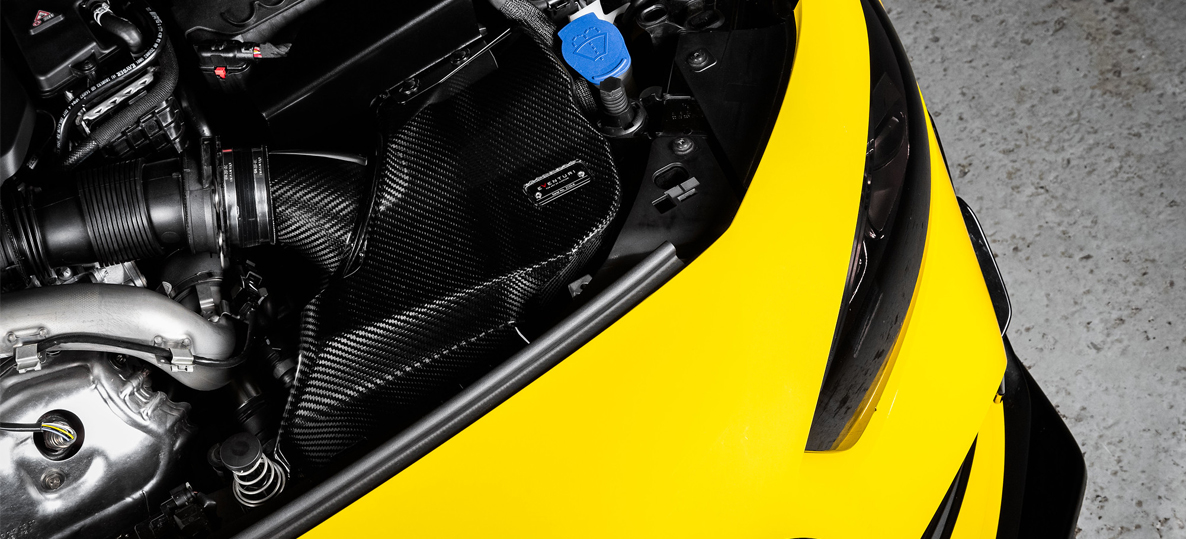

Crafted from Prepreg Carbon Fiber, the airbox serves 2 objectives – to seal the filter against engine bay heat and to provide a dual cold air feed. Since the airbox is positioned next to the exhaust manifold it is crucial for the filter to be sealed so we designed the airbox to encapsulate the filter and at the same time provide a large internal volume. The intake tube passes through a rubber seal in the airbox which ensures heated air does not enter. By relocating the ECU, we have been able to increase the height of the airbox to maximise volume and therefore allows us to use a larger filter.

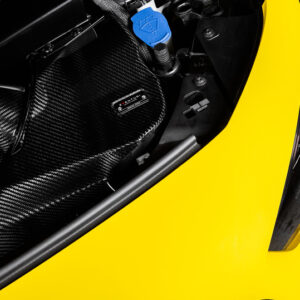

Having a fully sealed airbox results in the problem of having a restriction for the cold air feed. The stock airbox draws air from a single duct through a rubber section which also has multiple ridges. Our design eliminates this rubber section and therefore provides a smoother cold air entry path. Furthermore to derestrict the intake, we have added a cutout on the cold side of the airbox near the bonnet shut which allows the filter to draw additional air.

Bespoke Cone Filter

Our cone filter is made from a non-woven mesh material which is double layered and is ISO tested to ensure that filtration is in line with OEM standards. The filter is cleanable and very stable at high temperatures with the base material being Urethane. The filter incorporates an internal flow guiding cone to help aid the airflow to converge while reducing the possibility of a stagnation point in the middle of the filter space. The filter medium has a significantly larger surface volume than the stock panel filter.
