Eventuri BMW S55 Carbon Chargepipes – Set of 2 Upper Chargepipes EVE-S55-CF-CHG

Eventuri BMW S55 Carbon Chargepipes – Set of 2 Upper Chargepipes EVE-S55-CF-CHG

PRODUCT DETAILS

Part Numbers:

• EVE-S55-CF-CHG : BMW S55 Carbon Chargepipes – Set of 2 Upper Chargepipes

The Eventuri S55 Carbon Chargepipes are manufactured from high temperature prepreg carbon fiber and come with a number of other components engineered to perform a specific purpose and fabricated to the highest of standards.

Here are the details for each component and the design ethos behind them:

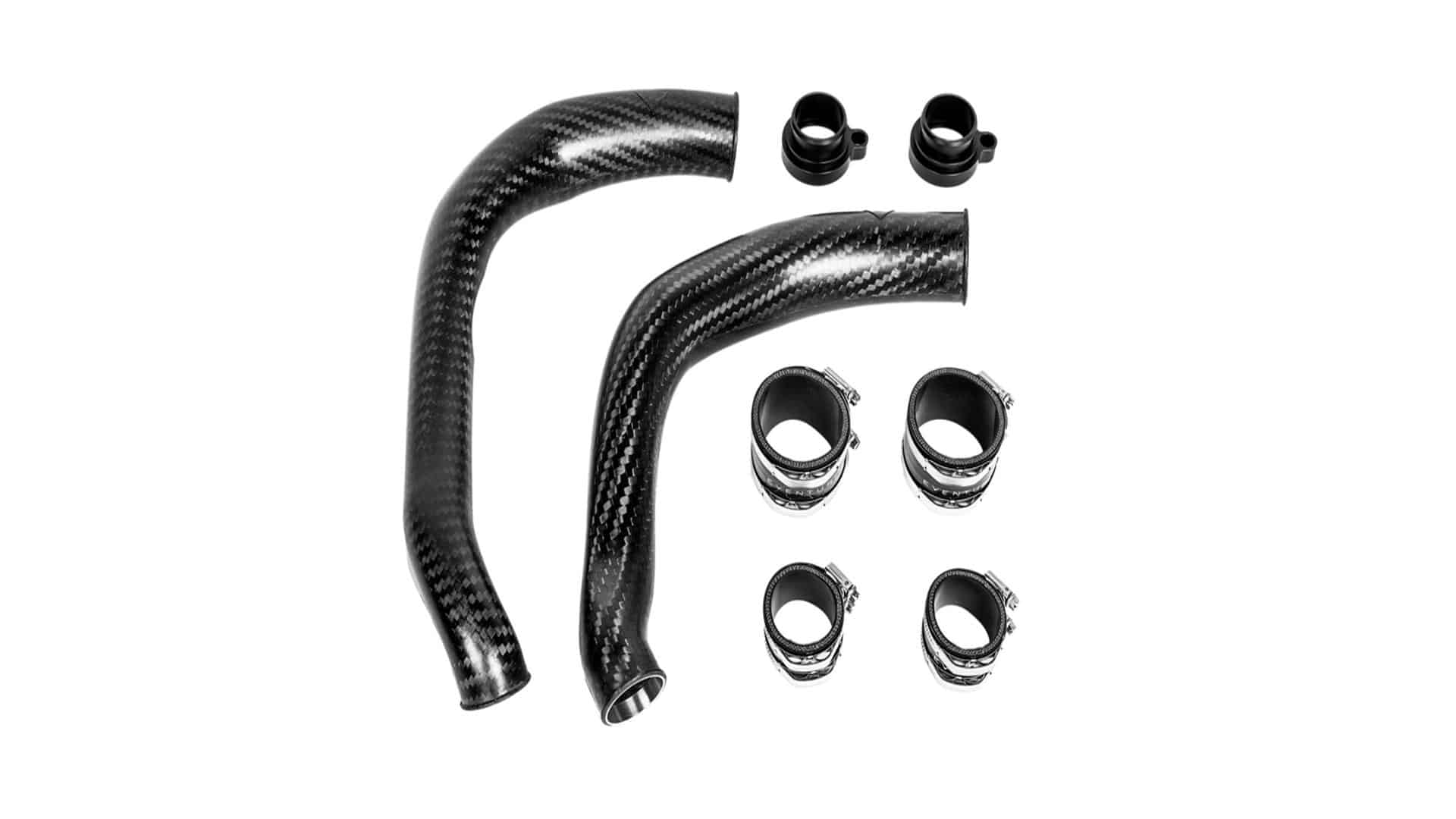

Each inlet system consists of:

• 2 x High Temperature Carbon Chargepipes
• 2 x CNC Machined Turbo Flanges
• Silicon Couplers With Oil Resistant Lining
• Marine Grade Stainless Steel Hose Clamps

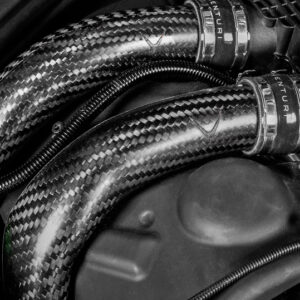

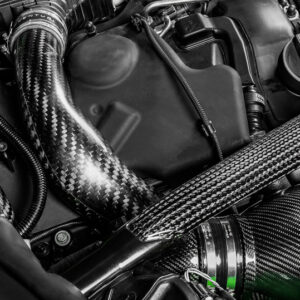

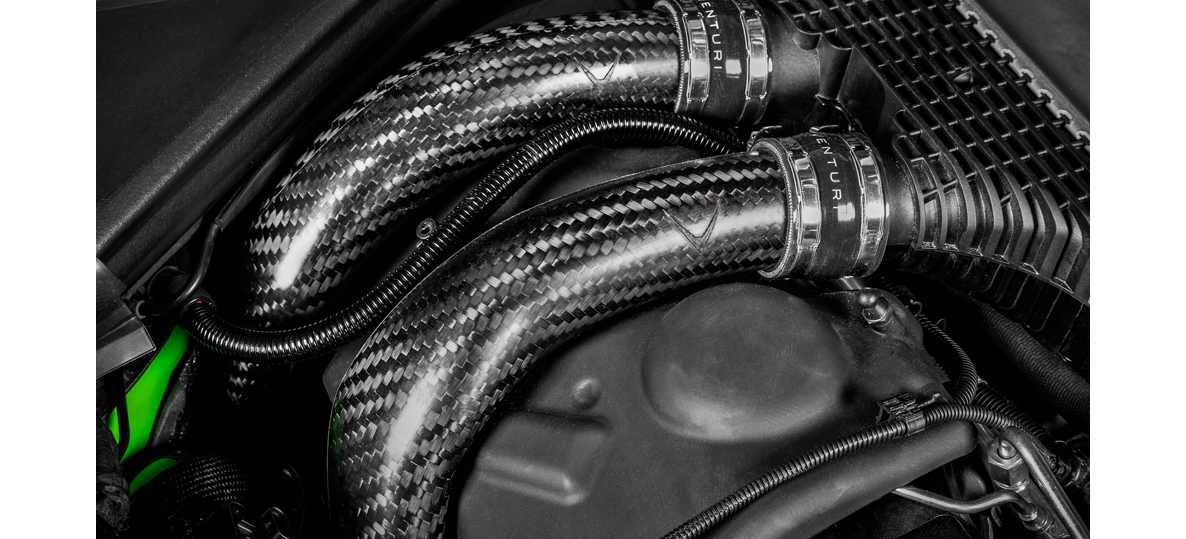

Carbon Fiber Chargepipes

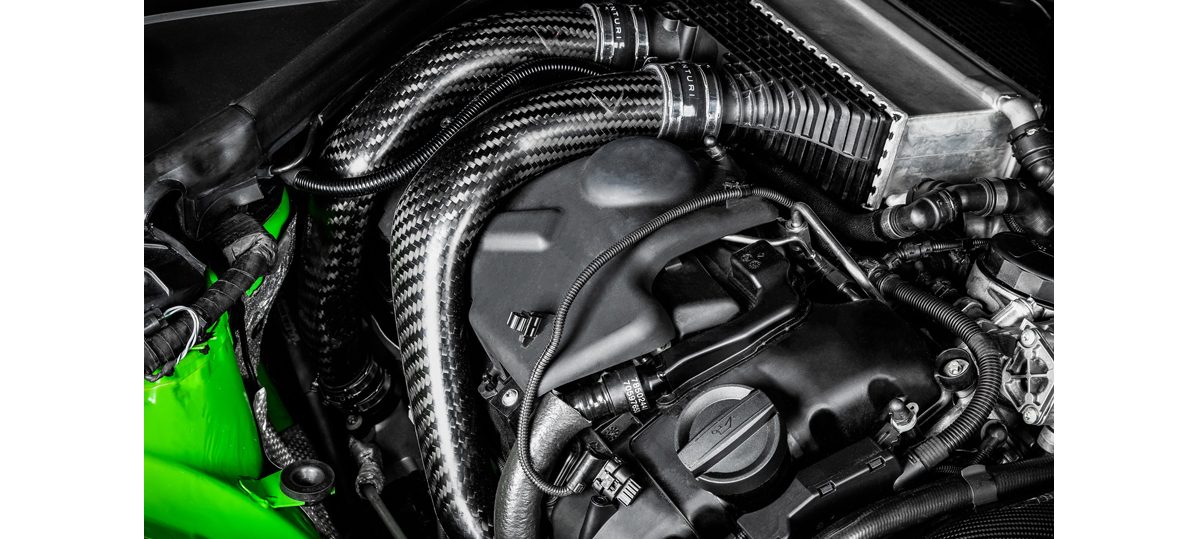

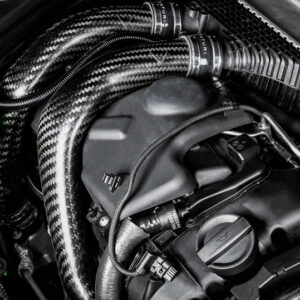

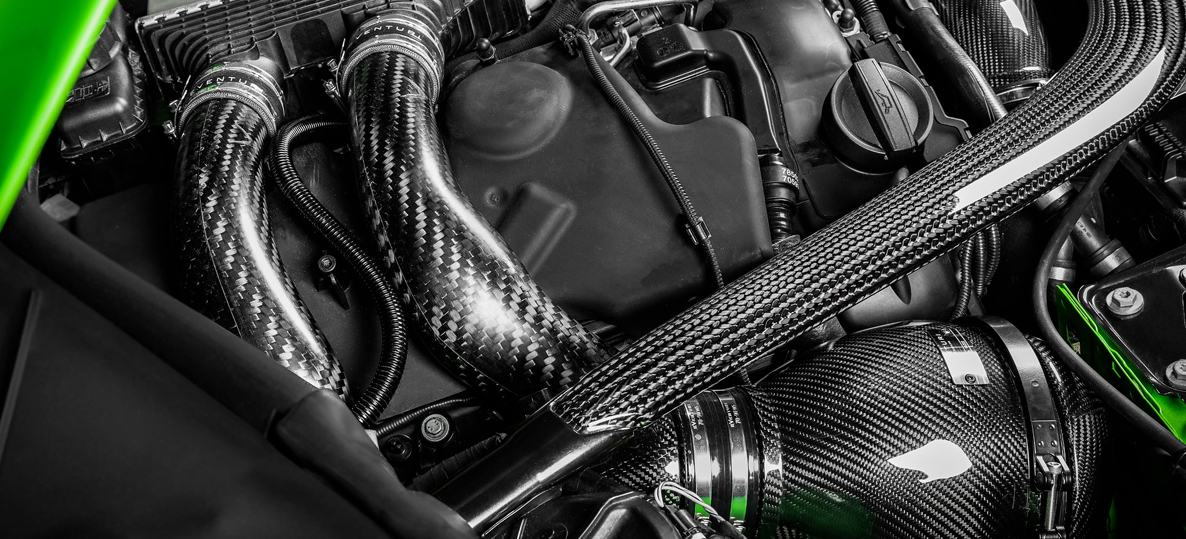

Our chargepipes are fabricated from high temperature prepreg carbon fiber. The construction utilises multiple carbon layers which are applied with cross directional weave patterns to increase the strength of the part. Each pipe has machined stainless steel rings embedded in the openings to provide extra strength in the clamping areas. The pipes have smooth bends and reliefs to provide an efficient flow path for the pressurised air to negotiate from the turbos to the cooler. By ensuring there are no sharp corners and exposed faces, the turbos are able to operate as they were designed with the OEM chargepipes.

CNC Machined Turbo Flanges

The connection to the turbo outlets is done by using CNC machined flanges which use the OEM o-ring to provide the required seal. Each flange is machined from aircraft grade Aluminium and then black anodised. High quality silicon couplers are then used to mate the flanges to the pipes and constant tension marine grade clamps are then used to make them secure.

VIDEO

INSTALLATION GUIDE

Please download the installation guide here.

Download Installation Guide
