Eventuri BMW E46 M3 Black Carbon intake EVE-E46-INT

• • EVE-E46-INT : BMW E46 M3 Black Carbon intake
  • EVE-E46-KV-INT : BMW E46 M3 Kevlar intake

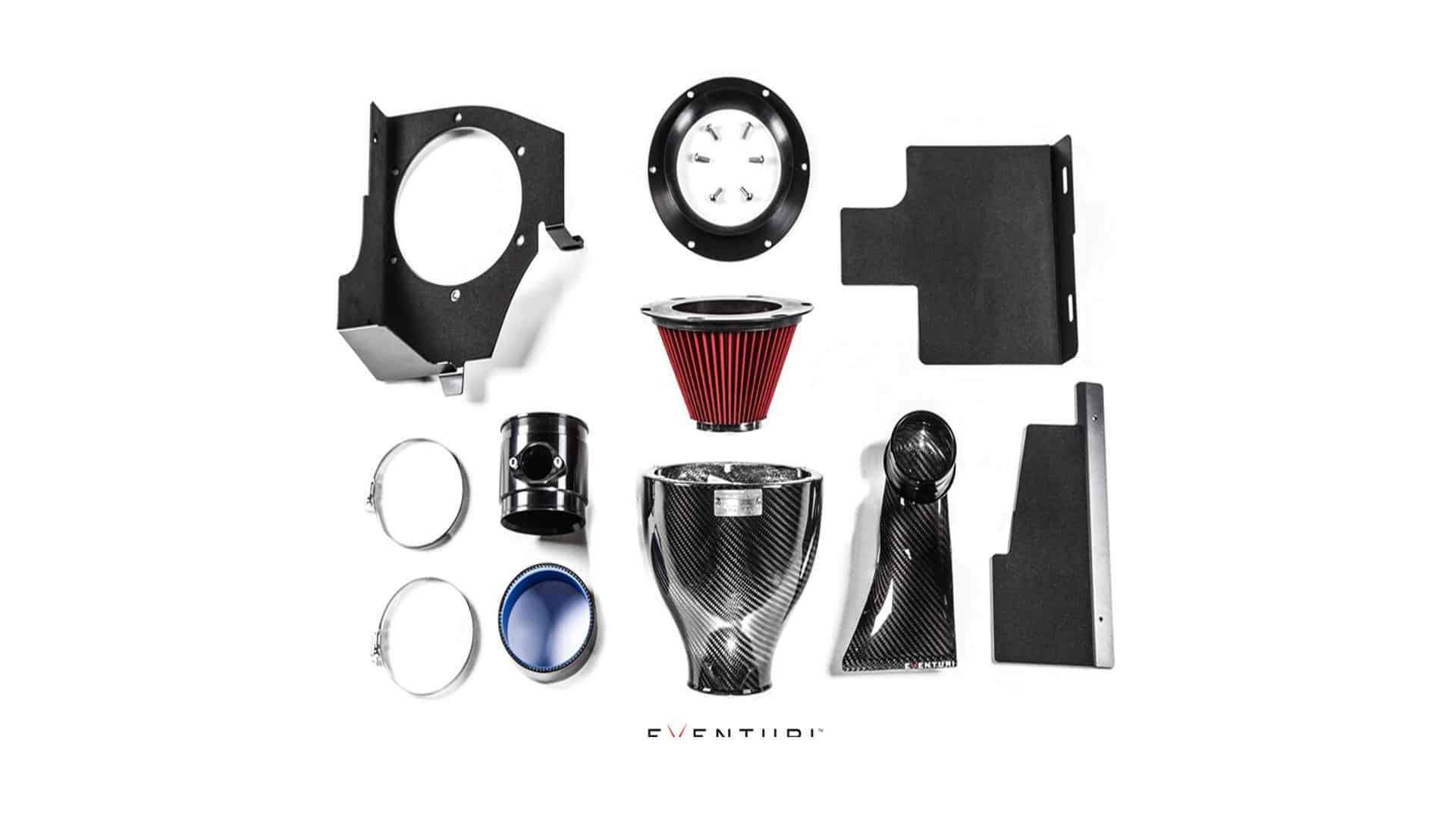

Components

• Each component is engineered for a purpose and to a very high standard. Each kit consists of:

• • • 100% Prepreg Carbon Fibre Intake Housing
    • Anodised Aluminium inlet cowling
    • High Flow Filter
    • CNC Machined MAF tube
    • 100% Prepreg Carbon Fibre Air Scoop with CNC machined aluminium collar
    • 3 Aluminum heat shields
    • High quality Silicon coupler with BMW specification hose clamps

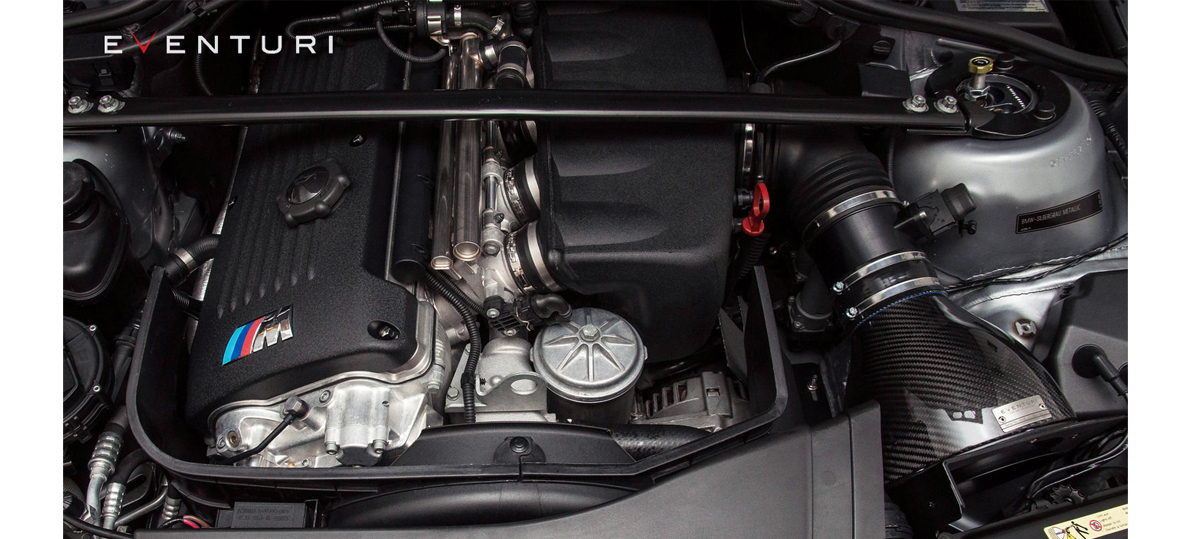

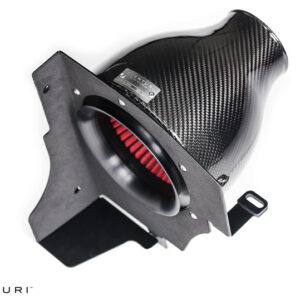

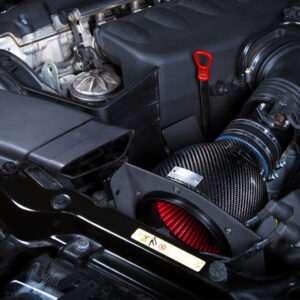

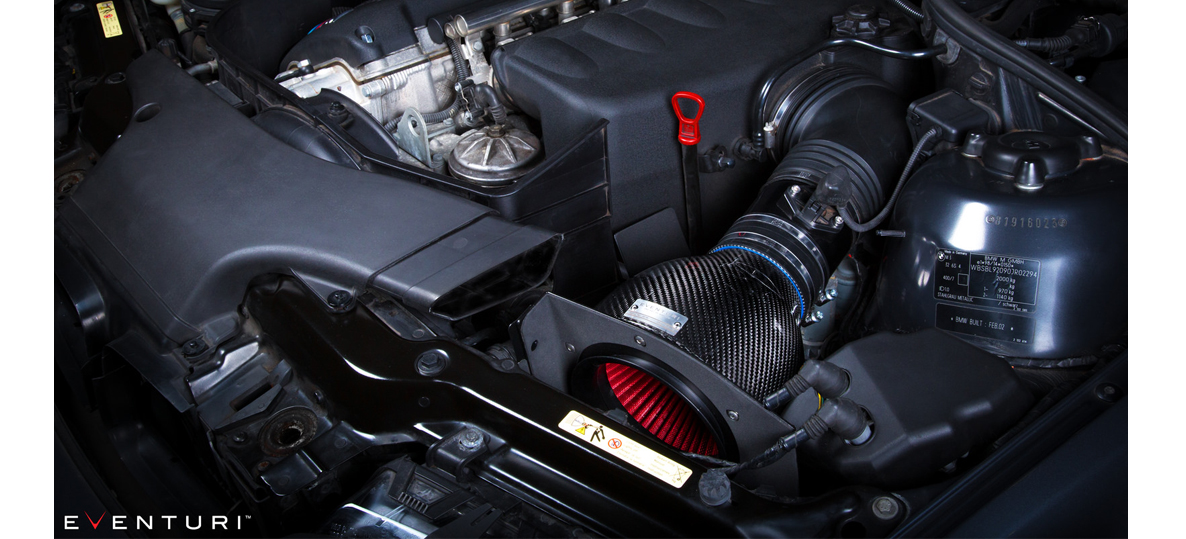

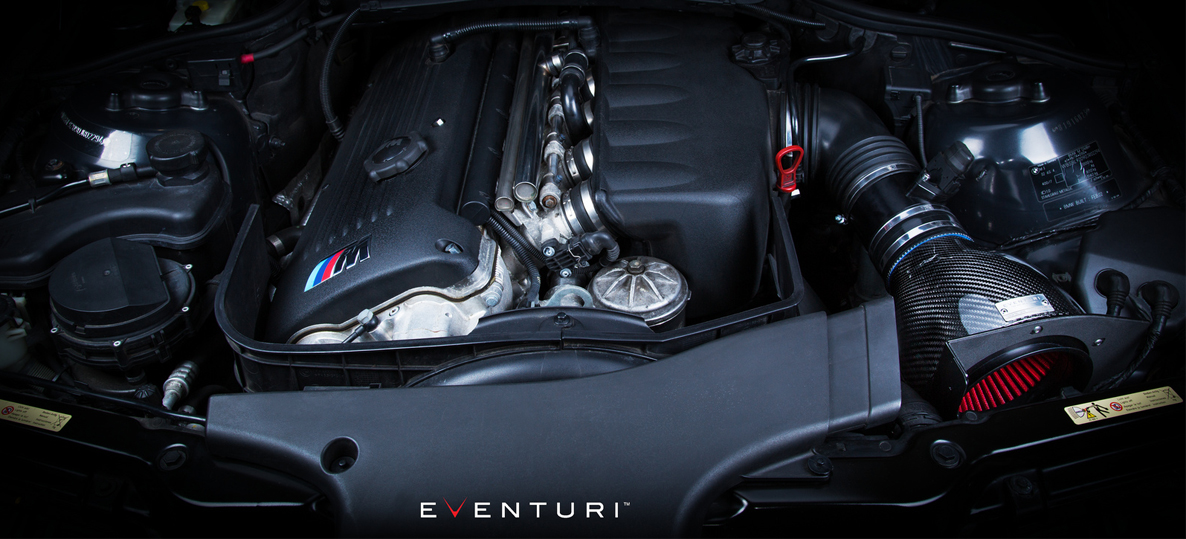

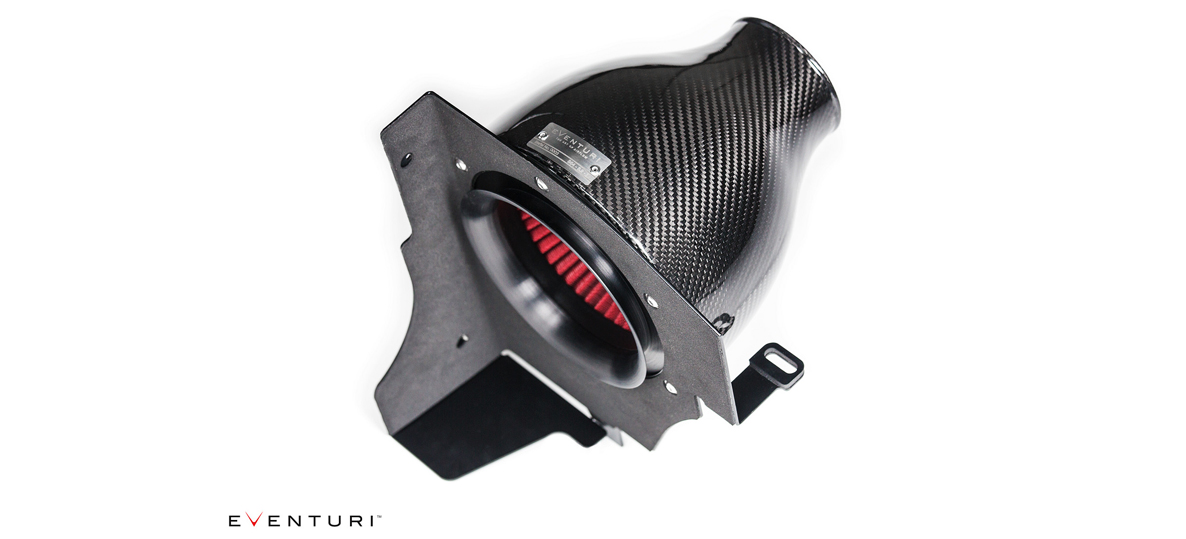

Carbon Intake Housing Assembly

• Made from 100% prepreg carbon fibre of the highest quality, the workmanship on the housing is second to none. This encapsulates the filter and is mated to an anodised aluminum inlet cowl to ensure a smooth inlet flow path. The filter itself is a deep pleated, high flow double cone configuration which is dry to avoid damaging the MAF sensor. Finally the assembly is then mated to an aluminium heat shield which effectively shrouds the intake from engine bay heat and captures the ambient air being diverted from the scoop. Also notice the rubber spacer on the mount of the heat shield – this is for the headlight module to sit on so that it remains at the right height – small details are important!

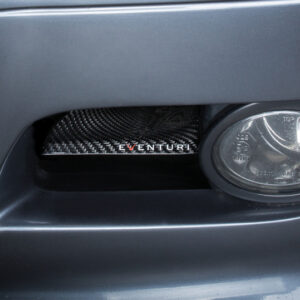

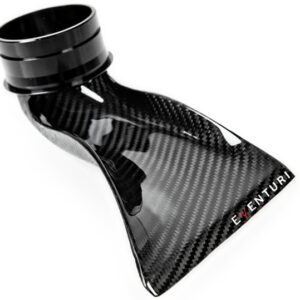

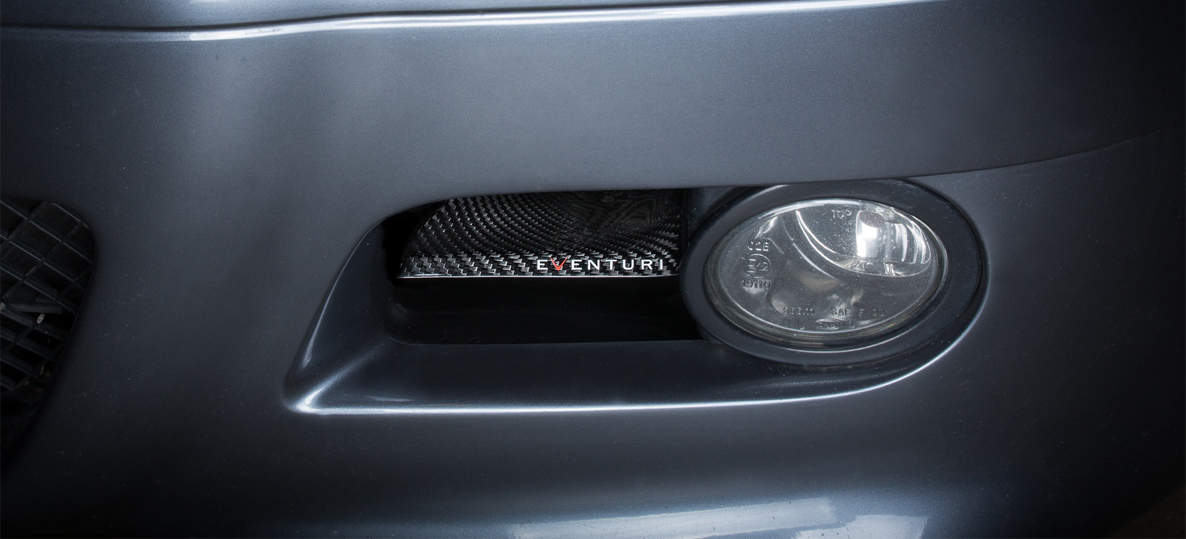

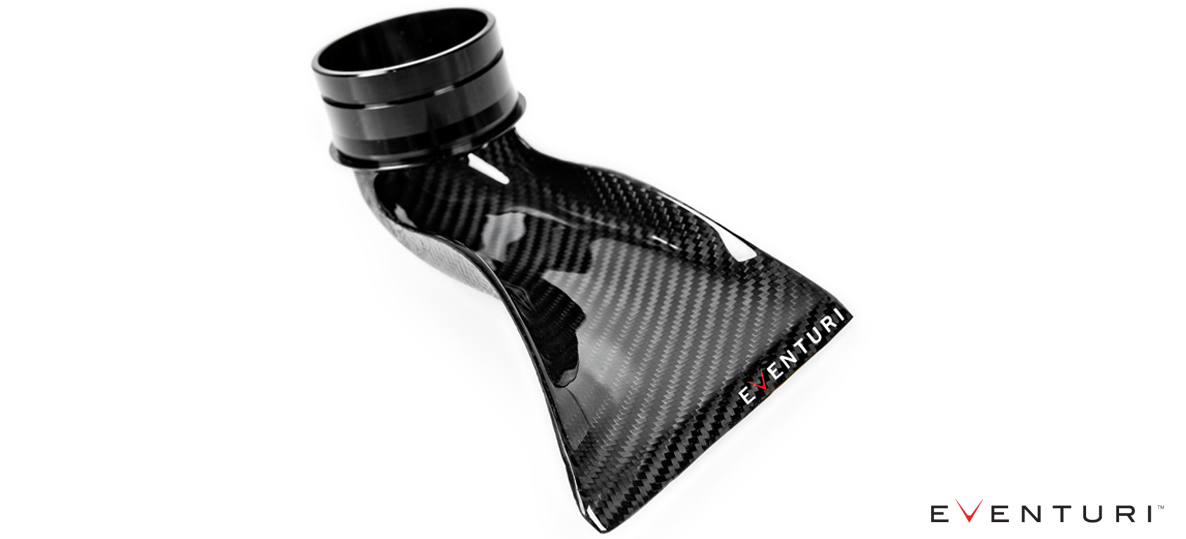

Carbon Air Scoop

• 100% Prepreg carbon fibre with a CNC machined collar – the air scoop forces ambient air directly into the filter opening. This scoop simply clicks into place in the front right hand brake duct and effectively saturates the mouth of the intake with cold air. It has been designed to take up half the height of the duct in order to allow airflow to still continue through the duct for the brakes. The scoop is so effective that even after a hard drive, the aluminium cowl at the mouth of the intake will still feel cold to touch!

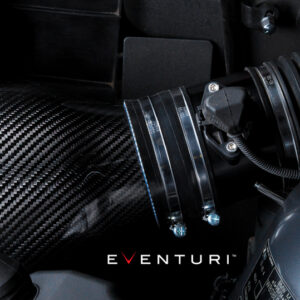

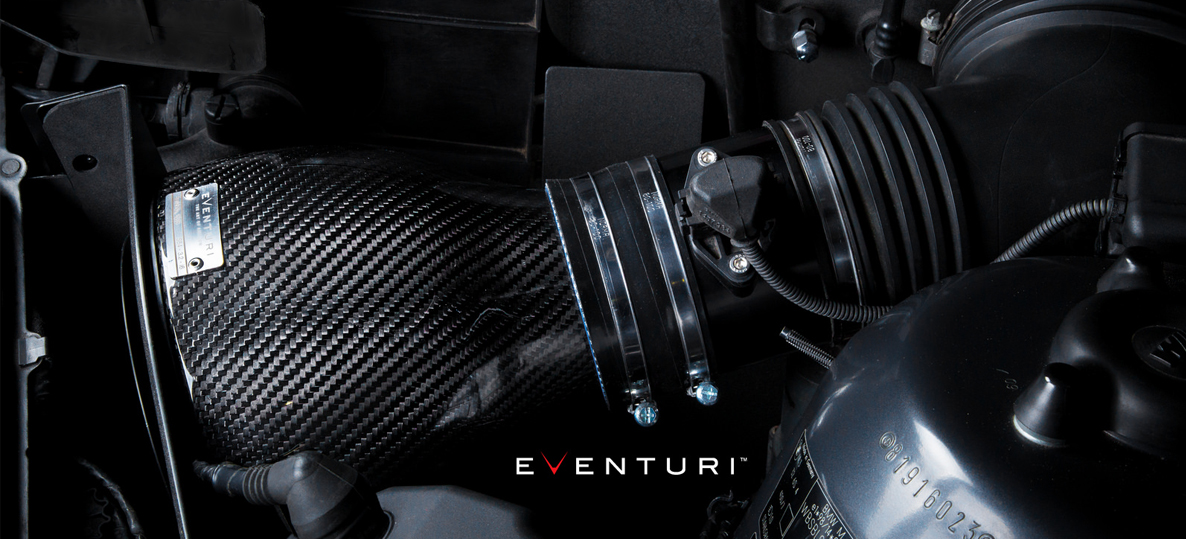

MAF tube

• The MAF tube is CNC machined from aluminium and then anodised. The MAF boss itself is machined from an engineering plastic to minimise the heat soak into the sensor through conduction. We have incorporated a machined recess on one side to allow the OEM rubber gasket from the stock airbox to be used for a perfect seal into the stock elbow.

Heat Shields

• There are 3 aluminium heat shields. The main shield is part of the intake assembly as above. There is then an extension shield which fits onto the main shield and blocks hot air from the radiator. The last shield secures to the chassis underneath the carbon housing to minimise direct heat soak from the block. We used neoprene on the main shield to insulate it for optimum function in keeping inlet air temperatures as low as possible.

These components come together to improve the efficiency of the engine intake. The result – more power, throttle response and sound.
