DO88 Volvo V40 S60 V60 V70 S80 07-16 Inlet pipe. Red hoses

This kit is for you that has high horsepower goal and want to upgrade to the absolute best! Our turbo inlet pipe has better air flow than the stock pipe. This is verified by our own SuperFlow SF-1020 flow bench. The original turbo intake pipe between the air filter and turbo inlet has a internal diameter of 56mm in the tightest section. The stock pipe also has a resonator section before the turbo inlet. These are factors that restrict the air flow to the turbo. Our turbo intake pipe is 76mm (3 inch), outer diameter, all the way to eliminate all restrictions.

do88 turbo inlet pipe has an air flow at 0,15bar/2,18psi pressure drop 655CFM, compared to the OEM pipe that has 594CFM.

For installation instructions click here!

The turbo inlet pipe is manufactured in 3”; mandrel bent seamless aluminium pipe.

Custom made high quality silicone hoses with 4 layers of polyester reinforcement and steel wire. These hoses can handle very high temperature and vacuum!

Always remember that the OEM turbo inlet pipe and hoses was designed for the power level the car was built for originally. A power increase, or even very hard use of the car in a standard version, may cause that the OEM pipe and hoses don’t have the performance you need. So only after engine software tune do88 pressure pipes will give a performance increase over the OEM pipes!

do88 3″ turbo inlet pipe comes with all hardware necessary for installation.

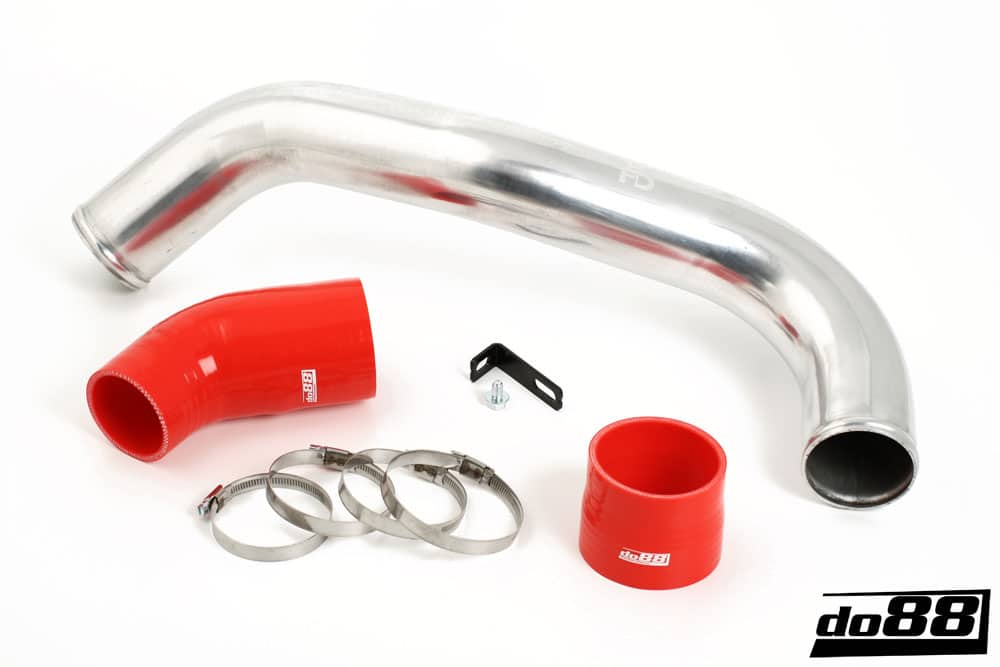

Included parts in this kit:
1. 3″ Aluminium turbo inlet pipe
2. Installation hardware for inlet pipe
3. Two silicone hoses
3. Four hose clamps

Color:
Three different hose colors are avalible Blue / Black / Red. There are no performance difference between the different colors, choose which color you think will be best for your car.

Volvo S60 / V60 / V60 Cross Country
Model years: 2011-2016
Engine: T5, All petrol turbo (5-cylinder)

Volvo V70 / XC70
Model years: 2008-2016
Engine: 2.5T, 2.5FT, T5, All petrol turbo (5-cylinder)

Volvo S80
Model years: 2007-2014
Engine: 2.5T, 2.5FT, All petrol turbo (5-cylinder)
