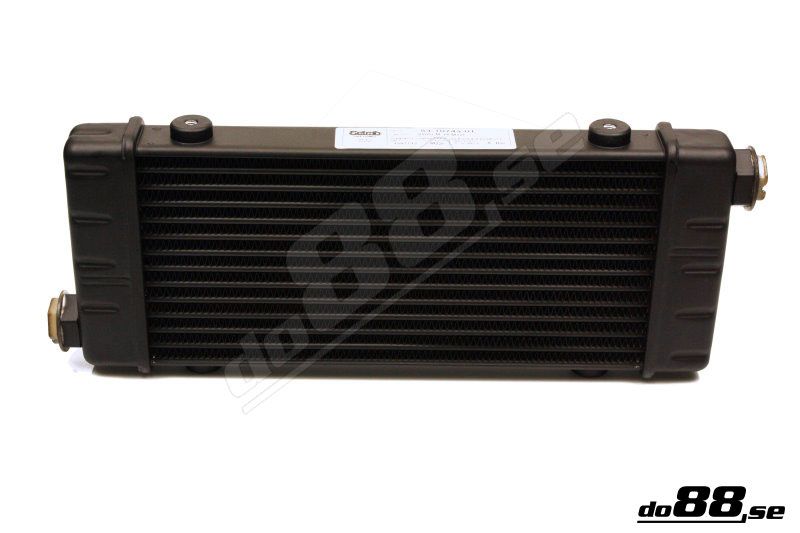

DO88 Setrab SlimLine oil cooler 14 row 250mm

Setrab oil cooler made in Sweden manifactured in high quality aluminium. High cooling efficiency with maximum working pressure of 8 bar. Coated with nice black epoxy paint. SlimLine is a new series of oil coolers from Setram with only 31mm thick core! Oil cooler developed for cooling both engine oil or automatic transmission fluids.

Rows: 14
Connections: M22 inner, if you prefer other thread see category Mounting
Width (A): 250mm
Total width (B): 320mm
Height (C): 124mm
Total height (D): 138mm

* Dimensions A to D are marked on the picture drawing.
** Max 4Nm of torque for the connections, use lubrication grease.
