DO88 BigPack Volvo C30 S40 V50 C70 Turbo 04-13. Blue hoses

This BigPack includes both do88 performance intercooler and intercooler pipe kit.

This kit is for you with high horsepower goal and wants to upgrade to the absolute best! “Only”; changing to our performance intercooler is a Big improvement but together with our pressure pipe kit the improvement is Huge! Our pressure pipes has better airflow than the stock pipes, this we have verified in several tests both in car and in our own SuperFlow SF-1020 flow bench.

Significant advantages with do88 BigPack (OEM intercooler/pipes):
– Core volume: 9677m3 (3672cm3), do88 is 163% larger!
– Air flow at 0,15bar/2,18psi pressure drop: 275CFM (244CFM), do88 13% higher!
See diagram below!
– Post intercooler air temperature at same conditions: 38°C (69°C), do88 31°C lower!
See diagram below!
– Fits all cars in list below!

31°C lower post intercooler air temperature and 13% increased airflow is a huge improvement!

BigPack includes a full aluminum performance intercooler and a complete 2,5”; pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body this why it drastically improves the airflow / cooling performance compared to the original.

do88 performance intercooler are an all-aluminum construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop!

The pressure pipe is manufactured in 2,5”; mandrel bent seamless aluminum pipe.

Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!

Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don’t have the performance you need. So only after engine software tune do88 BigPack will give a performance increase over the OEM intercooler!

do88 BigPack comes with all hardware necessary for installation.

– For do88 performance intercooler installation guide, Click here!
– For do88 intercooler pipe installation guide, Click here!

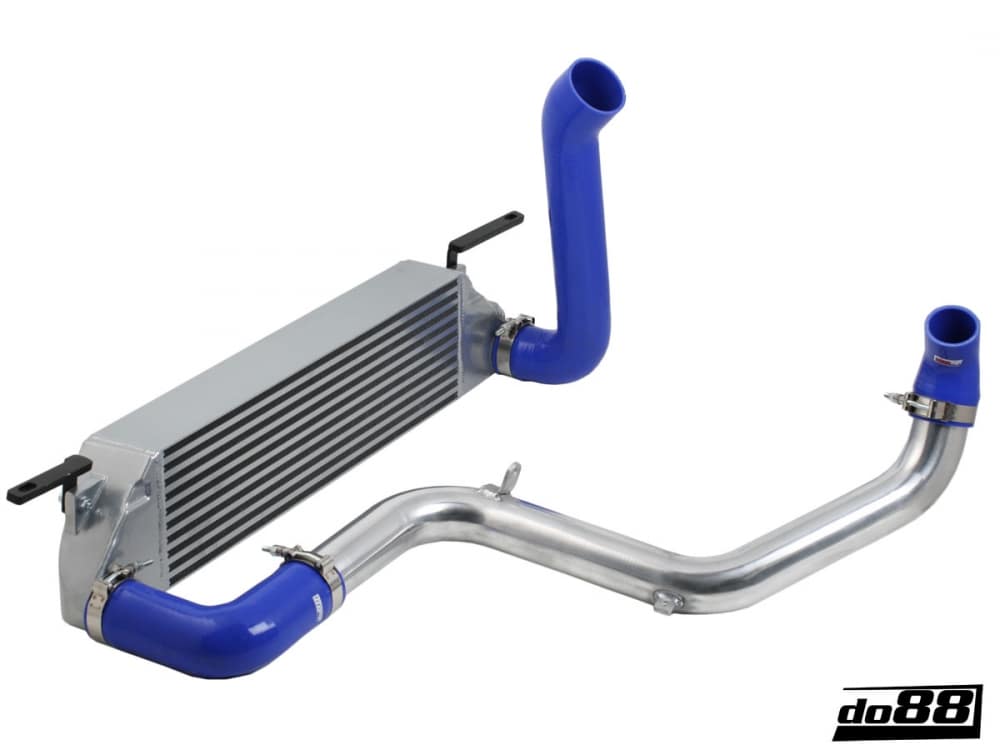

Included parts in this BigPack:
1. Performance intercooler
2. Intercooler installation accessories
3. One 2,5″ pressure pipe
4. Pressure pipe installation accessories
5. Three silicone hoses
6. Six hose clamps

Color:
Three different hose colors are avalible Blue / Black / Red. There are no performance difference between the different colors, choose which color you think will be best for your car.

Volvo C70
Year models: 2006-2013
Engine: T5, petrol Turbo
B5254T3 , B5254T7

Volvo V50
Year models: 2004-2012
Engine: T5, petrol Turbo
B5254T3 , B5254T7
Doesn’t fit four wheel drive cars
