MTS Technik Coilover Kit Street BMW 3 (E30) XMTSGWBM11

The MTS Technik Coilover Kit Street BMW 3 (E30) XMTSGWBM11 is designed to improve vehicle handling, driving stability and appearance through adjustable ride height and performance-focused suspension engineering. Developed for enthusiasts who want better control and a lowered stance, this coilover kit delivers a balanced combination of sport performance and daily driving comfort. Manufactured with durable materials and precise engineering, MTS Technik suspension systems are built to meet the demands of both performance driving and everyday use.

Performance Suspension Upgrade

Coilover suspension systems allow drivers to customize the ride height of their vehicle while improving overall driving dynamics. The MTS Technik Coilover Kit Street helps reduce body roll, improve cornering stability and provide a more responsive driving experience. Adjustable lowering also allows drivers to achieve a sportier stance while maintaining proper suspension functionality.

Key Benefits of MTS Technik Coilover Kit Street BMW 3 (E30) XMTSGWBM11

Adjustable ride height for a customized vehicle stance Improved handling and cornering stability Reduced body roll during dynamic driving Durable suspension construction for long service life Designed for both daily driving and performance builds

Vehicle Compatibility

• Make: BMW
• Model: 3 (E30)
• Type: E30
• Engine: 315,316,316 i,318 i,318 is,320 i,323 i,325 e 2.7,325 i
• Engine Code: M10 B16 (16A),M10 B18 (184VD),M40 B16 (164E1),M10 B18 (184KA),M10 B18 (184EA);M10 B18 (184EB);M10 B18 (184EZ),M40 B18 (184E1),M42 B18 (184S1),M20 B20 (206KA),M20 B20 (206EB),M20 B23 (236EB),M20 B23 (236EC);M20 B23 (236EW),M20 B27 (276KA);M20 B27 (276KB),M20 B27 (276KB),M20 B25 (256K1),M20 B25 (256E1);M20 B25 (256E2)
• Body Type: Saloon
• Drive Type: RWD (Rear-Wheel Drive)
• Fuel Type: Petrol
• Production Years: 09/82 – 12/91
• Engine Capacity: 1573,1766,1596,1796,1990,2316,2693,2494 ccm
• Power: 55,66,73,75,77,85,83,100,95,92,93,102,110,90,125,126 kW

Technical Specifications of MTS Technik Coilover Kit Street BMW 3 (E30) XMTSGWBM11

• Series: Street
• Damper Housing: Inox
• Maximum Axle Load Front: -865 kg
• Maximum Axle Load Rear: -1030 kg
• Lowering Front: 25 – 90 mm
• Lowering Rear: 25 – 60 mm
• Front Camber Plates: yes
• Rear Camber Plates: no
• TÜV Certificate: no

Product Information

• Part Number: XMTSGWBM11
• EAN Code: 5903855623101

Additional Notes of MTS Technik Coilover Kit Street BMW 3 (E30) XMTSGWBM11

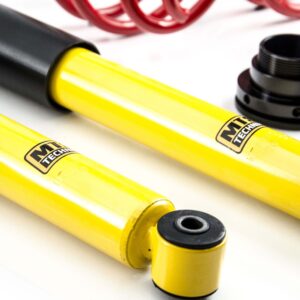

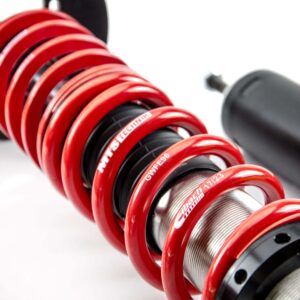

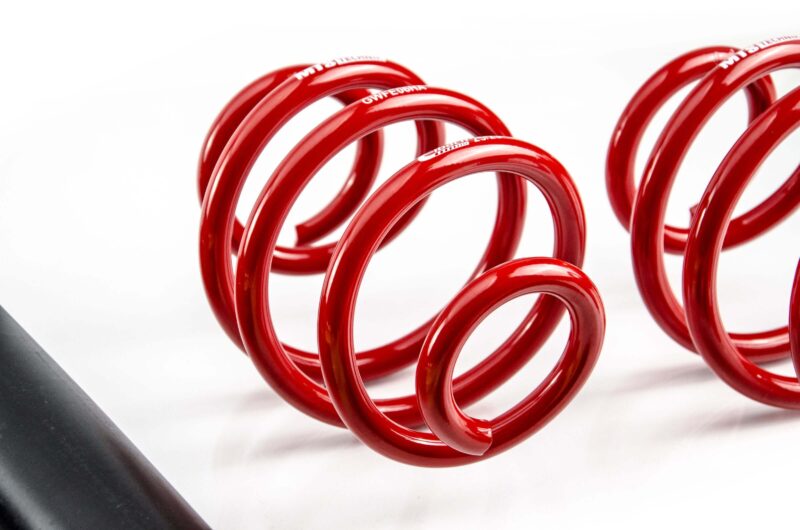

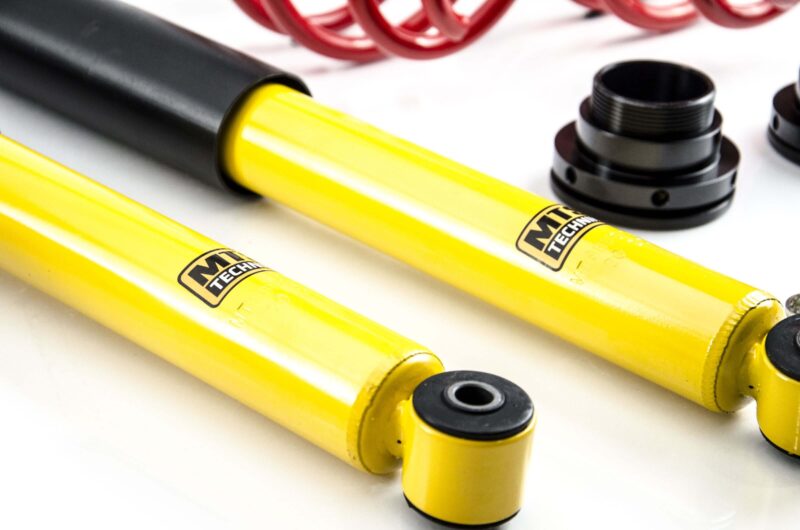

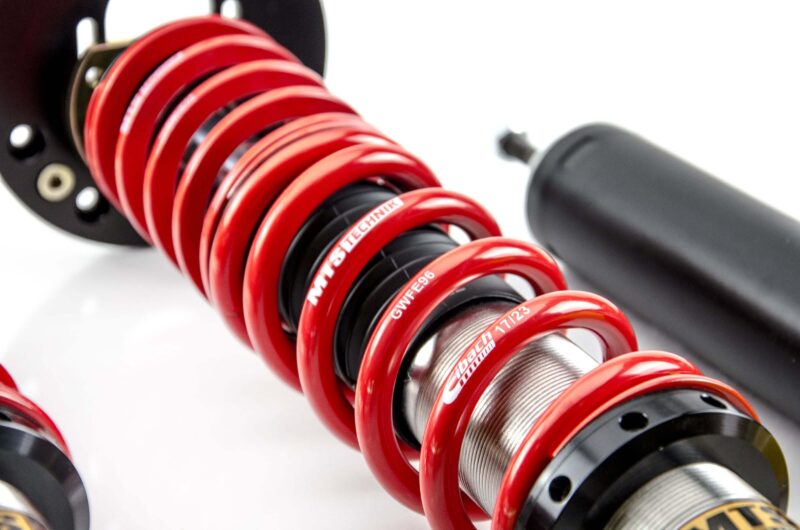

• 3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
• 8 – Not for 4×4.
• 21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• 24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.

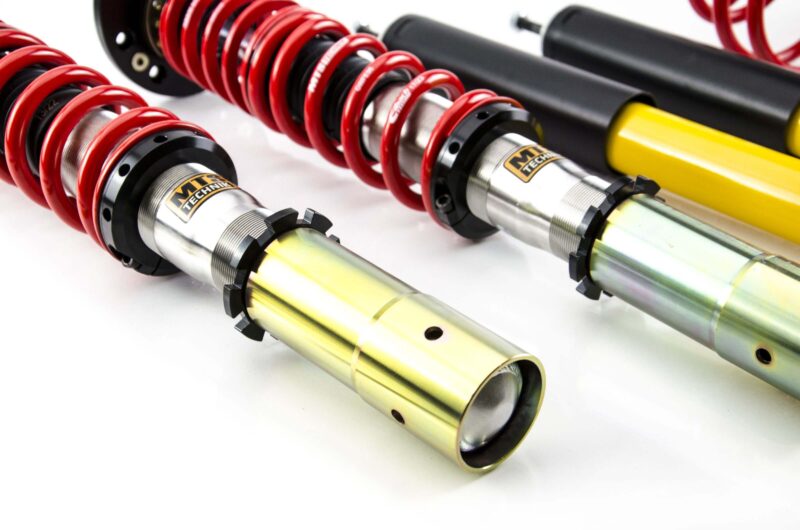

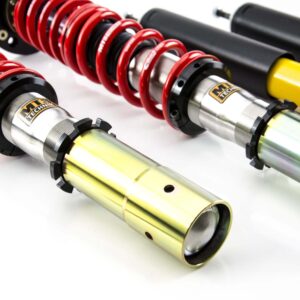

• 26 – Independent height adjustment at the lower brackets on the front dampers.

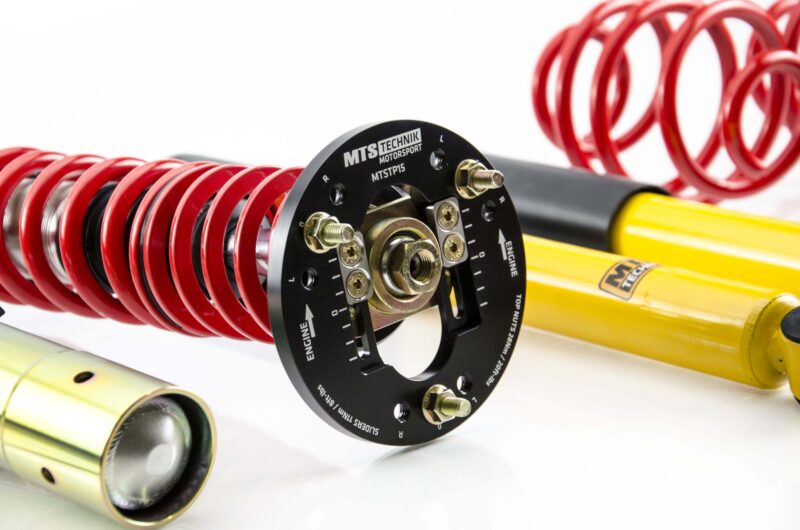

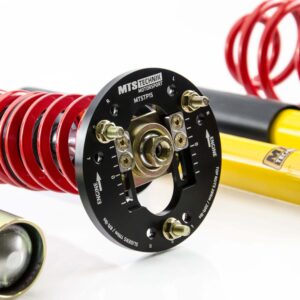

• 28 – Set includes 2x upper “camber plates” on the front axle.
• 29 – The installation requires the use of OE front struts – they should be cut and welded as described in the attached manual.
• 33 – Including M-Technik.

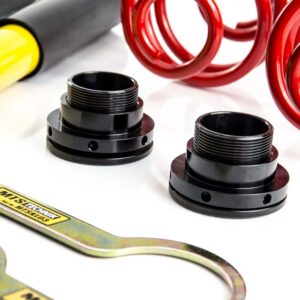

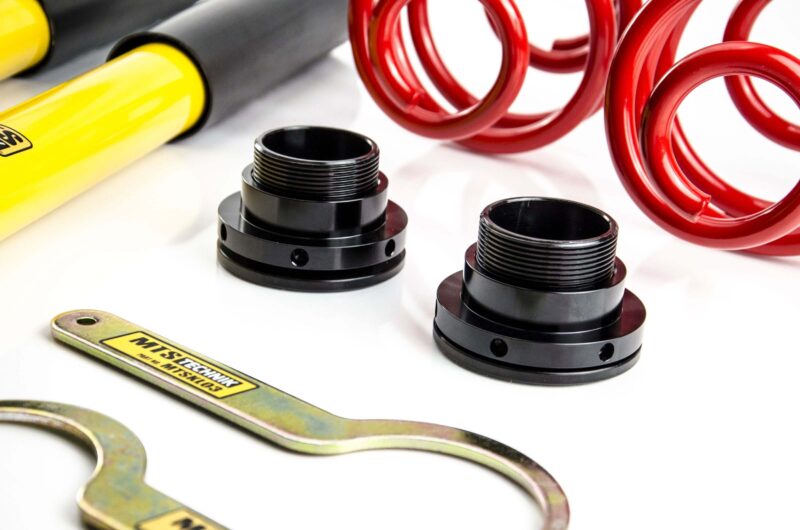

• 35 – Rear thread adjustment block is mounted on the top.
• 73 – For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
• strut diameter at the front axle of 51 mm

MTS Technik Suspension Engineering

MTS Technik Coilover Kit Street BMW 3 (E30) XMTSGWBM11 are engineered to provide reliable performance, adjustable ride height and improved driving dynamics. Designed with precision manufacturing and durable components, these coilovers offer an effective solution for drivers seeking both enhanced vehicle control and a sportier appearance.
