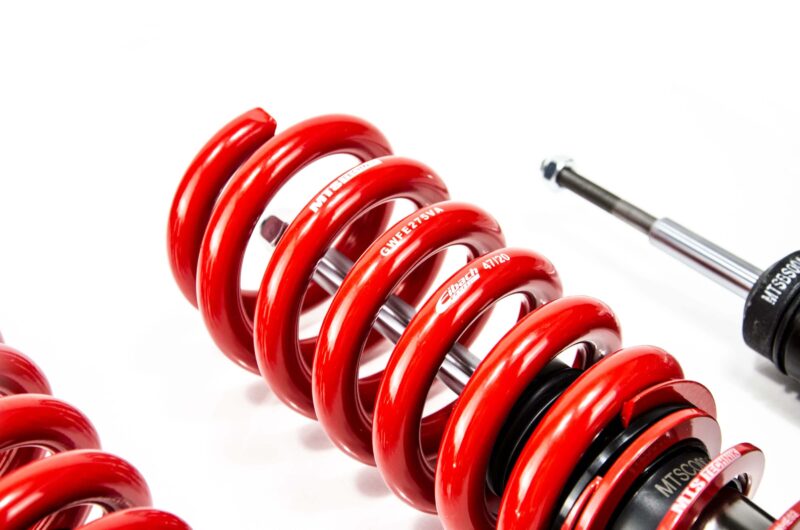

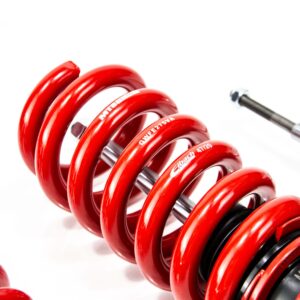

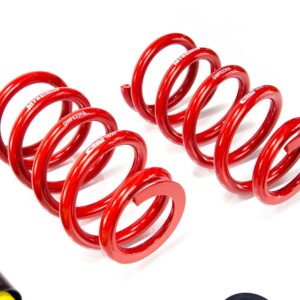

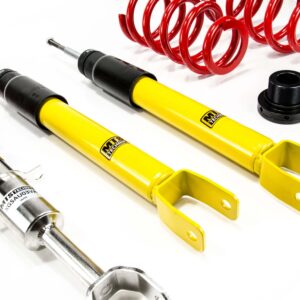

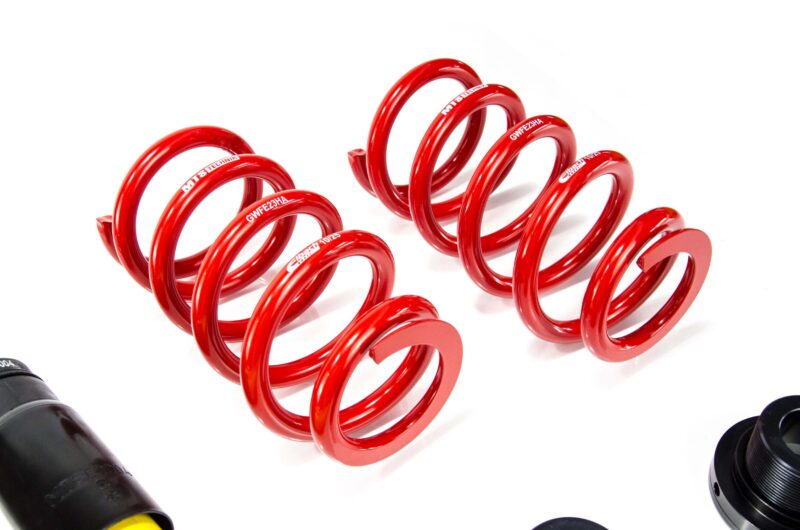

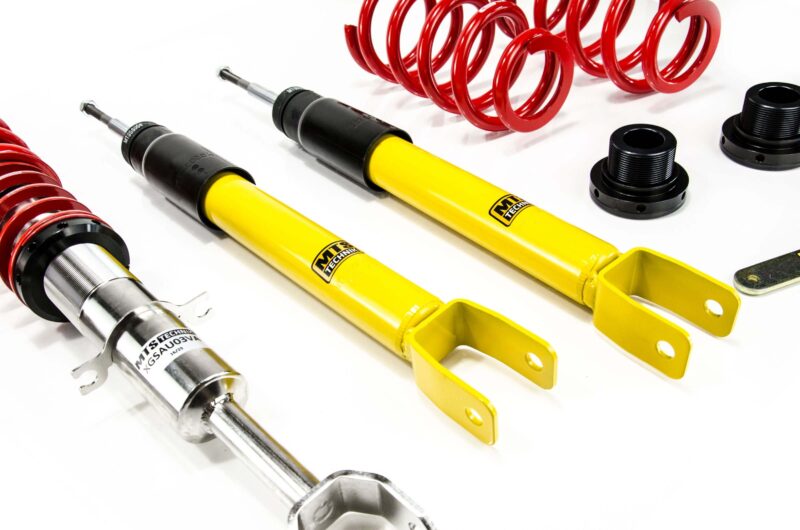

MTS Technik Coilover Kit Stance Audi A8 D2 (4D) XMTSGWAU22-S

The MTS Technik Coilover Kit Stance Audi A8 D2 (4D) XMTSGWAU22-S is designed to improve vehicle handling, driving stability and appearance through adjustable ride height and performance-focused suspension engineering. Developed for enthusiasts who want better control and a lowered stance, this coilover kit delivers a balanced combination of sport performance and daily driving comfort. Manufactured with durable materials and precise engineering, MTS Technik suspension systems are built to meet the demands of both performance driving and everyday use.

Performance Suspension Upgrade

Coilover suspension systems allow drivers to customize the ride height of their vehicle while improving overall driving dynamics. The MTS Technik Coilover Kit Stance helps reduce body roll, improve cornering stability and provide a more responsive driving experience. Adjustable lowering also allows drivers to achieve a sportier stance while maintaining proper suspension functionality.

Key Benefits of MTS Technik Coilover Kit Stance Audi A8 D2 (4D) XMTSGWAU22-S

Adjustable ride height for a customized vehicle stance Improved handling and cornering stability Reduced body roll during dynamic driving Durable suspension construction for long service life Designed for both daily driving and performance builds

Vehicle Compatibility

• Make: Audi
• Model: A8 D2 (4D)
• Type: 4D2, 4D8
• Engine: 3.3 TDI quattro,2.5 TDI quattro
• Engine Code: AKF,AKE,AKN;AFB
• Body Type: Saloon
• Drive Type: AWD (All-Wheel Drive)
• Fuel Type: Diesel
• Production Years: 03/94 – 09/02
• Engine Capacity: 3328,2496 ccm
• Power: 165,132,110 kW

Technical Specifications of MTS Technik Coilover Kit Stance Audi A8 D2 (4D) XMTSGWAU22-S

• Series: Stance
• Damper Housing: Inox
• Maximum Axle Load Front: -1380 kg
• Maximum Axle Load Rear: -1230 kg
• Lowering Front: 10 – 60 mm
• Lowering Rear: 10 – 30 mm
• Front Camber Plates: no
• Rear Camber Plates: no
• TÜV Certificate: yes

Product Information

• Part Number: XMTSGWAU22-S
• EAN Code: 5903855630482

Additional Notes of MTS Technik Coilover Kit Stance Audi A8 D2 (4D) XMTSGWAU22-S

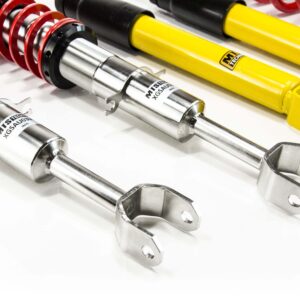

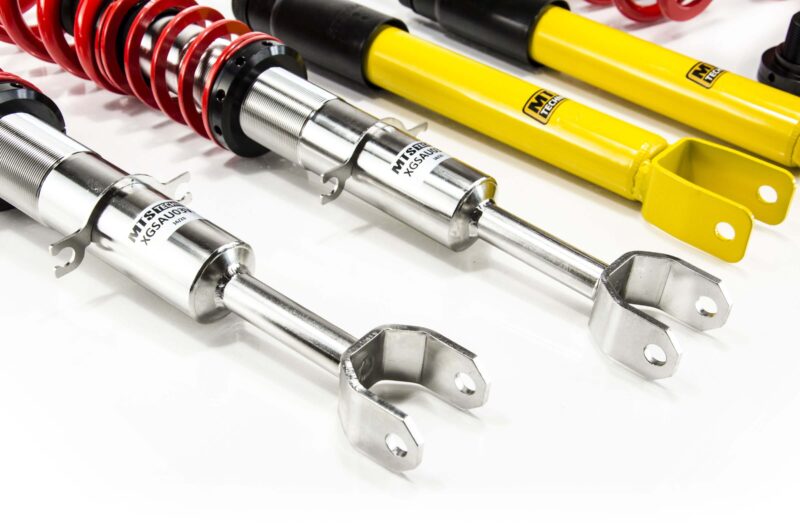

• 3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
• 21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• 24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.

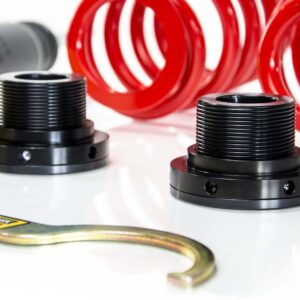

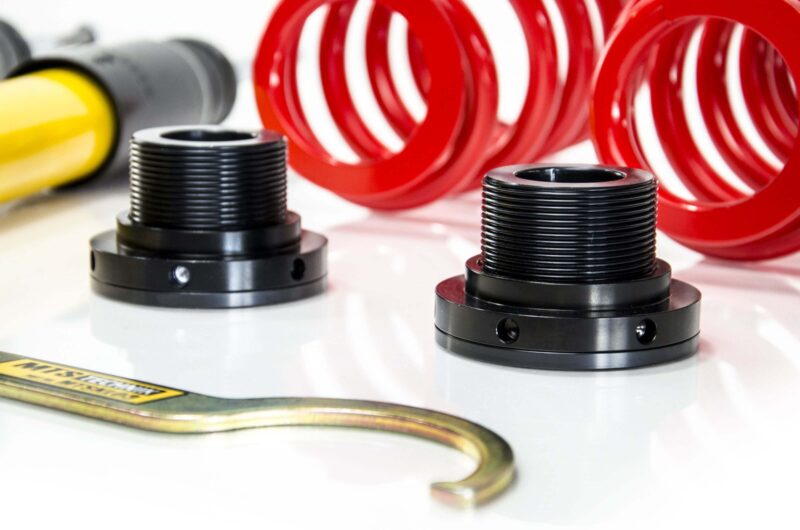

• 36 – Rear thread adjustment block is mounted on the bottom.
• 40 – Installation is also possible on vehicles equipped with NIVO / factory pneumatic suspension. In this case the assembly is possible only after the disassembly of the factory pneumatic system. In some cases, it may be necessary to use additional OEM Audi parts.
• 73 – For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.

MTS Technik Suspension Engineering

MTS Technik Coilover Kit Stance Audi A8 D2 (4D) XMTSGWAU22-S are engineered to provide reliable performance, adjustable ride height and improved driving dynamics. Designed with precision manufacturing and durable components, these coilovers offer an effective solution for drivers seeking both enhanced vehicle control and a sportier appearance.
