Wagner Tuning Competition Intercooler EVO3 for Audi TTRS 8S 2.5 TFSI 200001136.S
The Wagner Tuning Competition Intercooler EVO3 for Audi TTRS 8S 2.5 TFSI 200001136.S is a high-performance upgrade designed to significantly improve charge air cooling and engine efficiency. Engineered for demanding street and motorsport applications, this intercooler ensures lower intake temperatures, increased power potential, and enhanced reliability for turbocharged Audi engines. Developed with advanced flow optimization and precision manufacturing, the 200001136.S intercooler provides maximum cooling surface area while maintaining excellent airflow characteristics.
Performance Benefits of Wagner Tuning Competition Intercooler EVO3 for Audi TTRS 8S 2.5 TFSI 200001136.S
Improved Cooling Efficiency – Larger core volume and optimized fin design reduce intake air temperatures. Increased Power Potential – Lower temperatures allow for more aggressive tuning and improved combustion efficiency. Reduced Pressure Drop – Optimized internal flow channels ensure maximum airflow without restriction. Enhanced Engine Reliability – Stable intake temperatures protect against heat soak during spirited driving or track use. Motorsport-Proven Engineering – Designed for both high-performance street builds and track-driven vehicles.
Technical Information
- Brand: Wagner Tuning
- Product Name: Competition Intercooler EVO3 for Audi TTRS 8S 2.5 TFSI
- Product Reference Code: 200001136.S
- Vehicle Make: Audi
- Vehicle Model: Audi TTRS 8S
- Engine Compatibility: TTRS 8S 2.5 TFSI
- Weight: 20.0
Why Choose Wagner Tuning?
Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Competition Intercooler EVO3 for Audi TTRS 8S 2.5 TFSI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.
Wagner Tuning product information about Wagner Tuning Competition Intercooler EVO3 for Audi TTRS 8S 2.5 TFSI 200001136.S
Competition Intercooler Kit EVO3 for Audi TTRS 8S now available with parts certificate and two different intercooler core options
Wagner Tuning EVO3 intercooler for Audi TTRS 8S – 101% more volume & parts certified
Get your Audi TTRS 8S ready for a performance boost! With the Wagner Tuning EVO3 high-performance intercooler, you can take your vehicle’s performance to a whole new level. This innovative upgrade is the ultimate solution for optimizing engine cooling, minimizing back pressure, and achieving a massive increase in performance – now with official parts certification.
Why our EVO3 intercooler is the best choice for your TTRS 8S:
Massive performance increase thanks to 101% more volume: With impressive mesh dimensions of 515 mm x 367 mm x 95 mm (stepped) and a total volume of 16.5 liters, this intercooler offers a sensational 84% larger flow area and a massive 101% more charge air volume compared to the standard cooler. The result: significantly more cool, dense air for your engine, even under the highest loads.

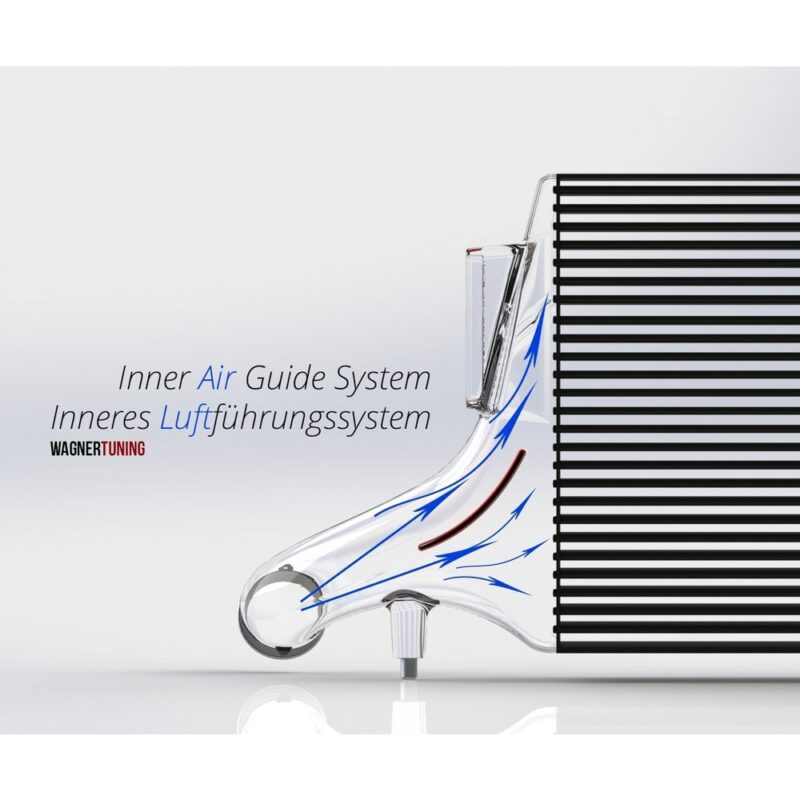

Optimal airflow & minimal back pressure: At the heart of the system is our high-quality competition high-performance mesh (tube fin), which ensures outstanding cooling performance with minimal back pressure. The cast aluminum end boxes, optimized in the CAD system using CFD flow analyses, maximize the internal airflow. An additional integrated air baffle ensures even filling. The flow-optimized design not only improves cooling, but also the response of your engine.
Two versions for maximum performance: You can choose between the standard version for power classes up to 600 hp and the X version for power above 600 hp to ensure perfect cooling for your individual setup.
Professional installation & highest quality: Installation is carried out at the original mounting points and, thanks to the detailed installation instructions, is an uncomplicated replacement that requires only minimal adjustments. The intercooler forms a stable unit with the original cross member and has been tested for pressure stability up to 6 bar. Weighing only 11.7 kg, the cooler is lightweight yet extremely robust. A special anti-corrosion coating with excellent thermal conductivity properties guarantees long-lasting and optimal cooling performance.
Technical details & vehicle compatibility:
Wagner Tuning intercooler:
Net dimensions: 515 mm x 367 mm x 95 mm (stepped)
Cooling surface: 1890 cm² (+84% vs. OEM 1024 cm²)
Intercooler volume: 16.5 liters (+101% vs. OEM 8.2 L)
Inlet and outlet: Ø68 mm
Weight: 11.7 kg
Pressure stability: Up to 6 bar
Parts certificate: Yes, for vehicles without OPF (gasoline particulate filter)
Suitable for: Audi TTRS 8S
Part number: 200001136
Kit comes with:
1x intercooler (together with the cross member)
1x mounting material
1x installation instructions
1x parts certificate
